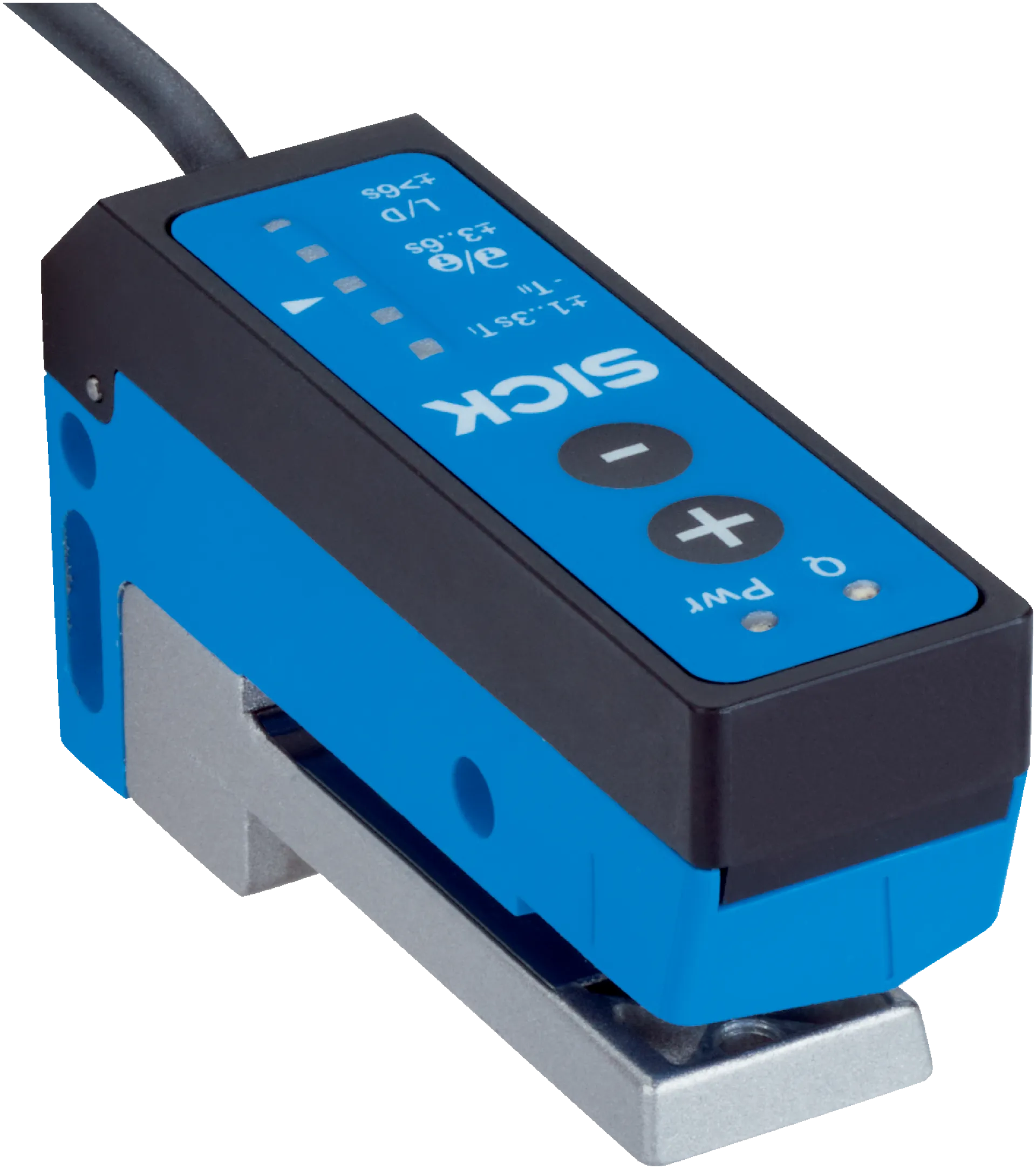

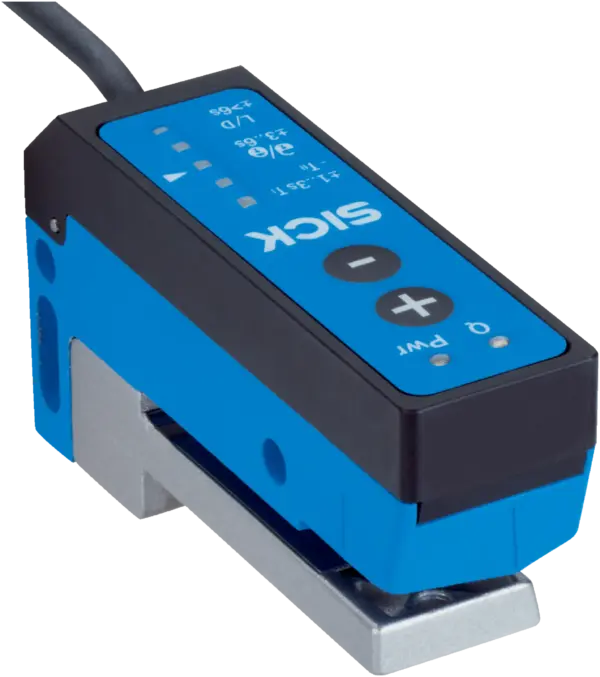

Fork sensors | UFS | UFS3-37P115 | Communication interface: IO-Link | Adjustment: Plus/minus button, cable | Fork width/depth: 2.6 mm, 42.5 mm | Switching output: PNP | Switching mode: Light/dark swit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fork sensors | UFS | UFS3-37P115 | Communication interface: IO-Link | Adjustment: Plus/minus button, cable | Fork width/depth: 2.6 mm, 42.5 mm | Switching output: PNP | Switching mode: Light/dark switching | Length of cable: 2 m | Connection type Detail: Cable open end, 4-wire | Switching frequency: 1.1 kHz | Response time: ≤ 440 µs | Enclosure rating: IP65
Specification
Features
| Functional principle | Ultrasonic detection principle |
|---|---|
| Housing design | Fork shaped |
| Dimensions (W x H x D) | 20 mm x 37.4 mm x 70 mm |
| Fork width | 2.6Â mm |
| Fork depth | 42.5Â mm |
| Label detection | ✔ |
| Minimum detectable object (MDO) | Label size: 2 mm 1)Label gap: 1 mm 1) |
| Display | LED indicator green: power onLED indicator, yellow: Status switching output Q |
| Adjustment | Plus/minus button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) |
| Teach-in mode | 1-point teach-in2-point teach-inTeach-in dynamic |
Interfaces
| IO-Link | ✔ , V1.1 |
|---|---|
| Data transmission rate | COM3 (230,4Â kBaud) |
| Cycle time | 4Â ms |
| VendorID | 26 |
| DeviceID HEX | 0x8002A6 |
| DeviceID DEC | 8389286 |
| Process data length | 16Â Bit |
| Process data structure A | Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 = switching signal QInt1Bit 3 = switching signal QInt2Bit 4 = alarm QoRBit 5 = Teach busyBit 6 … 15 = measured value |
| Digital output | Q1 |
| Number | 1 |
Electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | <Â 10Â %Â 2) |
| Current consumption | 50Â mAÂ 3) |
| Initialization time | 100Â ms |
| Switching frequency | 1.1 kHz 4) |
| Jitter | 40 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGHÂ = VS - 3Â V / LOWÂ = 0Â V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100Â mAÂ 5) |
| Input, teach-in (ET) | Teach: U < 2Â V: Run: UÂ = 10Â VÂ ... < UV |
| Protection class | IIIÂ 6) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | ZamakGlass fiber reinforced plastic |
|---|---|
| Weight | Approx. 100 g |
Ambient data
| Ambient operating temperature | +5 °C ... +55 °C 1) |
|---|---|
| Ambient temperature, storage | –20 °C ... +70 °C |
| Shock load | According to ENÂ 60068-2-27 |
| EMC | ENÂ 60947-5-2Â 2) |
| Enclosure rating | IP65 |
| UL File No. | NRKH.E191603 & NRKH7.E191603 |
Connection type/pinouts
| Length of cable | 2Â m |
|---|---|
| Cable material | PVC |
| Cable diameter | Ø 3.5 mm |
| Conductor cross section | 0.14 mm² |
| BN | + (L+) |
| WH | MFIn/Out |
| BU | - (M) |
| BK | Q/C |
Smart Task
| Smart Task name | Base logics |
|---|
Classifications
| ECLASS 5.0 | 27270909 |
|---|---|
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
