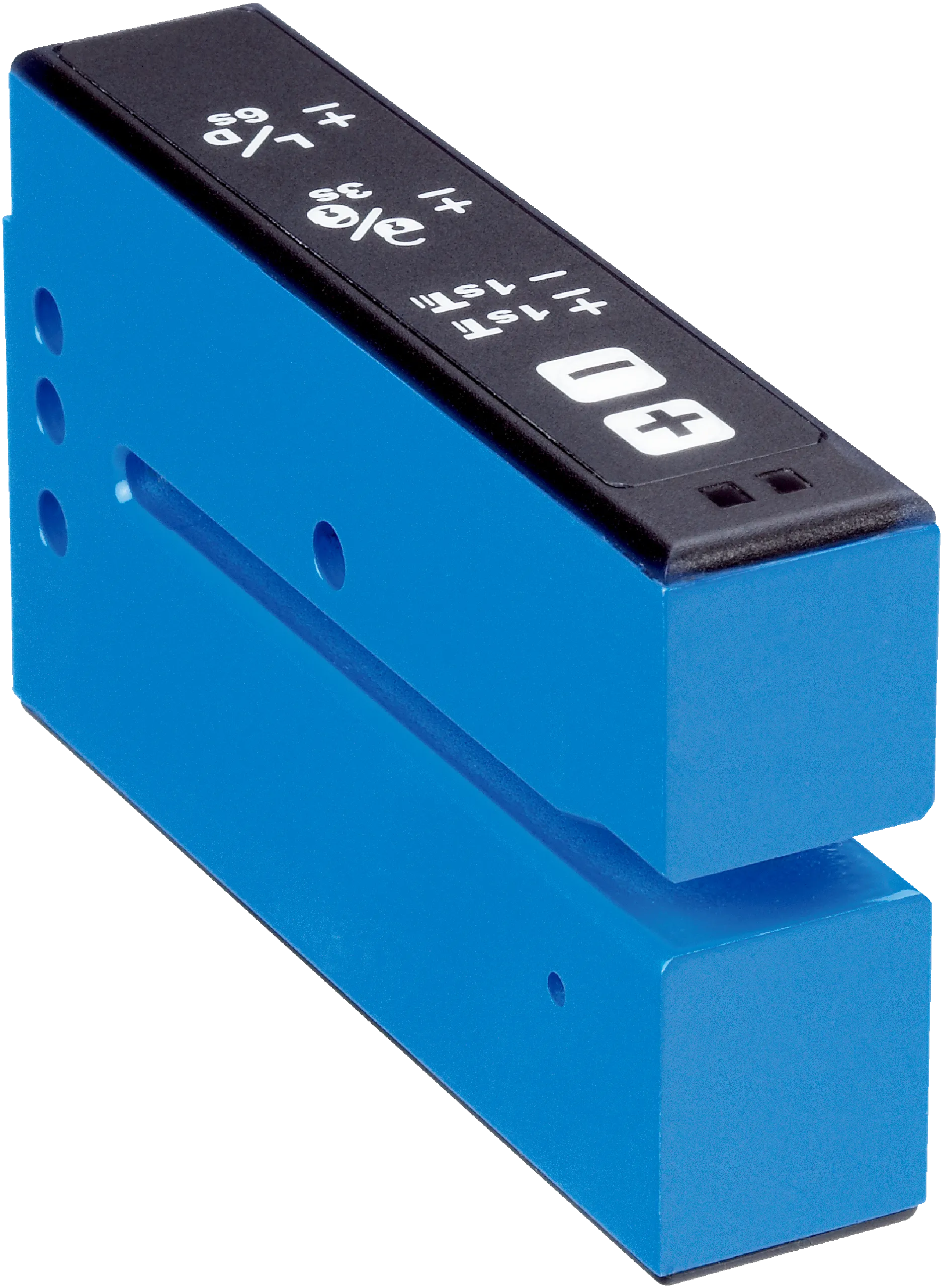

Sick UFN3-70B113
Fork sensors | UF | UFN3-70B113 | Communication interface: – | Adjustment: Plus/minus button | Fork width/depth: 3 mm, 69 mm | Switching output: PNP, NPN | Switching mode: Light/dark switching | Conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fork sensors | UF | UFN3-70B113 | Communication interface: – | Adjustment: Plus/minus button | Fork width/depth: 3 mm, 69 mm | Switching output: PNP, NPN | Switching mode: Light/dark switching | Connection type Detail: Cable, 4-wire | Switching frequency: 1.5 kHz | Response time: ≤ 250 µs | Enclosure rating: IP65
Specification
Features
| Functional principle | Ultrasonic detection principle |
|---|---|
| Housing design | Fork shaped |
| Dimensions (W x H x D) | 18 mm x 47.5 mm x 85.5 mm |
| Fork width | 3Â mm |
| Fork depth | 69Â mm |
| Label detection | ✔ |
| Minimum detectable object (MDO) | Gap between Labels / Size of labels: 2 mm 1) |
| Adjustment | Plus/minus button (Teach-in, sensitivity, light/dark switching) |
| Teach-in mode | 2-point teach-inTeach-in dynamic |
| MTTFD | 207Â years |
| DCavg | 0Â % |
Electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | <Â 10Â %Â 2) |
| Current consumption | 40Â mAÂ 3) |
| Initialization time | 100Â ms |
| Switching frequency | 1.5 kHz 4) |
| Switching output | PNPNPN |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 VNPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100Â mAÂ 5) |
| Protection class | IIIÂ 6) |
| Circuit protection | Output Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | Aluminum |
|---|---|
| Weight | +Â 95Â g |
Ambient data
| Ambient operating temperature | +5 °C ... +55 °C 1) |
|---|---|
| Ambient temperature, storage | –20 °C ... +70 °C |
| Shock load | According to ENÂ 60068-2-27 |
| EMC | ENÂ 60947-5-2Â 2) |
| Enclosure rating | IP65 |
| UL File No. | NRKH.E191603 & NRKH7.E191603 |
Classifications
| ECLASS 5.0 | 27270909 |
|---|---|
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
