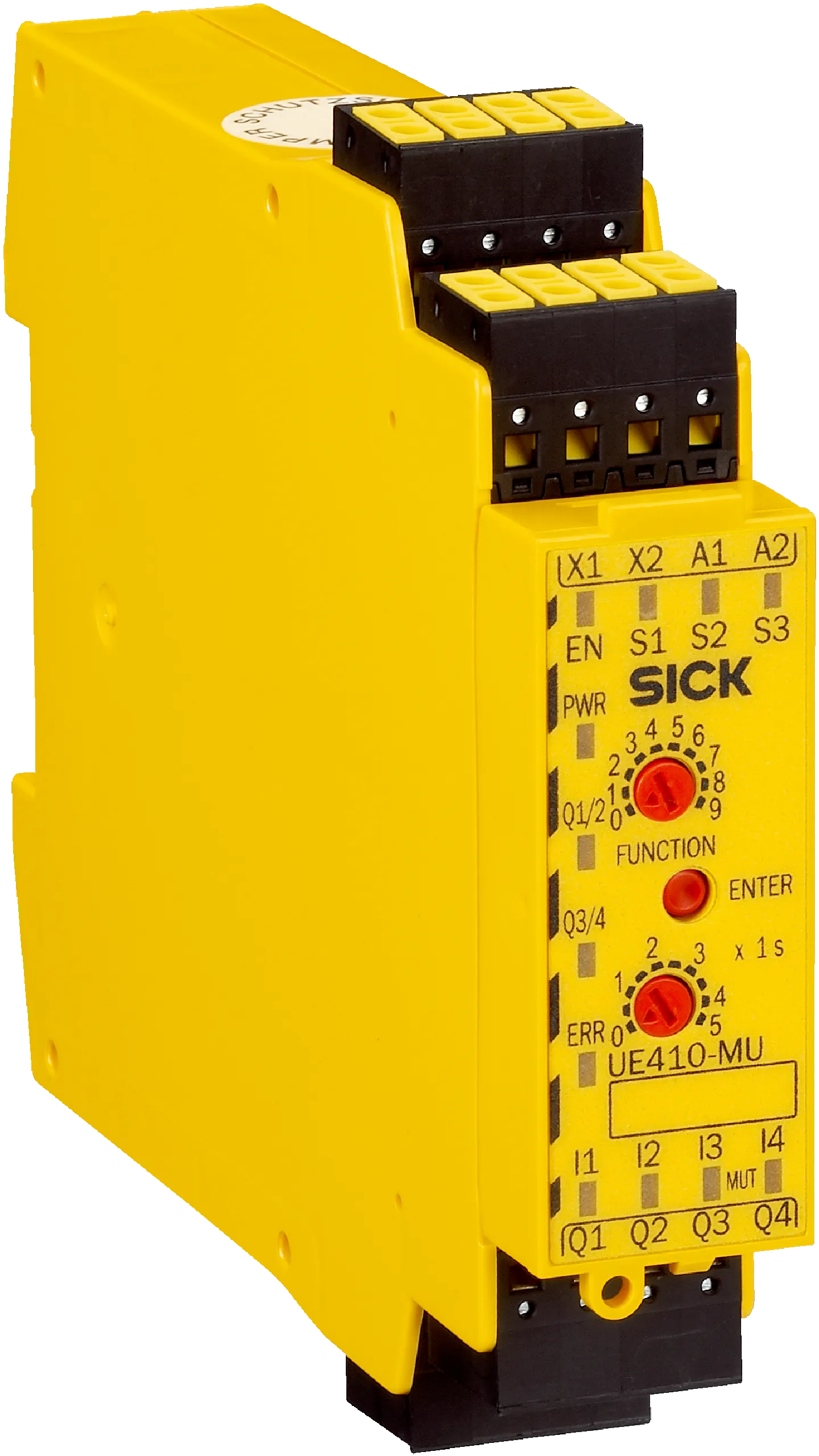

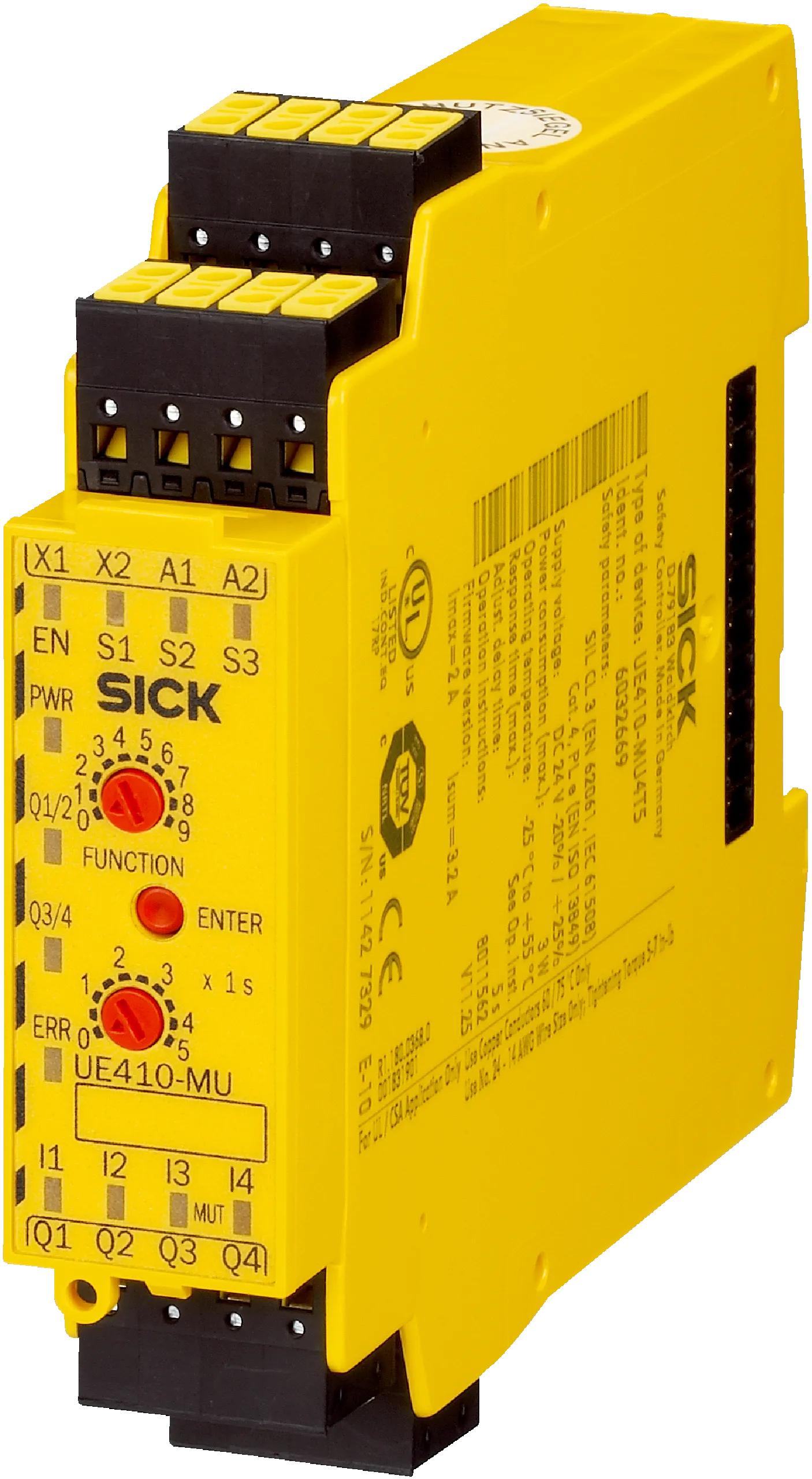

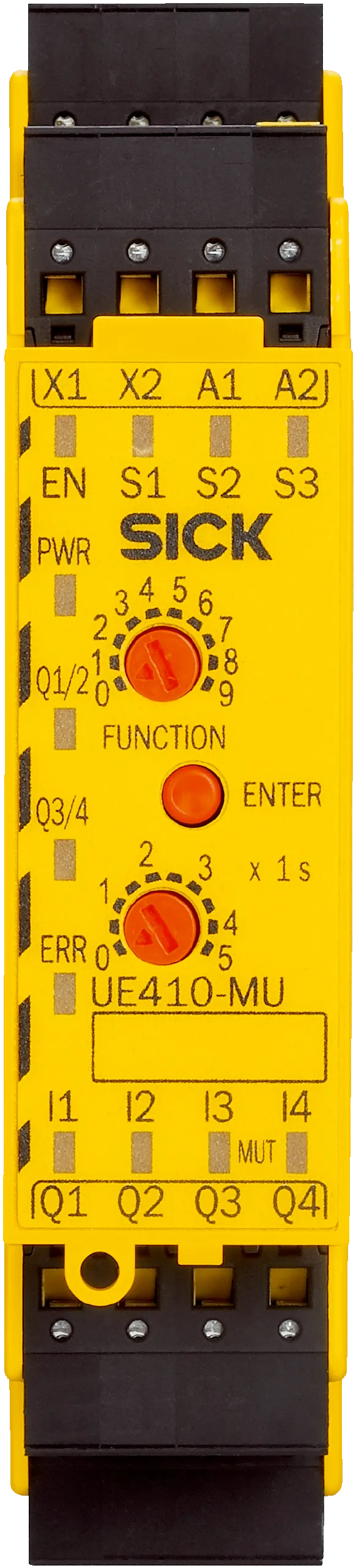

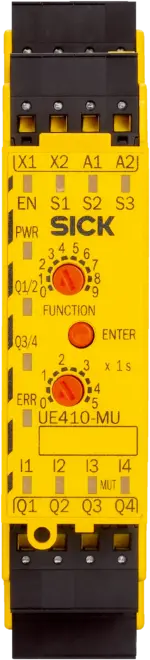

Sick UE410-MU3T5
Safety controllers | Flexi Classic | UE410-MU3T5 | Module: Main module | Specialization: Universal | Inputs: 4 safety inputs, 4 switching inputs | Number of muting sensors: 0 / 2 | Outputs: 4 safety o…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Classic | UE410-MU3T5 | Module: Main module | Specialization: Universal | Inputs: 4 safety inputs, 4 switching inputs | Number of muting sensors: 0 / 2 | Outputs: 4 safety outputs, 2 test outputs | Delay time (outputs Q3/Q4): 0 s … 5 s | Connection type: Plug-in screw-type terminals | Protective coating for more challenging ambient conditions: no
Specification
Features
| Module | Main module |
|---|---|
| Configuration method | Via rotary switch |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 2.5 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
Functions
| Restart interlock | Manual / automatic (configurable) |
|---|---|
| External device monitoring (EDM) | â |
| AND operation | â |
| OR operation | â |
| Bypass | â |
| Differentiation between man and material (muting) | â |
Interfaces
| Inputs | 4Â safety inputs4Â switching inputs |
|---|---|
| Number of muting sensors | 0Â / 2 |
| Outputs | 4Â safety outputs2Â test outputs |
| Delay time (outputs Q3/Q4) | 0 s ... 5 s |
| Connection type | Plug-in screw-type terminals |
| Display elements | LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Type of voltage supply | PELV or SELVÂ 1) |
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 30Â VÂ DC) |
| Residual ripple | ⤠10 % |
| Power consumption | â¤Â 3 W (DC) |
| Switch-on time | â¤Â 60 s |
| Internal power consumption | ⤠3 W (DC) |
Mechanics
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.8 mm |
|---|---|
| Weight | +Â 180Â g |
Ambient data
| Housing | IP40 (ENÂ 60529) |
|---|---|
| Terminals | IP20 (ENÂ 60529) |
| Ambient operating temperature | â25 °C ... +55 °C |
| Storage temperature | â25 °C ... +70 °C |
| Air humidity | ⤠95 %, Non-condensing |
| Climate conditions according to | EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) |
| Electromagnetic compatibility (EMC) | Class A (ENÂ 61000-6-2, ENÂ 55011) |
| Vibration resistance | 5 g RMS, 5 Hz ... 500 Hz (EN 60068-2-64) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| UK-Type-Examination approval | â |
| cULus certificate | â |
| cTUVus certificate | â |
| EC-Type-Examination approval | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
