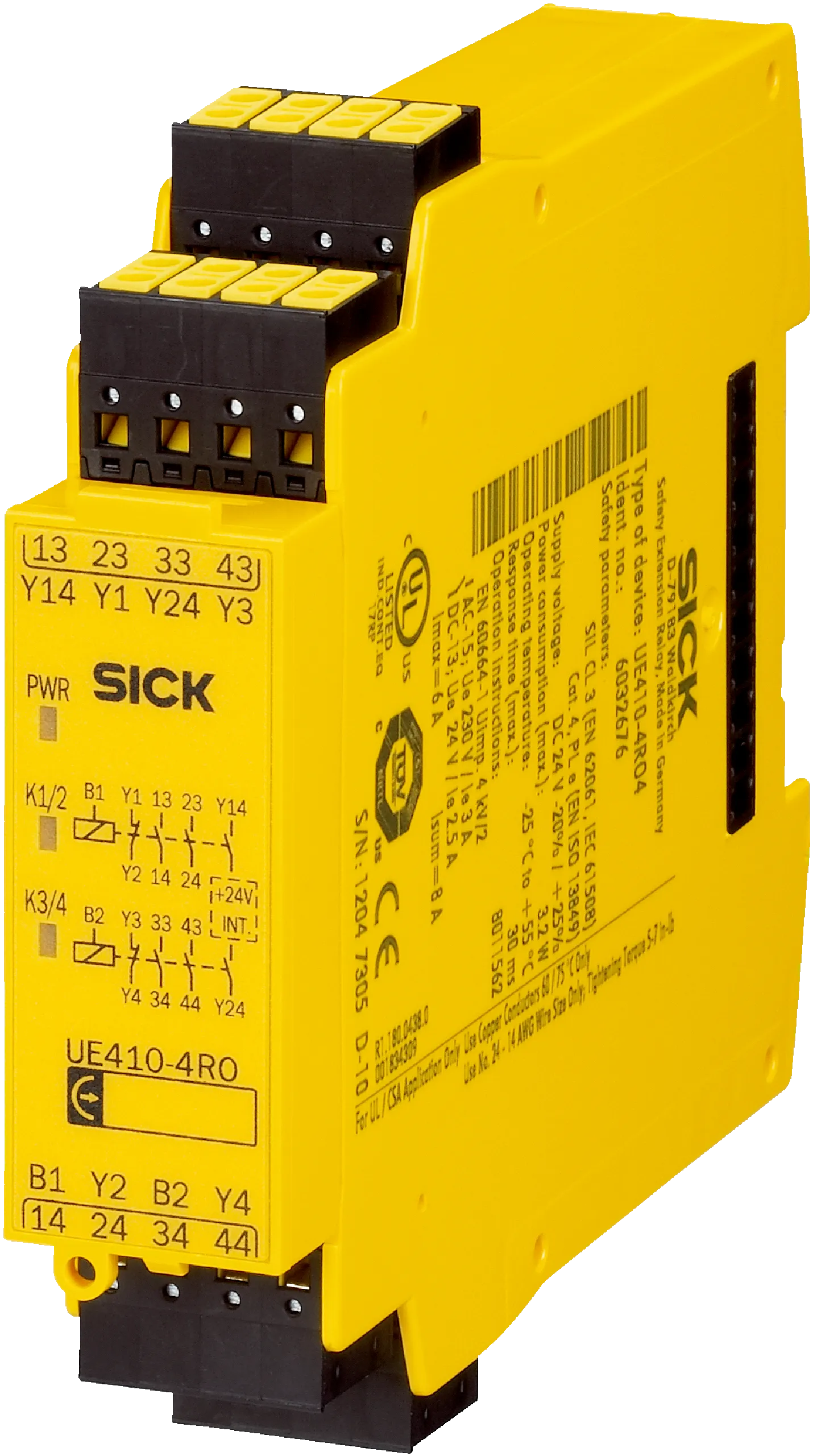

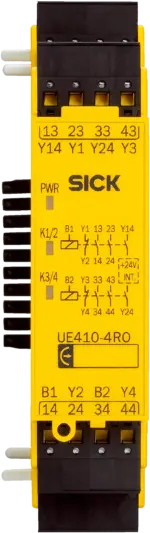

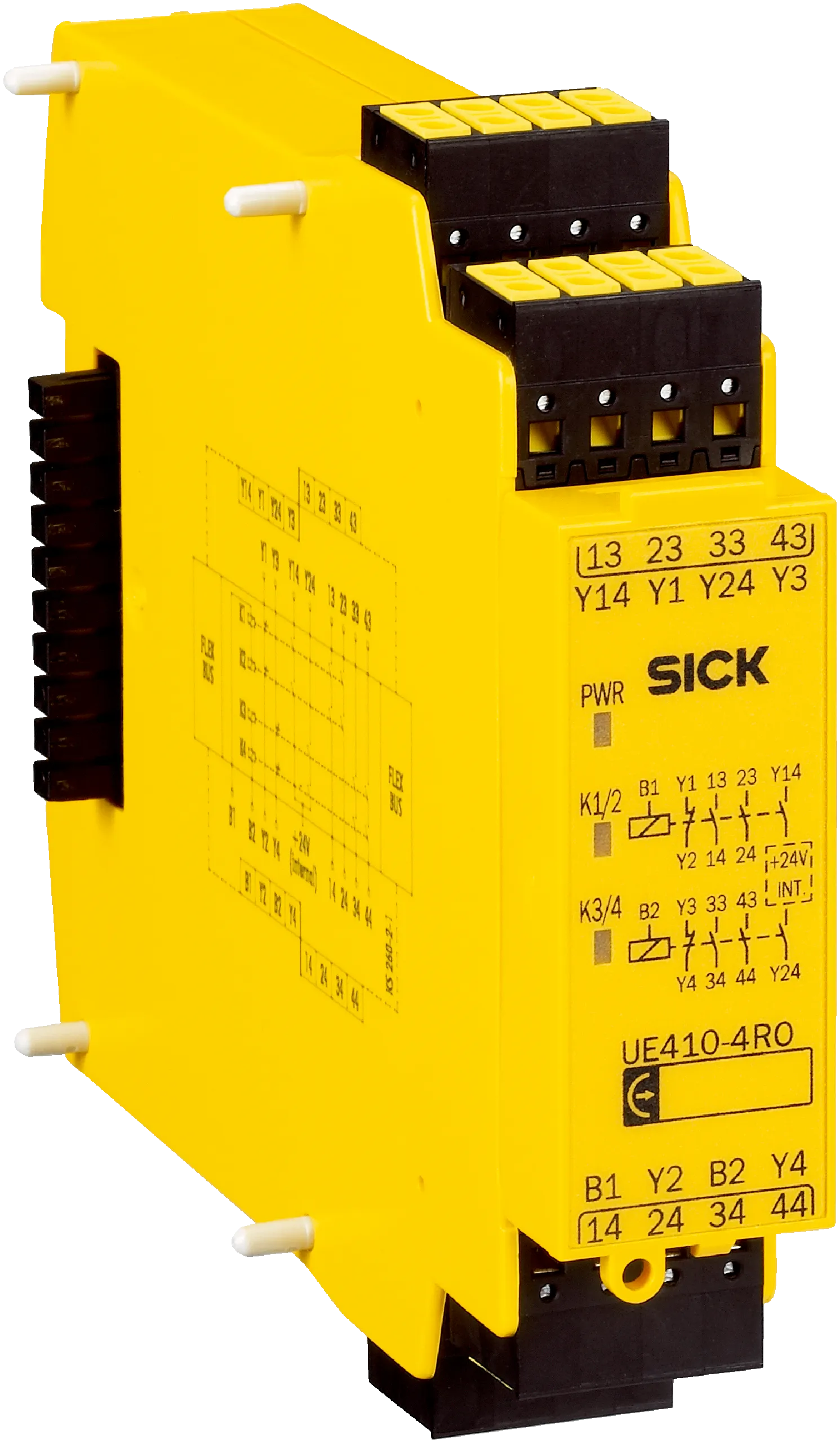

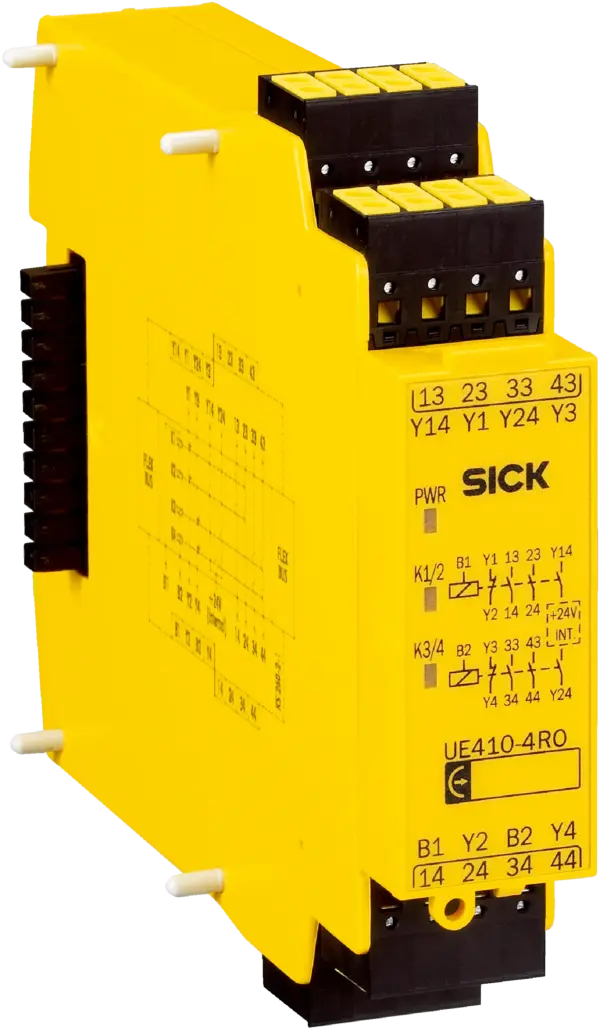

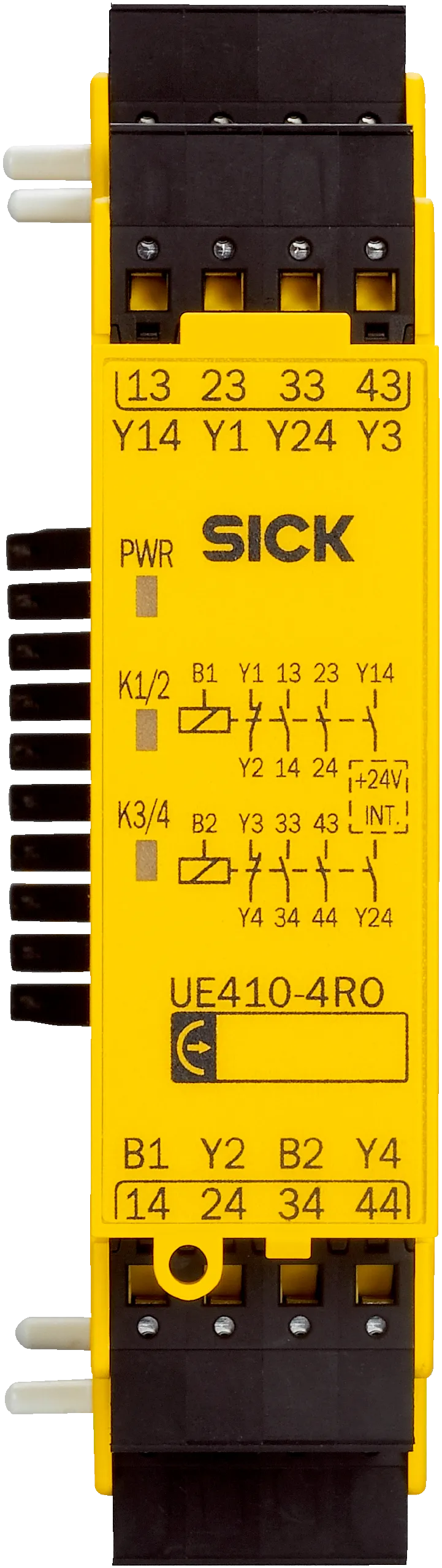

Sick UE410-4RO4
Safety controllers | Flexi Classic | UE410-4RO4 | Module: Relay module | Specialization: Relay expansion module | Outputs: 4 enabling current paths | Connection type: Plug-in spring terminals | Protec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Classic | UE410-4RO4 | Module: Relay module | Specialization: Relay expansion module | Outputs: 4 enabling current paths | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no
Specification
Features
| Module | Relay module |
|---|---|
| Configuration method | Hard wired |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
Interfaces
| Outputs | 4Â enabling current paths |
|---|---|
| Number of control inputs | 2Â (B1, B2) |
| Number of enable current contacts | 4Â (13/14, 23/24, 33/34, 43/44) |
| Number of signaling current paths | 2Â (Y14, Y24) |
| Number of signaling current contacts | 2Â (Y1/Y2, Y3/Y4) |
| Connection type | Plug-in spring terminals |
| Display elements | LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Voltage supply | Via FLEXBUS+ |
| Power consumption | â¤Â 3.2 W |
| Internal power consumption | ⤠3.2 W 1) |
| Overvoltage category | II (ENÂ 61131-2) |
| Terminals | B1, B2 |
| Input voltage | 18Â VÂ DCÂ ... 30Â VÂ DC |
| Terminals | 13/14, 23/24, 33/34, 43/44 |
| Type of output | Potential-free NO contacts, positively guided |
| Switching voltage | 5Â VÂ AC/DCÂ ... 253Â VÂ AC/DC |
| Current loading | 10Â mAÂ ... 6Â A |
| Terminals | Y14, Y24 |
| Type of output | NO contact, connected to internal 24Â VÂ DC, positively guided, current-limited |
| Output voltage | 16Â VÂ DCÂ ... 30Â VÂ DC |
| Output current | â¤Â 75 mA |
| Terminals | Y1/Y2, Y3/Y4 |
| Type of output | Potential-free NC contacts, positively guided |
| Switching voltage | 5Â VÂ AC/DCÂ ... 253Â VÂ AC/DC |
| Current loading | 10Â mAÂ ... 6Â A |
Mechanics
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.8 mm |
|---|---|
| Weight | 186 g (± 5 %) |
Ambient data
| Housing | IP40 (ENÂ 60529) |
|---|---|
| Terminals | IP20 (ENÂ 60529) |
| Ambient operating temperature | â25 °C ... +55 °C |
| Storage temperature | â25 °C ... +70 °C |
| Air humidity | ⤠95 %, Non-condensing |
| Climate conditions according to | EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) |
| Electromagnetic compatibility (EMC) | Class A (ENÂ 61000-6-2, ENÂ 55011) |
| Vibration resistance | 5 g RMS, 5 Hz ... 500 Hz (EN 60068-2-64) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| UK-Type-Examination approval | â |
| cULus certificate | â |
| KC Mark certificate | â |
| cTUVus certificate | â |
| S Mark certificate | â |
| EC-Type-Examination approval | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
