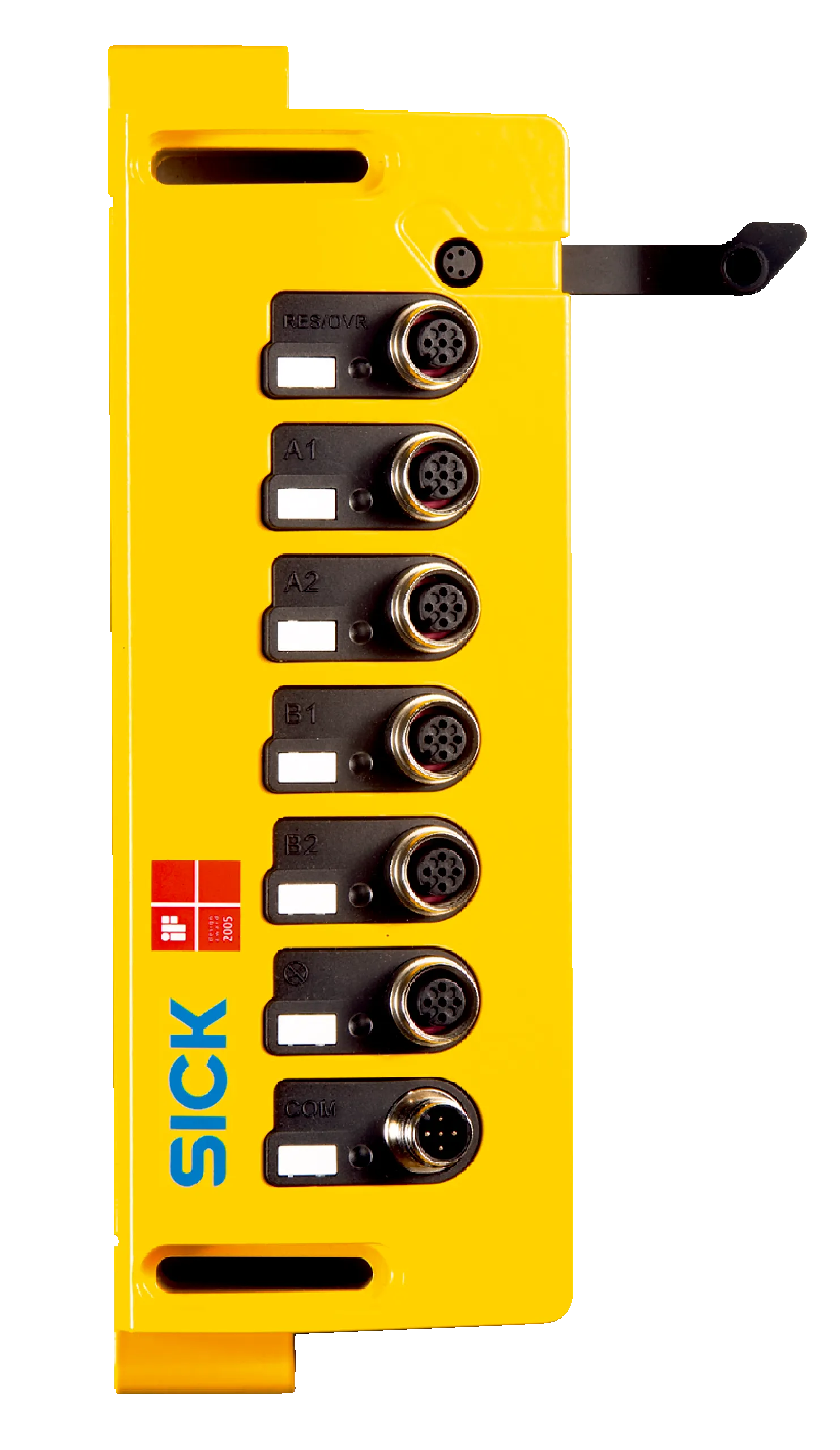

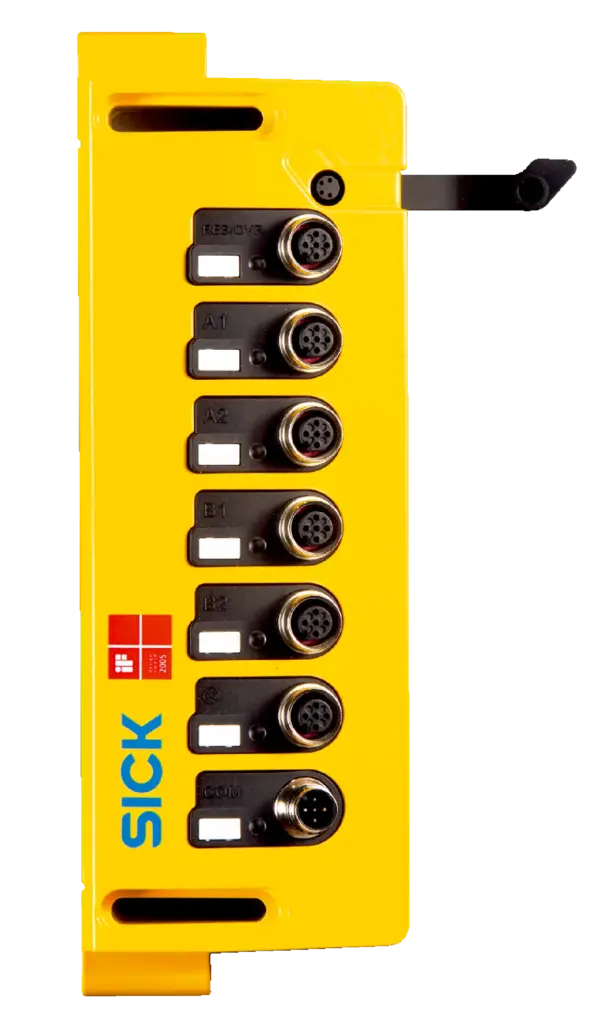

Sick UE403-A0930
System plugs and extension modules | UE403 | UE403-A0930 | Applications: Muting switching amplifier | Compatible sensor types: M4000 Advanced multiple light beam safety devices | Mounting: Flexible mo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System plugs and extension modules | UE403 | UE403-A0930 | Applications: Muting switching amplifier | Compatible sensor types: M4000 Advanced multiple light beam safety devices | Mounting: Flexible mounting on the M4000 Advanced or directly in the system
Specification
Features
| Application | Muting switching amplifier |
|---|---|
| Compatible sensor types | M4000 Advanced multiple light beam safety devices |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 1.0 x 10-8 (EN ISO 13849) 1) |
| TM (mission time) | 18Â years (ENÂ ISOÂ 13849)Â 1) |
Functions
| Concurrence monitoring | ✔ |
|---|---|
| Monitoring of total muting time | ✔ |
| Sensor gap monitoring | ✔ |
| Belt stop | ✔ |
| Muting with override | ✔ |
| Exit monitoring | ✔ |
| End of muting by ESPE | ✔ |
Interfaces
| Connection type | Female connector M12, 5-pin |
|---|---|
| Permitted cable length | ≤ 10 m |
| Diagnostic display | LEDs |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC)Â 1) |
| Power consumption | ≤ 2 A |
| ON state, switching voltage HIGH | 24Â VÂ DC (11Â VÂ DCÂ ... 30Â VÂ DC) |
| OFF state, switching voltage LOW | 0 V DC (–30 V DC ... 5 V DC) |
| Input current HIGH | 6Â mAÂ ... 15Â mA |
| Input current LOW | –0.5 mA ... 1.5 mA |
| Supply voltage | 24Â VÂ DC (15Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Output current | ≤ 400 mA 2) |
| Supply voltage | 24Â VÂ DC (15Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Output current | ≤ 500 mA 2) |
| Output current HIGH (monitored) | 20Â mAÂ ... 400Â mAÂ 3) |
| Output current HIGH (not monitored) | 0Â mAÂ ... 400Â mAÂ 3) |
Mechanics
| Mounting | Flexible mounting on the M4000 Advanced or directly in the system |
|---|---|
| Dimensions (W x H x D) | 76.5 mm x 225.2 mm x 40 mm |
| Housing material | Aluminum die cast, powder coated |
| Material, connector strip | Polyamide |
| Weight | 600Â g |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (EN 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (IECÂ 60068-2-29) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| ULus approval | ✔ |
| cUL approval | ✔ |
| EC-Type-Examination approval | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27272790 |
|---|---|
| ECLASS 5.1.4 | 27272790 |
| ECLASS 6.0 | 27272790 |
| ECLASS 6.2 | 27272790 |
| ECLASS 7.0 | 27272790 |
| ECLASS 8.0 | 27272790 |
| ECLASS 8.1 | 27272790 |
| ECLASS 9.0 | 27272792 |
| ECLASS 10.0 | 27272792 |
| ECLASS 11.0 | 27272792 |
| ECLASS 12.0 | 27272792 |
| ETIM 5.0 | EC011349 |
| ETIM 6.0 | EC011349 |
| ETIM 7.0 | EC011349 |
| ETIM 8.0 | EC011349 |
| UNSPSC 16.0901 | 41113704 |
