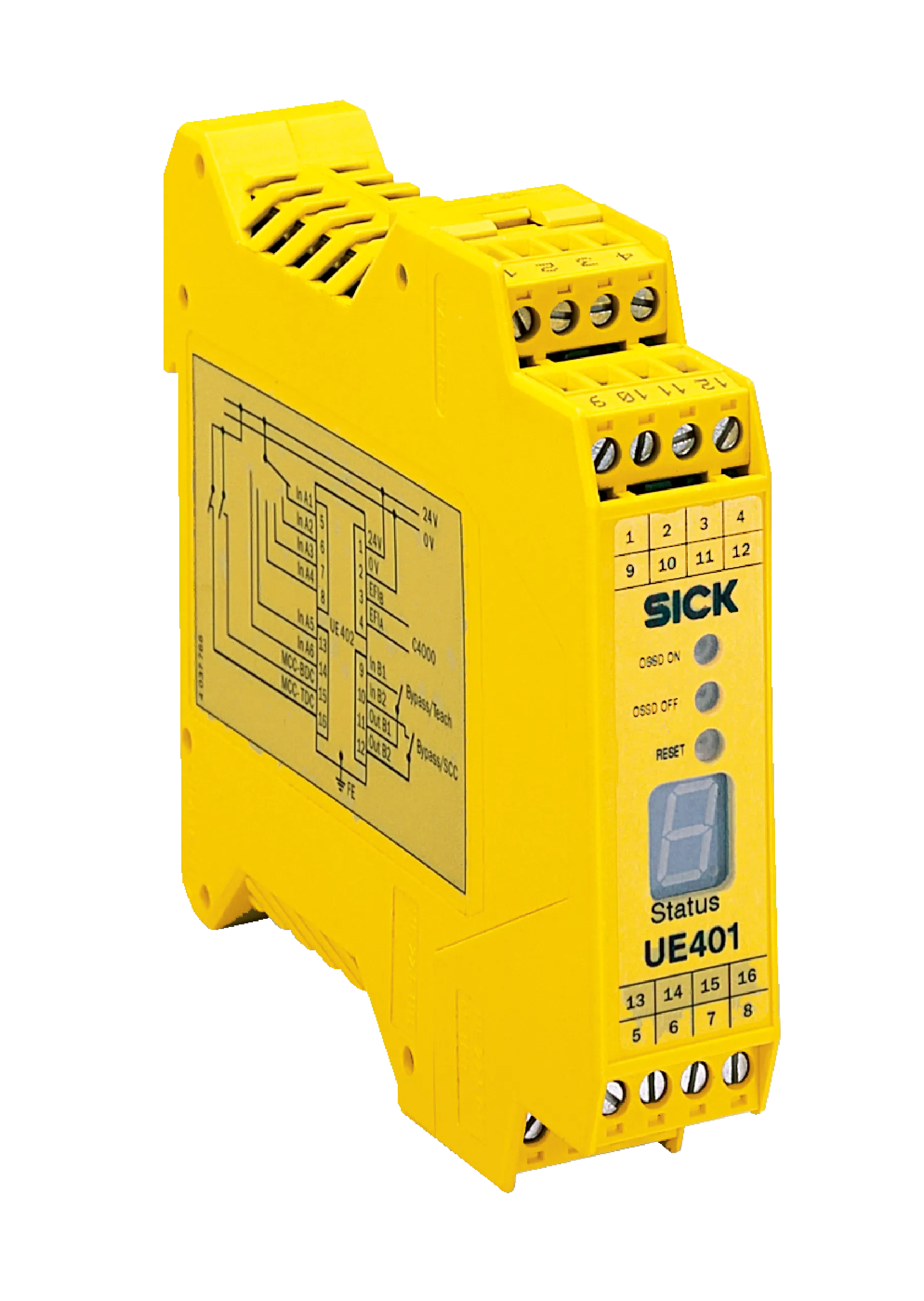

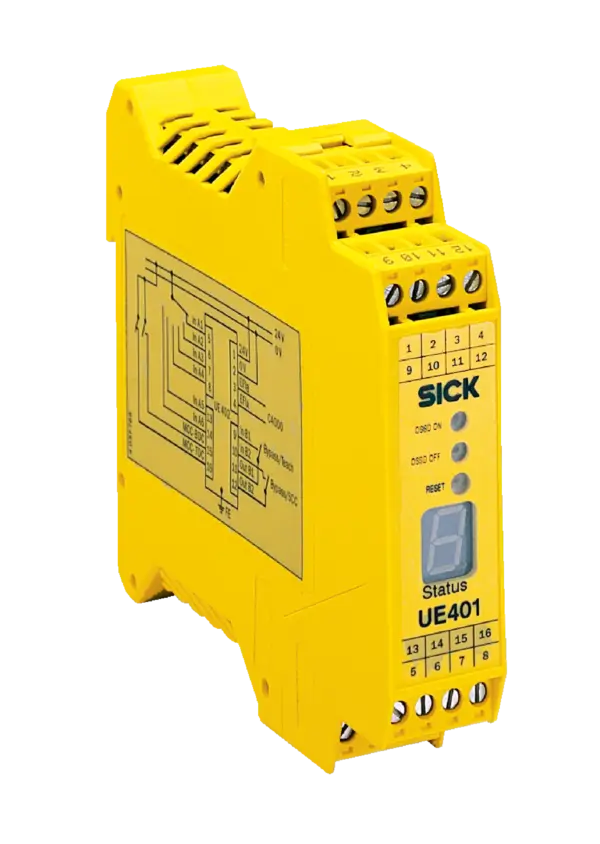

Sick UE401-A0010
System plugs and extension modules | UE401 | UE401-A0010 | Applications: Evaluation unit | Description: UE401 evaluation unit | Compatible sensor types: L4000 Systems single-beam photoelectric safety…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System plugs and extension modules | UE401 | UE401-A0010 | Applications: Evaluation unit | Description: UE401 evaluation unit | Compatible sensor types: L4000 Systems single-beam photoelectric safety switches | Mounting: Snap-on mounting on 35Â mm mounting rail according to ENÂ 60715
Specification
Features
| Application | Evaluation unit |
|---|---|
| Description | UE401 evaluation unit |
| Response time | ≤ 30 ms |
| Compatible sensor types | L4000 Systems single-beam photoelectric safety switches |
| Number of sensor pairs (sender and receiver) | 1Â ... 8 |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1)Â 1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508)Â 1) |
| Category | Category 4Â (ENÂ ISOÂ 13849)Â 1) |
| Performance level | PL e (EN ISO 13849) 1) |
| PFHD (mean probability of a dangerous failure per hour) | 2.9 x 10-10 (EN ISO 13849) 1) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849)Â 1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Restart interlock | ✔ |
|---|---|
| Restart interlock (delivery status) | Activated |
| External device monitoring (EDM) | ✔ |
| External device monitoring (delivery status) | Activated |
Interfaces
| Connection type | Plug-in screw-type terminals |
|---|---|
| Permitted cable length | ≤ 100 m |
| Permitted cross-section | 0.25 mm² ... 2.5 mm² |
| Configuration method | Hard wired |
| Diagnostic display | 7-segment display |
| Status display | LEDs |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Residual ripple | ≤ 5 Vpp |
| Power consumption | ≤ 3.6 W (DC) |
| Switch-on time | ≤ 2.5 s |
| Type of output | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 1) |
| ON state, switching voltage HIGH | 24Â VÂ DC (17.5Â VÂ DCÂ ... 28.8Â VÂ DC) |
| OFF state, switching voltage LOW | ≤ 1.3 V DC |
| Current-carrying capacity per OSSD | ≤ 0.5 A |
Mechanics
| Mounting | Snap-on mounting on 35Â mm mounting rail according to ENÂ 60715 |
|---|---|
| Dimensions (W x H x D) | 22.6 mm x 99 mm x 113.5 mm |
| Weight | 160Â g |
Ambient data
| Enclosure rating | IP20 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –20 °C ... +55 °C |
| Storage temperature | –25 °C ... +75 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (EN 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (ENÂ 60068-2-29) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
Classifications
| ECLASS 5.0 | 27272790 |
|---|---|
| ECLASS 5.1.4 | 27272790 |
| ECLASS 6.0 | 27272790 |
| ECLASS 6.2 | 27272790 |
| ECLASS 7.0 | 27272790 |
| ECLASS 8.0 | 27272790 |
| ECLASS 8.1 | 27272790 |
| ECLASS 9.0 | 27272792 |
| ECLASS 10.0 | 27272792 |
| ECLASS 11.0 | 27272792 |
| ECLASS 12.0 | 27272792 |
| ETIM 5.0 | EC011349 |
| ETIM 6.0 | EC011349 |
| ETIM 7.0 | EC011349 |
| ETIM 8.0 | EC011349 |
| UNSPSC 16.0901 | 41113704 |
