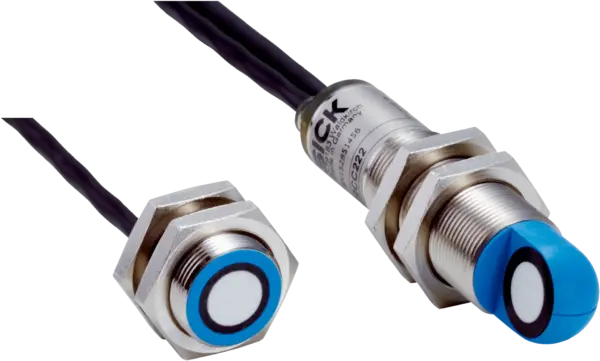

Sick UD18-22CC242

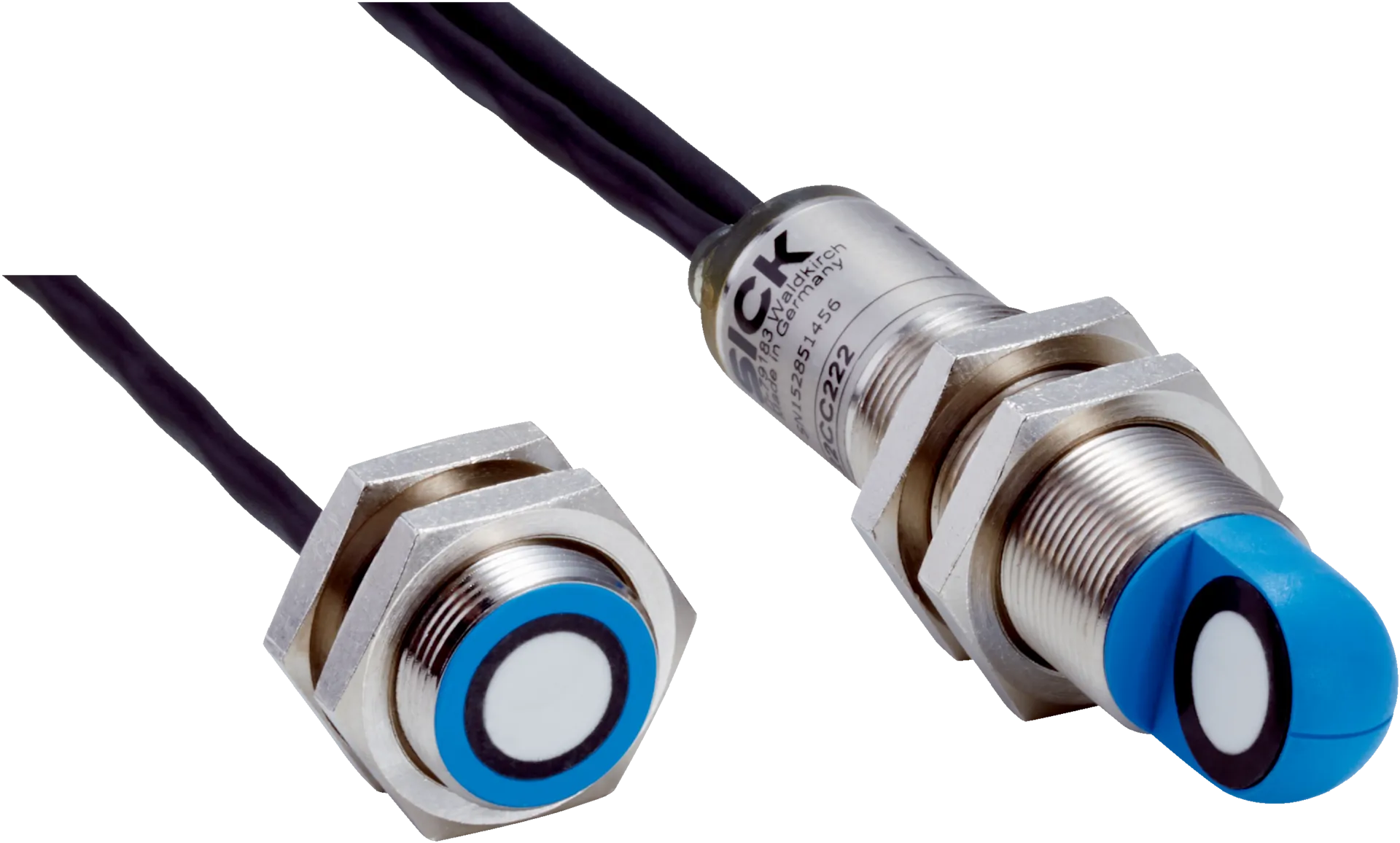

Ultrasonic distance sensors | UD18 | UD18-22CC242 | Communication interface: – | Connection type: Connection cable with open end: 7 x 0,25 mm², 2 m, PURSender: connection cable to receiver with M8 mal…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ultrasonic distance sensors | UD18 | UD18-22CC242 | Communication interface: – | Connection type: Connection cable with open end: 7 x 0,25 mm², 2 m, PURSender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PURReceiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR | Sending axis: Angled | Response time: 2.5 ms | Digital output: 2 x NPN
Specification
Features
| Installation distance | 20 mm ... 60 mm, 40 mm ± 3 mm (default setting) |
|---|---|
| Target | Natural objects |
| Resolution | 1Â material layer |
| Response time | 2.5 ms 1) |
| Switching frequency | 250Â Hz |
| Output time | 2 ms, trigger mode: < 0.5 ms 1) |
| Ultrasonic frequency (typical) | 400Â kHz |
| Additional function | 3 selectable sensitivity levels, teach-in of up to 4 individual sensitivity level, sensitivity level changeover during operation, set parameters via Connect+ Software 2) |
| Blind zone | 7 mm ... 7 mm (from sender and receiver) |
| Permissible angle deviation | ± 45° perpendicular to material layer |
| Detectable material | Paper with grammages: 20 g/m² ... 2,000 g/m²Plastic sheets and foils: â¤Â 0.4 mmSelf-adhesive films, metal sheets: â¤Â 0.3 mmCorrugated cardboard: single wall F, N and G flute sizesWashiWaferPCB |
Interfaces
| Number | 2Â 1)Â 2) |
|---|---|
| Type | NPN |
| Function | Q1: switching output double layer, Q2: switching output single / no layer, normally closed |
| Maximum output current IA | â¤Â 200 mA |
| Control input | 3Â x |
Electronics
| Supply voltage UB | DC 20Â VÂ ... 30Â VÂ 1) |
|---|---|
| Power consumption | â¤Â 1.5 W 2) |
| Initialization time | <Â 750Â ms |
| Display | 2Â x LED |
| Enclosure rating | IP65 |
| Protection class | III |
Mechanics
| Dimensions (W x H x D) | 18 mm x 18 mm x 79.2 mm |
|---|---|
| Design | Cylindrical |
| Sending axis | Angled |
| Housing material | Metal (Nickel-plated brass, PBT/PA, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight | 130Â g |
| Thread size | M18 x 1 |
| Connection type | Connection cable with open end: 7 x 0,25 mm², 2 m, PURSender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PURReceiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR |
Ambient data
| Ambient temperature, operation | +5 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +85 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270804 |
|---|---|
| ECLASS 5.1.4 | 27270804 |
| ECLASS 6.0 | 27270804 |
| ECLASS 6.2 | 27270804 |
| ECLASS 7.0 | 27270804 |
| ECLASS 8.0 | 27270804 |
| ECLASS 8.1 | 27270804 |
| ECLASS 9.0 | 27270804 |
| ECLASS 10.0 | 27270804 |
| ECLASS 11.0 | 27270804 |
| ECLASS 12.0 | 27272806 |
| ETIM 5.0 | EC001846 |
| ETIM 6.0 | EC001846 |
| ETIM 7.0 | EC001846 |
| ETIM 8.0 | EC001846 |
| UNSPSC 16.0901 | 41111960 |
