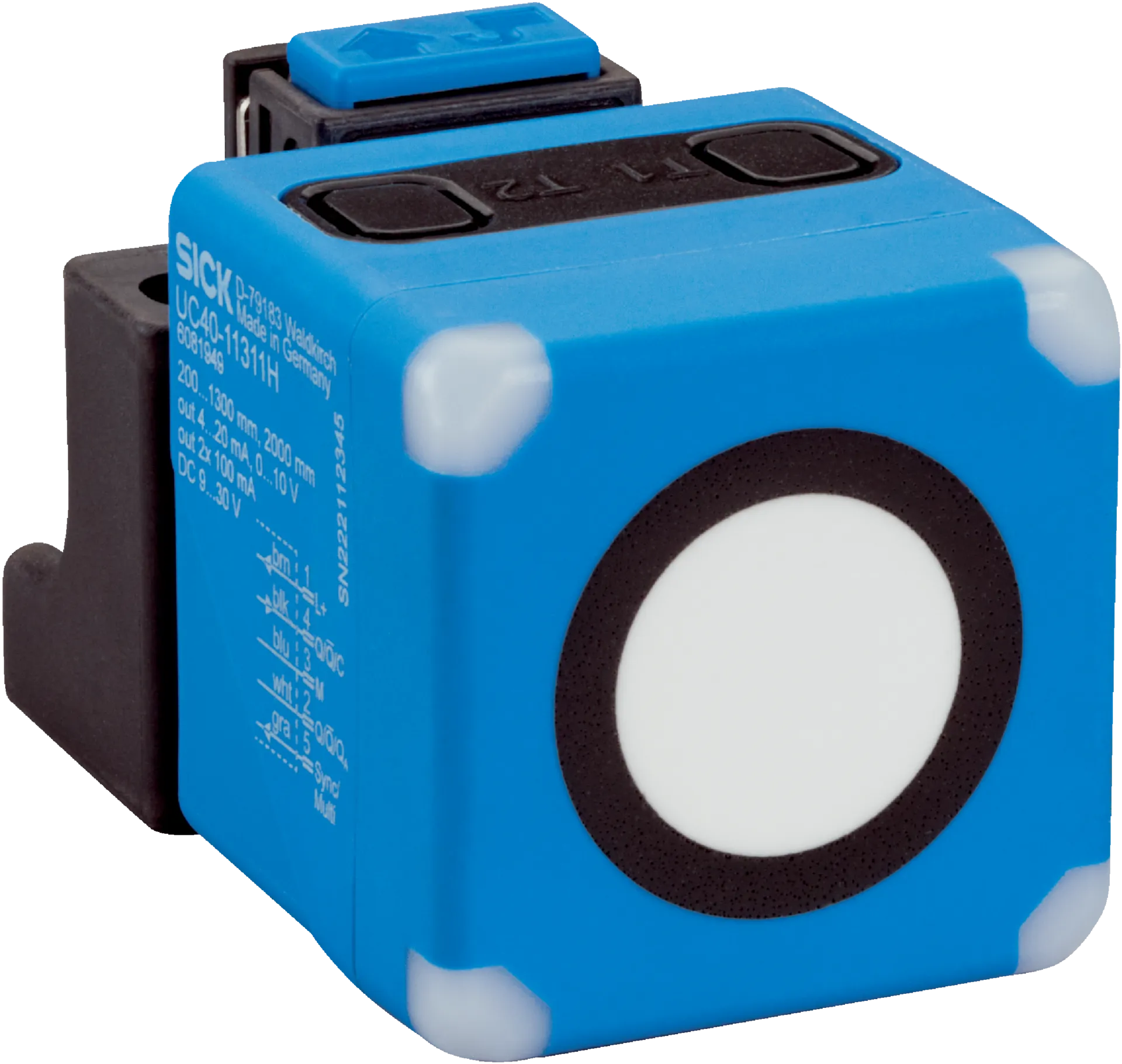

Sick UC40-11311H - Image 1

Fast delivery within 72 Hours

Sick UC40-11311H

Ultrasonic distance sensors | UC40 | UC40-11311H | Communication interface: IO-Link | Operating range, limiting range: 200 mm … 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sen…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Ultrasonic distance sensors | UC40 | UC40-11311H | Communication interface: IO-Link | Operating range, limiting range: 200 mm … 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 96 ms | Digital output: 1 … 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Communication Interface detail: IO-Link V1.1

Specification

Features

Operating range, limiting range200 mm ... 1,300 mm, 2,000 mm
TargetNatural objects
Resolution≥ 1 mm
Repeatability± 0.15 % 1)
Measurement accuracy± 1 % 2) 3)
Temperature compensation✔
Response time96 ms 4)
Switching frequency7Â Hz
Output time24Â ms
Ultrasonic frequency (typical)200Â kHz
Detection area (typical)See diagrams
Additional functionAdjustable operating modes: Switching point (DtO)Â /Â Switching window/Background (ObSB), teach-in of digital output, set levels of digital outputs, invertable digital output, set on delay digital output, teach-in of analog output, scaling of analog outputs, Invertable analog output, automatic selection of analog current or voltage output, Analog output switchable to second digital output, synchronization of up to 50Â sensors, multiplexing: no cross talk of up to 50Â sensors, Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam/False echo suppression, teach-in button(s) (can be deactivated), reset to factory default
MTTFD101Â years
DCavg0Â %

Interfaces

IO-Link✔ , IO-Link V1.1
FunctionProcess data, parameterization, diagnosis, data storage
Number1Â ... 2Â 1)
TypePush-pull: PNP/NPN
FunctionConfigurable Q2 output: analog output / digital output
Maximum output current IA≤ 100 mA
Number1
TypeCurrent output / voltage output
FunctionAutomatic selection of analog current or voltage output dependent on load
Current4 mA ... 20 mA, ≤ 500 Ω 2)
Voltage0 V ... 10 V, ≥ 100,000 Ω
Resolution12Â bit
Multifunctional input (MF)1 x MF
Hysteresis20Â mm

Electronics

Supply voltage UBDC 9Â VÂ ... 30Â VÂ 1)Â 2)
Power consumption≤ 1.5 W 3)
Initialization time<Â 300Â ms
Indication4Â x LED
Enclosure ratingIP65IP67
Protection classIII

Mechanics

Dimensions (W x H x D)40 mm x 40 mm x 66 mm
DesignRectangular
Sending axisStraight 1)
Housing materialPlastic (PA 66, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Weight120Â g
Connection typeMale connector, M12, 5-pin

Ambient data

Ambient temperature, operation–25 °C ... +70 °C
Ambient temperature, storage–40 °C ... +85 °C

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
cULus certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027270804
ECLASS 5.1.427270804
ECLASS 6.027270804
ECLASS 6.227270804
ECLASS 7.027270804
ECLASS 8.027270804
ECLASS 8.127270804
ECLASS 9.027270804
ECLASS 10.027270804
ECLASS 11.027270804
ECLASS 12.027272806
ETIM 5.0EC001846
ETIM 6.0EC001846
ETIM 7.0EC001846
ETIM 8.0EC001846
UNSPSC 16.090141111960
