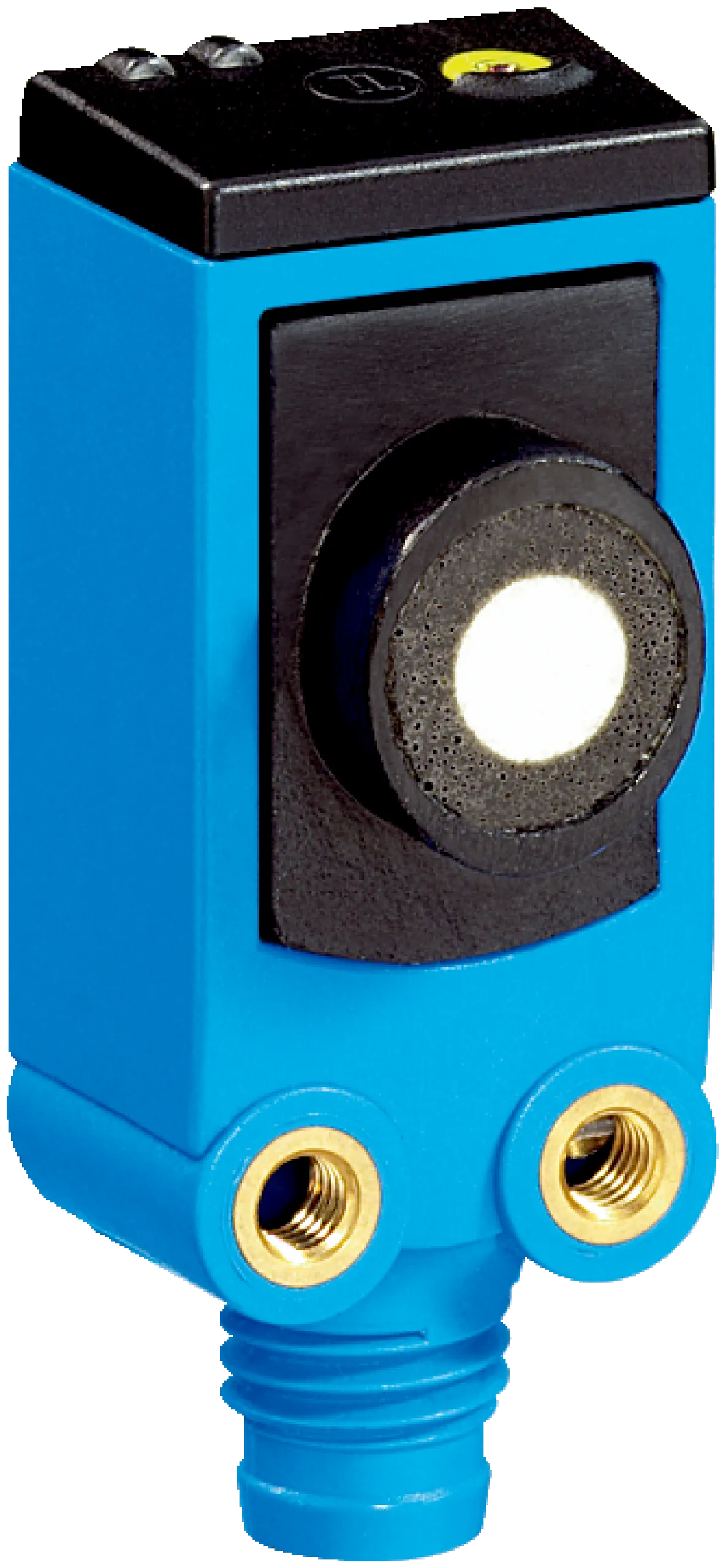

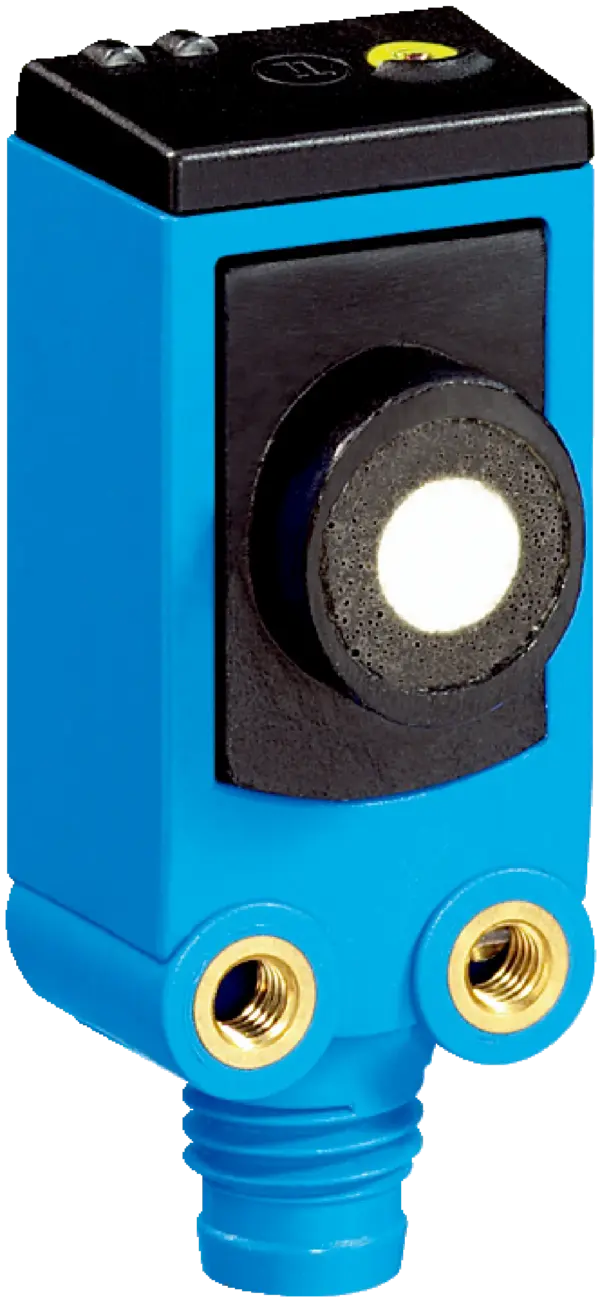

Sick UC4-13346
Ultrasonic distance sensors | UC4 | UC4-13346 | Communication interface: – | Operating range, limiting range: 20 mm … 150 mm, 250 mm | Connection type: Male connector, M8, 3-pin | Sending axis: Stra…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ultrasonic distance sensors | UC4 | UC4-13346 | Communication interface: – | Operating range, limiting range: 20 mm … 150 mm, 250 mm | Connection type: Male connector, M8, 3-pin | Sending axis: Straight | Response time: 24 ms | Type of analog output: Current output
Specification
Features
| Operating range, limiting range | 20 mm ... 150 mm, 250 mm 1) |
|---|---|
| Target | Natural objects |
| Resolution | ⥠0.1 mm |
| Repeatability | ± 0.15 % 2) |
| Measurement accuracy | ± 1 % 3) |
| Temperature compensation | â |
| Response time | 24 ms 4) |
| Output time | 8Â ms |
| Ultrasonic frequency (typical) | 380Â kHz |
| Detection area (typical) | See diagrams |
| Additional function | Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertable digital output, teach-in button(s) (can be deactivated), reset to factory default 5) |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| Number | 1 |
|---|---|
| Type | Current output |
| Current | 4 mA ... 20 mA, â¤Â 500 Ω 1) |
| Resolution | 12Â bit |
Electronics
| Supply voltage UB | DC 15Â VÂ ... 30Â VÂ 1) |
|---|---|
| Power consumption | â¤Â 0.75 W 2) |
| Initialization time | <Â 300Â ms |
| Indication | 2Â x LED |
| Enclosure rating | IP65 / IP67 |
| Protection class | III |
Mechanics
| Dimensions (W x H x D) | 16 mm x 40.1 mm x 16.7 mm |
|---|---|
| Design | Rectangular |
| Sending axis | Straight |
| Housing material | Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight | 10Â g |
| Connection type | Male connector, M8, 3-pin |
Ambient data
| Ambient temperature, operation | â25 °C ... +70 °C 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +85 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270804 |
|---|---|
| ECLASS 5.1.4 | 27270804 |
| ECLASS 6.0 | 27270804 |
| ECLASS 6.2 | 27270804 |
| ECLASS 7.0 | 27270804 |
| ECLASS 8.0 | 27270804 |
| ECLASS 8.1 | 27270804 |
| ECLASS 9.0 | 27270804 |
| ECLASS 10.0 | 27270804 |
| ECLASS 11.0 | 27270804 |
| ECLASS 12.0 | 27272806 |
| ETIM 5.0 | EC001846 |
| ETIM 6.0 | EC001846 |
| ETIM 7.0 | EC001846 |
| ETIM 8.0 | EC001846 |
| UNSPSC 16.0901 | 41111960 |
