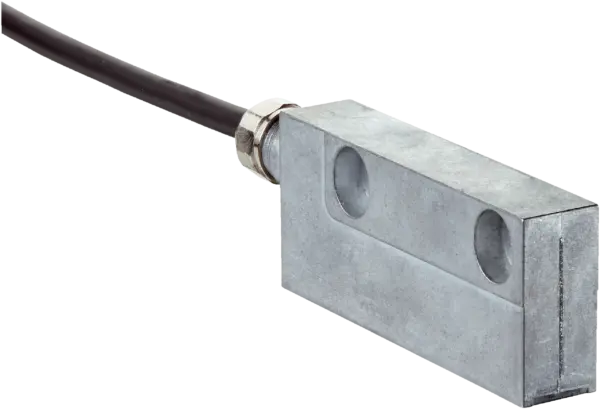

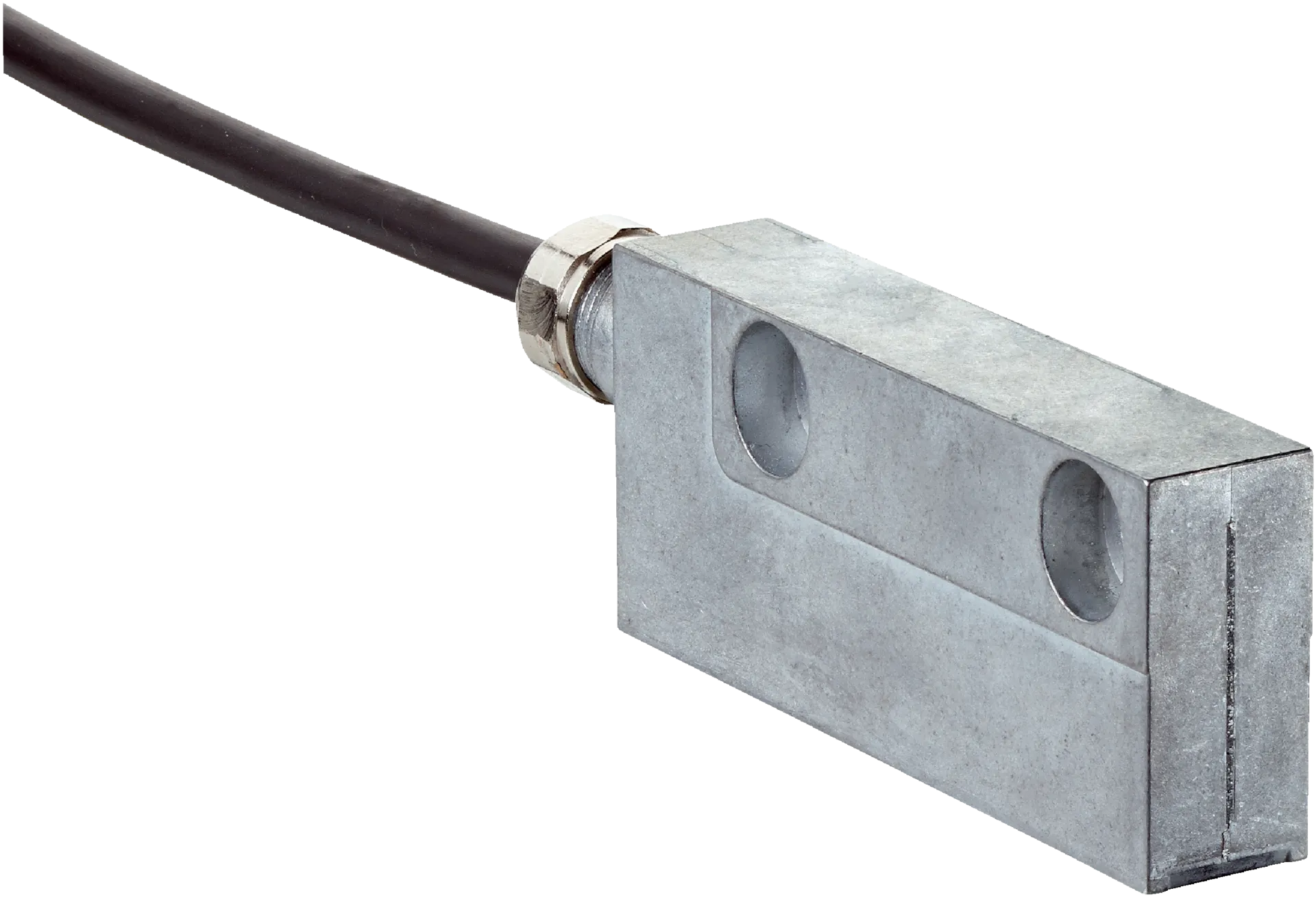

Sick TTK70-HXJ0-K02
Linear encoders | TTK70 | TTK70-HXJ0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m | System part: Read hea…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Linear encoders | TTK70 | TTK70-HXJ0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m | System part: Read head | System accuracy: ± 10 µm | Technology: Magnet-coded
Specification
Features
| Items supplied | Magnetic tape not included with delivery |
|---|
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 73Â years (ENÂ ISOÂ 13849)Â 1) |
|---|
Performance
| Measuring step | 0.244 µm For interpolation of the sine/cosine signals with, e. g., 12 bits |
|---|---|
| Measuring range | 0 mm ... 3,920 mm |
| Resolution | 1 µm |
| Length of period | 1Â mm |
| Traversing speed | 1.3 m/s, â¤Â 10 m/s up to which the absolute position can be reliably produced, dynamic operation (Sin/Cos) |
| Repeatability | < 5 µm |
| System accuracy | ± 10 µm (+20 °C) |
| Measured value backlash | < 10 µm |
Interfaces
| Communication interface | HIPERFACE® |
|---|---|
| Code type | Binary |
| Available memory area | 1,792Â Byte (E2PROM 2048) |
Electronics
| Supply voltage | 7Â VÂ DCÂ ... 12Â VÂ DC |
|---|---|
| Recommended supply voltage | 8Â VÂ DC |
| Operating current | â¤Â 65 mA (without load) 1) |
| Connection type | Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Scope of delivery | Magnetic tape not included with delivery |
| Weight | 0.08Â kg |
| Read head material | Zinc diecast |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3Â 1) |
|---|---|
| Enclosure rating | IP67, with mating plug inserted (IECÂ 60529) |
| Operating temperature range | â30 °C ... +80 °C |
| Storage temperature range | â40 °C ... +85 °C, without package |
| Permissible relative humidity | 100Â %, condensation permitted |
| Resistance to shocks | 30Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
| Maximum permitted ambient field strength | < 3 kA/m ... 4 kA/m (3.8 mT ... 5 mT), to guarantee compliance with the quoted accuracy values 2) |
| Maximum permitted field strength | < 150Â kA/m (< 190Â mT), to ensure that the magnetic tape is not permanently damaged |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270705 |
|---|---|
| ECLASS 5.1.4 | 27270705 |
| ECLASS 6.0 | 27270705 |
| ECLASS 6.2 | 27270705 |
| ECLASS 7.0 | 27270705 |
| ECLASS 8.0 | 27270705 |
| ECLASS 8.1 | 27270705 |
| ECLASS 9.0 | 27270705 |
| ECLASS 10.0 | 27270705 |
| ECLASS 11.0 | 27270705 |
| ECLASS 12.0 | 27274304 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 41111613 |
