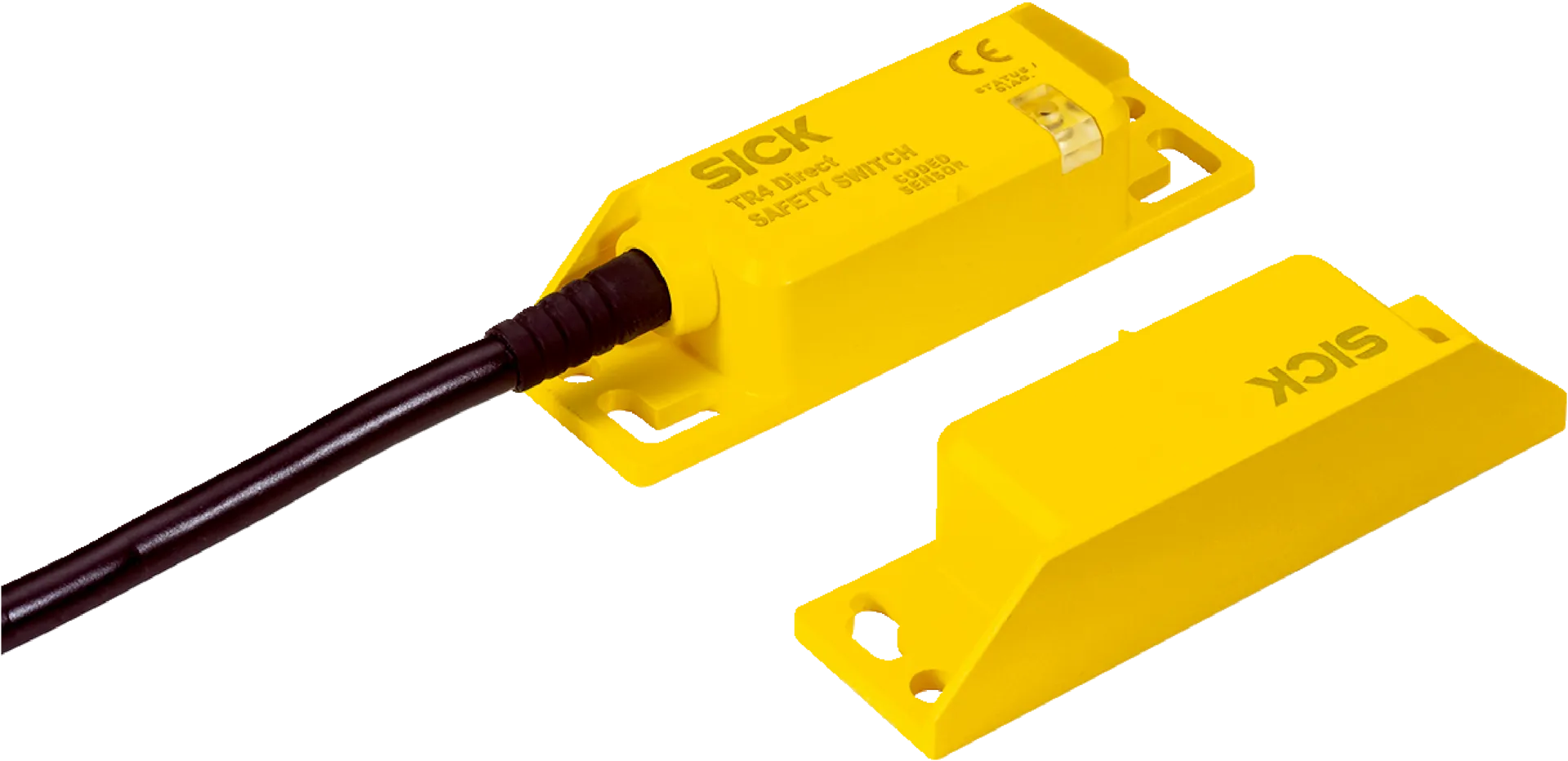

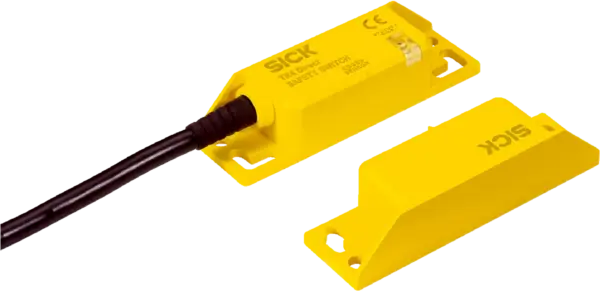

Sick TR4-SEU03PB
Safety switches | TR4 Direct | TR4-SEU03PB | System part: Sensor with actuator | Coding: Uniquely coded | Assured switch on distance Sao: 15 mm | Connection type Detail: Cable | Length of cable: 3 m |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | TR4 Direct | TR4-SEU03PB | System part: Sensor with actuator | Coding: Uniquely coded | Assured switch on distance Sao: 15 mm | Connection type Detail: Cable | Length of cable: 3 m | Safe series connection: In control cabinet (with diagnostics) | Status display: yes | Boundary area indication: yes
Specification
Features
| System part | Sensor with actuator |
|---|---|
| Sensor principle | RFID |
| Number of safe outputs | 2 |
| Assured switch on distance Sao | 15Â mm |
| Assured switch off distance Sar | 25Â mm |
| Active sensor surfaces | 2 |
| Actuation directions | 5 |
| Boundary area indication | ✔ |
| Coding | Uniquely coded |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 6.03Â * 10-10 |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Type | Type 4Â (ENÂ ISOÂ 14119) |
| Actuator coding level | High coding level (ENÂ ISOÂ 14119) |
| Classification in compliance with IEC/ENÂ 60947-5-3 | PDF-M |
| Safe state in the event of a fault | At least one safety-related semiconductor output (OSSD) is in the OFF state. |
Functions
| Safe series connection | In control cabinet (with diagnostics) |
|---|
Interfaces
| Connection type | Cable |
|---|---|
| Length of cable | 3Â m |
| Long connecting cable | ≤ 200 m |
| Cable diameter | 6.5Â mm |
| Conductor cross section | 0.25 mm² |
| Bend radius (with fixed installation) | > 7Â x cable diameter |
| Bend radius (with moving cable) | > 14Â x cable diameter |
| Cable material | PVC |
| Conductor material | Copper |
| Display elements | LEDs |
| Status display | ✔ |
Electronics
| Protection class | III (ENÂ 50178) |
|---|---|
| Classification according to cULus | Class 2 |
| Supply voltage Vs | 24Â VÂ DC (20.4Â VÂ DCÂ ... 26.4Â VÂ DC) |
| Power consumption | ≤ 50 mA |
| Type of output | Self-monitoring semiconductor outputs (OSSDs) |
| Output current | ≤ 200 mA |
| Response time | 45 ms 1) |
| Release time | 360 ms 2) |
| Risk time | ≤ 100 ms 3) |
| Switch-on time | 2 s 4) |
| Electrical life | 10 x 106 switching cycles |
Mechanics
| Design | Rectangular |
|---|---|
| Dimensions (W x H x D) | 25 mm x 88 mm x 20 mm |
| Weight | 270Â g |
| Housing material | Valox® DR48 |
Ambient data
| Enclosure rating | IP67 (IECÂ 60529)IP69K (ISOÂ 20653) |
|---|---|
| Ambient operating temperature | –25 °C ... +70 °C |
| Vibration resistance | 10 Hz ... 55 Hz, 3.5 mm (IEC 60068-2-6) |
| Shock resistance | 30Â g, 11Â ms (ENÂ 60068-2-27) |
Classifications
| ECLASS 5.0 | 27272403 |
|---|---|
| ECLASS 5.1.4 | 27272403 |
| ECLASS 6.0 | 27272403 |
| ECLASS 6.2 | 27272403 |
| ECLASS 7.0 | 27272403 |
| ECLASS 8.0 | 27272403 |
| ECLASS 8.1 | 27272403 |
| ECLASS 9.0 | 27272403 |
| ECLASS 10.0 | 27272403 |
| ECLASS 11.0 | 27272403 |
| ECLASS 12.0 | 27274601 |
| ETIM 5.0 | EC001829 |
| ETIM 6.0 | EC001829 |
| ETIM 7.0 | EC001829 |
| ETIM 8.0 | EC001829 |
| UNSPSC 16.0901 | 39122205 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
