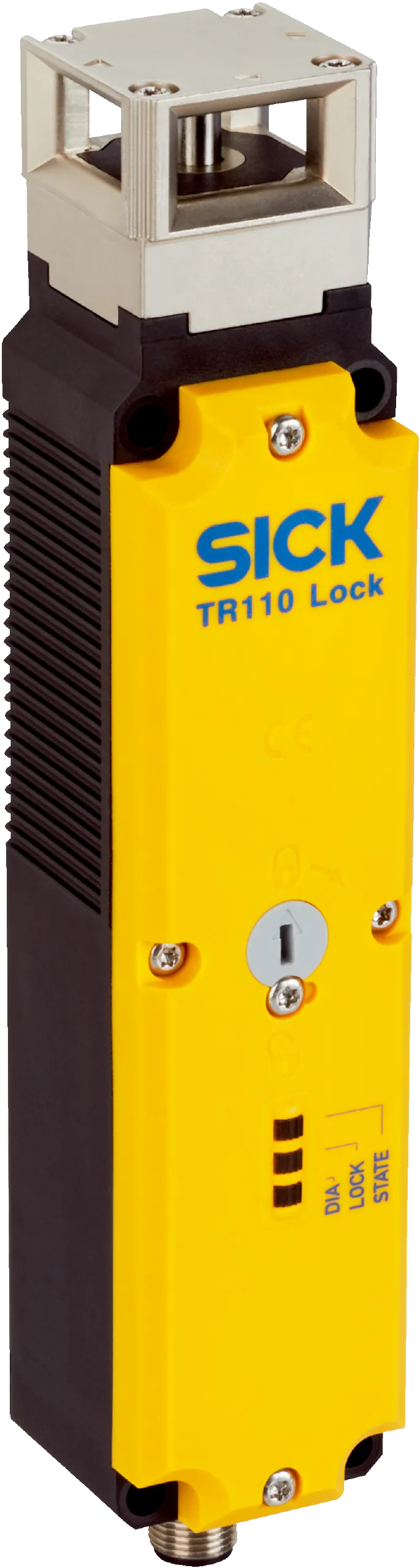

Sick TR110-SRUSAB0
Safety switches | TR110 Lock | TR110-SRUSAB0 | Locking principle: Power to release | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: None, only individual wiring (with dia…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | TR110 Lock | TR110-SRUSAB0 | Locking principle: Power to release | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: None, only individual wiring (with diagnostics) | Escape release: no | Pushbuttons: no
Specification
Features
| Sensor principle | RFID |
|---|---|
| Locking principle | Power to release |
| Coding | Uniquely coded |
| With straight actuator | 3,900Â N (ENÂ ISOÂ 14119) |
| With angled actuator | 1,500Â N (ENÂ ISOÂ 14119) |
| With hinged actuator | 2,600Â N (ENÂ ISOÂ 14119) |
| With straight actuator | 3,000Â N (ENÂ ISOÂ 14119) |
| With angled actuator | 1,100Â N (ENÂ ISOÂ 14119) |
| With hinged actuator | 2,000Â N (ENÂ ISOÂ 14119) |
| Actuation force | ≥ 10 N |
| Retaining force | 20Â N |
| Force against which unlocking is possible | ≤ 20 N |
| Actuation frequency | ≤ 0.5 Hz |
| Approach speed | ≤ 20 m/min |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ENÂ ISOÂ 13849)Â 1) |
| Performance level | PL e (EN ISO 13849) 1) |
| PFHD (mean probability of a dangerous failure per hour) | 5.38 x 10-9 1) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Type | Type 4Â (ENÂ ISOÂ 14119) |
| Actuator coding level | High coding level (ENÂ ISOÂ 14119) |
| Safe state in the event of a fault | At least one safety-related semiconductor output (OSSD) is in the OFF state. |
Functions
| Switching behavior of the OSSDs | Locking monitoring |
|---|---|
| Safe series connection | None, only individual wiring (with diagnostics) |
Interfaces
| Connection type | Plug connector, M12, 8-pin |
|---|---|
| Coupling nut material | Brass |
| Display elements | LEDs |
| Diagnostics indicator | ✔ |
| Status display | ✔ |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Contamination rating | 3Â (ENÂ 60947-1) |
| Classification according to cULus | Class 2 |
| Usage category | DC-13 (IECÂ 60947-5-1) |
| Rated operating current (voltage) | 150Â mA (24Â VÂ DC)Â 1) |
| Rated insulation voltage Ui | 50Â V |
| Rated impulse withstand voltage Uimp | 500Â V |
| Sensor | 24Â VÂ DC (20.4Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Magnet | 24Â VÂ DC (20.4Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Sensor | 40Â mA |
| Magnet | 400Â mA |
| Type of output | Self-monitoring semiconductor outputs (OSSDs) |
| Safety outputs | 2Â semiconductor outputs (OSSDs), p-switching, short-circuit protected |
| Application diagnostic outputs | P-switching, short-circuit protected |
| Safety outputs | 1Â mAÂ ... 150Â mA |
| Application diagnostic outputs | 1Â mAÂ ... 50Â mA |
| Power consumption of magnet | 6Â W |
| Switch-on time of magnet | 100Â % |
| Response time | ≤ 260 ms 2) |
| Release time | 150Â ms |
| Switch-on time | 5Â s |
| Discrepancy time | 10Â ms (ENÂ IECÂ 60947-5-3) |
| Locking principle | Power to release |
Mechanics
| Weight | 0.42Â kg |
|---|---|
| Switch head | Zinc diecast |
| Housing | Glass-fiber reinforced thermoplastic |
| Plug connectors | Nickel-plated brass |
| Mechanical life | 1 x 106 switching cycles |
Ambient data
| Enclosure rating | IP67 (ENÂ 60529)IP69K |
|---|---|
| Ambient operating temperature | –20 °C ... +55 °C |
| Vibration resistance | 10 Hz ... 55 Hz (IEC 60068-2-6) |
| Shock resistance | 30Â g, 11Â ms (ENÂ 60068-2-27) |
| EMC | ENÂ IECÂ 60947-5-3 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27272603 |
|---|---|
| ECLASS 5.1.4 | 27272603 |
| ECLASS 6.0 | 27272603 |
| ECLASS 6.2 | 27272603 |
| ECLASS 7.0 | 27272603 |
| ECLASS 8.0 | 27272603 |
| ECLASS 8.1 | 27272603 |
| ECLASS 9.0 | 27272603 |
| ECLASS 10.0 | 27272603 |
| ECLASS 11.0 | 27272603 |
| ECLASS 12.0 | 27272603 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002593 |
| ETIM 7.0 | EC002593 |
| ETIM 8.0 | EC002593 |
| UNSPSC 16.0901 | 39122205 |
