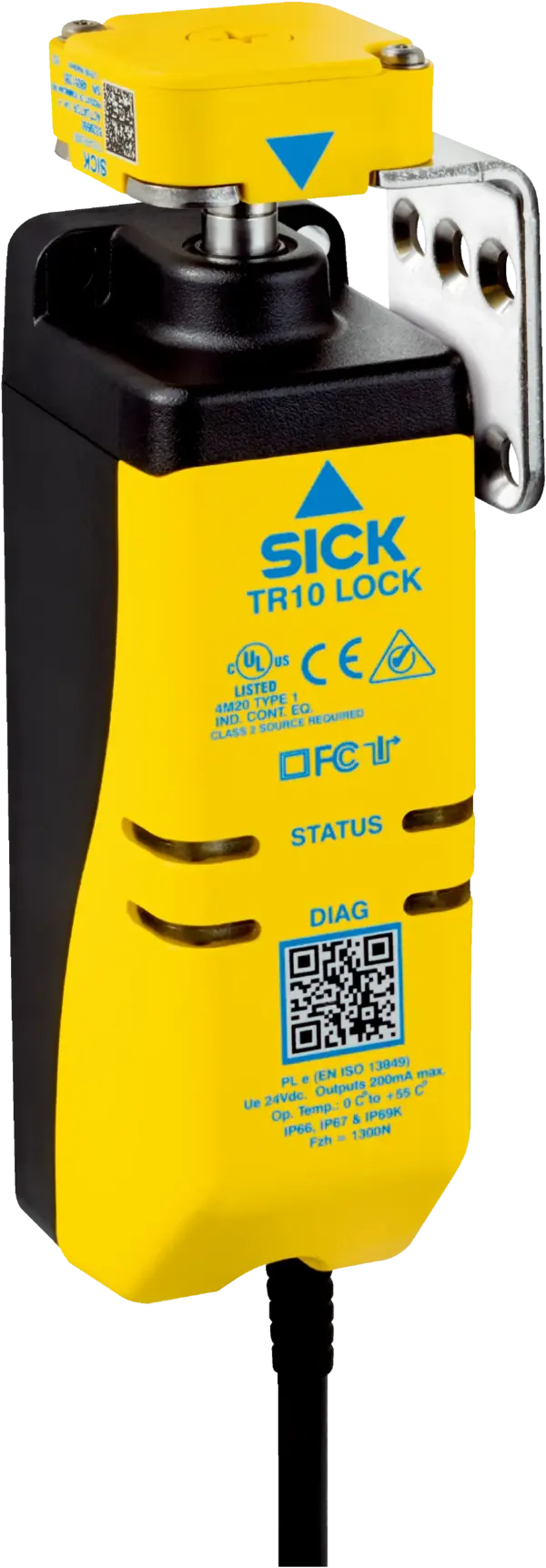

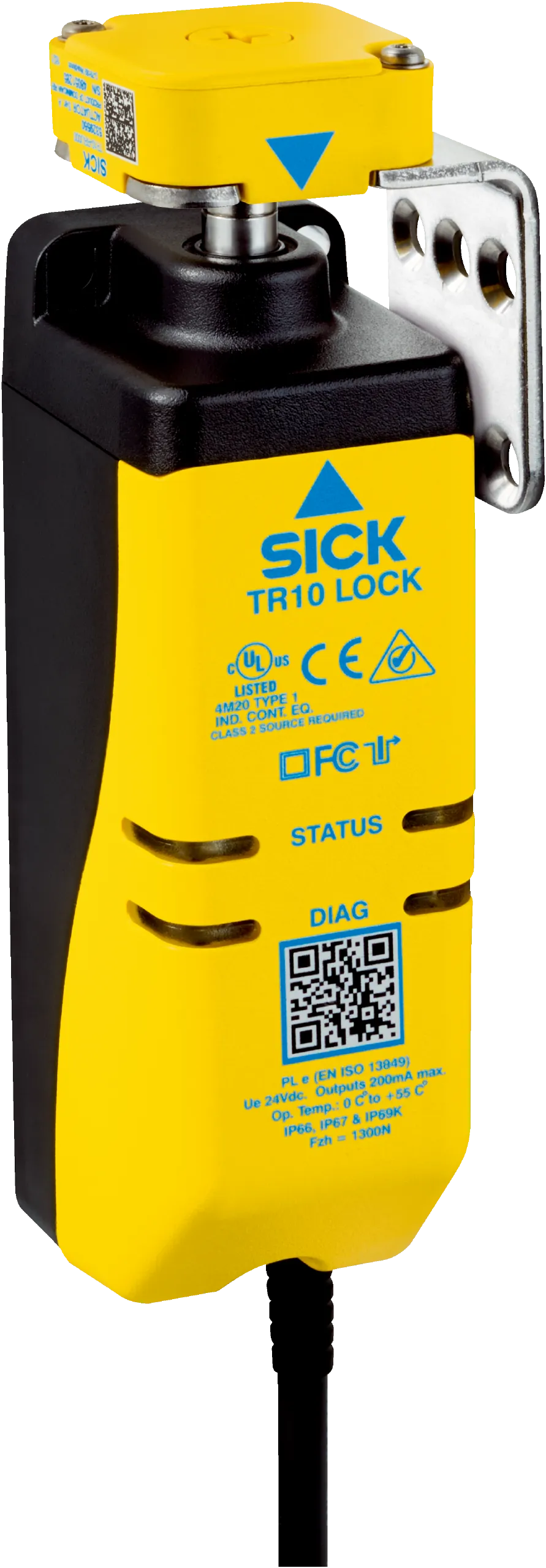

Sick TR10-SLM01C

Safety switches | TR10 Lock | TR10-SLM01C | Locking principle: Power to lock | Locking force FZh: 1,300 N | Coding: Universally coded | Connection type Detail: Cable with plug M12, 8-pin | Length of c…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Safety switches | TR10 Lock | TR10-SLM01C | Locking principle: Power to lock | Locking force FZh: 1,300 N | Coding: Universally coded | Connection type Detail: Cable with plug M12, 8-pin | Length of cable: 0.2 m | Safe series connection: With T-connector (without diagnostics), with Flexi Loop (with diagnostics)

Specification

Features

Sensor principleRFID
Locking principlePower to lock
Number of safe outputs2
CodingUniversally coded
Locking force Fmax1,690Â N (ENÂ ISOÂ 14119)
Locking force FZh1,300Â N (ENÂ ISOÂ 14119)
Retaining force0Â N
Actuation directions4
Approach speed≥ 2 mm/s

Safety-related parameters

Safety integrity levelSIL 3Â (IECÂ 61508)
CategoryCategory 4Â (ENÂ ISOÂ 13849)
Performance levelPL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour)9.1 x 10-10
TM (mission time)20Â years (ENÂ ISOÂ 13849)
TypeType 4Â (ENÂ ISOÂ 14119)
Actuator coding levelLow coding level (ENÂ ISOÂ 14119)
Safe state in the event of a faultAt least one safety-related semiconductor output (OSSD) is in the OFF state.

Functions

Switching behavior of the OSSDsLocking monitoring
Safe series connectionWith T-connector (without diagnostics)With Flexi Loop (with diagnostics)

Interfaces

Connection typeCable with plug M12, 8-pin
Length of cable0.2Â m
Long connecting cable≤ 200 m
Cable diameter6.5Â mm
Conductor cross section0.25 mm²
Bend radius (with fixed installation)> 7Â x cable diameter
Bend radius (with moving cable)> 14Â x cable diameter
Cable materialPVC
Conductor materialCopper
Coupling nut materialStainless steel
Display elementsLEDs
Diagnostics indicator✔
Status display✔

Electronics

Protection classII (IECÂ 61140)
Contamination rating3
Classification according to cULusClass 2
Usage categoryDC-13 (IECÂ 60947-5-1)
Rated operating current (voltage)200Â mA (24Â VÂ DC)
Rated insulation voltage Ui75Â V
Rated impulse withstand voltage Uimp1,000Â V
Supply voltage VS24Â VÂ DC (20.4Â VÂ DCÂ ... 26.4Â VÂ DC)
Type of outputSelf-monitoring semiconductor outputs (OSSDs)
Output current≤ 200 mA
Peak current400 mA, 100 ms 1)
Power consumption2.5Â W
Response time100 ms for the first switch, 50 ms for each subsequent switch 2)
Release time600Â ms
Risk time100Â ms
Switch-on time7Â s
Locking principlePower to lock

Mechanics

Weight+Â 0.4Â kg
Housing materialABS
Locking bolt materialStainless steel 304
Mechanical life5 x 105 switching cycles

Ambient data

Enclosure ratingIP66, IP67, IP69K (IECÂ 60529, IECÂ 60529, IECÂ 60529)
Ambient operating temperature0 °C ... +55 °C
Storage temperature–25 °C ... +75 °C
Vibration resistance10 Hz ... 55 Hz (IEC 60068-2-6)
Shock resistance30Â g, 11Â ms (ENÂ 60068-2-27)
EMCIECÂ 60947-5-3

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
cULus certificate✔
Third party certificate✔

Classifications

ECLASS 5.027272603
ECLASS 5.1.427272603
ECLASS 6.027272603
ECLASS 6.227272603
ECLASS 7.027272603
ECLASS 8.027272603
ECLASS 8.127272603
ECLASS 9.027272603
ECLASS 10.027272603
ECLASS 11.027272603
ECLASS 12.027272603
ETIM 5.0EC002593
ETIM 6.0EC002593
ETIM 7.0EC002593
ETIM 8.0EC002593
UNSPSC 16.090139122205
