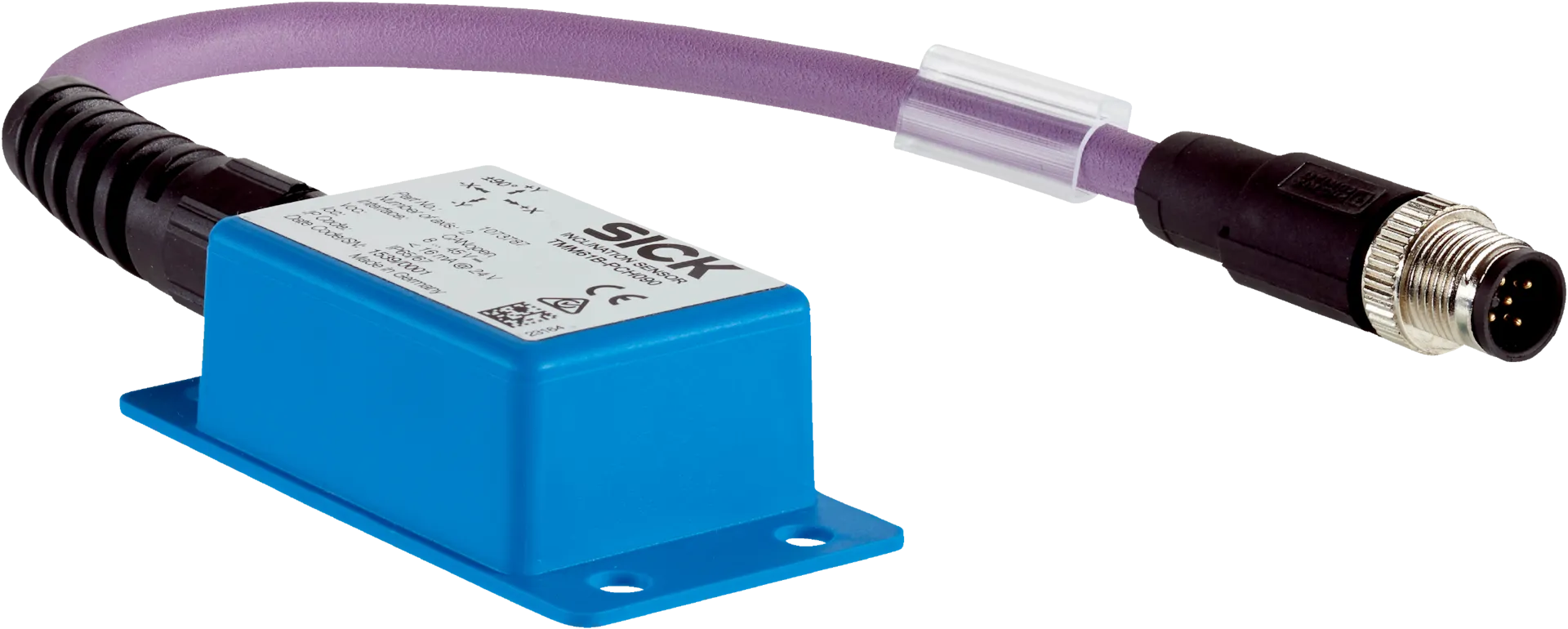

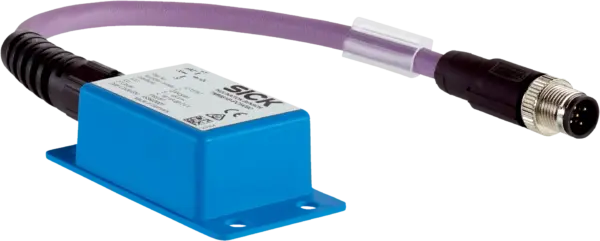

Sick TMS61B-PCH360
Inertial sensors | TMS/TMM61 | TMS61B-PCH360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inertial sensors | TMS/TMM61 | TMS61B-PCH360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (ABS) | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 663Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Number of axis | 1 |
|---|---|
| Measuring range | 360° |
| Resolution | 0.01° |
| Static measurement accuracy | Typ. ± 0.15°, max. ± 0.25° |
| Temperature coefficient (zero point) | Typ. ±0.01°/K 1) |
| Limit frequency | 0.1 Hz ... 25 Hz, 8. range (with digital filter) |
| Sampling rate | 80Â Hz |
Interfaces
| Communication interface | CANopen |
|---|---|
| Device profile | CiA DS-301 (Application layer)CiA DS-410 v4.2.0Â (Device profile for inclination sensors)CiA DSP-305 (Layer Setting Service (LSS) and protocols) |
| Address setting | 0â¦127, default: 10 |
| Data transmission rate (baud rate) | 10 kbit/s ... 1,000 kbit/s, Default: automatic baud rate detection |
| Status information | CANopen status via status LED |
| Bus termination | Via external terminator |
| Parameterising data | ZerosetLimit frequencyPreset valueInverting of counting direction |
| Programmable/configurable | Over PGT-12-Pro |
| Initialization time | 75Â ms |
Electronics
| Connection type | Cable, 5-wire, with male connector, M12, 5-pin, 0.2Â m |
|---|---|
| Supply voltage | 8Â VÂ DCÂ ... 36Â VÂ DC |
| Current consumption | < 16Â mA @ 24Â V |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â |
Mechanics
| Dimensions | 68 mm x 36.3 mm x 20.7 mm |
|---|---|
| Weight | 80Â g (with cable) |
| Housing material | Plastic (ABS) |
| Material, cable | PUR |
Ambient data
| EMC | ENÂ 61326-1, ENÂ ISOÂ 14982, ENÂ ISOÂ 13309 |
|---|---|
| Enclosure rating | IP65 (IECÂ 60529)IP67 (IECÂ 60529) |
| Operating temperature range | â40 °C ... +80 °C |
| Storage temperature range | â40 °C ... +85 °C |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270790 |
|---|---|
| ECLASS 5.1.4 | 27270790 |
| ECLASS 6.0 | 27270790 |
| ECLASS 6.2 | 27270790 |
| ECLASS 7.0 | 27270790 |
| ECLASS 8.0 | 27270790 |
| ECLASS 8.1 | 27270790 |
| ECLASS 9.0 | 27270790 |
| ECLASS 10.0 | 27271101 |
| ECLASS 11.0 | 27271101 |
| ECLASS 12.0 | 27271101 |
| ETIM 5.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| UNSPSC 16.0901 | 41111613 |
