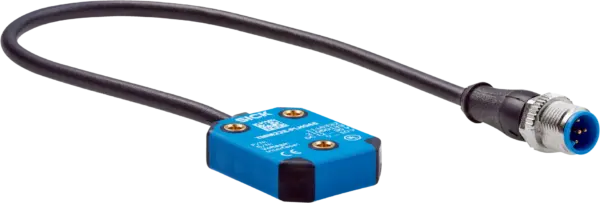

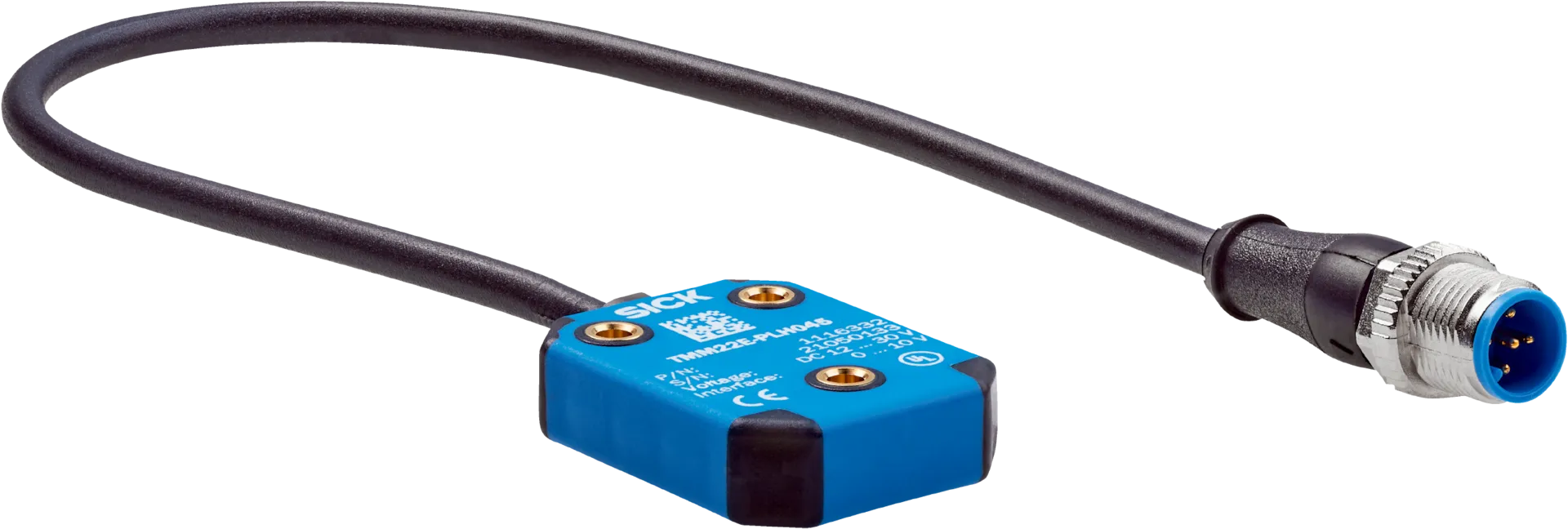

Sick TMS22E-PKH080
Inertial sensors | TMS/TMM22 | TMS22E-PKH080 | Number of axis: 1 | Measuring range: 80° | Resolution: ≤ 0.03° | Communication interface: Analog / Current | Current output: 4 mA … 20 mA | Programmabl…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inertial sensors | TMS/TMM22 | TMS22E-PKH080 | Number of axis: 1 | Measuring range: 80° | Resolution: ≤ 0.03° | Communication interface: Analog / Current | Current output: 4 mA … 20 mA | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 961Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Number of axis | 1 |
|---|---|
| Measuring range | 80° |
| Resolution | â¤Â 0.03° |
| Static measurement accuracy | Typ. 0.25°, max. 0.4° 1) |
| Repeatability | 30 μA 2) |
| Temperature coefficient (zero point) | ±0.03°/K 3) |
| Limit frequency | 2Â Hz |
| Sampling rate | 400Â Hz |
Interfaces
| Communication interface | Analog / Current |
|---|---|
| Current output | 4Â mAÂ ... 20Â mA |
| 0-set function via hardware pin | â |
| Load resistance | 200 Ω ... 900 Ω 1) |
| LED | 2x (green/red) |
| Output signal (error state) | 2...3Â mA |
| Initialization time | 250Â ms |
Electronics
| Connection type | Cable, 5-wire, with male connector, M12, 5-pin, 0.3Â m |
|---|---|
| Supply voltage | 12Â VÂ DCÂ ... 30Â VÂ DC |
| Current consumption | < 30Â mA (+ Iloop) @ 24Â V |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â |
Mechanics
| Dimensions | 38.8 mm x 30 mm x 10.4 mm |
|---|---|
| Weight | Approx. 60 g |
| Housing material | Plastic (PA12), glass-fiber reinforced |
| Material, cable | PUR |
Ambient data
| EMC | ENÂ 61326-1 |
|---|---|
| Enclosure rating | IP66IP67IP68IP69K |
| Operating temperature range | â40 °C ... +80 °C |
| Storage temperature range | â40 °C ... +85 °C |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270790 |
|---|---|
| ECLASS 5.1.4 | 27270790 |
| ECLASS 6.0 | 27270790 |
| ECLASS 6.2 | 27270790 |
| ECLASS 7.0 | 27270790 |
| ECLASS 8.0 | 27270790 |
| ECLASS 8.1 | 27270790 |
| ECLASS 9.0 | 27270790 |
| ECLASS 10.0 | 27271101 |
| ECLASS 11.0 | 27271101 |
| ECLASS 12.0 | 27271101 |
| ETIM 5.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| UNSPSC 16.0901 | 41111613 |
