Sick TIM771S-2174104
LiDAR sensors | TiM | TIM771S-2174104 | Integrated application: Protective field evaluation with flexible fields, output of measurement data | Measurement principle: HDDM | Working range: 0.05 m … 2…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

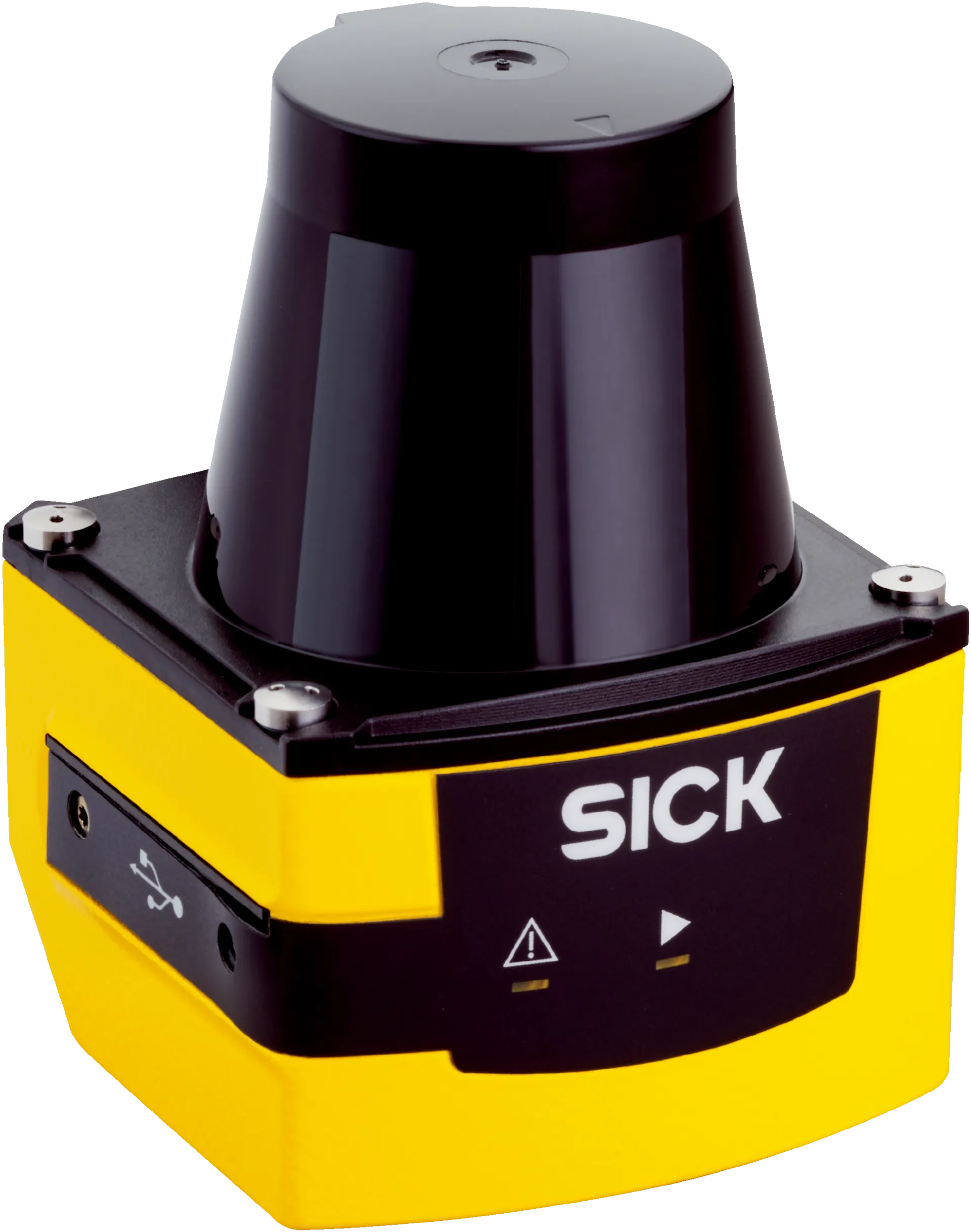

LiDAR sensors | TiM | TIM771S-2174104 | Integrated application: Protective field evaluation with flexible fields, output of measurement data | Measurement principle: HDDM | Working range: 0.05 m … 25 m, > 90% remission | Number of field sets: 16 | Enclosure rating: IP67 | Digital outputs: 3 (PNP, to display a detection in the protective field, additional 1 x “Device Ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 12-pin, M12 male connector, 1 x Micro USB female connector, type B
Specification
Features
| Application | Indoor |
|---|---|
| System part | sensor |
| Measurement principle | HDDM |
| Light source | Infrared (850Â nm) |
| Laser class | 1Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021) |
| Horizontal | 270° |
| Scanning frequency | 15Â Hz |
| Horizontal | 0.33° |
| Scan field flatness | ± 1.5° |
| Working range | 0.05 m ... 25 m (> 90% remission) |
| Safety-related working range | 0.05 m ... 5 m (At 5% remission) |
| Blind zone | 0 m ... 0.05 m |
| At 10% remission factor | 8Â m |
Mechanics/electronics
| Connection type | 1Â x âEthernetâ connection, 4-pin M12 female connector1Â x connection âPowerâ, 12-pin, M12 male connector1Â x Micro USB female connector, type B |
|---|---|
| Supply voltage | 9Â VÂ DCÂ ... 28Â VÂ DC |
| Power consumption | Typ. 4 W, 16 W with 4 max. loaded digital outputs |
| Output current | â¤Â 100 mA |
| Housing color | Yellow |
| Enclosure rating | IP67, applies only when the plastic cover of the âAux interfaceâ is closed (IECÂ 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IECÂ 61140:2016-1) |
| Weight | 250Â g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 86 mm |
| MTBF | >Â 100Â years |
Safety-related parameters
| Category | B (ENÂ ISOÂ 13849-1:2015) |
|---|---|
| Performance level | PL b (ENÂ ISOÂ 13849-1:2015) |
| Performance class SRS/SRSS | B (IECÂ TS 62998-1:2019) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849-1:2015) |
| Conformities | ENÂ ISOÂ 13849-1:2015, ANSI/ITSDF B56.5:2012, IECÂ TS 62998-1:2019, ENÂ ISOÂ 13482:2014, ENÂ ISOÂ 13855:2010 |
| MTTFD | 100 years, at 25 °C ambient temperature (EN ISO 13849-1:2015) |
Performance
| Response time | 1 scan, typ. 67 ms2 scans, â¤Â 134 ms 1) |
|---|---|
| Detectable object shape | Almost any |
| Systematic error | ± 60 mm 2) |
| Statistical error | < 20 mm 2)< 10 mm 3) |
| Safety-related statistical error | <Â 60Â mm (4,4Â Ï) |
| Integrated application | Protective field evaluation with flexible fieldsOutput of measurement data |
| Protective field tolerance | 100 mm, 0.66° (DIN CLC/TS 62046:2009, 5% remission) |
| Number of field sets | 16Â field triples (48Â protective fields) |
| Simultaneous evaluation cases | 3Â simultaneous protective fields (per field set) |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| USB | â |
| Remark | Micro USB |
| Function | Parameterization |
| Inputs | 4Â (PNP, for field set switching) |
| Outputs | 3Â (PNP, to display a detection in the protective field, additional 1Â x âDevice Readyâ) |
| Delay time | 67 ms ... 30,000 ms (configurable) |
| Dwell time | 67 ms ... 600,052 ms (configurable) |
| Optical indicators | 2Â LEDs (ON, "device ready") |
Ambient data
| Object remission | â¥Â 5 % (reflectors) 1) |
|---|---|
| Emitted radiation | Residential area (IECÂ 61000-6-3:2006+AMD1:2010) |
| Electromagnetic immunity | Industrial environment (IECÂ 61000-6-2:2005) |
| Sine resonance scan | 10 Hz ... 1,000 Hz 2) |
| Sine test | 10 Hz ... 500 Hz, 5 g, 10 frequency cycles 2) |
| Noise test | 10 Hz ... 250 Hz, 4.24 g RMS, 5 h 3) |
| Shock resistance | 50 g, 11 ms, ± 3 single shocks/axis 4)25 g, 6 ms, ± 1,000 continuous shocks/axis 4)50 g, 3 ms, ± 5,000 continuous shocks/axis 4) |
| Ambient operating temperature | â25 °C ... +50 °C 5) |
| Storage temperature | â40 °C ... +75 °C 5) |
| Switch-on temperature | â10 °C ... +50 °C |
| Temperature change | â25 °C ... +50 °C, 10 cycles 6) |
| Damp heat | +25 °C ... +55 °C, 95 % RH, 6 cycles 7) |
| Operation | <Â 80Â %, Non-condensing (ENÂ 60068-2-30:2005) |
| Storage | â¤Â 90 %, Non-condensing (EN 60068-2-30:2005) |
| Ambient light immunity | 80,000Â lx3,000Â lx, With direct light |
General notes
| Note on use | The TiM771S is a safety-related sensor that is suitable for use in the following applications: Hazardous area, hazardous point, and access protection as well as mobile hazardous area protection (protection of automated guided vehicles and mobile platforms). The sensor must only ever be used within the limits of the prescribed and specified technical data and operating conditions. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| TÃV approval | â |
| TÃV approval annex | â |
| cTUVus certificate | â |
| EC-Type-Examination approval | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
