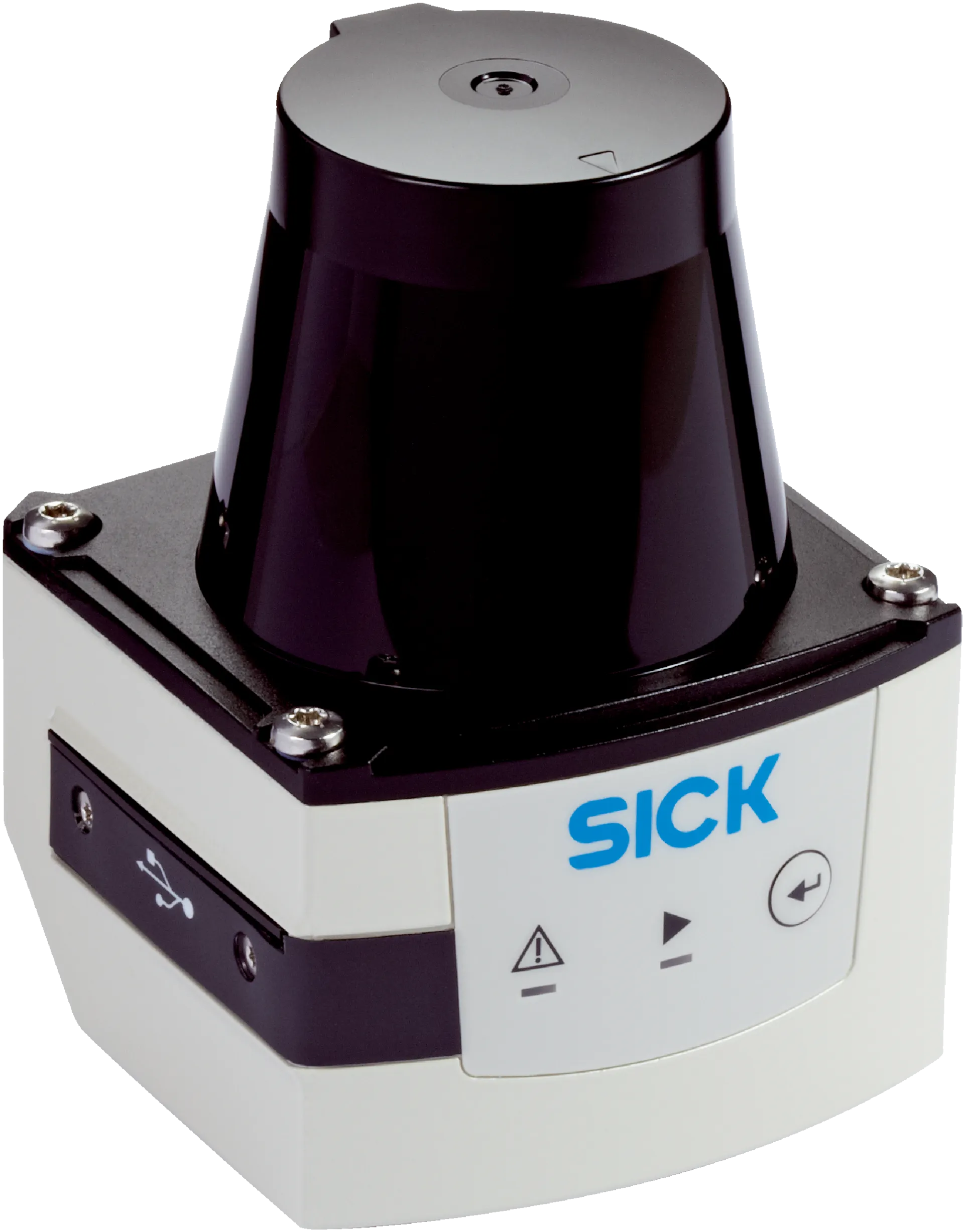

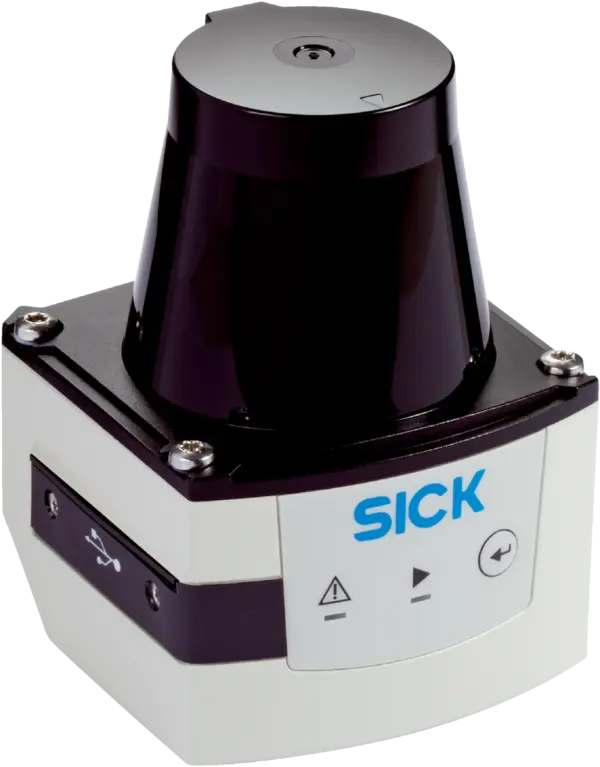

Sick TiM581-2050101

LiDAR sensors | TiM | TiM581-2050101 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m … 25 m | Enclosure rating: IP67 | Digital outputs: 1 …

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

LiDAR sensors | TiM | TiM581-2050101 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m … 25 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, “SYNC”/”device ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B

Specification

Features

ApplicationOutdoor, Indoor
Measurement principleHDDM+
Light sourceInfrared (850Â nm)
Laser class1Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021)
Horizontal270°
Scanning frequency15Â Hz
Horizontal0.33°
Working range0.05 m ... 25 m
At 10% remission factor8Â m

Mechanics/electronics

Connection type1 x “Ethernet” connection, 4-pin M12 female connector1 x connection “Power/Synchronization output” 5-pin, M12 male connector1 x Micro USB female connector, type B
Supply voltage9Â VÂ DCÂ ... 28Â VÂ DC
Power consumptionTyp. 4 W
Output current≤ 100 mA
Housing colorGray (RAL 7032)
Enclosure ratingIP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013)
Protection classIII (IECÂ 61140:2016-1)
Weight250Â g, without connecting cables
Dimensions (L x W x H)60 mm x 60 mm x 86 mm
MTBF>Â 100Â years

Safety-related parameters

MTTFD100Â years

Performance

Response time1 scan, typ. 67 ms2 scans, ≤ 134 ms 1)
Detectable object shapeAlmost any
Systematic error± 60 mm 2)
Statistical error< 20 mm 2)
Integrated applicationOutput of measurement data

Interfaces

Ethernet✔ , TCP/IP
USB✔
RemarkMicro USB
FunctionService interface, parameterization
Inputs0
Outputs1Â (PNP, "SYNC"/"device ready")
Optical indicators2Â LEDs (ON, "device ready")

Ambient data

Object remission4Â %Â ... 1,000Â % (reflectors)
Emitted radiationResidential area (ENÂ 61000-6-3:2007+AMD:A1:2011)
Electromagnetic immunityIndustrial environment (ENÂ 61000-6-2:2005)
Sine resonance scan10 Hz ... 1,000 Hz 1)
Sine test10 Hz ... 500 Hz, 5 g, 10 frequency cycles 1)
Noise test10 Hz ... 250 Hz, 4.24 g RMS, 5 h 2)
Shock resistance50 g, 11 ms, ± 3 single shocks/axis 3)25 g, 6 ms, ± 1,000 continuous shocks/axis 3)50 g, 3 ms, ± 5,000 continuous shocks/axis 3)
Ambient operating temperature–25 °C ... +50 °C 4)
Storage temperature–40 °C ... +75 °C 4)
Temperature change–25 °C ... +50 °C, 10 cycles 5)
Damp heat+25 °C ... +55 °C, 95 % RH, 6 cycles 6)
Operation<Â 80Â %, Non-condensing (ENÂ 60068-2-30:2005)
Storage≤ 95 %, Non-condensing (EN 60068-2-30:2005)
Ambient light immunity80,000Â lx

General notes

Note on useThe sensor does not constitute a safety component as defined by relevant legislation on machine safety.

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
cTUVus certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027270990
ECLASS 5.1.427270990
ECLASS 6.027270913
ECLASS 6.227270913
ECLASS 7.027270913
ECLASS 8.027270913
ECLASS 8.127270913
ECLASS 9.027270913
ECLASS 10.027270913
ECLASS 11.027270913
ECLASS 12.027270913
ETIM 5.0EC002550
ETIM 6.0EC002550
ETIM 7.0EC002550
ETIM 8.0EC002550
UNSPSC 16.090141111615
