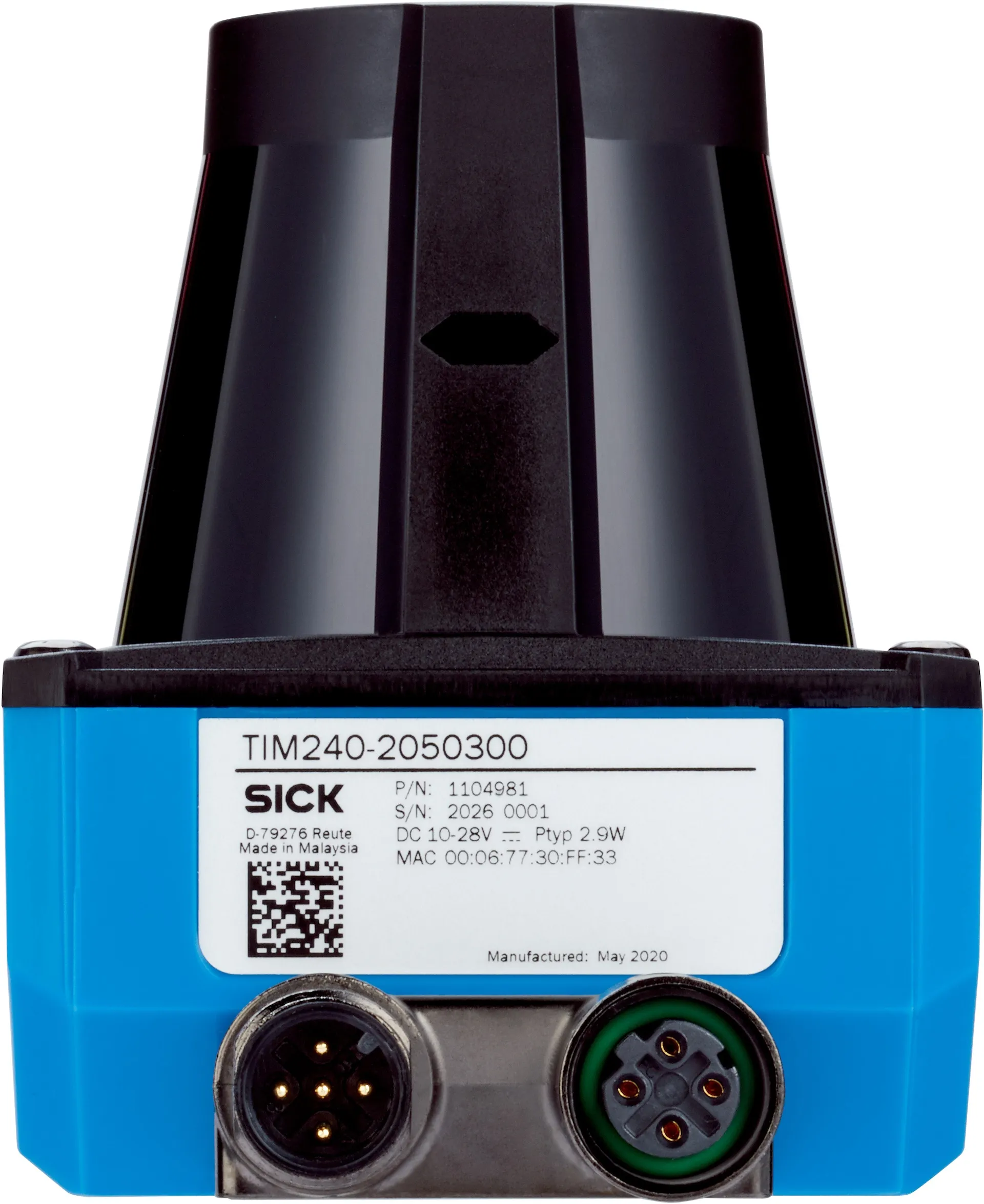

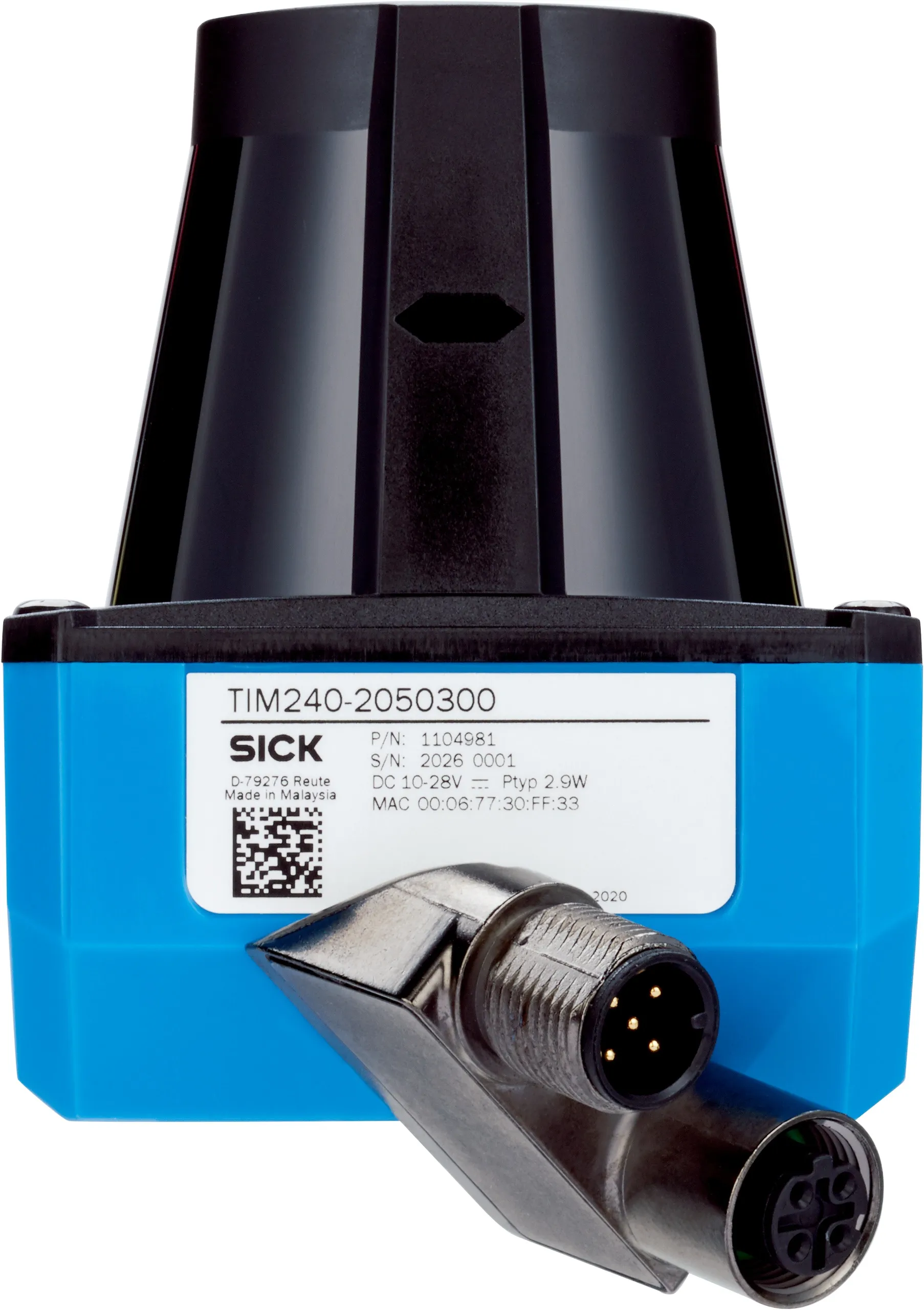

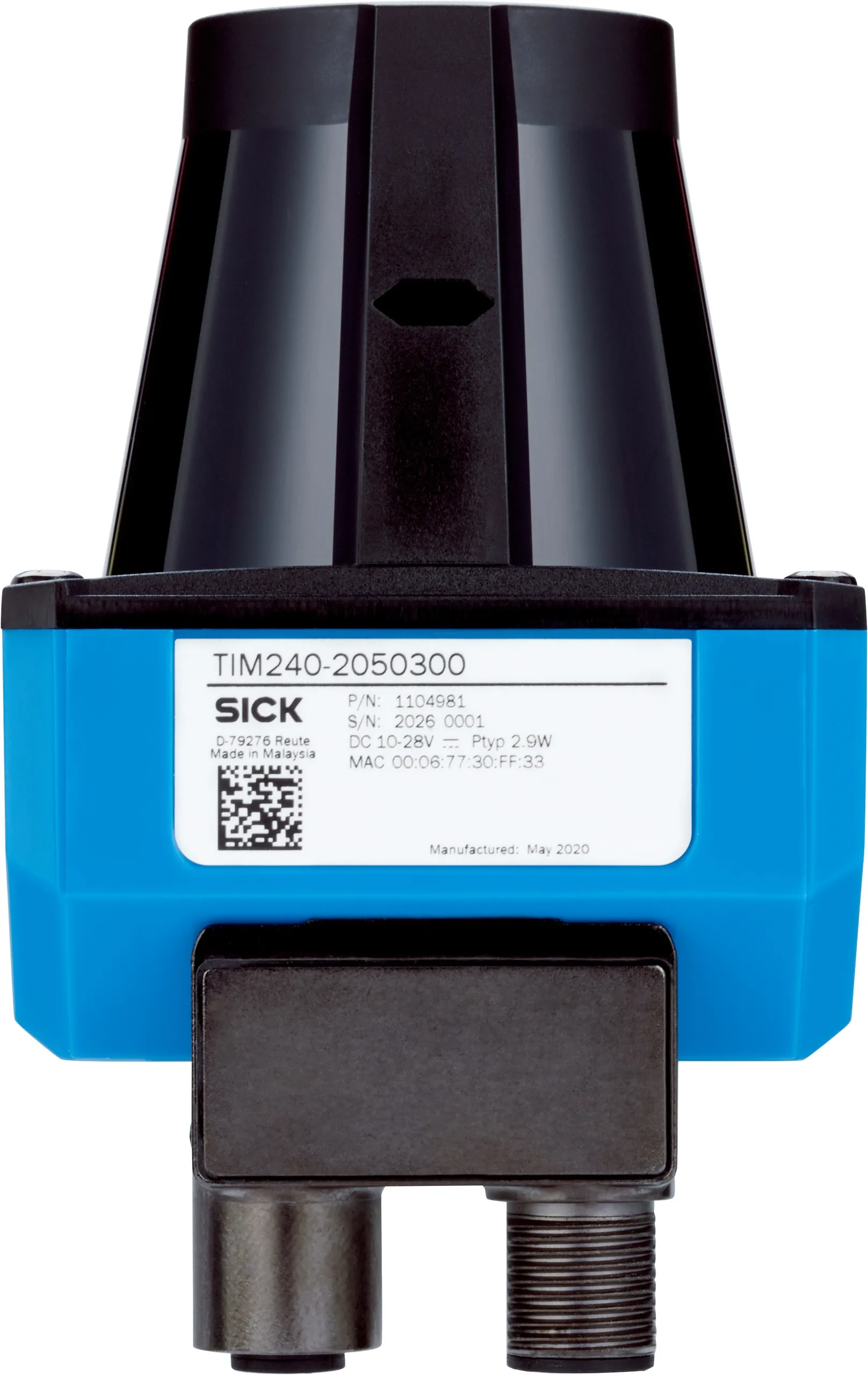

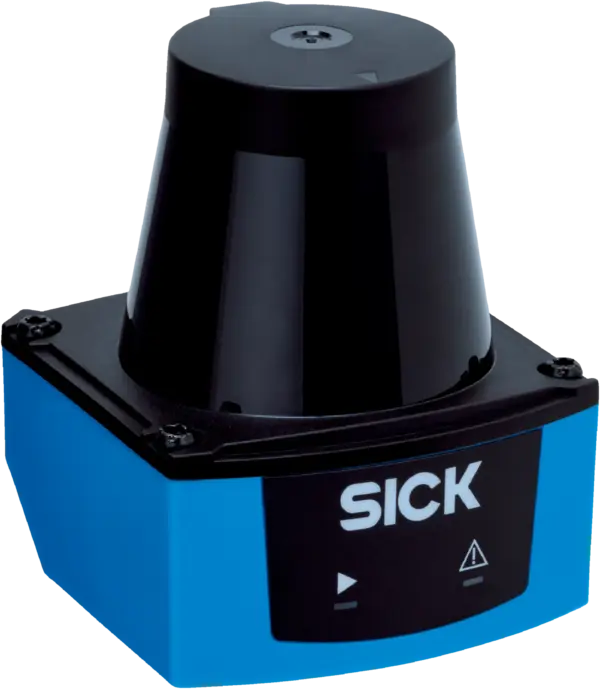

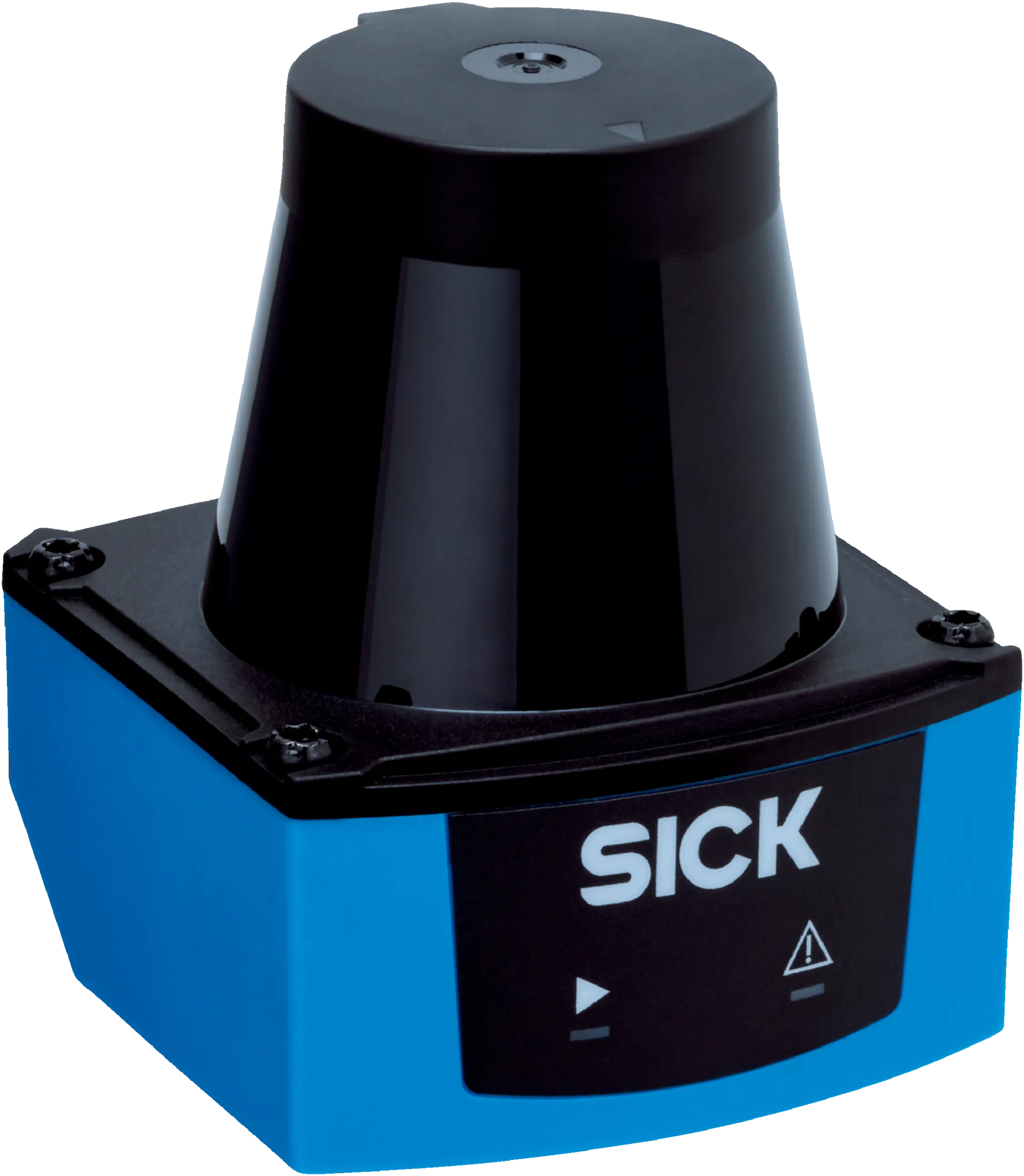

Sick TiM240-2050300
LiDAR sensors | TiM | TiM240-2050300 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m … 10 m | Enclosure rating: IP65 | Digital outputs: 1 …
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LiDAR sensors | TiM | TiM240-2050300 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m … 10 m | Enclosure rating: IP65 | Digital outputs: 1 (Push-pull, “Device Ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 5-pin, M12 male connector
Specification
Features
| Application | Indoor |
|---|---|
| Measurement principle | HDDM+ |
| Light source | Infrared (850Â nm) |
| Laser class | 1Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021) |
| Horizontal | 240° |
| Scanning frequency | 14.5Â Hz |
| Horizontal | 1° |
| Working range | 0.05 m ... 10 m |
| At 10% remission factor | 2.8 m ... 3 m, depending on the angle |
Mechanics/electronics
| Connection type | 1Â x âEthernetâ connection, 4-pin M12 female connector1Â x connection âPowerâ, 5-pin, M12 male connector |
|---|---|
| Supply voltage | 10Â VÂ DCÂ ... 28Â VÂ DC |
| Power consumption | Typ. 2.9 W |
| Output current | â¤Â 100 mA |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (IECÂ 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IECÂ 61140:2016-1) |
| Weight | 150Â g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 75.8 mm |
| MTBF | 50Â years |
Safety-related parameters
| MTTFD | >Â 100Â years |
|---|
Performance
| Response time | Typ. 70 ms |
|---|---|
| Detectable object shape | Almost any |
| Systematic error | ± 40 mm 1) |
| Statistical error | 30 mm 1) |
| Integrated application | Output of measurement data |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Inputs | 0 |
| Outputs | 1Â (Push-pull, "Device Ready") |
| Optical indicators | 2Â LEDs ("device ready") |
Ambient data
| Object remission | 4Â %Â ... 1,000Â % (reflectors) |
|---|---|
| Electromagnetic compatibility (EMC) | IECÂ 61000-6-3:2006+AMD1:2010Â / IECÂ 61000-6-2:2005 |
| Sine resonance scan | 10 Hz ... 1,000 Hz 1) |
| Sine test | 10 Hz ... 500 Hz, 5 g, 10 frequency cycles 1) |
| Noise test | 5 Hz ... 250 Hz, 4.24 g RMS, 5 h 2) |
| Shock resistance | 25 g, 6 ms, ± 1,000 continuous shocks/axis 3)50 g, 3 ms, ± 5,000 continuous shocks/axis 3)50 g, 3 ms, ± 3 single shocks/axis 3) |
| Ambient operating temperature | â10 °C ... +50 °C |
| Storage temperature | â30 °C ... +70 °C |
| Ambient light immunity | 30,000Â lx |
General notes
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cTUVus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270990 |
|---|---|
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
