Description

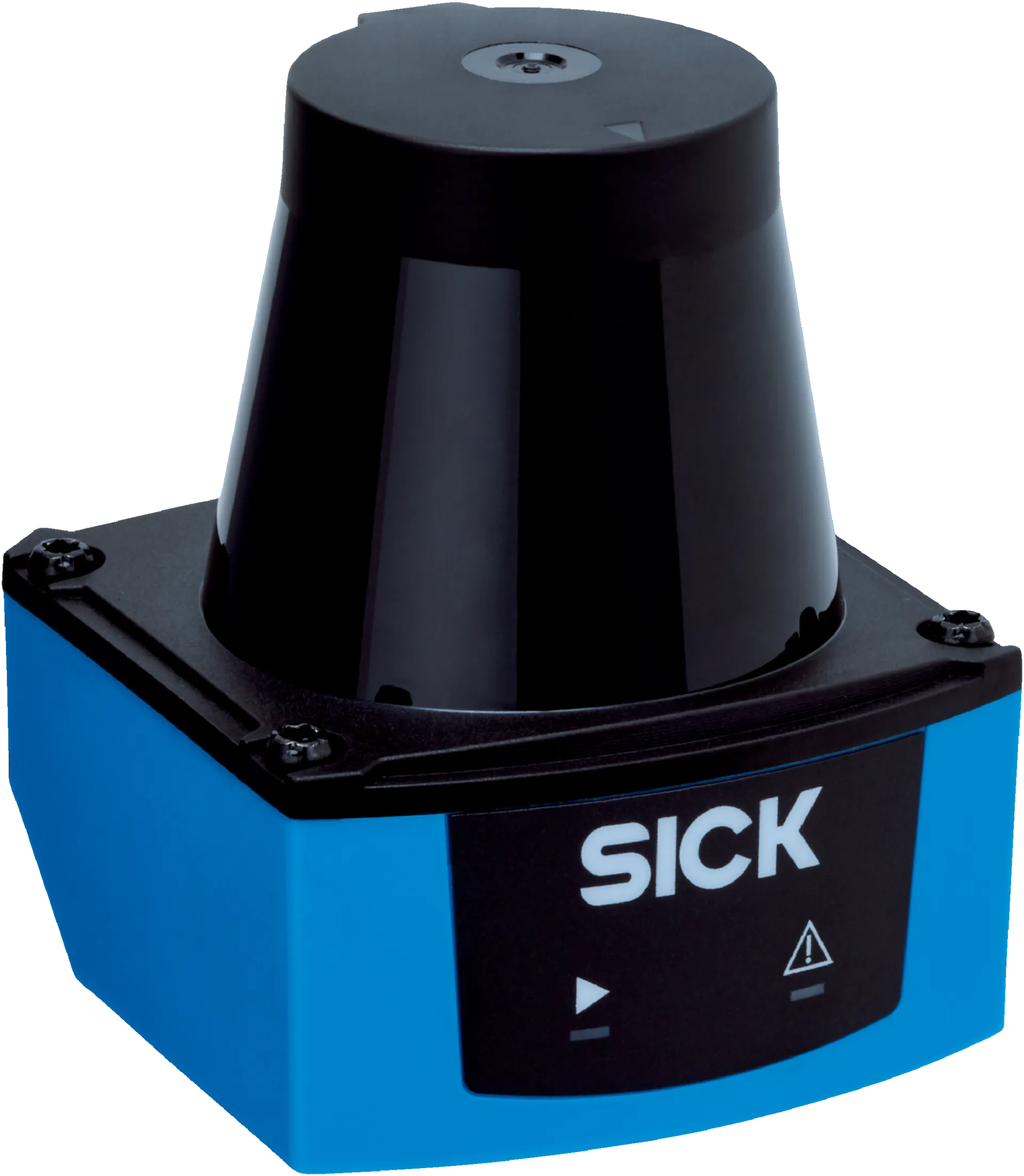

LiDAR sensors | TiM | TIM100-3010200 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m … 3 m | Number of field sets: 1 | Enclosure rating: IP65 | Digital outputs: 2 (Push-pull) | Connection type: 1 x 5-pin M12 male device connector (rotatable)
Specification
Features
| Application | Indoor |
|---|---|
| Measurement principle | HDDM+ |
| Light source | Infrared (850Â nm) |
| Laser class | 1Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021) |
| Horizontal | 200° |
| Scanning frequency | 14.5Â Hz |
| Horizontal | 1° |
| Working range | 0.05 m ... 3 m |
| At 10% remission factor | 1.2 m ... 1.5 m, depending on the angle |
Mechanics/electronics
| Connection type | 1Â x 5-pin M12 male device connector (rotatable) |
|---|---|
| Supply voltage | 9Â VÂ DCÂ ... 28Â VÂ DCÂ 1) |
| Power consumption | Typ. 2.2 W |
| Output current | â¤Â 100 mA |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (IECÂ 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IECÂ 61140:2016-1) |
| Weight | 90Â g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 75.8 mm |
| MTBF | 50Â years |
Safety-related parameters
| MTTFD | >Â 100Â years |
|---|
Performance
| Response time | Typ. 70 ms |
|---|---|
| Detectable object shape | Almost any |
| Systematic error | ± 50 mm 1) |
| Statistical error | 20 mm 1) |
| Integrated application | Field evaluation |
| Number of field sets | 1Â field set |
| Simultaneous evaluation cases | 1Â Â (2Â fields) |
Interfaces
| IO-Link | â |
|---|---|
| Function | Service interface, parameterization |
| Inputs | 1 |
| Outputs | 2Â (Push-pull) |
| Delay time | 69 ms ... 30,015 ms (configurable) |
| Dwell time | 69 ms ... 30,015 ms (configurable) |
| Optical indicators | 2Â LEDs (ON, switching status) |
Ambient data
| Object remission | 4Â %Â ... 1,000Â % (reflectors) |
|---|---|
| Electromagnetic compatibility (EMC) | IECÂ 61000-6-3:2006+AMD1:2010Â / IECÂ 61000-6-2:2005 |
| Sine resonance scan | 10 Hz ... 500 Hz 1) |
| Sine test | 10 Hz ... 500 Hz, 5 g, 10 frequency cycles 1) |
| Noise test | 10 Hz ... 500 Hz, 5 g RMS, 2 h 2) |
| Ambient operating temperature | â10 °C ... +50 °C |
| Storage temperature | â30 °C ... +70 °C |
| Permissible relative humidity | â¤Â 95 %, Non-condensing 3) |
| Ambient light immunity | 80,000Â lx |
General notes
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cTUVus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270990 |
|---|---|
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
