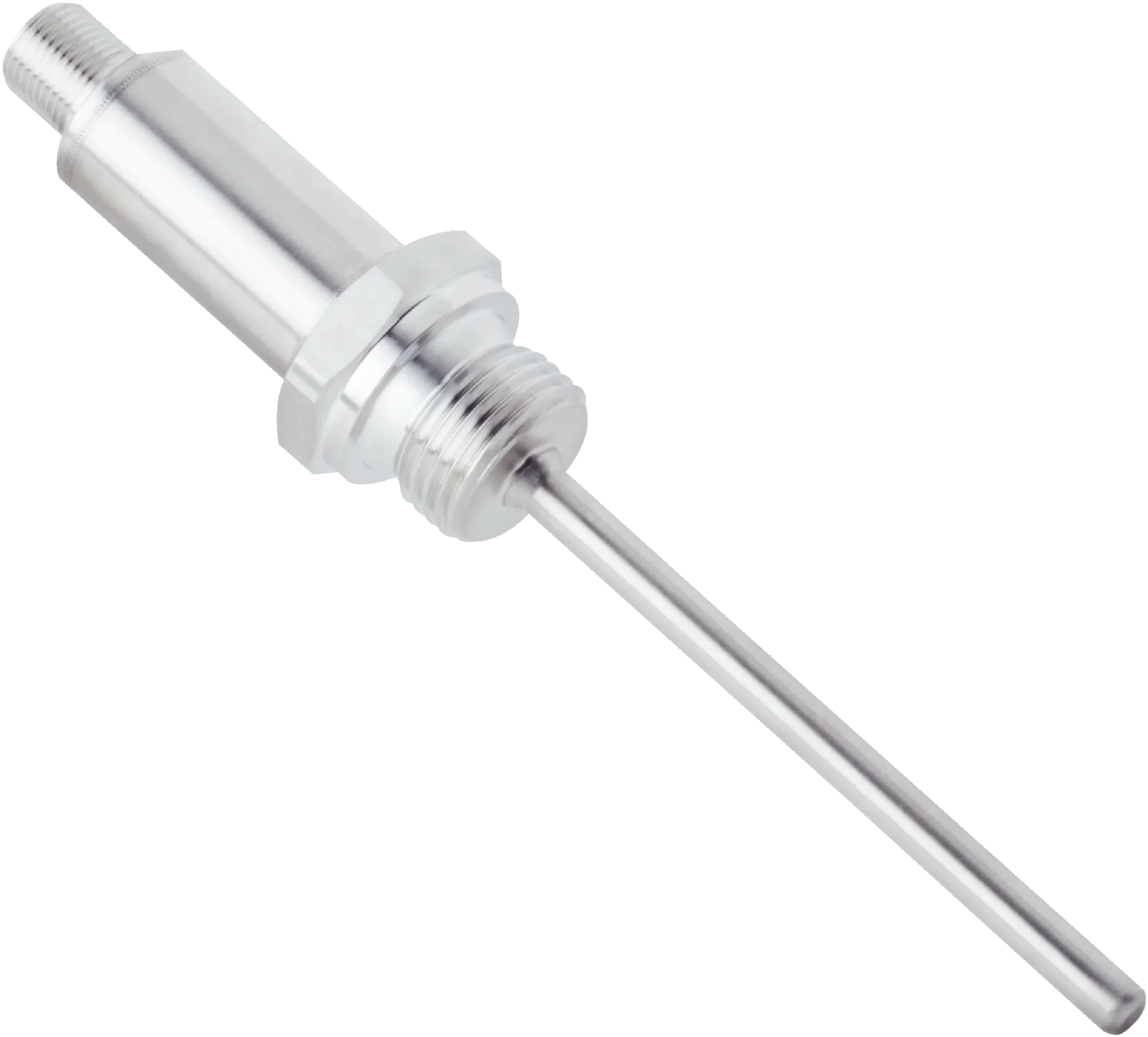

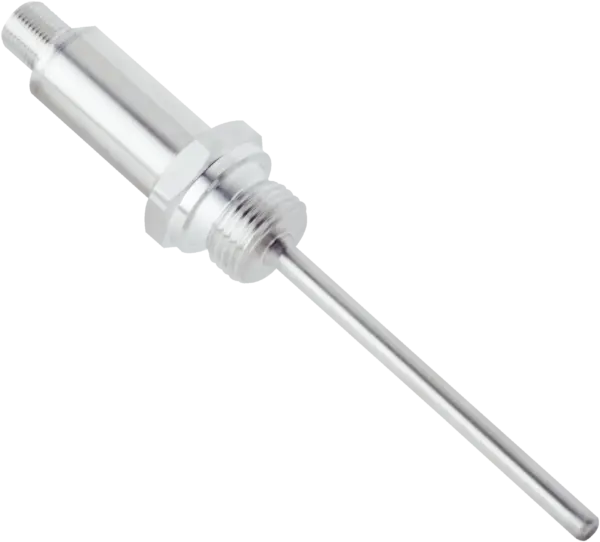

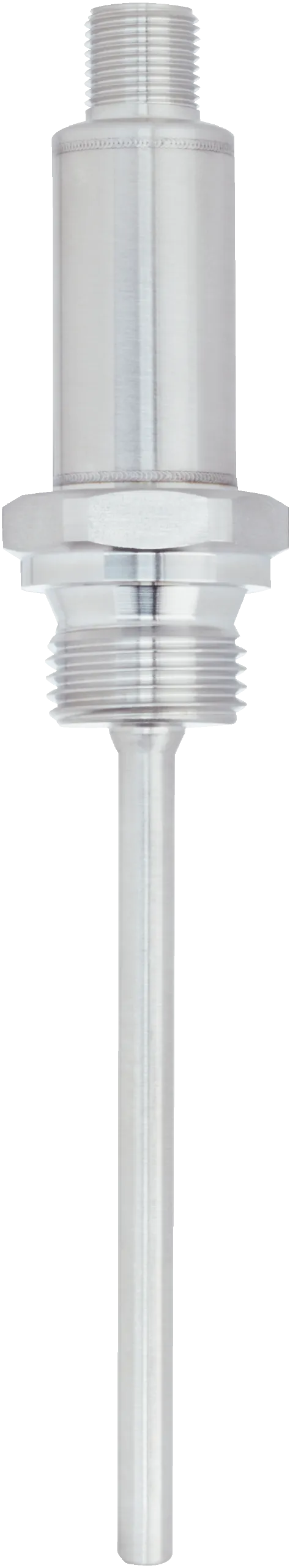

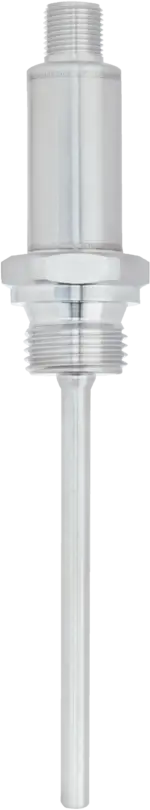

Sick TCT-2AAGE1506MZ
Temperature sensors | TCT | TCT-2AAGE1506MZ | Temperature measuring range: –50 °C … +150 °C | Process connection: Thread G ½ B | Insertion length/diameter of probe: 150 mm / 6 mm | Seal: Without sea…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Temperature sensors | TCT | TCT-2AAGE1506MZ | Temperature measuring range: –50 °C … +150 °C | Process connection: Thread G ½ B | Insertion length/diameter of probe: 150 mm / 6 mm | Seal: Without seal | Output signal: 4 mA … 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: –
Specification
Features
| Measuring range | â50 °C ... +150 °C |
|---|---|
| Sensor element | Pt1000 |
| Output signal | 4Â mAÂ ... 20Â mA, 2-wire |
| Maximum ohmic load RA | RA ⤠(L+ â 9 V) / 0.023 A [Ohm] |
Mechanics/electronics
| Communication interface | - |
|---|---|
| Process connection | Thread G ½ B |
| Seal | Without seal |
| Insertion length/diameter of probe | 150 mm / 6 mm |
| Wetted parts | Stainless steel 1.4571 |
| Maximum process pressure | ⤠120 bar 1) |
| Pressure resistance | Max. 120Â bar |
| Housing material | Stainless steel 1.4571 |
| Connection type | M12 round connector x 1, 4-pin 2) |
| Enclosure rating | IP67Â 3) |
| Measuring current | 0.3Â mAÂ ... 1Â mA |
| Supply voltage | 10Â VÂ DCÂ ... 35Â VÂ DC |
| Maximum current consumption | Approx. 30 mA |
| Electrical safety | Protection class: III, dielectric strength: 500Â VÂ AC, Reverse polarity protection: L+ to M |
| Protection class III | â |
| Weight | Ca. 145Â g (depending on configuration) |
| Initialization time | <Â 10Â ms |
Performance
| Accuracy of sensor element | Class A according to IECÂ 60751 |
|---|---|
| Transmitter accuracy | ⤠± 0.2 % of span |
| Transmitter linearity | ⤠0.1 % of span |
| Response time | t50 â¤Â 2.8 s 1)t90 â¤Â 9.1 s 1) |
Ambient data
| Ambient temperature | â40 °C ... +85 °C |
|---|---|
| Storage and transport temperature | â40 °C ... +85 °C |
| Shock resistance | 500Â g (IECÂ 60751) |
| Vibration resistance according to IECÂ 60751 | 3Â g |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27200208 |
|---|---|
| ECLASS 5.1.4 | 27200208 |
| ECLASS 6.0 | 27200208 |
| ECLASS 6.2 | 27200208 |
| ECLASS 7.0 | 27200208 |
| ECLASS 8.0 | 27200208 |
| ECLASS 8.1 | 27200208 |
| ECLASS 9.0 | 27200208 |
| ECLASS 10.0 | 27200208 |
| ECLASS 11.0 | 27200208 |
| ECLASS 12.0 | 27200208 |
| ETIM 5.0 | EC002994 |
| ETIM 6.0 | EC002994 |
| ETIM 7.0 | EC002994 |
| ETIM 8.0 | EC002994 |
| UNSPSC 16.0901 | 41112211 |
