Sick TBS-1BSGT1006NM
Temperature sensors | TBS | TBS-1BSGT1006NM | Temperature measuring range: –20 °C … +80 °C | Process connection: Thread G ½ A | Insertion length/diameter of probe: 100 mm / 6 mm | Seal: NBR | Output…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

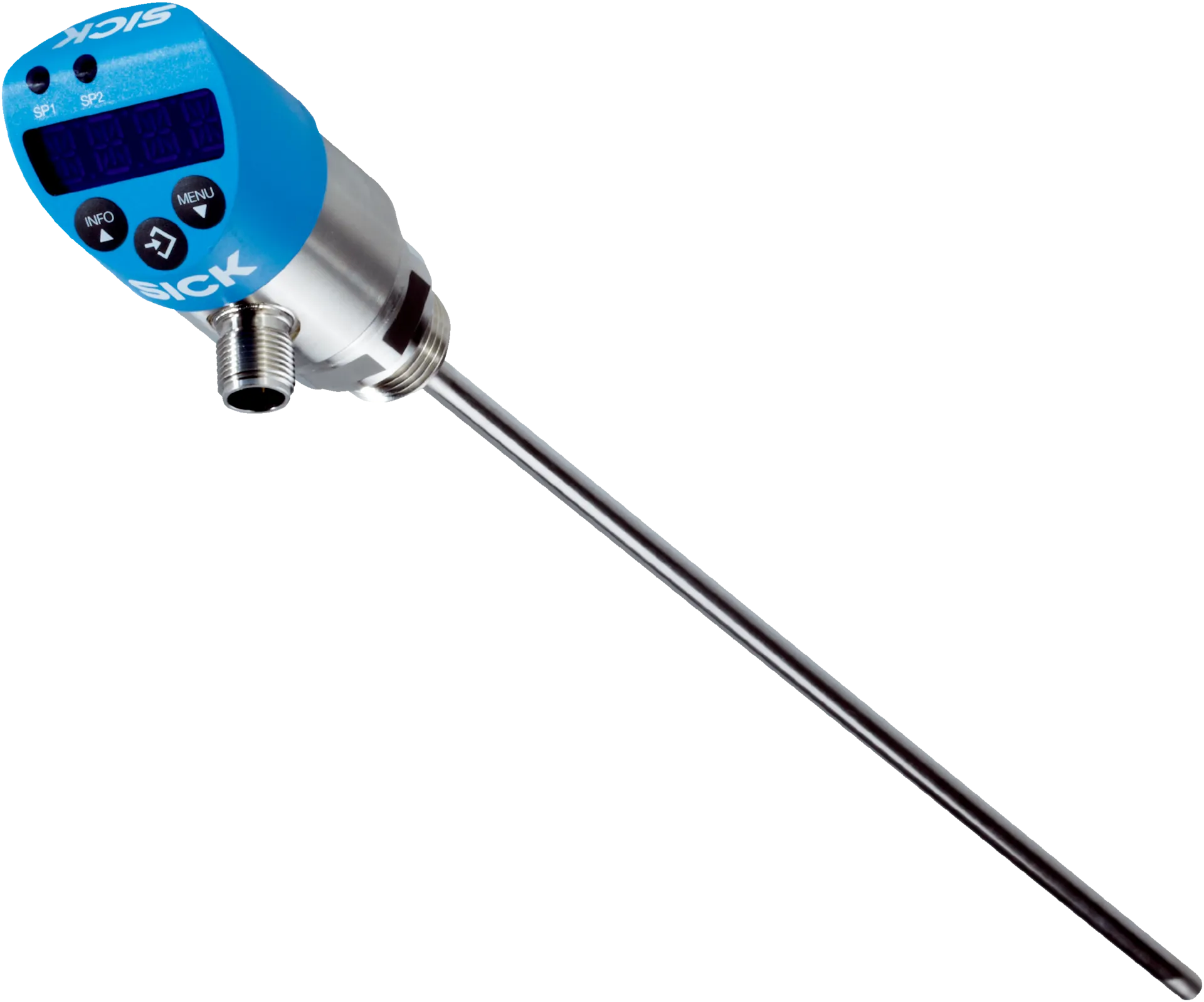

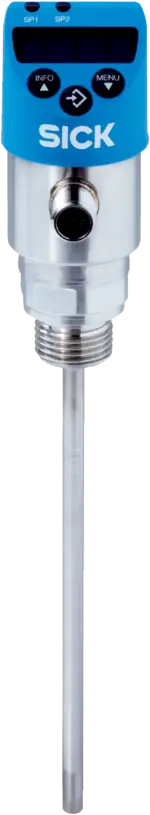

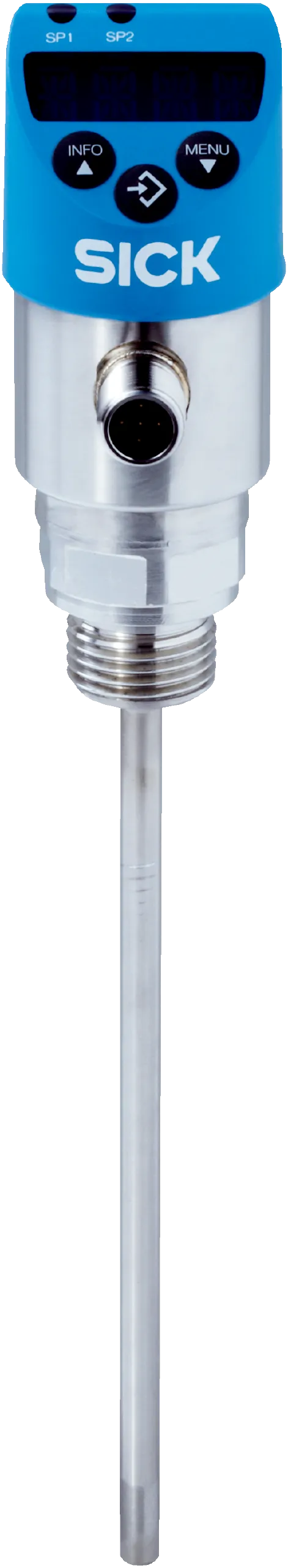

Temperature sensors | TBS | TBS-1BSGT1006NM | Temperature measuring range: –20 °C … +80 °C | Process connection: Thread G ½ A | Insertion length/diameter of probe: 100 mm / 6 mm | Seal: NBR | Output signal: 1 x PNP + 4 mA … 20 mA | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP65, IP67 | Communication interface: –
Specification
Features
| Measuring range | â20 °C ... +80 °C |
|---|---|
| Sensor element | Pt1000, 2-wire |
| Output signal | 1Â x PNP + 4Â mAÂ ... 20Â mA |
| Maximum ohmic load RA | â¤Â 100 kΩ Switching outputs< 0.5 kΩ output signal 4 mA ... 20 mA |
| Switching output | PNP |
| Number of switching outputs | 1 |
| Switching voltage | Supply voltage [VÂ DC] - 1Â VÂ DC |
| Maximum switching current | â¤Â 250 mA |
| Switching delay | 0 s ... 50 s, programmable |
| Setting accuracy of switching outputs | +0.1 °C |
| Temperature offset | ± 3 °C |
| Display | 14-segment LED, blue, 4-digits, height 9 mm, Display electronically turnable by 180 °, update: 200 ms |
| Rotatable housing | Display against housing with electrical connection: 330 °, housing against process connection: 320 ° |
| Scaling of measuring range | Zero point: max. +25 % of spanFull scale: max. â25 % of span |
Mechanics/electronics
| Communication interface | - |
|---|---|
| Process connection | Thread G ½ A |
| Seal | NBR |
| Insertion length/diameter of probe | 100 mm / 6 mm |
| Wetted parts | Stainless steel 1.4571Â (AISI 316Ti) |
| Maximum process pressure | ⤠150 bar 1) |
| Housing material | Stainless steel 1.4301Â (AISI 304) Lower bodyPC + ABS Plastic headTPE-E Input keypadPC Display window |
| Connection type | M12 round connector x 1, 4-pin 2) 3) |
| Enclosure rating | IP65Â 4)IP67Â 4) |
| Supply voltage | 15Â VÂ DCÂ ... 35Â VÂ DC |
| Maximum current consumption | â¤Â 70 mA |
| Total current consumption | 570Â mA (incl. switching current)320Â mA |
| Electrical safety | Protection class: III, dielectric strength: 500Â V, Overvoltage protection: 40Â VÂ DC, Short-circuit protection: QA, Q1, Q2 towards M, Reverse polarity protection: L+ to M |
| CE-conformity | 2004/108/EC, ENÂ 61326-1 emission (group 1, class B) and interference immunity (industrial application) |
| MTTF | 283Â years |
Performance
| Accuracy of sensor element | Class A according to IECÂ 60751Â 1)Â 2) |
|---|---|
| Accuracy of switching output | ⤠± 0.8 % of span |
| Display accuracy | ⤠± 0.8 % of span ± 1 digit |
| Accuracy of analog output | ⤠± 0.5 % of span |
| Response time | t50 â¤Â 5 s 3)t90 â¤Â 10 s 3) |
Ambient data
| Ambient temperature | â20 °C ... +80 °C |
|---|---|
| Storage and transport temperature | â20 °C ... +80 °C |
| Relative humidity | 45Â %Â ... 75Â % |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27200208 |
|---|---|
| ECLASS 5.1.4 | 27200208 |
| ECLASS 6.0 | 27200208 |
| ECLASS 6.2 | 27200208 |
| ECLASS 7.0 | 27200208 |
| ECLASS 8.0 | 27200208 |
| ECLASS 8.1 | 27200208 |
| ECLASS 9.0 | 27200208 |
| ECLASS 10.0 | 27200208 |
| ECLASS 11.0 | 27200208 |
| ECLASS 12.0 | 27200208 |
| ETIM 5.0 | EC002994 |
| ETIM 6.0 | EC002994 |
| ETIM 7.0 | EC002994 |
| ETIM 8.0 | EC002994 |
| UNSPSC 16.0901 | 41112211 |
