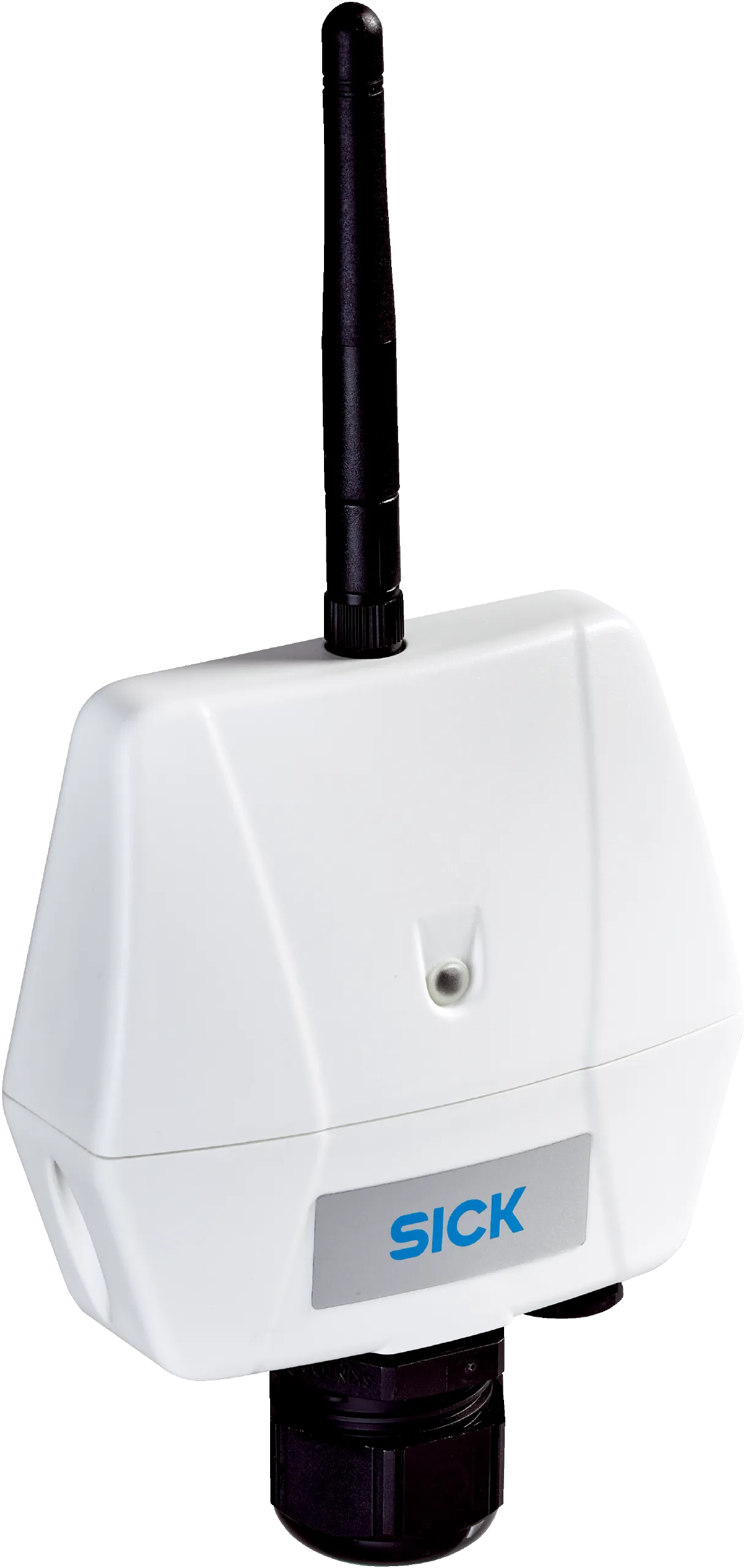

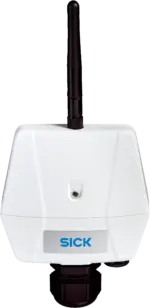

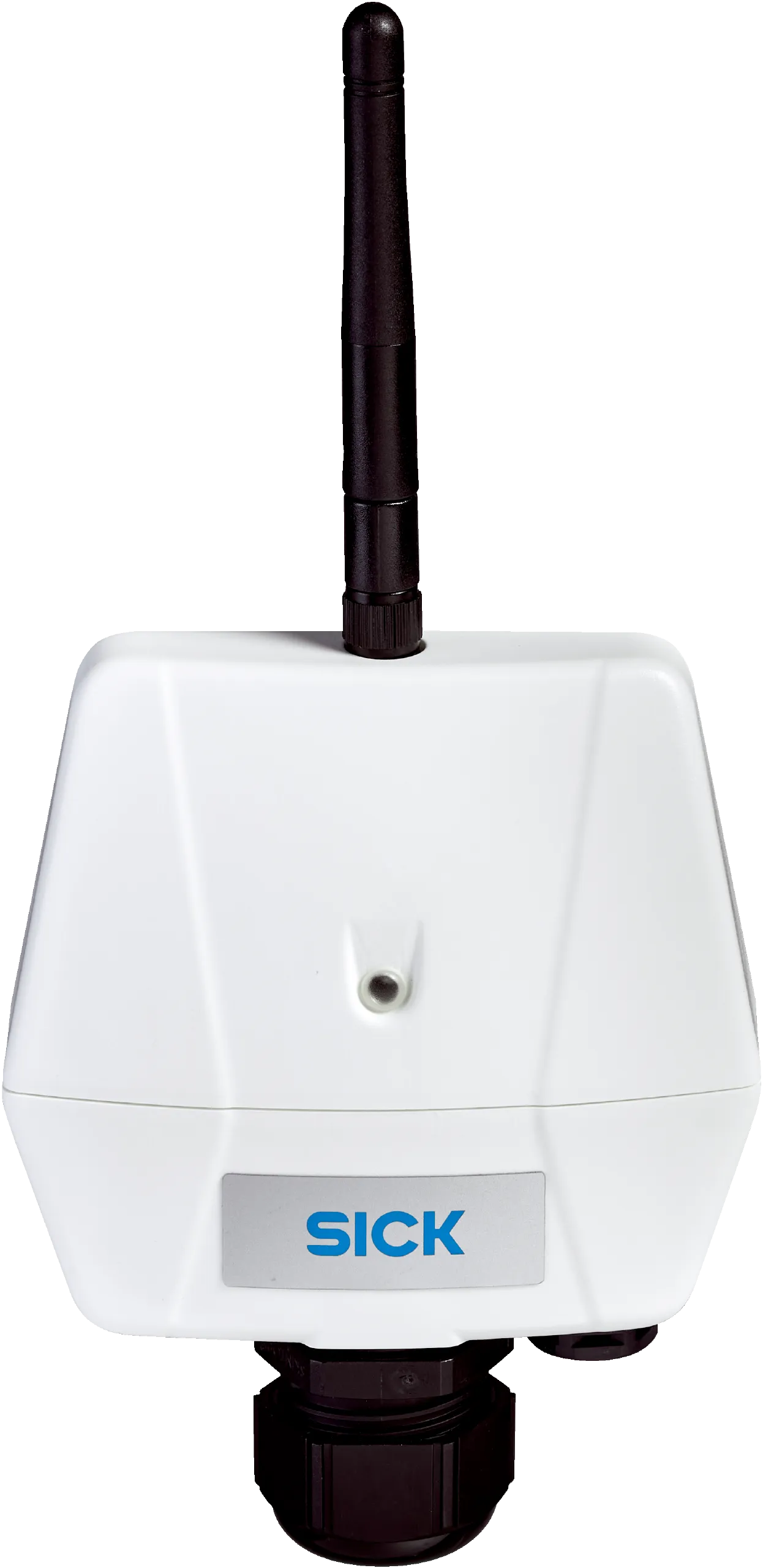

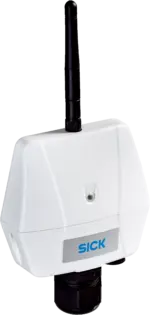

Sick Tag-LOC110
Localization systems | Tag-LOC System | Tag-LOC110 | Description: UWB Anchor-Omnidirect | Housing dimensions (W x D x H): 96 mm x 45 mm x 170 mm | Weight: 150 g
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Localization systems | Tag-LOC System | Tag-LOC110 | Description: UWB Anchor-Omnidirect | Housing dimensions (W x D x H): 96 mm x 45 mm x 170 mm | Weight: 150 g
Specification
Features
| Description | UWB Anchor-Omnidirect |
|---|---|
| Identification technology | UWB |
| Localization accuracy | <Â 30Â cm, typical |
| Localization modes | 2D, 1D (for narrow corridors) and 0D (for presence detection) |
| Spectral output power density | -41.3Â dBm/MHz |
| Scanning range | ⤠50 m 1) |
| Operating frequency (localization) | 6.5Â GHz, UWB Channel 5 |
| Optical indicators | 1Â (LED red-blue) |
| Operating system | Linux Debian 11, Linux Ubuntu 22.04.4Â LTSOther Linux systems possible (containerized)Docker Engine version 24.0.5Â or higher and Docker Compose version 2.20.2Â or higher are required to operate Docker containers.Standard installation on a virtual machine in the customerâs computing center. |
| Supported browsers | Google Chrome (version 100Â or higher)Microsoft Edge (version 120Â or higher) |
| Wireless transmission protocol | IEEE 802.15.4-2011, UWB compliant |
| Type of antenna | Omni-directional CH5 antenna |
| Mounting | Wall or ceiling bracket |
| Weight | 150Â g |
| Housing material | ABS (plastic) |
| Housing color | White |
| Housing dimensions (W x D x H) | 96 mm x 45 mm x 170 mm |
| Deployment package | Includes RTLS Engine with API interface |
| Certificates | EU conformity according to REDRoHSFCC ID: WRMLOCU2AKC Mark certificate |
Mechanics/electronics
| Supply voltage | PoE 802.3af or DC 48Â V (passive PoE) |
|---|---|
| Power consumption | 2,5Â W |
| Enclosure rating | IP65 |
Interfaces
| Optical indicators | 1, LED red-blue |
|---|---|
| Connection type | RJ45 |
| Application programming interface | Stable API, REST, websocket, MQTT (broker provided by customer) |
Ambient data
| Ambient operating temperature | â20 °C ... +60 °C, Air humidity: 20% ... 85% (non-condensing) |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| FCC certificate | â |
| Radio Approval certificate | â |
