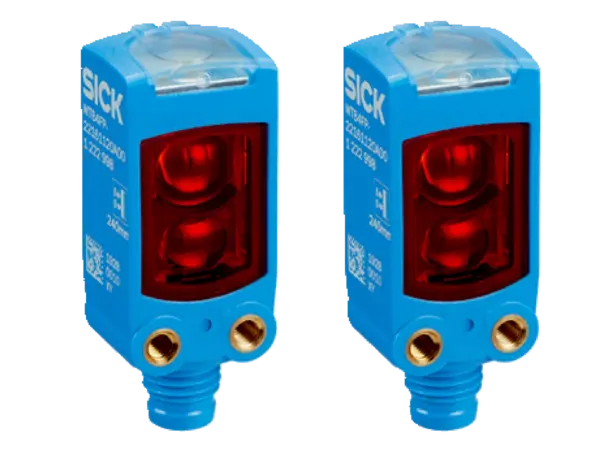

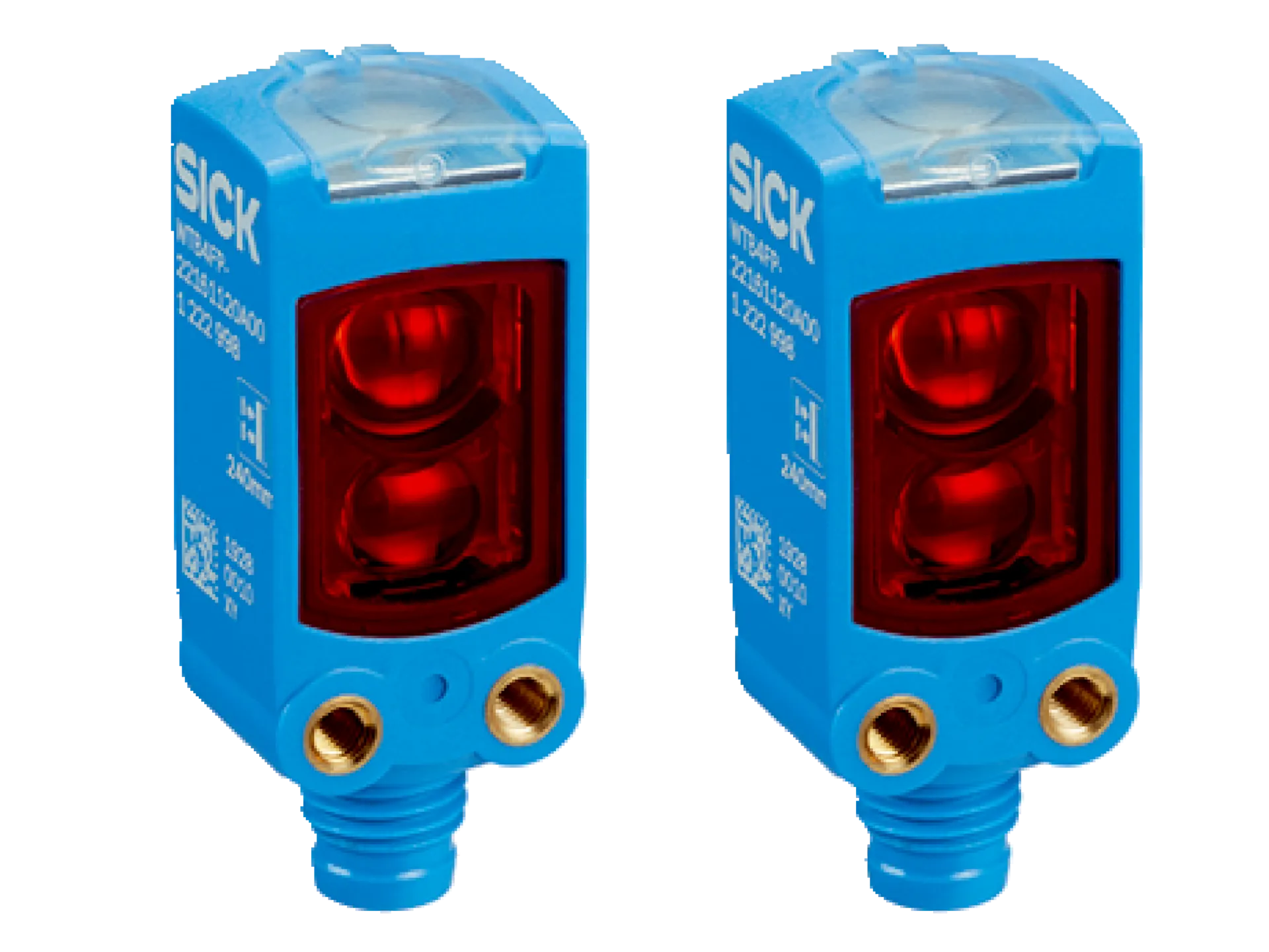

Sick SYS/SGD-W4150000002W4F
Safety systems | Safeguard Detector | SYS/SGD-W4150000002W4F | Product scope: Sensors | Detection zone: 30 mm … 150 mm | Items supplied: 2 × WTB4F MultiPulse sensor 150 mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety systems | Safeguard Detector | SYS/SGD-W4150000002W4F | Product scope: Sensors | Detection zone: 30 mm … 150 mm | Items supplied: 2 × WTB4F MultiPulse sensor 150 mm
Specification
Features
| Safety task | Natural protection due to the material |
|---|---|
| Product scope | Sensors |
| Detection zone | 30 mm ... 150 mm 1) |
| Items supplied | 2Â Ã WTB4F MultiPulse sensor 150Â mm |
MultiPulse photoelectric proximity sensor
| Number of sensors | 2Â pieces |
|---|---|
| Detection zone | 30 mm ... 150 mm 1) |
| Remission | 6Â %Â ... 90Â % |
| Pulse frequency | 10Â Hz |
| Response time | â¤Â 100 ms |
| Type of light | Visible red light |
| Wave length | 650Â nm |
| Light spot size (distance) | ÃÂ 7Â mm (50Â mm) |
| Connection type | Connector M8, 3-pin |
| Voltage supply | Via safety controller |
| Enclosure rating | IP67 (ENÂ 60529) |
| Ambient operating temperature | â40 °C ... +60 °C |
Certificates
| China RoHS | â |
|---|
Classifications
| ECLASS 5.0 | 27279090 |
|---|---|
| ECLASS 5.1.4 | 27279090 |
| ECLASS 6.0 | 27279090 |
| ECLASS 6.2 | 27279090 |
| ECLASS 7.0 | 27279090 |
| ECLASS 8.0 | 27279090 |
| ECLASS 8.1 | 27279090 |
| ECLASS 9.0 | 27279090 |
| ECLASS 10.0 | 27279090 |
| ECLASS 11.0 | 27279090 |
| ECLASS 12.0 | 27279090 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
