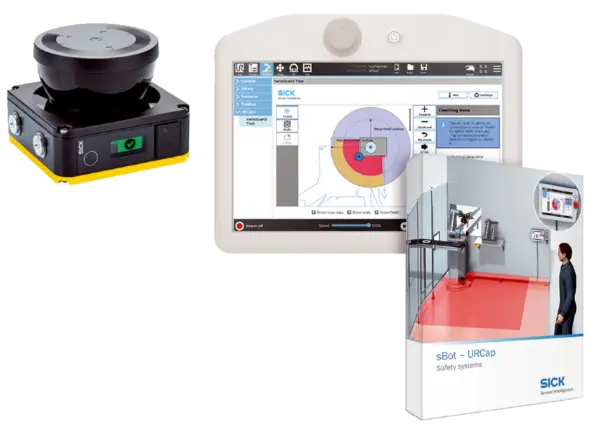

Sick SYS/BOT-URST4ESUA01NS3

Safety systems | Safe Robotics Area Protection | SYS/BOT-URST4ESUA01NS3 | Variant: sBot Stop – URCap | Product type: System (hardware and software) | Robot controller: Universal Robots: UR3e, UR5e, UR…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Safety systems | Safe Robotics Area Protection | SYS/BOT-URST4ESUA01NS3 | Variant: sBot Stop – URCap | Product type: System (hardware and software) | Robot controller: Universal Robots: UR3e, UR5e, UR10e, UR16e, UR20 und UR30 | Stopping process of the robot: Stop only | Robot restart: Automatic | Interface: Discrete I/Os, Ethernet

Specification

Features

VariantsBot Stop – URCap

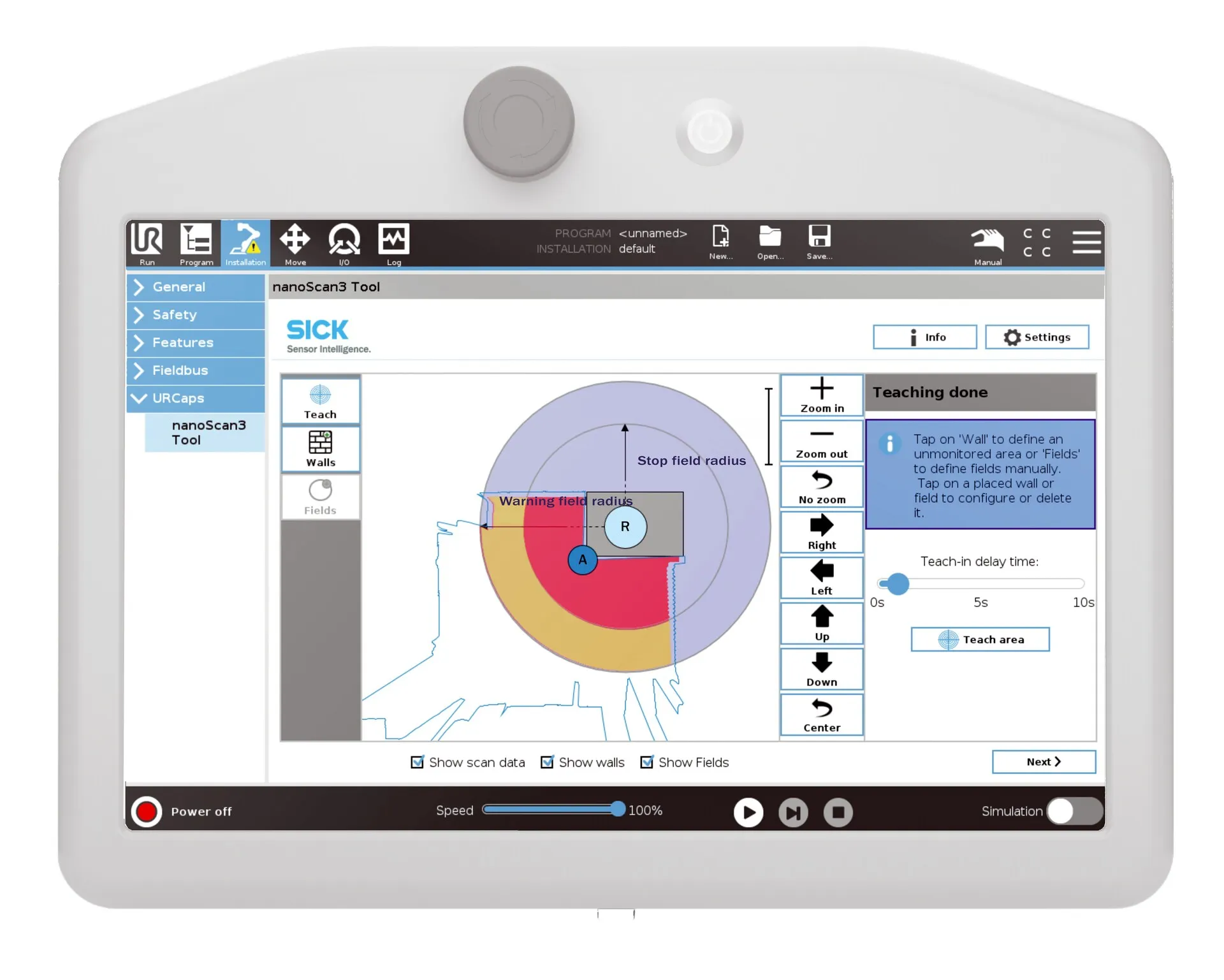

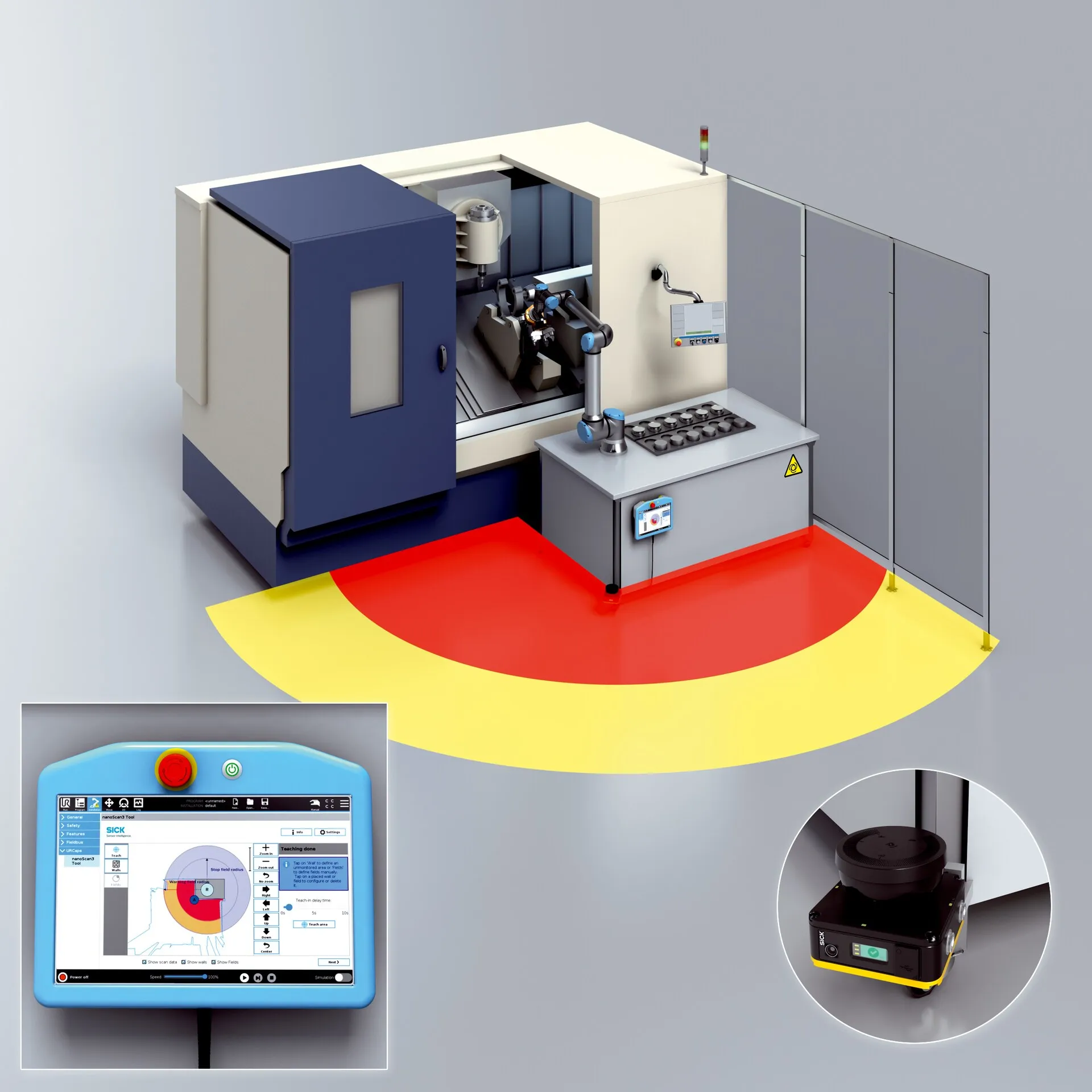

DescriptionsBot Stop - URCap is a safety system for UR robots that makes it easy to protect your freely accessible robot application. The system ensures a safe stop with automatic restart of the robot. The nanoScan3 safety laser scanner is used to detect an approaching person. Using the nanoScan3 Tool - URCap, the safety laser scanner can be configured quickly and easily directly via the teach pendant of the robot.
Product typeSystem (hardware and software)
Robot controllerUniversal Robots: UR3e, UR5e, UR10e, UR16e, UR20 und UR30
Compatible robot softwarePolyscope 5
Stopping process of the robotStop only
Robot restartAutomatic
Communication interfaceDiscrete I/Os, Ethernet
Safe state in the event of a faultThe safety-related semiconductor outputs are in the OFF state.
Safety laser scannersnanoScan3 Core I/O
Protective field range3Â m
Safety taskHazardous area protection
Ambient operating temperature–10 °C ... +50 °C
Storage temperature–25 °C ... +70 °C
Air humidity0%Â ... 95%, non-condensing
Supply voltage VS24Â V (16.8Â VÂ ... 30Â V)
Performance levelPL d (ISO 13849-1)

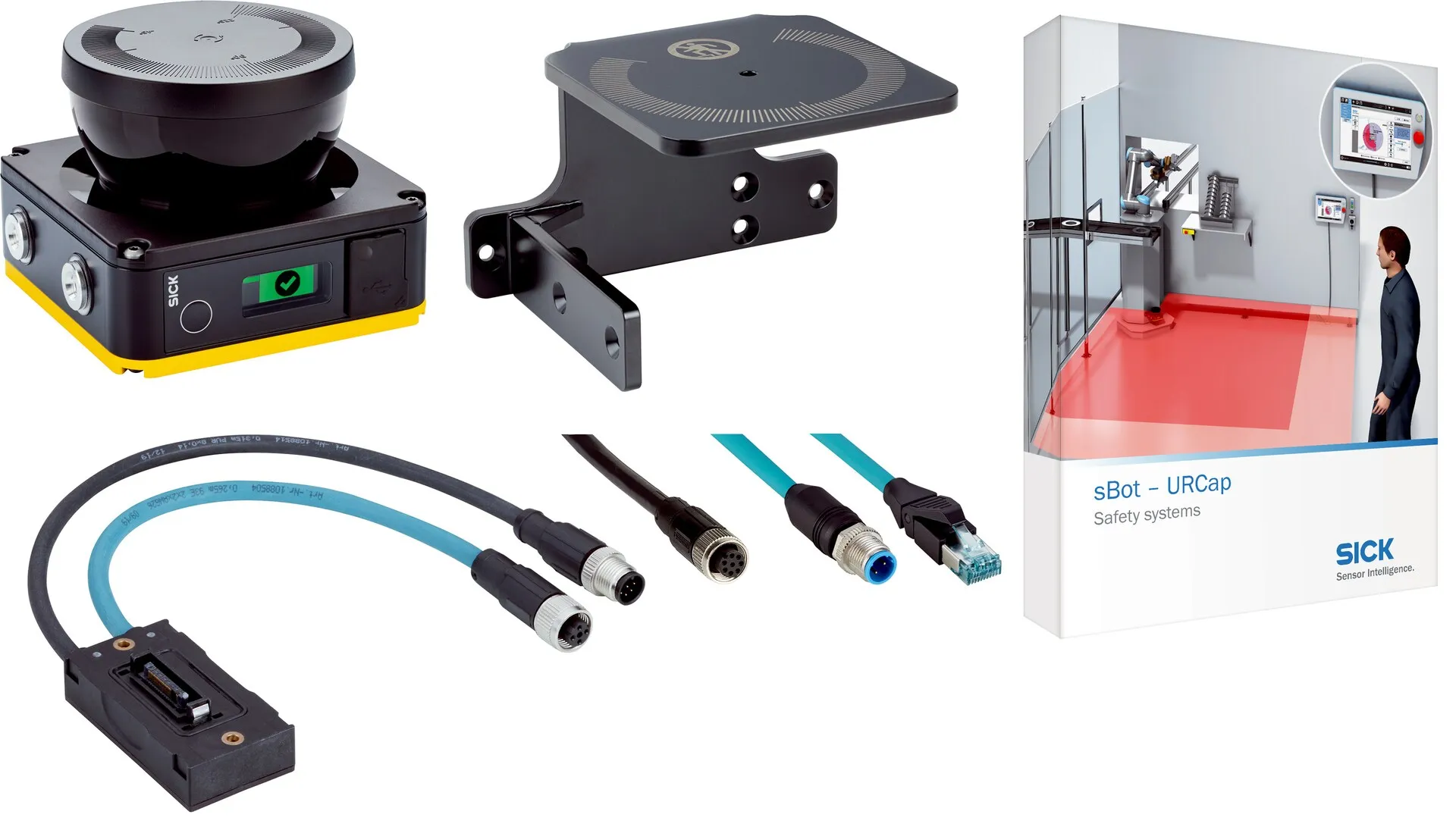

Items supplied1 x nanoScan3 Core I/O safety laser scanner1 x system plug1 x mounting kit (with protection for optics cover)1 x Ethernet cable, 5 m1 x M12 connecting cable, 10 m, flying leadsnanoScan3 Tool – URCap (configuration software)Operating instructionsQuickstart guideCircuit diagram(macro for ePlan and PDF)SISTEMA file

Functions

Automated reset✔
Trigger safety-rated monitored speed✔
Operating mode selection (implemented in robot control)✔
Enabling device - manual operating mode (implemented in robot control)✔

Certificates

China RoHS✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027279090
ECLASS 5.1.427279090
ECLASS 6.027279090
ECLASS 6.227279090
ECLASS 7.027279090
ECLASS 8.027279090
ECLASS 8.127279090
ECLASS 9.027279090
ECLASS 10.027279090
ECLASS 11.027279090
ECLASS 12.027279090
ETIM 5.0EC001449
ETIM 6.0EC001449
ETIM 7.0EC001449
ETIM 8.0EC001449
UNSPSC 16.090132151705
