Sick STE-2312-G01

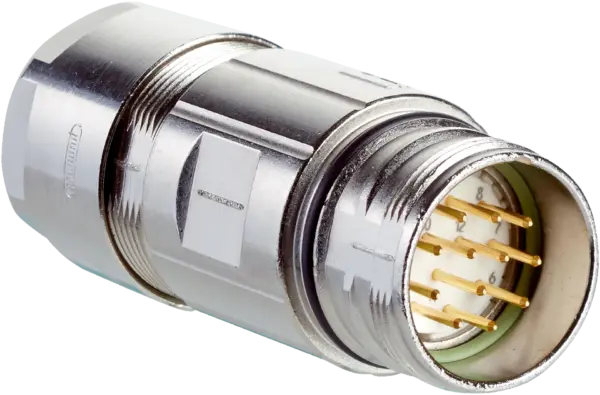

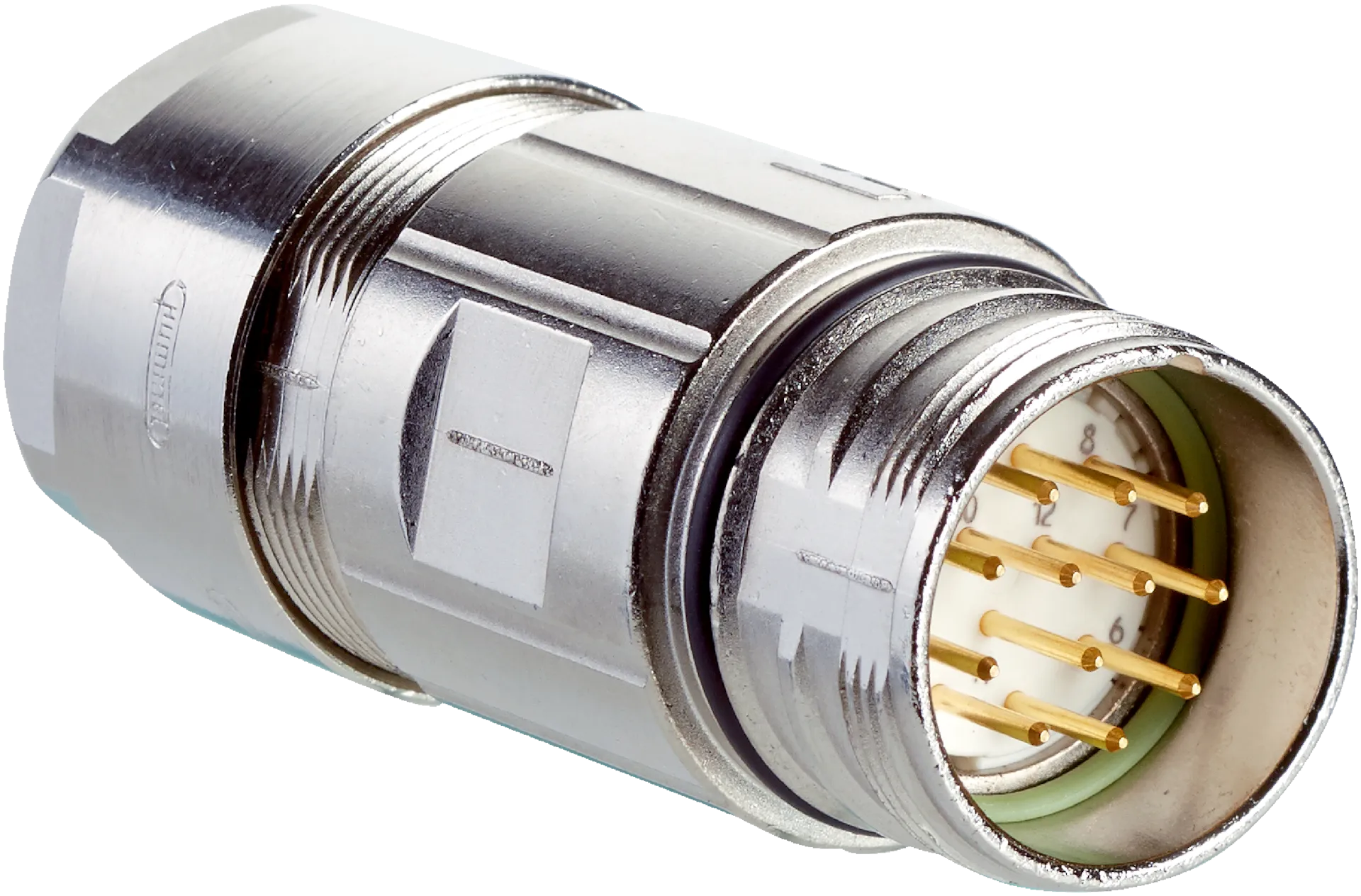

Connectors and cables | Field-wireable connectors | STE-2312-G01 | Connection type head A: Male connector, M23, 12-pin, straight, A-coded | Signal type: HIPERFACE®, SSI, Incremental | Description: HIP…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Field-wireable connectors | STE-2312-G01 | Connection type head A: Male connector, M23, 12-pin, straight, A-coded | Signal type: HIPERFACE®, SSI, Incremental | Description: HIPERFACE®, shieldedSSIIncremental | Connection systems: Solder connection
Specification
Technical specifications
| Connection type head A | Male connector, M23, 12-pin, straight, A-coded |
|---|---|
| Connection type | Solder connection |
| Locking plug connector | Quick screw connection |
| Connector material | Zinc diecast |
| Locking nut material | Nickel-plated |
| Shielding | Shielded |
| Current loading | â¤Â 8 A |
| Signal type | HIPERFACE®, SSI, Incremental |
| Enclosure rating | IP65/ IP66/ IP67/ IP69KÂ 1) |
| Head | â40 °C ... +125 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27279290 |
|---|---|
| ECLASS 5.1.4 | 27279290 |
| ECLASS 6.0 | 27279221 |
| ECLASS 6.2 | 27279221 |
| ECLASS 7.0 | 27440104 |
| ECLASS 8.0 | 27440104 |
| ECLASS 8.1 | 27440104 |
| ECLASS 9.0 | 27440102 |
| ECLASS 10.0 | 27440102 |
| ECLASS 11.0 | 27440102 |
| ECLASS 12.0 | 27440116 |
| ETIM 5.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| UNSPSC 16.0901 | 39121421 |
