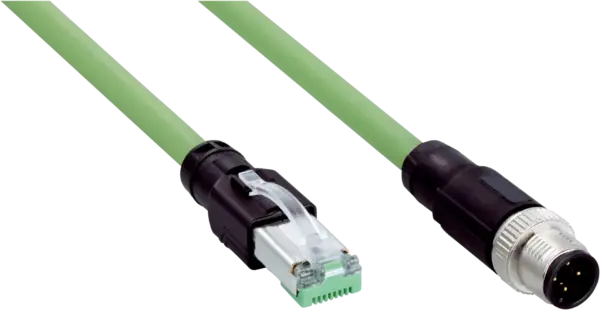

Sick SSL-2J04-G05MR
Connectors and cables | Industrial Ethernet cables and fieldbus cables | SSL-2J04-G05MR | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Industrial Ethernet cables and fieldbus cables | SSL-2J04-G05MR | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 8-pin, straight | Signal type: Ethernet, PROFINET | Cable: 5 m, 4-wire, CAT5, CAT5e, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Zones with oils and lubricants, Robot
Specification
Technical specifications
| Connection type head A | Male connector, M12, 4-pin, straight, D-coded |
|---|---|
| Connection type head B | Male connector, RJ45, 8-pin, straight |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Tightening torque | 0.4Â Nm |
| Cable | 5Â m, 4-wire, CAT5, CAT5e, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Green |
| Cable diameter | 6.5Â mm |
| Conductor cross section | 4 x 0.34 mm² |
| Shielding | Shielded |
| Flexible use | > 5Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Current loading | 1Â A |
| Signal type | Ethernet, PROFINET |
| Transmission characteristics | CAT5 |
| Data transmission rate | ≤ 100 Mbit/s |
| Torsion force | ± 180° |
| Torsion cycles | 1,000,000 |
| Application | Zones with oils and lubricantsRobot |
| Enclosure rating | IP67 (M12), IP20 (RJ45)Â 1) |
| Flexible use | –40 °C ... +80 °C |
| Stationary position | –40 °C ... +80 °C |
| Head | –25 °C ... +80 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
