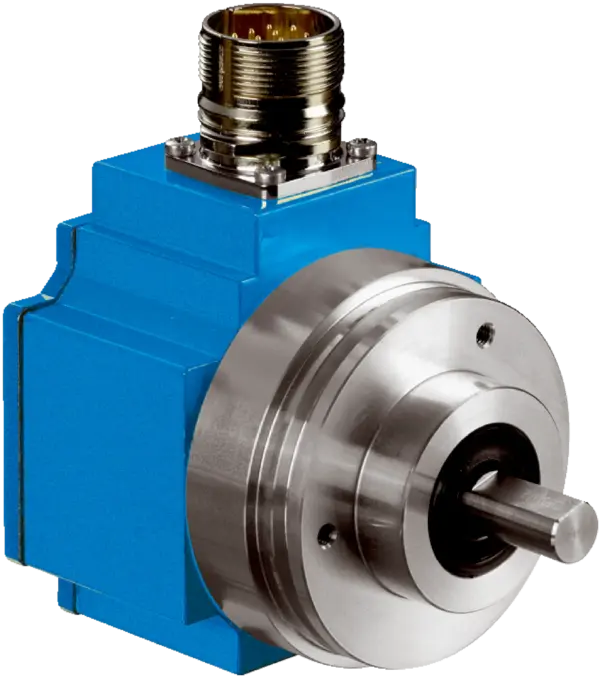

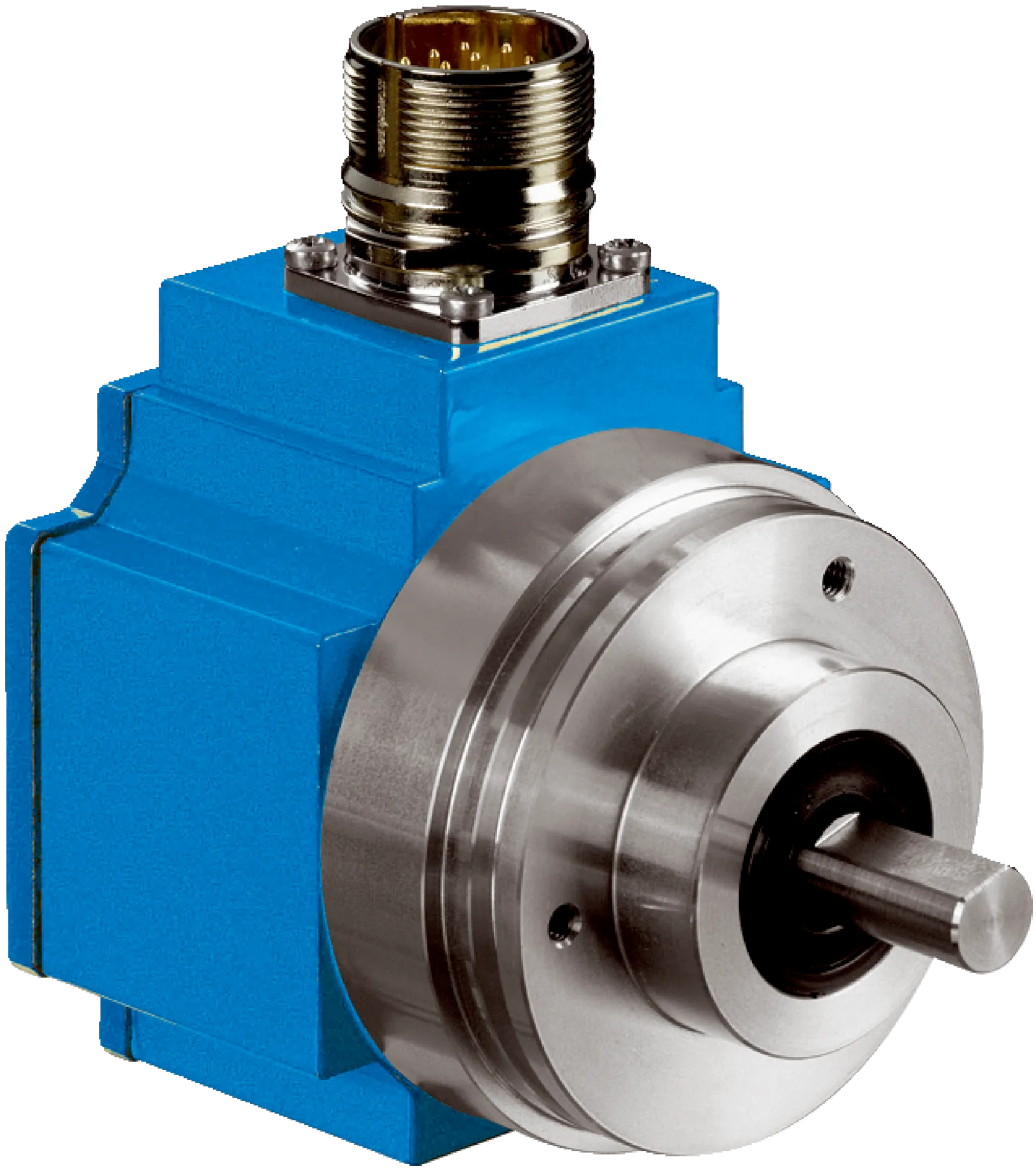

Motor feedback systems | SRS/SRM50 | SRS50-HWA0-K22 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Solid shaft, face mount flange | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –30 °C … +85 °C
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 235Â years (ENÂ ISOÂ 13849)Â 1) |
|---|
Performance
| Sine/cosine periods per revolution | 1,024 |
|---|---|
| Number of the absolute ascertainable revolutions | 1 |
| Total number of steps | 32,768 |
| Measuring step | 0.3 ⳠFor interpolation of the sine/cosine signals with, e. g., 12 bits |
| Integral non-linearity | Typ. ± 45 â³, Error limits for evaluating sine/cosine period |
| Differential non-linearity | ± 7 Ⳡ|
| Operating speed | â¤Â 6,000 minâ»Â¹, up to which the absolute position can be reliably produced |
| Available memory area | 1,792Â Byte |
| System accuracy | ± 52 Ⳡ|
Interfaces
| Type of code for the absolute value | Binary |
|---|---|
| Code sequence | Increasing, when turning the shaft For clockwise rotation, looking in direction âAâ (see dimensional drawing), For clockwise shaft rotation, looking in direction âAâ (see dimensional drawing) |
| Communication interface | HIPERFACE® |
Electronics
| Connection type | Male connector, M23, 12-pin, radial |
|---|---|
| Supply voltage | 7Â VÂ DCÂ ... 12Â VÂ DC |
| Recommended supply voltage | 8Â VÂ DC |
| Current consumption | 80Â mAÂ 1) |
| Output frequency for sine/cosine signals | ⤠200 kHz |
Mechanics
| Shaft version | Solid shaft |
|---|---|
| Shaft diameter | 10Â mm |
| Flange type / stator coupling | Face mount flange, stator coupling |
| Dimensions | See dimensional drawing |
| Weight | â¤Â 0.2 kg |
| Moment of inertia of the rotor | 25 gcm² |
| Operating speed | â¤Â 12,000 minâ»Â¹ |
| Angular acceleration | â¤Â 200,000 rad/s² |
| Operating torque | 1Â Ncm |
| Start up torque | +Â 1.5Â Ncm |
| Permissible shaft loading | 40Â N (radial)20Â N (axial) |
| Life of ball bearings | 3.6Â x 109Â revolutions |
Ambient data
| Operating temperature range | â30 °C ... +85 °C |
|---|---|
| Storage temperature range | â30 °C ... +90 °C, without package |
| Relative humidity/condensation | 90Â %, Condensation not permitted |
| Resistance to shocks | 100Â g, 10Â ms, 10Â ms (according to ENÂ 60068-2-27) |
| Frequency range of resistance to vibrations | 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3Â 1) |
| Enclosure rating | IP65, with mating plug inserted (IECÂ 60529) |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27273805 |
| ECLASS 11.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
