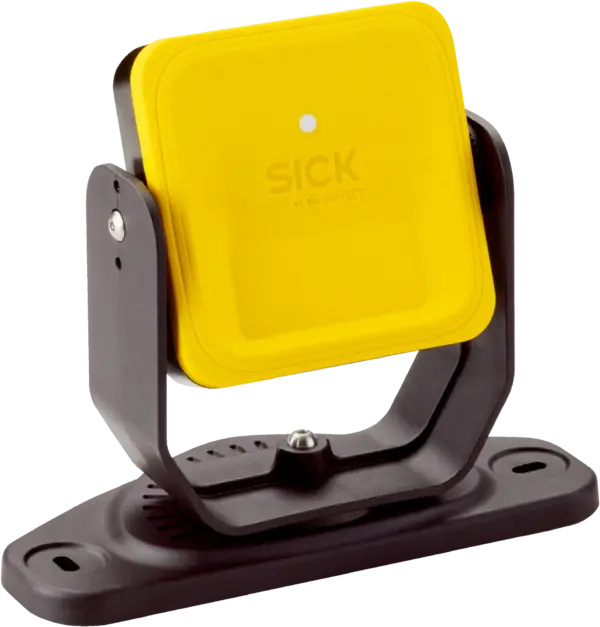

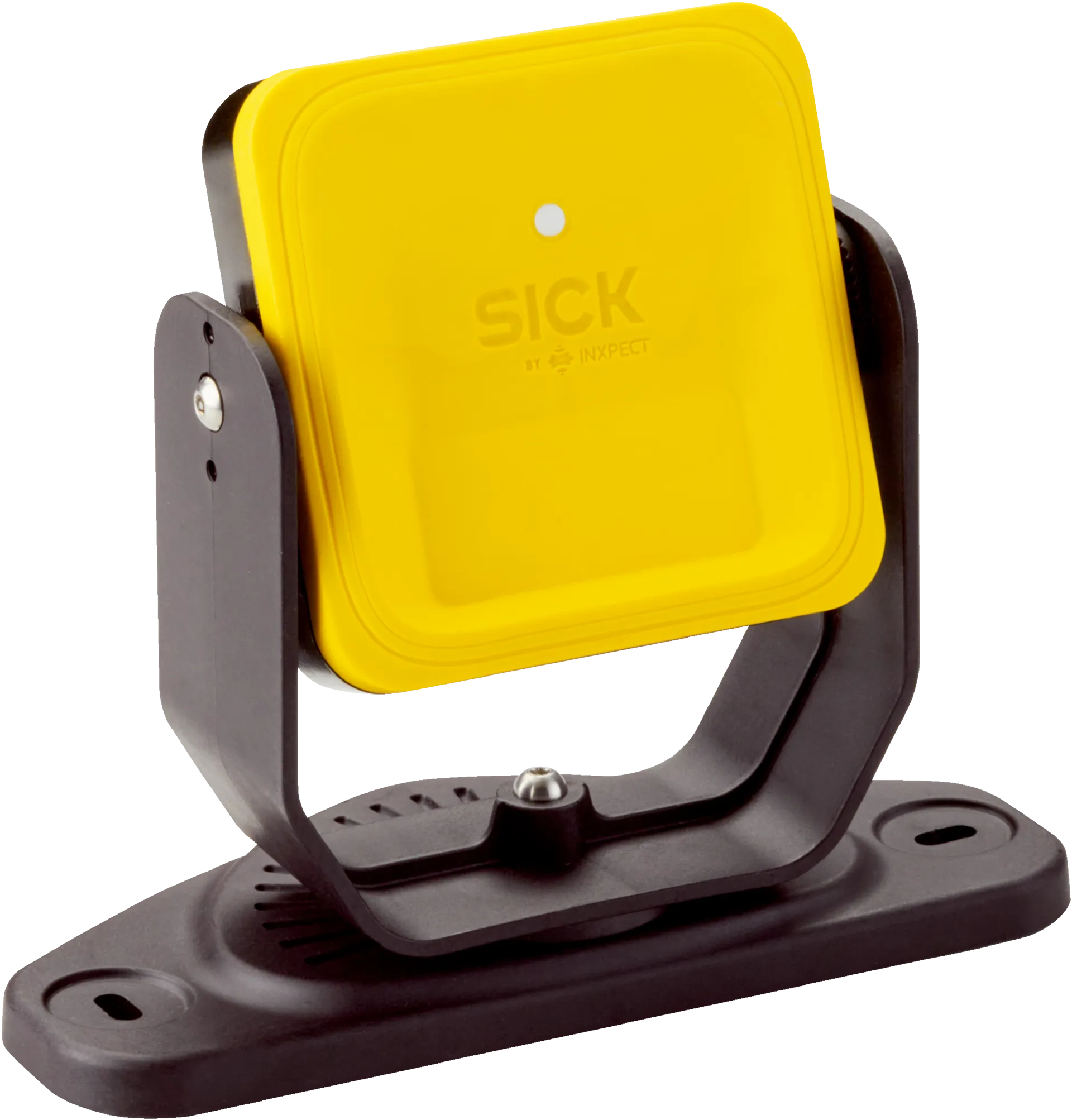

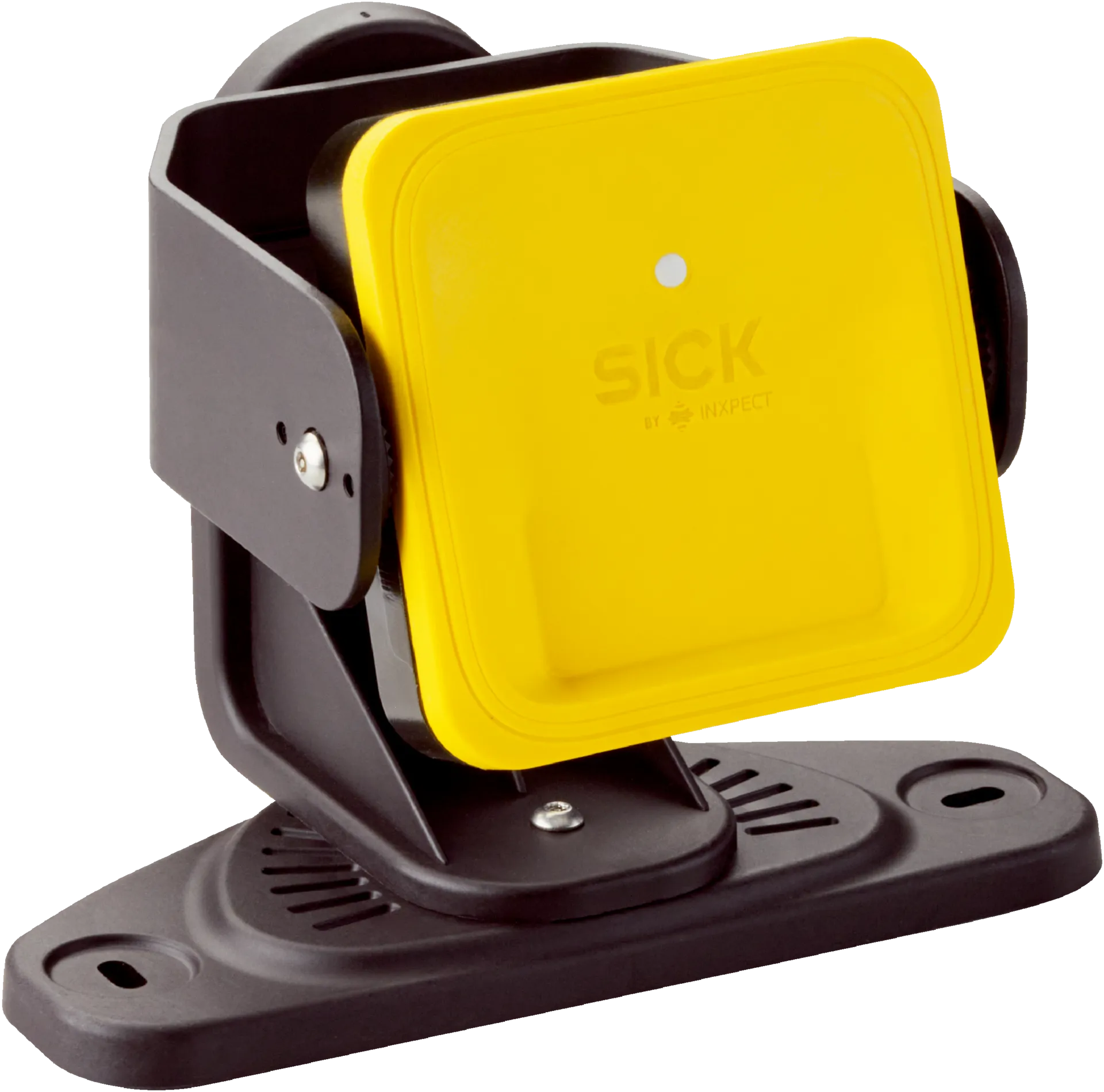

Sick SRA3-AAR190BKZI
Safety radar sensors | safeRS/safeRS3 | SRA3-AAR190BKZI | Variant: safeRS3 | Manufacturer designation: S201A (Model), WLSK (Type) | System part: sensor | Application: Indoor, Outdoor | Protective fiel…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety radar sensors | safeRS/safeRS3 | SRA3-AAR190BKZI | Variant: safeRS3 | Manufacturer designation: S201A (Model), WLSK (Type) | System part: sensor | Application: Indoor, Outdoor | Protective field range: 0.2 m … 9 m | Number of protective fields: 4 | Field of view: 10° … 100° (0.2 m … 5 m) or 10° … 40° (5 m … 9 m), can be adjusted in 10° intervals (horizontal plane), 20° (vertical plane) | Response time: ≤ 100 ms | Safety level: PL d, SIL 2
Specification
Features
| Manufacturer designation | S201A (Model), WLSK (Type) |
|---|---|
| Application | Indoor / Outdoor |
| Scope | Stationary, mobile |
| Protective field range | 0.2 m ... 9 m |
| Number of protective fields | 4 |
| 0.2 m ... 5 m | 10° ... 100°, adjustable in 10° intervals (horizontal plane) |
| 5 m ... 9 m | 10° ... 40°, adjustable in 10° intervals (horizontal plane) |
| Response time | ≤ 100 ms |
| Vehicle speed | ≤ 4 m/s |
Safety-related parameters
| Safety integrity level | SIL 2Â (IECÂ 62061) |
|---|---|
| Category | Category 3Â (ENÂ ISOÂ 13849) |
| Performance level | PL d (EN ISO 13849) |
| Access protection | 1.66 x 10-8 1) |
| MTTFD (mean time to dangerous failure) | 38Â years (IECÂ 60050) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD pair is in the OFF state. |
Functions
| Restart interlock | ✔ 1) |
|---|---|
| Muting | ✔ |
| Manipulation protection | ✔ |
| Safe detection of a person | ✔ |
Interfaces
| Voltage supply and signal transmission | Male connector, M12, 5-pin, A-coded |
|---|
Electronics
| Supply voltage Vs | 12 V DC, ± 20 % 1) |
|---|---|
| Power consumption | ≤ 1 A |
| Power consumption | ≤ 4.7 W |
Mechanics
| Dimensions (W x H x D) | 85 mm x 85 mm x 71 mm |
|---|---|
| Sensor | PA 66 |
| Rear view | Aluminum |
| Bracket | PA 66, Glass fiber |
Ambient data
| Enclosure rating | IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +60 °C |
| Storage temperature | –40 °C ... +80 °C |
Other information
| Bandwidth | 60.6 GHz ... 62.8 GHz |
|---|---|
| Transmissin power | ≤ 16 dBm |
| Radio class | Class 2Â (2014/53/EU, RED - radio equipment) |
| Detection method | FMCW radar for motion detection |
| Items supplied | safeRS3 sensorTwo-axis/three-axis bracketSafety instructionMounting instructionsOperating instructions for downloadsafeRS3 Designer (configuration and diagnostic software) for download |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cUL approval | ✔ |
| EC-Type-Examination approval | ✔ |
| Radio Approval certificate United Arab Emirates | ✔ |
| Radio Approval certificate Argentina | ✔ |
| Radio Approval certificate Australia | ✔ |
| Radio Approval certificate Brazil | ✔ |
| Radio Approval certificate Canada | ✔ |
| Radio Approval certificate EU | ✔ |
| Radio Approval certificate Ghana | ✔ |
| Radio Approval certificate Hong Kong | ✔ |
| Radio Approval certificate India | ✔ |
| Radio Approval certificate Israel | ✔ |
| Radio Approval certificate Japan | ✔ |
| Radio Approval certificate Korea | ✔ |
| Radio Approval certificate New Zealand | ✔ |
| Radio Approval certificate USA | ✔ |
| Radio Approval certificate South Africa | ✔ |
Classifications
| ECLASS 5.0 | 27270890 |
|---|---|
| ECLASS 5.1.4 | 27270890 |
| ECLASS 6.0 | 27280800 |
| ECLASS 6.2 | 27280800 |
| ECLASS 7.0 | 27280890 |
| ECLASS 8.0 | 27280890 |
| ECLASS 8.1 | 27280890 |
| ECLASS 9.0 | 27280890 |
| ECLASS 10.0 | 27280890 |
| ECLASS 11.0 | 27280890 |
| ECLASS 12.0 | 27280890 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 39121528 |
