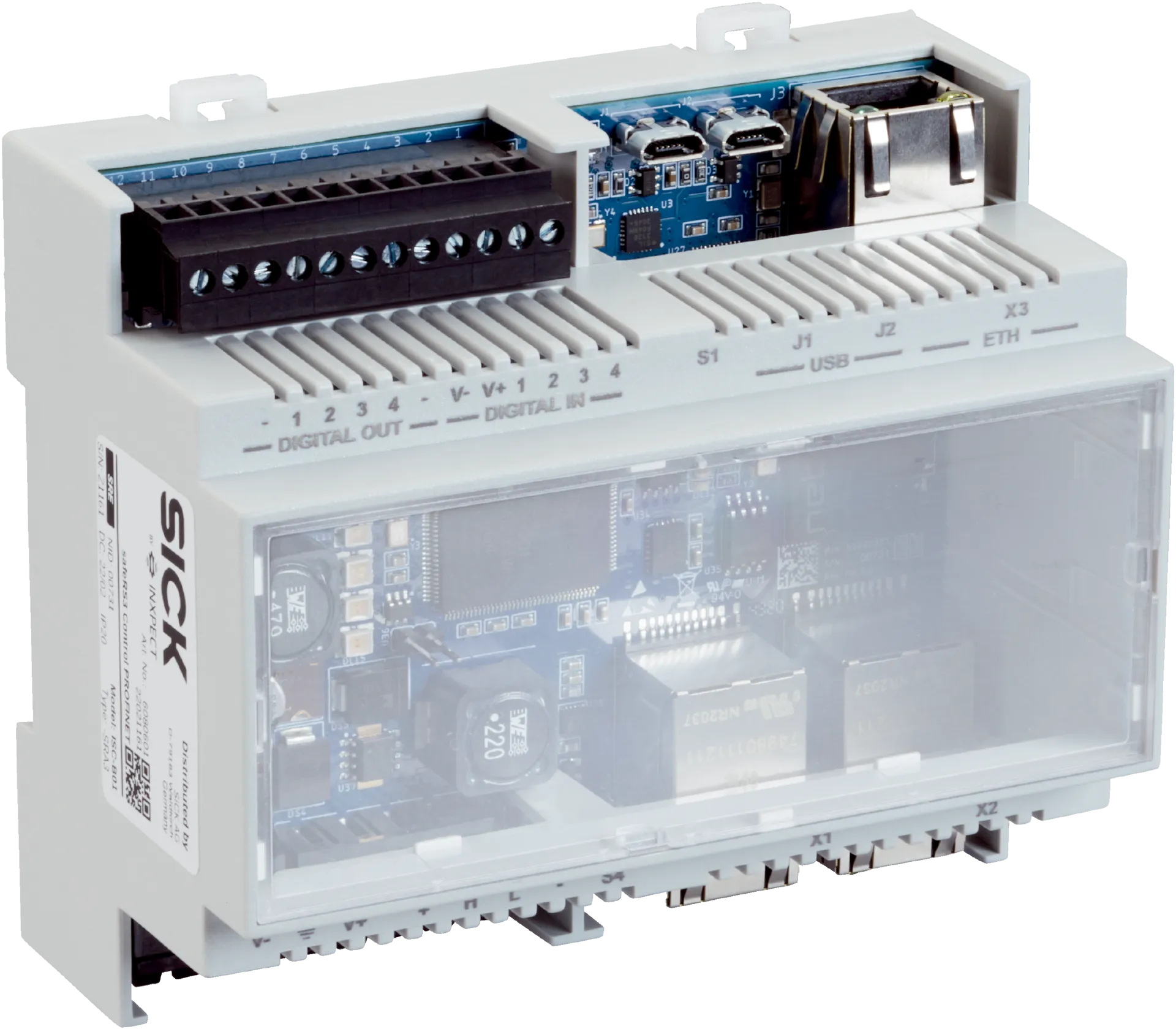

Sick SRA3-AAC100ZPUI
Safety radar sensors | safeRS/safeRS3 | SRA3-AAC100ZPUI | Variant: safeRS3 | Manufacturer designation: C201A (Model), PNSSK (Type) | System part: control | Integration in the control system: Local inp…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety radar sensors | safeRS/safeRS3 | SRA3-AAC100ZPUI | Variant: safeRS3 | Manufacturer designation: C201A (Model), PNSSK (Type) | System part: control | Integration in the control system: Local inputs and outputs (I/O), PROFINET PROFIsafe | OSSD pairs: ≤ 2 | Safety outputs via network: 4 | Response time: ≤ 100 ms | Safety level: PL d, SIL 2
Specification
Features
| Manufacturer designation | C201A (Model), PNSSK (Type) |
|---|---|
| Number of monitoring cases | ≤ 32 |
| Response time | ≤ 100 ms |
Safety-related parameters
| Safety integrity level | SIL 2Â (IECÂ 62061) |
|---|---|
| Category | Category 3Â (ENÂ ISOÂ 13849) |
| Performance level | PL d (EN ISO 13849) |
| Access protection | 1.66 x 10-8 1) |
| MTTFD (mean time to dangerous failure) | 38Â years (IECÂ 60050) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD pair is in the OFF state. |
Functions
| Restart interlock | ✔ |
|---|---|
| Muting | ✔ |
| Manipulation protection | ✔ |
| Safe detection of a person | ✔ |
Interfaces
| OSSD pairs | ≤ 2 |
|---|---|
| Safety outputs via network | 4 |
| Universal outputs | ≤ 4 1) |
| Universal inputs | 2 dual-channel 1) |
| Test input | 1Â 2) |
| Configuration method | PC with safeRS3 Designer (Configuration and Diagnostic software) |
| Configuration and diagnostics interface | Ethernet, micro USB |
| Fieldbus, industrial network | PROFINET |
| Protocol | PROFIsafe |
| Display elements | LEDs |
Electronics
| Supply voltage Vs | 24Â VÂ DC (20Â VÂ DCÂ ... 28Â VÂ DC) |
|---|---|
| Power consumption | ≤ 1 A |
| Power consumption | ≤ 33 W, control unit and six sensors |
Mechanics
| Dimensions (W x H x D) | 105 mm x 103 mm x 58 mm |
|---|
Ambient data
| Enclosure rating | IP20 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +60 °C |
| Storage temperature | –40 °C ... +80 °C |
Other information
| Bandwidth | 60.6 GHz ... 62.8 GHz |
|---|---|
| Transmissin power | ≤ 16 dBm |
| Radio class | Class 2Â (2014/53/EU, RED - radio equipment) |
| Detection method | FMCW radar for motion detection |
| Items supplied | safeRS3 control unitSafety instructionMounting instructionsOperating instructions for downloadsafeRS3 Designer (configuration and diagnostic software) for download |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cUL approval | ✔ |
| Profinet certificate | ✔ |
| PROFIsafe certificate | ✔ |
| EC-Type-Examination approval | ✔ |
Classifications
| ECLASS 5.0 | 27270890 |
|---|---|
| ECLASS 5.1.4 | 27270890 |
| ECLASS 6.0 | 27280800 |
| ECLASS 6.2 | 27280800 |
| ECLASS 7.0 | 27280890 |
| ECLASS 8.0 | 27280890 |
| ECLASS 8.1 | 27280890 |
| ECLASS 9.0 | 27280890 |
| ECLASS 10.0 | 27280890 |
| ECLASS 11.0 | 27280890 |
| ECLASS 12.0 | 27280890 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 39121528 |
