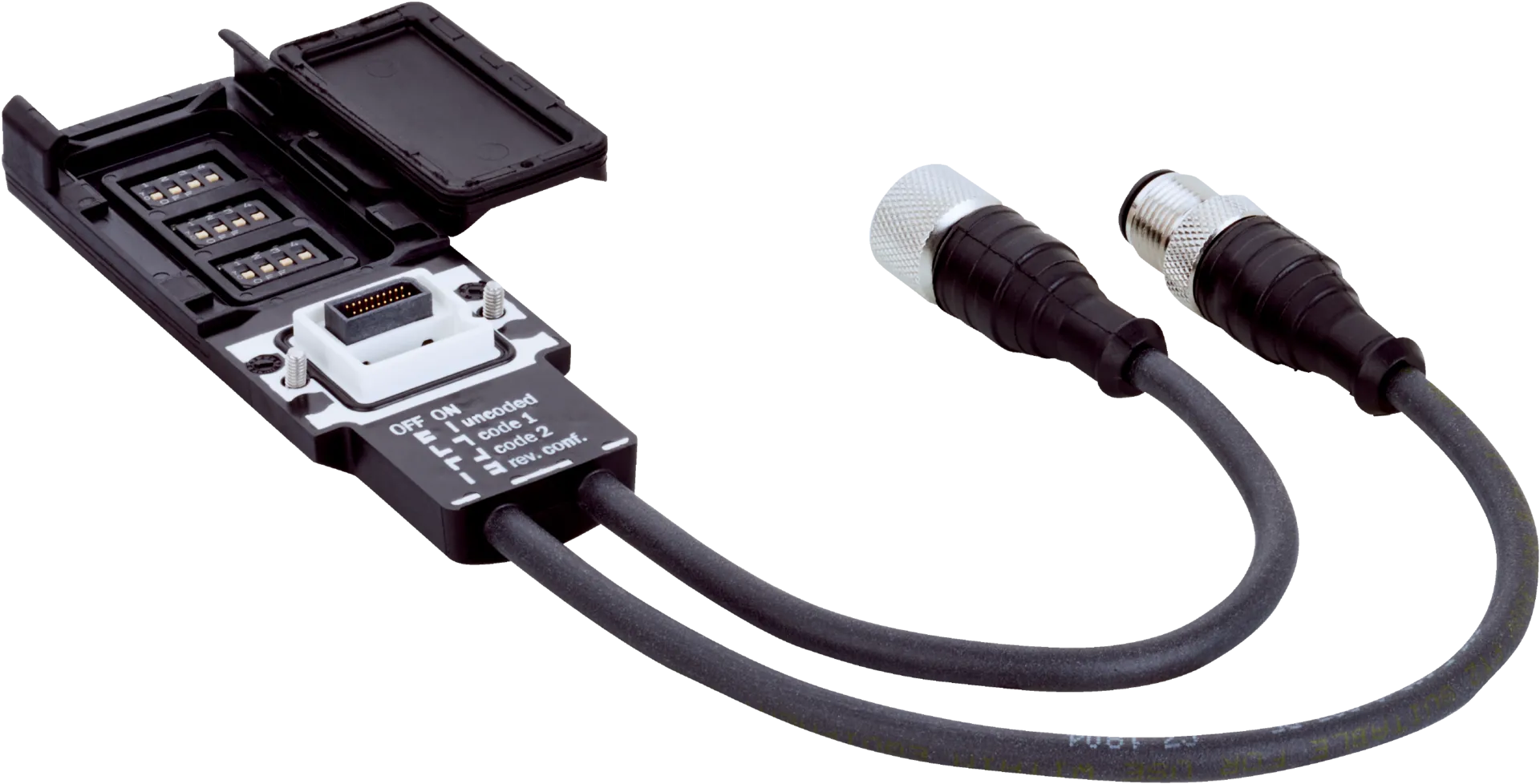

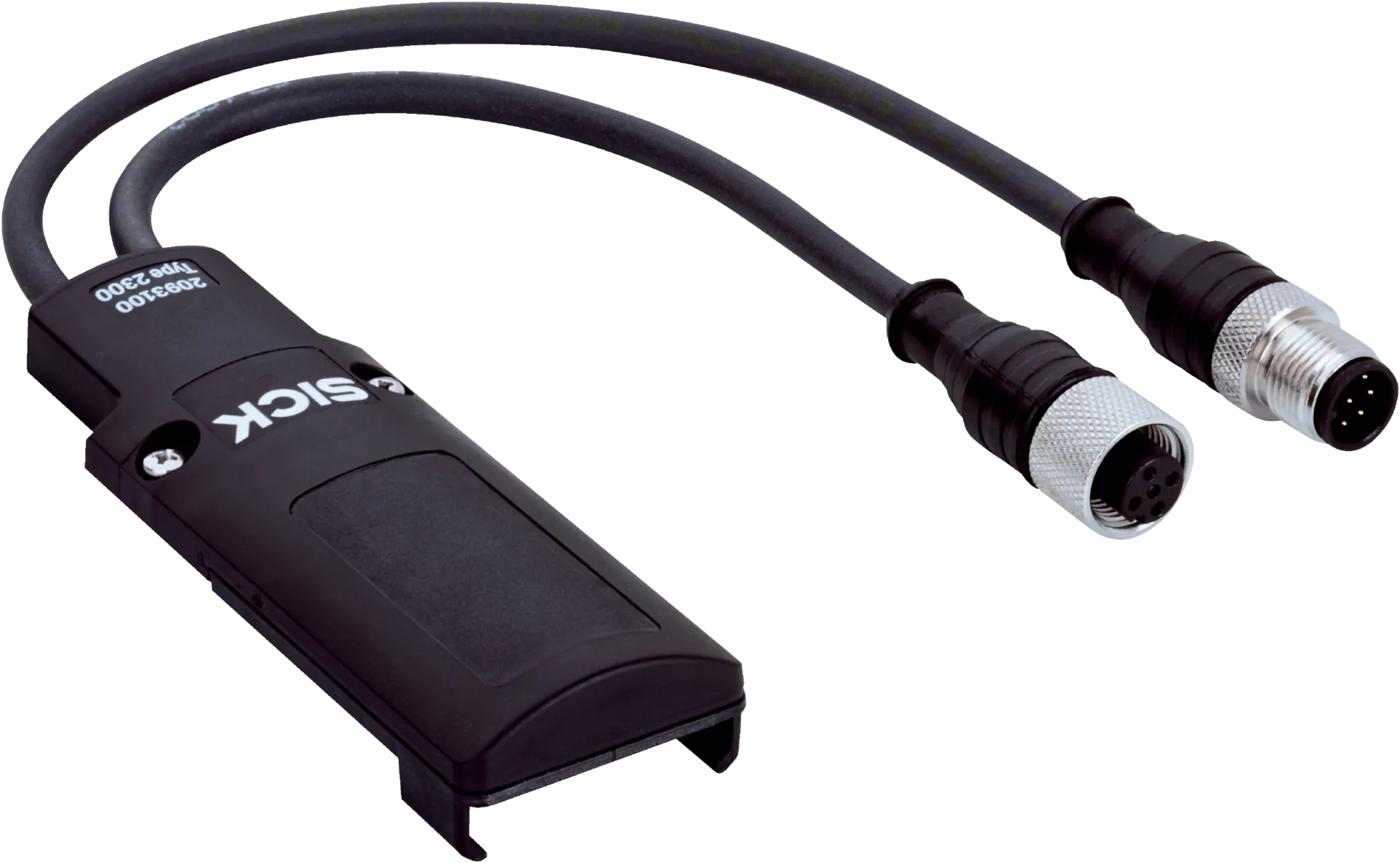

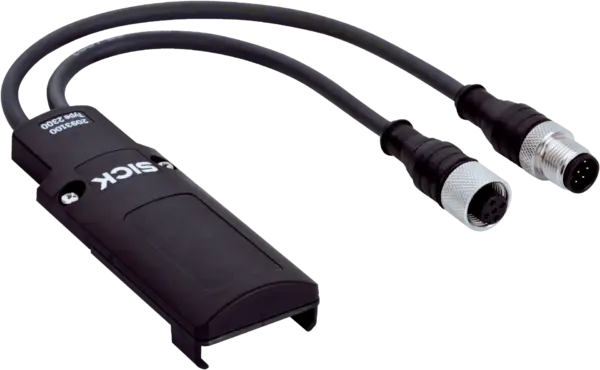

Sick SP2-2300
System plugs and extension modules | System plugs deTec and deTem | SP2-2300 | Function range: SP2 | System connection: Male connector M12, 8-pin | Extension connection: Female connector M12, 5-pin |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System plugs and extension modules | System plugs deTec and deTem | SP2-2300 | Function range: SP2 | System connection: Male connector M12, 8-pin | Extension connection: Female connector M12, 5-pin | Items supplied: System plug
Specification
Features
| Compatible devices | deTec4, deTem4, deTem4 A/P |
|---|---|
| Function range | SP2 |
| System connection | Male connector M12, 8-pin |
| Extension connection | Female connector M12, 5-pin |
| IO-Link possible on the extension connection | â |
| Configuration method | DIPÂ switch |
| Items supplied | System plug |
Functions
| Protective operation | â |
|---|---|
| Automatic calibration of the protective field width | â |
| Restart interlock | â |
| External device monitoring (EDM) | â |
| Application diagnostic output (ADO) | â |
| Cascading | â |
| Smart presence detection | â |
| Reduced resolution | â |
| Dynamic protective field width during operation | â |
| Sender with reduced scanning range | â |
| 2-signal muting | â |
| Smart Box Detection | â |
Interfaces
| PIN assignment | See table in âPin assignmentâ graphic |
|---|---|
| System connection | Male connector M12, 8-pin |
| Length of cable | 200Â mm |
| Cable diameter | 5Â mm |
| Extension connection | Female connector M12, 5-pin |
| Length of cable | 150Â mm |
| Cable diameter | 5Â mm |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ ... 28.8Â V) |
| Ripple | ⤠10 % |
Ambient data
| Ambient operating temperature | â30 °C ... +55 °C |
|---|---|
| Storage temperature | â30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (IECÂ 60068-2-27) |
Certificates
| EU declaration of conformity | â |
|---|
Classifications
| ECLASS 5.0 | 27272790 |
|---|---|
| ECLASS 5.1.4 | 27272790 |
| ECLASS 6.0 | 27272790 |
| ECLASS 6.2 | 27272790 |
| ECLASS 7.0 | 27272790 |
| ECLASS 8.0 | 27272790 |
| ECLASS 8.1 | 27272790 |
| ECLASS 9.0 | 27272792 |
| ECLASS 10.0 | 27272792 |
| ECLASS 11.0 | 27272792 |
| ECLASS 12.0 | 27272792 |
| ETIM 5.0 | EC011349 |
| ETIM 6.0 | EC011349 |
| ETIM 7.0 | EC011349 |
| ETIM 8.0 | EC011349 |
| UNSPSC 16.0901 | 46171620 |
