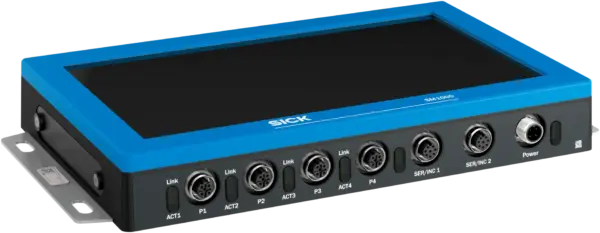

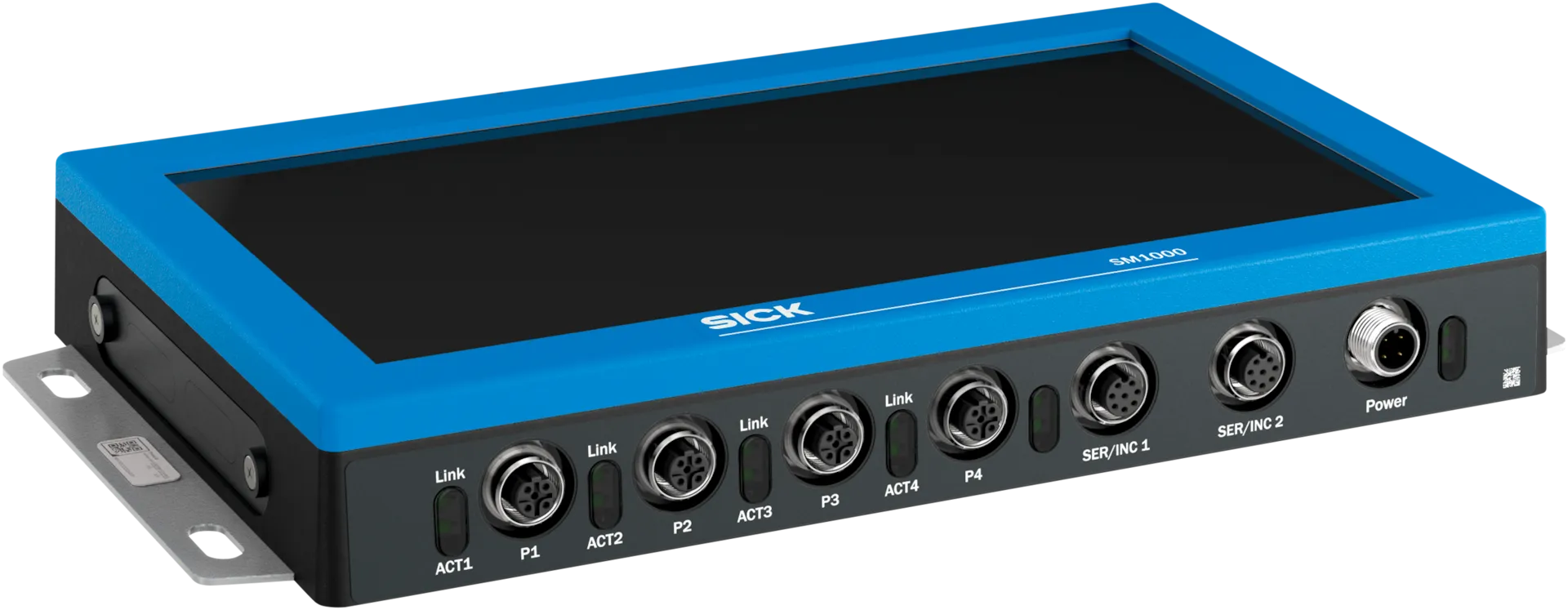

Sick SM1000-R222100
Edge computing devices | SM1000 | SM1000-R222100 | Product category: Programmable devices, IO-Link Master | Supported products: IO-Link Devices, binary switching sensors, binary actuators | Processor:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

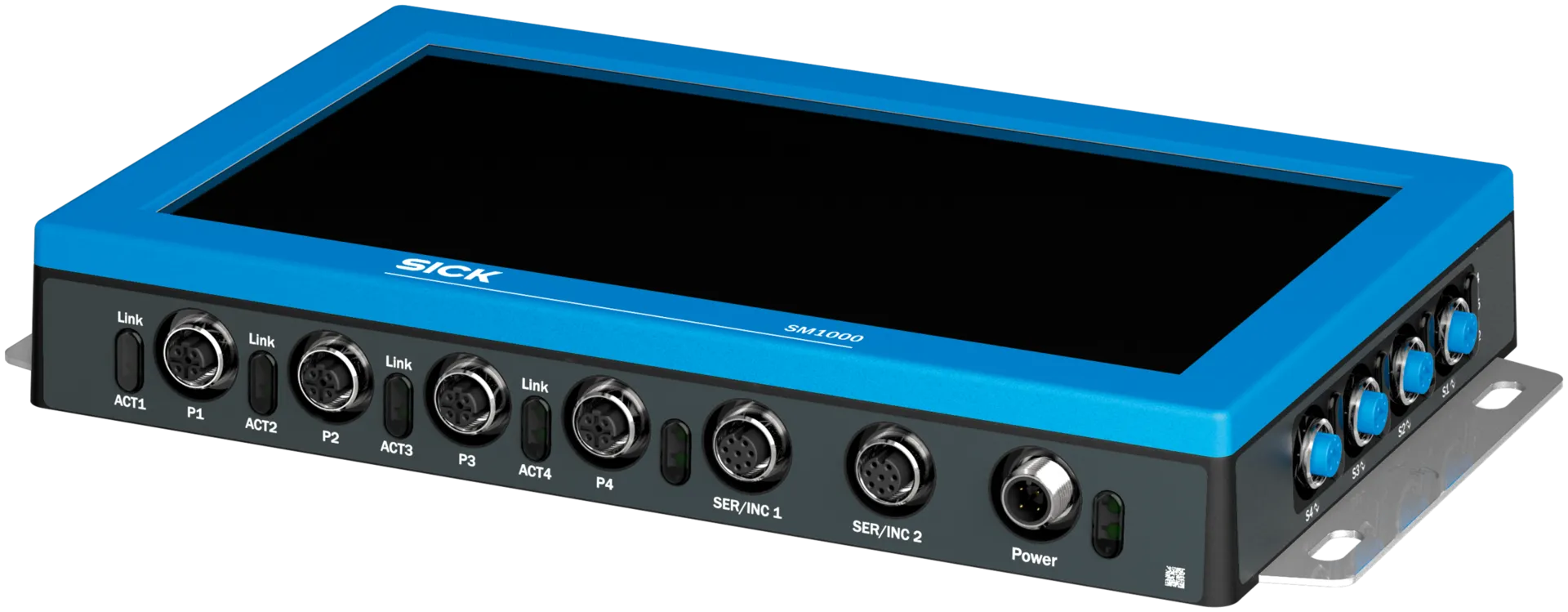

Edge computing devices | SM1000 | SM1000-R222100 | Product category: Programmable devices, IO-Link Master | Supported products: IO-Link Devices, binary switching sensors, binary actuators | Processor: TI SITARA AM6421 | Display size: 10.1 ″ | Application development kit: SICK AppStudio, Can be programmed within the SICK AppSpace environment | Connection types: IO-Link4 x M12, 5-pin female connector, A-coded, Ethernet4 x M12, 4-pin socket, D-coded, Serial/INC2 x M12, 8-pin socket, A-coded, Power supply1 x M12, 4-pin plug, A-coded, USB-C1 x USB-C 2.0 | Enclosure rating: IP54 | Communication interface: IO-Link, Ethernet, USB, Serial, REST API, MQTT
Specification
Features
| Product category | Programmable devices, IO-Link Master |
|---|---|
| Supported products | IO-Link DevicesBinary switching sensorsBinary actuators |
| Further functions | Web server integratedIIoT interface available (dual talk) |
| Processor | TI SITARA AM6421 |
| Random Access Memory | 512Â MB LPDDR4 |
| Flash memory | 5Â GB |
| Scope of delivery | Blind plug (11 x M12) |
| Application development kit | SICK AppStudioCan be programmed within the SICK AppSpace environment |
| Toolkit | SICK algorithm API |
Mechanics/electronics
| Size | 10.1 ″ |
|---|---|
| Resolution | 1,024 dpi x 600 dpi |
| Brightness | 400 cd/m² |
| Service life of backlight | 50,000Â h |
| Viewing angle | 80° (right) |
| Color | 8-bit LVDS (16.7Â million colors) |
| Touch display | Projective capacitative multi-touch TFT |

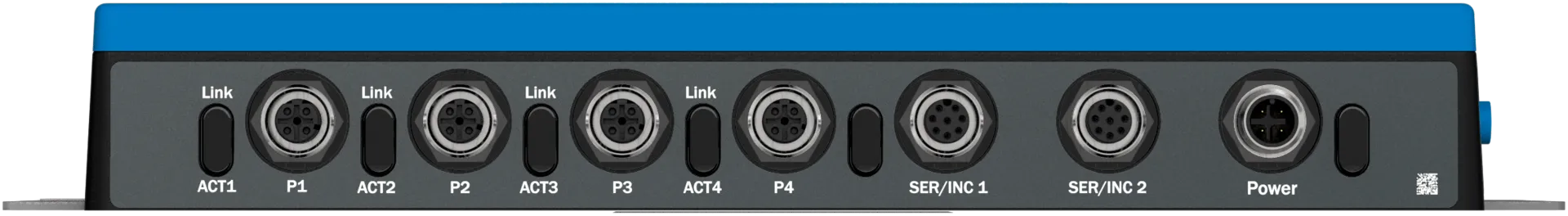

| IO-Link | 4 x M12, 5-pin female connector, A-coded |
| Ethernet | 4 x M12, 4-pin socket, D-coded |
| Serial/INC | 2 x M12, 8-pin socket, A-coded |
| Power supply | 1 x M12, 4-pin plug, A-coded |
| USB-C | 1Â x USB-C 2.0 |
| Supply voltage | ≥ 11.5 V DC 1) |
| Current consumption | ≤ 20 mA |
| Total current (S1Â ... S4) | 2Â A |
| Voltage supply (pin 1) | 500Â mA |
| Output current port class A (DO) (pin 2) | 200Â mA |
| Output current port class A (DO) (pin 4) | 200Â mA |
| Output current port class A (DO) (pin 5) | 200Â mA |
| Current carrying capacity per port max. | 500Â mA |
| Serial voltage supply | 1Â A |
| Number | 12, configurable |
| Input characteristics | ENÂ 61131-2 type 1 |
| Type | PNP |
| Filter time | 0 ms ... 15 ms |
| Delay time at signal change | 2 ms ... 5 ms |
| Circuit protection | Short-circuit protected |
| Number | 12, configurable |
| Type | PNP |
| Switching frequency | ≤ 50 Hz |
| Circuit protection | Short-circuit protected |
| Optical indicators | 8Â LED yellow (IO activity pin 2Â and 5)4Â LED green (IO activity pin 4)4Â LED green (Ethernet bus link)1Â LED green (Fieldbus device status)1Â LED red (Fieldbus device status)1Â LED green (Power supply) |
| Enclosure rating | IP54 (In fastened condition) |
| Protection class | III |
| Housing material | Polyamide (ELEMELT PA514) |
| Housing color | Black |
| Weight | 1,940Â g |
| Dimensions (L x W x H) | 292.5 mm x 162.1 mm x 39 mm |
| Mounting system type | Screw-on, 4Â hole mounting |
Communication interface
| IO-Link | ✔ |
|---|---|
| Remark | V1.1.3 |
| Number of ports | 4Â Â |
| Port Class | A |
| Data transmission rate | COM1, COM2, COM3 |
| Additional features | Data Storage |
| Ethernet | ✔ |
| Data transmission rate | 10/100Â MBit/s |
| Specification | Data output, REST |
| USB-C | ✔ |
| Specification | Configuration, firmware updates |
| Serial | ✔ |
| Additional features | Also configurable as an encoder interface: HTL or TTL |
| Specification | RS-232, RS-485 |
| REST API | ✔ |
| Specification | JSON integration for IO-Link version (V1.0.0) |
| Factory setting | Static: P1 port: 192.168.0.1; P2 port: 192.168.1.1 |
| MQTT | ✔ |
| Specification | JSON integration for IO-Link version (V1.0.0) |
| SD card slot | 1x microSD slot4Â GB or moreClass 4Â (4Â MB/s) or higher |
| Operator interfaces | Touch display, Web server integrated, SOPAS (via USB or network) |
Ambient data
| Ambient operating temperature | –20 °C ... +50 °C |
|---|---|
| Ambient temperature, storage | –30 °C ... +70 °C 1) |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2:2016ENÂ 61000-6-4:2020 |
| Shock load | ENÂ 60068-2-27 |
| Permissible relative humidity | 0%Â ... 95%, non-condensing |
General notes
| Note | Silicone-free. Not free of paint wetting impairment substances. |
|---|---|
| Operating system | Linux |
Classifications
| ECLASS 5.0 | 27242208 |
|---|---|
| ECLASS 5.1.4 | 27242608 |
| ECLASS 6.0 | 27242608 |
| ECLASS 6.2 | 27242608 |
| ECLASS 7.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 8.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 10.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ETIM 5.0 | EC001604 |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| UNSPSC 16.0901 | 32151705 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
