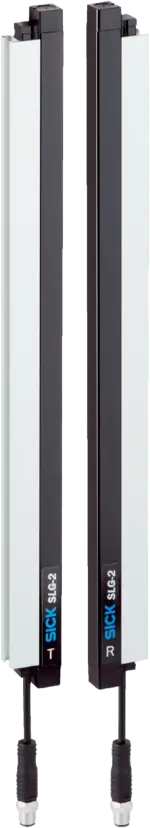

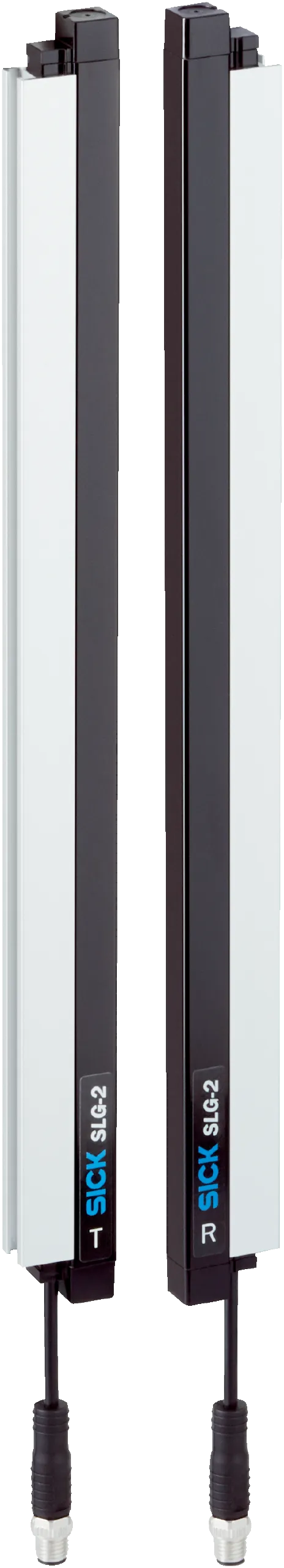

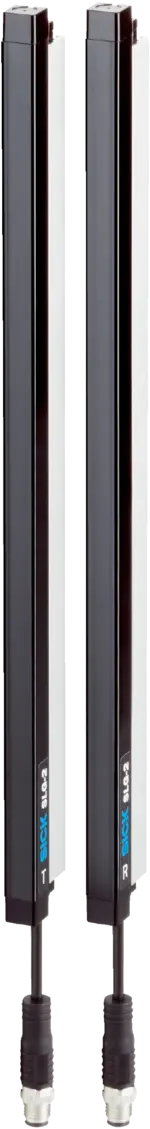

Sick SLG10S-030SAR21D40
Automation light grids | SLG-2 | SLG10S-030SAR21D40 | Optical light exit: Slim | Beam separation: 10 mm | Operating range: 3.5 m | Detection height: 300 mm | Length of cable: 150 mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | SLG-2 | SLG10S-030SAR21D40 | Optical light exit: Slim | Beam separation: 10 mm | Operating range: 3.5 m | Detection height: 300 mm | Length of cable: 150 mm
Specification
Features
| Included with delivery | 1Â Ã sender1Â Ã receiver1Â Ã Quick Start Guide1Â x safety notes |
|---|---|
| Functional principle | Sender/receiver |
| Limit values | 440 mm ... 4,900 mm |
| Parallel beam (recommended) | 440 mm ... 3,500 mm |
| 9 x cross beam (recommended) | 440 mm ... 3,500 mm |
| Distance from 1st Beam to leading edge of housing (connection side) | 4.6Â mm |
| Distance from last beam to leading edge of housing (top) | 4.6 mm 1) |
| Detection height | 300Â mm |
| Beam separation | 10Â mm |
| Optical light exit | Slim |
| Minimum detectable object (MDO), parallel beam | 15 mm 2) |
| Minimum detectable object (MDO), 9 x cross beam | â¥Â 6.5 mm 2) |
| Minimum object width (MOW), 9Â x cross beam | 26Â %Â 3) |
| Beam function | 9Â x cross beam |
| Pin 2Â (MF) | Teach-in input |
| Pin 4 (OUT) | Object detection output = âHIGHâ |
| IO-Link (process data) | QL/Qint Status, System status, Beam status |
| Teach-in (default) | Auto teach-in |
| IO-Link | For configuring the sensor parameters and Smart Task functions |
| Light source | LED |
| Type of light | Infrared light |
| Number of beams | 30 |
| Normative reference | ENÂ 62471:2008-09 | IECÂ 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 850Â nm |
| Average service life | Average service life: 100,000 h at TU = +25 °C |
| Initialization time | 0.4 s ... 2 s 5) |
| Teach-in time | 0.75 s ... 50 s 5) |
| Scan time, parallel beam | 2Â ms |
| Scan time, cross beam | 4Â ms |
| Repeatability, parallel beam | 2Â ms |
| Repeatability, cross beam | 5.9Â ms |
| Minimum dwell time, parallel beam | 4Â ms |
| Minimum dwell time, cross beam | 7.9Â ms |
| Max. response time, parallel beam | 6.1Â ms |
| Max. response time, cross beam | 11.9Â ms |
| Type of synchronization | Optical (2Â beams) |
Communication interface
| IO-Link | â , V1.1 |
|---|---|
| Data transmission rate | COM3 (230,4Â kBaud) |
| Cycle time | 2.3Â ms |
| Process data length | 32Â Byte |
| Maximum cable length | 20Â m |
Electronics
| Supply voltage UB | DC 18Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | â¤Â 1.3 Vpp |
| Sender | â¤Â 37.25 mA 2) |
| Receiver | â¤Â 57 mA 2) |
| Number | 2 |
| Type | Push-pull: PNP/NPN |
| Output signal voltage HIGH/LOW | UB-3 V/<3 V |
| Output load, Inductive | 1Â H |
| Output load, capacitive | 100Â nF |
| Output current Imax. | 100Â mA |
| Output current, rest | <Â 0.5Â mA |
| Number | 1 |
| Input signal voltage HIGH/LOW | >15 V/<5 V |
| Protection class | IIIÂ 3) |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedOutputs overcurrent and short-circuit protected |
Mechanics
| Width | 11.8Â mm |
|---|---|
| Height | 299.2Â mm |
| Depth | 24.1Â mm |
| Connection type | Cable with M12 male connector, 4-pin |
| Cable diameter | 3.4Â mm |
| Conductor cross section | 0.14 mm² |
| Length of cable | 150Â mm |
| Cable material | PVC |
| Housing | Aluminum |
| Front screen | PMMA |
| Weight | 860Â g |
| Overvoltage protection (required) | 1 |
Ambient data
| Enclosure rating | IP65Â 1)IP67 |
|---|---|
| Ambient temperature, operation | â25 °C ... +55 °C |
| Ambient temperature, storage | â25 °C ... +70 °C |
| Ambient light immunity | Indirect: 50,000 lx 2) |
| Shock resistance | 10Â g, 16Â ms, DINÂ ENÂ 60068-2-27 |
| Vibration resistance | 10-150 Hz 0.5Â mm, IECÂ 60068-2-6 |
| Air humidity | ⤠96 %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2, ENÂ 61000-6-4 |
Smart Task
| Smart Task name | Base logics |
|---|---|
| Logic function | DirectANDOR |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Switching signal QL1 | Switching output |
| Switching signal QL2 | Switching output, external input |
Diagnosis
| Device state | Hardware error, temperature warning, operating hours warning |
|---|---|
| Communication state | Pin short-circuit error, invalid process data |
| Status of the light signal | Teach error, synchronization error, quality-of-run alarm |
| Alarm output | Yes |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Photobiological safety (IEC EN 62471) | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
