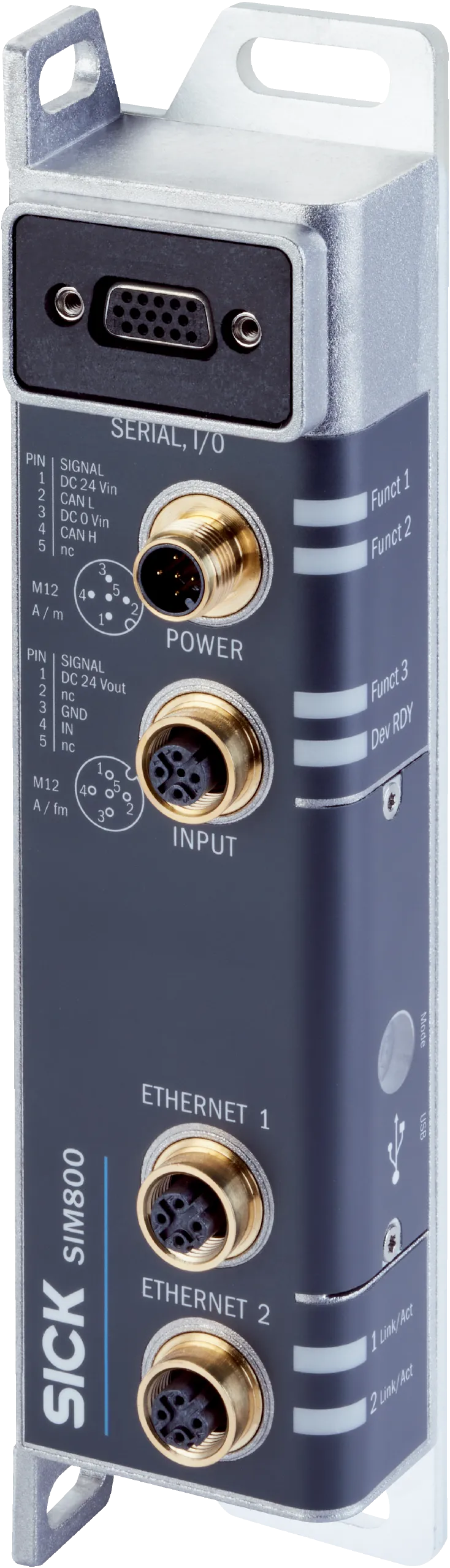

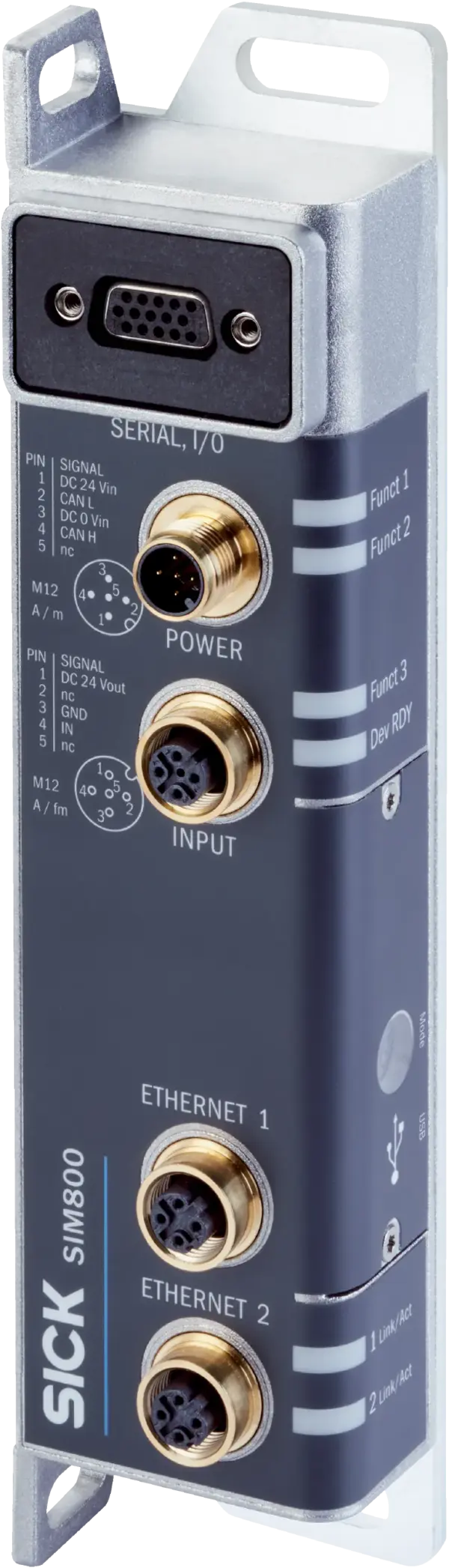

Sick SIM800-000
Edge computing devices | SIM800 | SIM800-000 | Product category: Programmable devices | Supported products: Bar code scannersPhotoelectric sensorsImage-based code readersRFID read/write device | Proce…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Edge computing devices | SIM800 | SIM800-000 | Product category: Programmable devices | Supported products: Bar code scannersPhotoelectric sensorsImage-based code readersRFID read/write device | Processor: Single-core 64-bit Arm® Cortex®-A53Dual-core Arm® Cortex®-R5F | Toolkit: SICK algorithm API | Connections: PowerSERIAL, I/OInputEthernet | Enclosure rating: IP65 | Application development kit: SICK AppStudioCan be programmed within the SICK AppSpace environment | Data storage and retrieval: Data logging via internal flash/RAM
Specification
Features
| Product category | Programmable devices |
|---|---|
| Task | Data recording, evaluation, and archiving |
| Supported products | Bar code scannersPhotoelectric sensorsImage-based code readersRFID read/write device |
| Processor | Single-core 64-bit Arm® Cortex®-A53Dual-core Arm® Cortex®-R5F |
| Random Access Memory | 512Â MB |
| Flash memory | 5Â GB |
| Application development kit | SICK AppStudioCan be programmed within the SICK AppSpace environment |
| Toolkit | SICK algorithm API |
Mechanics/electronics
| Power | 1Â (M12, 5-pin plug, A-coded) |
|---|---|
| SERIAL, I/O | 1Â (15-pin D-Sub HD socket, with seal) |
| Input | 1Â (M12, 5-pin female connector, A-coded) |
| Ethernet | 2Â (M12, 4-pin female connector, D-coded) |
| Ethernet | 2Â (M12, 4-pin female connector, D-coded) |
| Supply voltage | (10Â VÂ DCÂ ... 30Â VÂ DC)Â 1) |
| Operating current | Limit to max. 12Â A from the external power supply unit |
| Power consumption | 5Â W, without connected sensor |
| Power output | Max. 100 W, total, all connections |
| SERIAL, I/O | ≤ 2 A (voltage supply) |
| SERIAL, I/O | ≤ 100 mA (Digital outputs) |
| Input | ≤ 1 A (voltage supply) |
| Enclosure rating | IP65 |
| Housing material | Aluminum |
| Housing color | Unlacquered die-cast aluminum, Anthracite labeling film |
| Weight | 360Â g |
| Dimensions (L x W x H) | 207 mm x 49.5 mm x 40.7 mm (without connecting cable) |
Interfaces
| Ethernet | ✔ , TCP/IP |
|---|---|
| Function | Data output, Configuration, firmware update |
| Data transmission rate | ≥ 115.2 Baud, 2 x 10/100 Mbit/s |
| Serial | ✔ , RS-232, RS-232 |
| Function | Reserved |
| USB | ✔ , USB 2.0, USB 2.0 |
| Function | Reserved |
| Operator interfaces | Web server (GUI), SICK AppStudio (programming), SICK AppManager (app installation, firmware update) |
| Data storage and retrieval | Data logging via internal flash/RAM |
| SERIAL, I/O connection | 2Â x digital input, 2Â x digital output |
| INPUT connection | 1Â x digital input |
| Optical indicators | Device Ready (Dev RDY): red/green, Function 1Â /Â Function 2Â (Funct 1Â /Â Funct 2): green, Function 3Â (Funct 3): red/green, Ethernet 1Â /Â Ethernet 2Â (Link/Act): green |
Ambient data
| Electromagnetic compatibility (EMC) | Immunity according to: IECÂ 61000-6-2:2016Â /Â IEC61000-6-2:2005 / Interference according to: IECÂ 61000-6-4:2018 |
|---|---|
| Shock load | IECÂ 60068-2-27:2008-02 |
| Vibration resistance | IECÂ 60068-2-6:2007-12 |
| Ambient operating temperature | –35 °C ... +50 °C |
| Ambient temperature, storage | –35 °C ... +70 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
