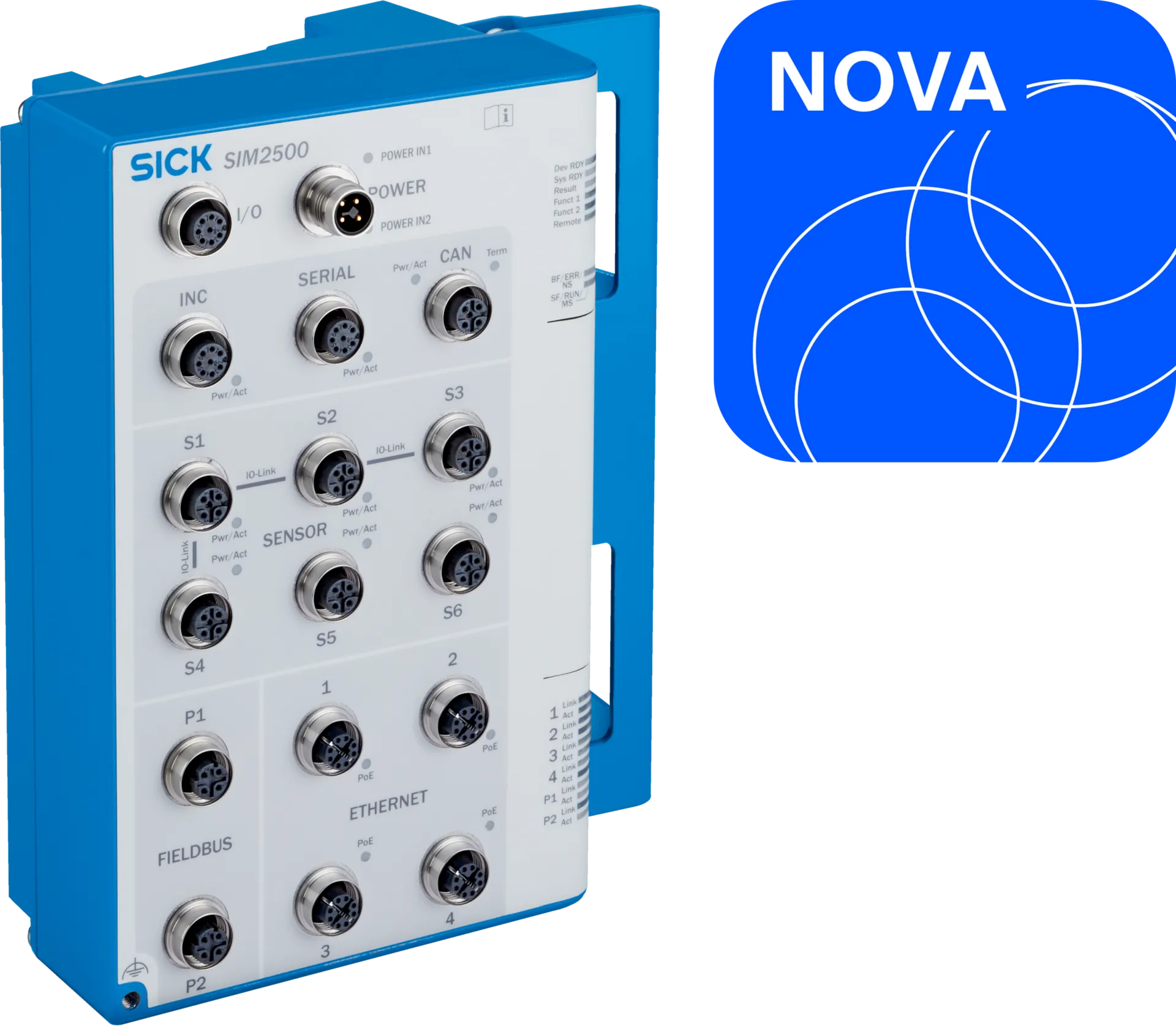

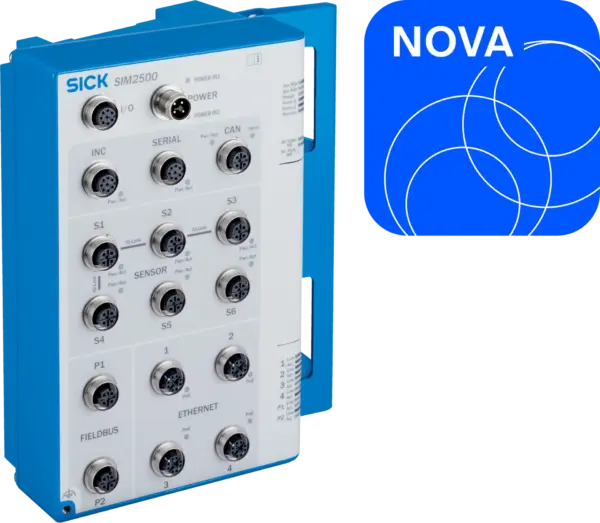

Sick SIM2500-2AX1G10 Nova Ruler3000 QI
Edge computing devices | SIM2x00 | SIM2500-2AX1G10 Nova Ruler3000 QI | Product category: Configurable, programmable | Supported products: Ruler3000 | Processor: 8-core ARM Cortex-A72 CPU with NEON acc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Edge computing devices | SIM2x00 | SIM2500-2AX1G10 Nova Ruler3000 QI | Product category: Configurable, programmable | Supported products: Ruler3000 | Processor: 8-core ARM Cortex-A72 CPU with NEON accelerator, FPGA co-processor for image processing (object finder) | Toolkit: SICK Nova | Connections: I/O, Power, SERIAL, INC, Fieldbus, CAN, SENSOR S1-S6, Ethernet with PoE, USB | Enclosure rating: IP65 | SensorApp: Nova Ruler3000 | License included: Quality Inspection License Quality Inspection License
Specification
Features
| Technology | 3D laser triangulation, image analysis |
|---|---|
| Product category | Configurable, programmable |
| Supported products | Ruler3000 |
| SensorApp | Nova Ruler3000 |
| License included | Quality Inspection License |
| Expansion options | The SICK Nova Tool plug-in enables customer-specific or new tools to be added. Development and customization of the tools is supported by SICK AppSpace and SICK AppStudio. |
| License type | The software is provided as a device license. A license is bound to a specific hardware ID. |
| License period | The license is issued without a time limit. |
| Language | English, German, French, Italian, Spanish, Japanese, Korean, Chinese |
| Documentation | Operating instructions |
| Processor | 8-core ARM Cortex-A72 CPU with NEON acceleratorFPGA co-processor for image processing (object finder) |
| Toolkit | SICK Nova |
Mechanics/electronics
| I/O, Power, SERIAL, INC, Fieldbus, CAN, SENSOR S1-S6, Ethernet with PoE, USB | 1 x M12, 8-pin female connector, A-coded, 1 x M12, 4-pin male connector, T-coded, 2 x M12, 4-pin female connector, D-coded, 1 x M12, 5-pin female connector, A-coded, M12, 5-pin female connector, A-coded, 4 x M12, 8-pin female connector, X-coded, 1 x Micro-B, Under the servicing panel |
|---|---|
| Supply voltage | 24 V DC, ± 10 % |
| Power consumption | Typ. 45 W |
| Power output | 140Â W, total, all connections |
| SENSOR S1-S4 | ≤ 1 A (on power supply pin) |
| SENSOR S5-S6 | ≤ 2.5 A (≤ 10 kHz, rise time/fall time/delay < 10μs when power gate-API used) |
| CAN | ≤ 3.2 A |
| SERIAL | ≤ 0.5 A |
| INC | ≤ 500 mA |
| Enclosure rating | IP65 |
| Electrical safety | ENÂ 61010 |
| Housing color | Light blue (RAL 5012) |
| Weight | 1,995Â g |
| Dimensions (L x W x H) | 176 mm x 83 mm x 196 mm |
Interfaces
| Ethernet | ✔ (4) , TCP/IP, FTP, OPC UA, MQTT |
|---|---|
| Type of fieldbus integration | GigE machine vision/GenICAM |
| Remark | Fieldbus ports, in preparation |
| Function | Configuration, image transmission, Data output, software updates |
| Data transmission rate | 10/100/1,000/2,500Â Mbit/s |
| PROFINET | ✔ (2) |
| Remark | Fieldbus-Ports |
| Function | Dual port Ethernet-based fieldbus |
| Data transmission rate | 10/100Â MBit/s |
| Memory card(s) | Industry-grade microSD memory card (flash card), max. 32Â GB, optional |
| I/O | 2Â opto-decoupled inputs (Max. frequency: 30Â kHz) |
| SENSOR S1-S4 | 2Â inputs/outputs (can be configured) (Max. frequency: 10Â kHz) |
| SENSOR S5 | 1Â input each |
| Expansion options | The SICK Nova Tool plug-in enables customer-specific or new tools to be added. Development and customization of the tools is supported by SICK AppSpace and SICK AppStudio. |
Ambient data
| Electromagnetic compatibility (EMC) | IECÂ 61000-6-2:2016ENÂ IECÂ 61000-6-2:2019IECÂ 61000-6-3:2020 |
|---|---|
| Shock load | IECÂ 60068-2-27:2008 |
| Ambient operating temperature | 0 °C ... +50 °C 1) 2) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
