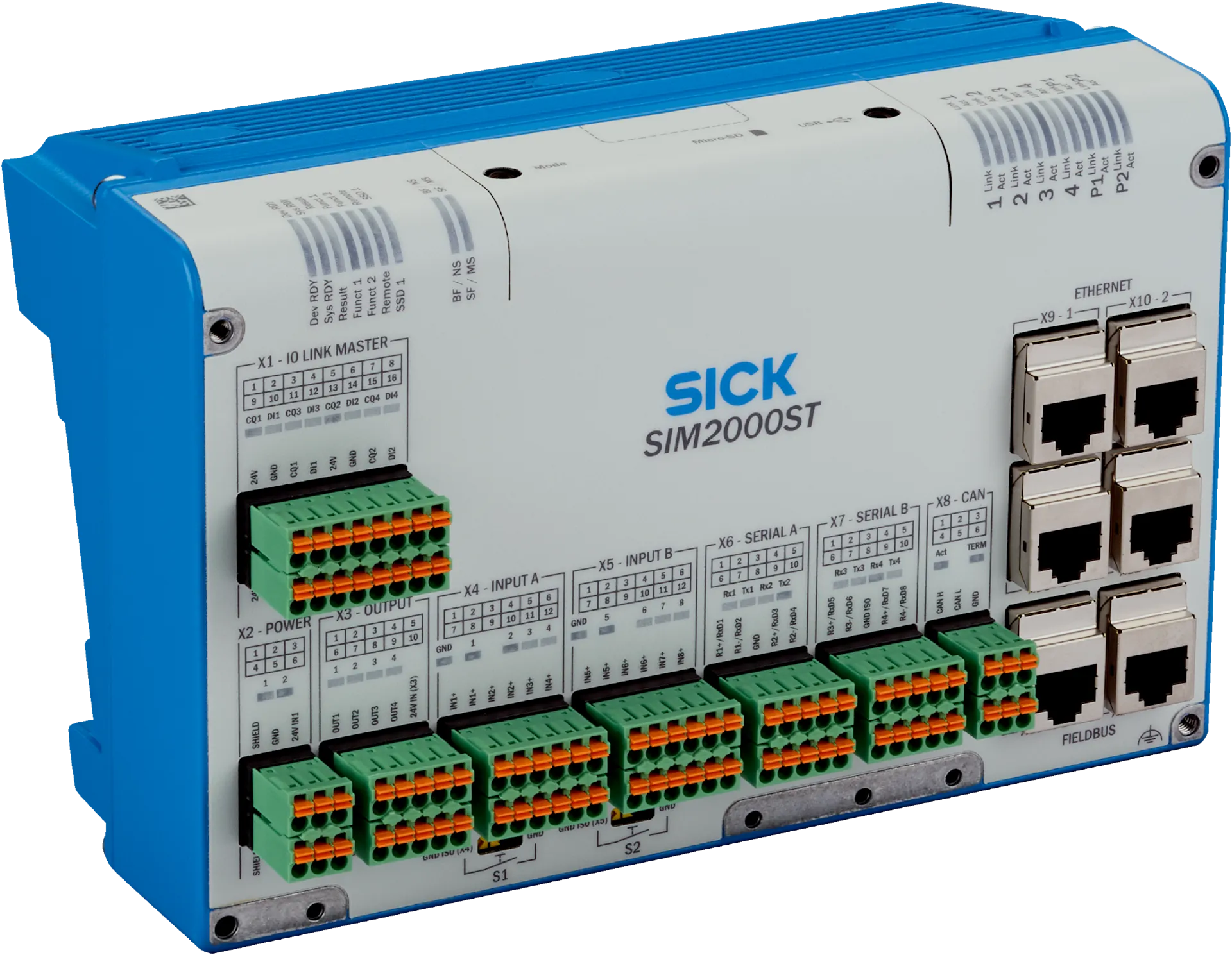

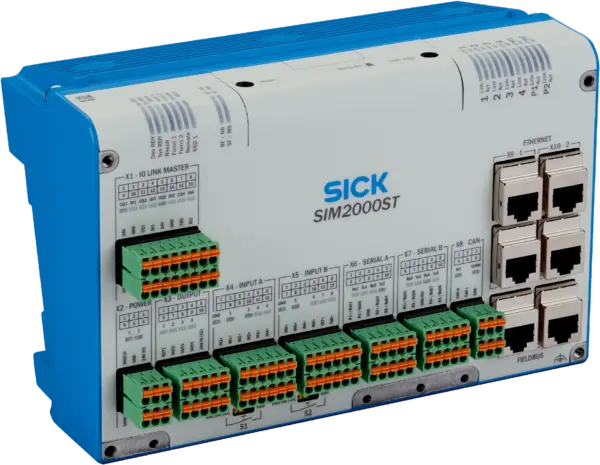

Sick SIM2000-0A20A00

Edge computing devices | SIM2x00 | SIM2000-0A20A00 | Product category: Programmable | Supported products: 2D and 3D LiDAR sensors, Image-based code readers, Bar code scanners, RFID read/write device,…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Edge computing devices | SIM2x00 | SIM2000-0A20A00 | Product category: Programmable | Supported products: 2D and 3D LiDAR sensors, Image-based code readers, Bar code scanners, RFID read/write device, displacement measurement sensors, incremental and absolute encoders, Photoelectric sensors | Processor: 4 Core PowerPC CPU | Toolkit: SICK algorithm API | Further functions: FPGA for I/O handling, Dedicated fieldbus controller | Connections: Power, IO-Link Master, output, Input A, Input B, Serial A, serial B, CAN, Ethernet, Fieldbus, USB | Enclosure rating: IP20 | Generation: First generation | Data storage and retrieval: Image and data logging via optional microSD memory card, internal RAM and external FTP

Specification

Features

Product categoryProgrammable
GenerationFirst generation
Supported products2D and 3D LiDAR sensorsImage-based code readersBar code scannersRFID read/write deviceDisplacement measurement sensorsIncremental and absolute encodersPhotoelectric sensors
Processor4Â Core PowerPC CPU
Random Access Memory2Â GB
Flash memory512Â MB in total, 427Â MB of which available for applications
Programming softwareSICK AppStudioCan be programmed within the SICK AppSpace environment
ToolkitSICK algorithm API
Further functionsFPGA for I/O handlingDedicated fieldbus controller

Mechanics/electronics

Power, IO-Link Master, output, Input A, Input B, Serial A, serial B, CAN, Ethernet, Fieldbus, USBX1, X2, X3, X4, X5, X6, X7, X8, X9-X12, X13-X14, 1 x Micro-B, spring terminal, spring terminal, spring terminal, spring terminal, spring terminal, spring terminal, spring terminal, spring terminal, RJ45, RJ45
Supply voltage24 V DC, ± 10 %
Power consumptionTyp. 20 W, without connected sensor
Power output≤ 50 W, Input A & B, IO-Link
X1 switching output100Â mA (per output)
X3 switching output700Â mA (total)
X1 voltage supply≤ 700 mA (total)
X4, X5 voltage supply700Â mA
Enclosure ratingIP20
Protection classIII
Electrical safetyENÂ 62368-1
Housing materialAluminum die cast
Housing colorLight blue (RAL 5012)
Weight1,532Â g
Dimensions (L x W x H)137 mm x 196 mm x 81 mm

Interfaces

Ethernet✔ (4) , TCP/IP, FTP, OPC UA, MQTT
Type of fieldbus integrationGigE machine vision/GenICAM
RemarkX9-X12
FunctionData output, Configuration, firmware update, image transmission
Data transmission rate20 kbit/s ... 230 kBaud, 10/100/1,000/2,500 Mbit/s
PROFINET✔ (2) , RS-232, RS-422, RS-485
RemarkX13-X14
FunctionDual port Ethernet-based fieldbus, Can also be configured as an encoder interface, max. frequency 2Â MHz, firmware update
Data transmission rate≤ 1 Mbit/s, 10/100 MBit/s
EtherNet/IP™✔ (2) , USB 2.0
RemarkX13-X14
FunctionDual port Ethernet-based fieldbus, diagnosis
Data transmission rate10/100Â MBit/s
EtherCAT®✔ (2) , RS-232
RemarkX13-X14, in preparation
FunctionDual port Ethernet-based fieldbus
Data transmission rate10/100Â MBit/s
IO-Link✔ (4) , USB 2.0
RemarkX1
FunctionIO-Link Master 1.1
Data transmission rateRS-232: 115,2Â kBaud, RS-422/RS-485: 2Â MBaud
Serial✔ (4)
RemarkX6-X7
FunctionSerial interface
Data transmission rateRS-232: 115,2Â kBaud, RS-422/RS-485: 2Â MBaud
CAN✔
RemarkX8
FunctionSICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) with activatable termination resistor
USB✔
FunctionFor configuration
Operator interfacesWeb server (GUI), SICK AppStudio (programming), SICK AppManager (app installation, firmware update)
Data storage and retrievalImage and data logging via optional microSD memory card, internal RAM and external FTP
Memory card(s)Industry-grade microSD memory card (flash card), max. 32Â GB, optional
IO-Link Master4Â inputs, 4Â inputs/outputs (configurable incl. IO-Link)
Output4Â outputs (insulated)
Input A/B4Â inputs each (insulated)
Control elements1Â selector switch (under the servicing panel)1Â functional button (under the servicing panel)2Â S1 and S2 switches for GND ISO/GND

Ambient data

Electromagnetic compatibility (EMC)ENÂ 61000-6-2:2005-08ENÂ 61000-6-4:2007+A1:2011ENÂ 61131-9:2013-12
Shock loadENÂ 60068-2-27:2009-05
Ambient operating temperature0 °C ... +50 °C 1) 2)
Ambient temperature, storage–20 °C ... +70 °C 1)

Classifications

ECLASS 5.027242208
ECLASS 5.1.427242608
ECLASS 6.027242608
ECLASS 6.227242608
ECLASS 7.027242608
ECLASS 8.027242608
ECLASS 8.127242608
ECLASS 9.027242608
ECLASS 10.027242608
ETIM 5.0EC001604
ETIM 6.0EC001604
ETIM 7.0EC001604
ETIM 8.0EC001604
UNSPSC 16.090132151705

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
