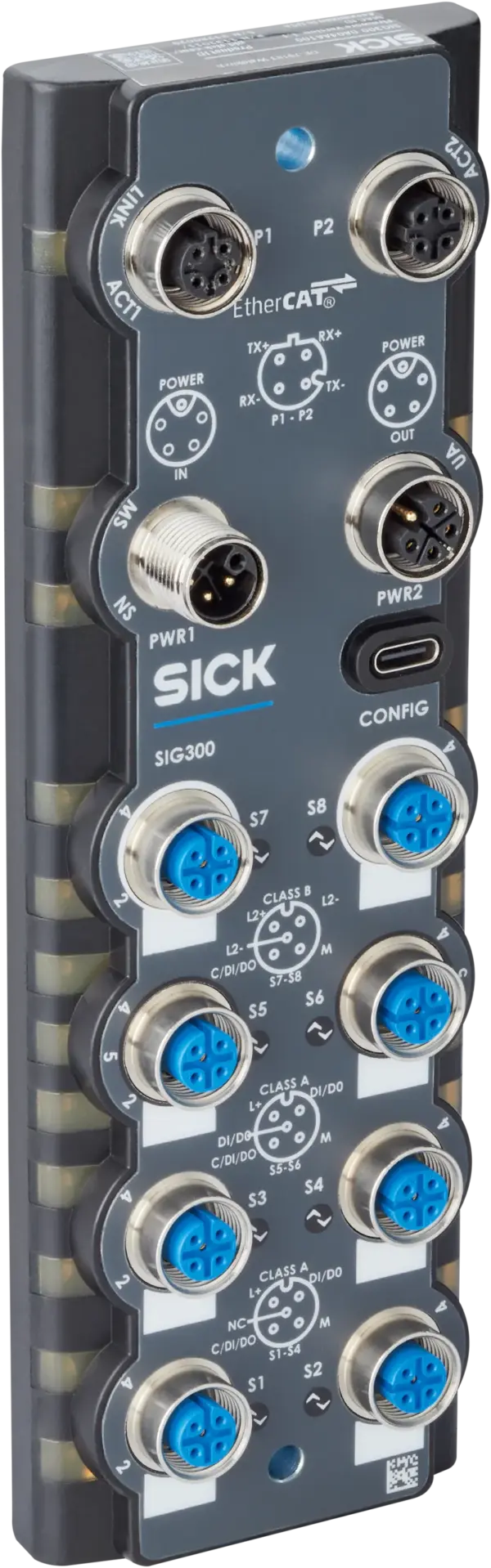

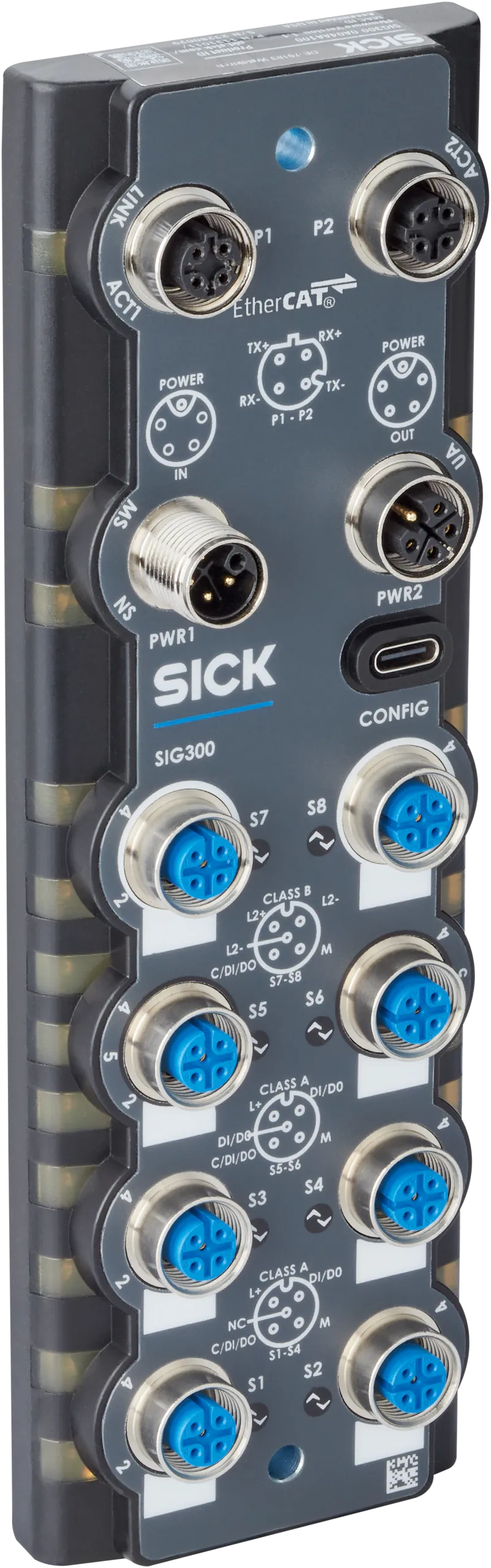

Sick SIG300-0A06AA100

Network devices | SIG300 | SIG300-0A06AA100 | Product category: IO-Link Master | Communication interface: IO-Link, REST API, Ethernet, EtherCAT® | Supported products: IO-Link Devices, binary switching…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Network devices | SIG300 | SIG300-0A06AA100 | Product category: IO-Link Master | Communication interface: IO-Link, REST API, Ethernet, EtherCAT® | Supported products: IO-Link Devices, binary switching sensors, binary actuators | Scope of delivery: SIG300, safety instruction, Blind plugs (9 x M12, 1 x USB-C) | Further functions: Web server integrated, IIoT interface available

Specification

Features

Product categoryIO-Link Master
Supported productsIO-Link DevicesBinary switching sensorsBinary actuators
Further functionsWeb server integratedIIoT interface available
MTTF29.4 years 1)
MTTFd58.8 years 1)
Items suppliedSIG300, safety instruction, Blind plugs (9 x M12, 1 x USB-C)

Mechanics/electronics

IO-Link8 x M12, 5-pin female connector, A-coded
Power1 x M12, 5-pin male connector, L-coded1 x M12, 5-pin female connector, L-coded
Ethernet2 x M12, 4-pin female connector, D-coded
USB-C1Â x USB-C
Supply voltage20Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Current carrying capacity (PWR1, PWR2) max.≤ 16 A, US 2)
Current consumption≤ 200 mA 3)
Total current (S1 ... S8)≤ 15.5 A 2)
Pin 1Â (L+) (Us)2Â A
Pin 2Â (DI/DO)200Â mA
Pin 3Â (M)-Â 2.6Â A
Pin 4Â (C/Q DI/DO)200Â mA
Pin 5Â (DI/DO) Port 5-6200Â mA
Pin 1Â (L+) (Us)2Â A
Pin 2Â (L+) (UA)2Â A
Pin 3Â (M) (Us)-Â 2Â A
Pin 4Â (C/Q DI/DO)200Â mA
Pin 5Â (M) (UA)-Â 2Â A
Number16, configurable
Input characteristicsENÂ 61131-2 type 1
Circuit protectionShort-circuit protected
Number16, configurable
TypePNP
Switching frequency≤ 50 Hz
Circuit protectionShort-circuit protected
Optical indicators8 LED green (IO-Link activity pin 4)6 LED yellow (DI/DO communication pin 2)2 LED yellow (DI/DO communication pin 5)2 LED yellow (Voltage supply UA “On” pin 2, class B port)2 LED green (Ethernet bus activity)1 LED green (voltage supply US (sensors))1 LED green (voltage supply UA (actuators))1 LED red/green 4)1 LED red/green 5)
Enclosure ratingIP67 (In fastened condition)
Protection classIIIÂ 6)
Contamination rating2
Housing materialPolyamide + steel, galvanized
Housing colorDark gray
Weight460Â g
Dimensions (L x W x H)191.4 mm x 61.2 mm x 27.3 mm
UL File No.E497722

Communication interface

IO-Link✔, ✔
RemarkV1.1
Number of ports8Â pieces
Port ClassA/B
Data transmission rateCOM1, COM2, COM3
Additional featuresData Storage
Ethernet✔
Fieldbus✔
Number of ports2Â pieces
Data transmission rate10/100Â MBit/s
REST API✔
SpecificationJSON integration for IO-Link version (V1.0.0)
Operator interfacesWeb server integrated

Ambient data

Ambient operating temperature–40 °C ... +55 °C 1)
Ambient temperature, storage–40 °C ... +75 °C 1)
Electromagnetic compatibility (EMC)ENÂ 61000-6-2:2016ENÂ 61000-6-4:2020
Shock loadENÂ 60068-2-27

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
China RoHS✔
cULus certificate✔

Classifications

ECLASS 5.027242208
ECLASS 5.1.427242608
ECLASS 6.027242608
ECLASS 6.227242608
ECLASS 7.027242608
ECLASS 8.027242608
ECLASS 8.127242608
ECLASS 9.027242608
ECLASS 10.027242608
ECLASS 11.027242608
ECLASS 12.027242608
ETIM 5.0EC001604
ETIM 6.0EC001604
ETIM 7.0EC001604
ETIM 8.0EC001604
UNSPSC 16.090132151705
