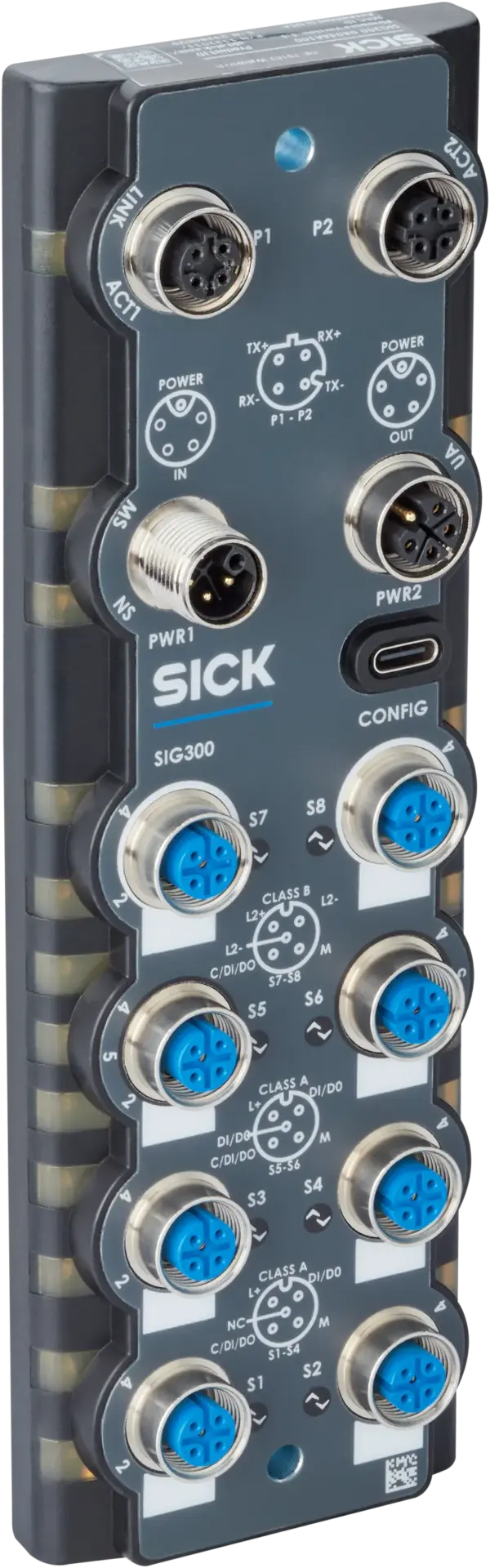

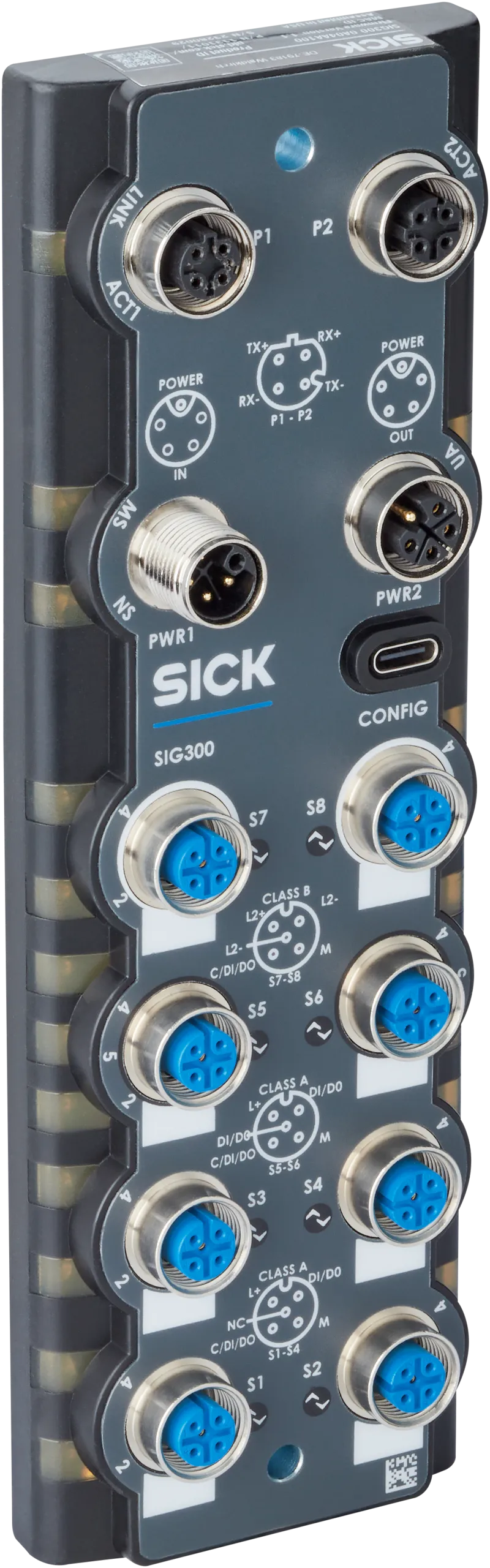

Sick SIG300-0A04AA100
Network devices | SIG300 | SIG300-0A04AA100 | Product category: IO-Link Master | Communication interface: IO-Link, REST API, Ethernet, PROFINET | Supported products: IO-Link Devices, binary switching…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Network devices | SIG300 | SIG300-0A04AA100 | Product category: IO-Link Master | Communication interface: IO-Link, REST API, Ethernet, PROFINET | Supported products: IO-Link Devices, binary switching sensors, binary actuators | Scope of delivery: SIG300, safety instruction, Blind plugs (9 x M12, 1 x USB-C) | Further functions: Web server integrated, IIoT interface available
Specification
Features
| Product category | IO-Link Master |
|---|---|
| Supported products | IO-Link DevicesBinary switching sensorsBinary actuators |
| Further functions | Web server integratedIIoT interface available |
| MTTF | 29.4 years 1) |
| MTTFd | 58.8 years 1) |
| Items supplied | SIG300, safety instruction, Blind plugs (9 x M12, 1 x USB-C) |
Mechanics/electronics
| IO-Link | 8 x M12, 5-pin female connector, A-coded |
|---|---|
| Power | 1 x M12, 5-pin male connector, L-coded1 x M12, 5-pin female connector, L-coded |
| Ethernet | 2 x M12, 4-pin female connector, D-coded |
| USB-C | 1Â x USB-C |
| Supply voltage | 20Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
| Current carrying capacity (PWR1, PWR2) max. | â¤Â 16 A, US 2) |
| Current consumption | â¤Â 200 mA 3) |
| Total current (S1 ... S8) | â¤Â 15.5 A 2) |
| Pin 1Â (L+) (Us) | 2Â A |
| Pin 2Â (DI/DO) | 200Â mA |
| Pin 3Â (M) | -Â 2.6Â A |
| Pin 4Â (C/Q DI/DO) | 200Â mA |
| Pin 5Â (DI/DO) Port 5-6 | 200Â mA |
| Pin 1Â (L+) (Us) | 2Â A |
| Pin 2Â (L+) (UA) | 2Â A |
| Pin 3Â (M) (Us) | -Â 2Â A |
| Pin 4Â (C/Q DI/DO) | 200Â mA |
| Pin 5Â (M) (UA) | -Â 2Â A |
| Number | 16, configurable |
| Input characteristics | ENÂ 61131-2 type 1 |
| Circuit protection | Short-circuit protected |
| Number | 16, configurable |
| Type | PNP |
| Switching frequency | â¤Â 50 Hz |
| Circuit protection | Short-circuit protected |
| Optical indicators | 8 LED green (IO-Link activity pin 4)6 LED yellow (DI/DO communication pin 2)2 LED yellow (DI/DO communication pin 5)2 LED yellow (Voltage supply UA âOnâ pin 2, class B port)2 LED green (Ethernet bus activity)1 LED green (voltage supply US (sensors))1 LED green (voltage supply UA (actuators))1 LED red/green 4)1 LED red/green 5) |
| Enclosure rating | IP67 (In fastened condition) |
| Protection class | IIIÂ 6) |
| Contamination rating | 2 |
| Housing material | Polyamide + steel, galvanized |
| Housing color | Dark gray |
| Weight | 460Â g |
| Dimensions (L x W x H) | 191.4 mm x 61.2 mm x 27.3 mm |
| UL File No. | E497722 |
Communication interface
| IO-Link | â, â |
|---|---|
| Remark | V1.1 |
| Number of ports | 8Â pieces |
| Port Class | A/B |
| Data transmission rate | COM1, COM2, COM3 |
| Additional features | Data Storage |
| Ethernet | â |
| Fieldbus | â |
| Number of ports | 2Â pieces |
| Data transmission rate | 10/100Â MBit/s |
| Conformity class | C |
| Specification | V2.45Â (RT) |
| Network load class | III |
| Addressing | DCP, static IPÂ address |
| Factory setting | DCP |
| REST API | â |
| Specification | JSON integration for IO-Link version (V1.0.0) |
| Operator interfaces | Web server integrated |
Ambient data
| Ambient operating temperature | â40 °C ... +55 °C 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +75 °C 1) |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2:2016ENÂ 61000-6-4:2020 |
| Shock load | ENÂ 60068-2-27 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Profinet certificate | â |
Classifications
| ECLASS 5.0 | 27242208 |
|---|---|
| ECLASS 5.1.4 | 27242608 |
| ECLASS 6.0 | 27242608 |
| ECLASS 6.2 | 27242608 |
| ECLASS 7.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 8.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 10.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ETIM 5.0 | EC001604 |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| UNSPSC 16.0901 | 32151705 |
