Sick SIG100-0A0111100
Network devices | SIG100 | SIG100-0A0111100 | Product category: IO-Link Hub | Communication interface: USBIO-Link | Communication Interface detail: IO-Link V1.1 | Supported products: Binary switching…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

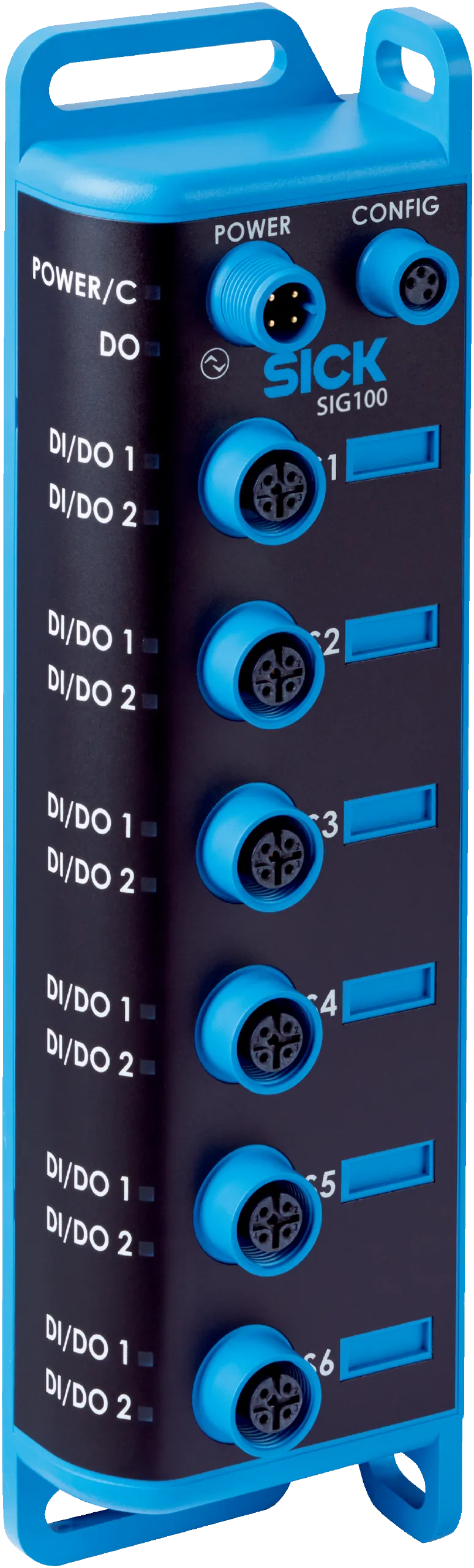

Network devices | SIG100 | SIG100-0A0111100 | Product category: IO-Link Hub | Communication interface: USBIO-Link | Communication Interface detail: IO-Link V1.1 | Supported products: Binary switching sensorsBinary actuators | Scope of delivery: SIG100-0A0111100Marking labelsQuickstart | Further functions: USB connection for easy configuration of the SIG100 Sensor Integration Gateway with SOPAS ET, the engineering tool from SICKLogic editor is available for easy configuration of logic functions
Specification
Features
| Product category | IO-Link Hub |
|---|---|
| Supported products | Binary switching sensorsBinary actuators |
| Further functions | USB connection for easy configuration of the SIG100 Sensor Integration Gateway with SOPAS ET, the engineering tool from SICKLogic editor is available for easy configuration of logic functions |
| Items supplied | SIG100-0A0111100, Marking labels, quickstart |
Mechanics/electronics
| I/O | 6 x M12, 5-pin female connector, A-coded |
|---|---|
| Power Main | 1 x M12, 4-pin plug, A-coded |
| CONFIG | 1 x M8, 4-pin female connector, USB 2.0 (USB-A) |
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
| Current consumption | Power Port (≤ 50 mA, ≤ 500 mA), At supply voltage 24 V DC 2) 3) |
| Optical indicators | 12 Orange LED (2 for each port S1–S6 for the display of Pin4 (DI/DO1) and Pin2 (DI/DO2))1 LED green (DO)1 Orange LED (DO) |
| Power Port pin 2 output current | ≤ 50 mA (VH ≥ VUS - 2 V) 4) |
| Power Port pin 4 output current | ≤ 50 mA (VH ≥ VUS - 2 V) 4) |
| Power Port pin 2/4 output voltage HIGH | ≤ 50 mA (Type 3 IEC 61131-2) 4) |
| S1-S6 pin 1 voltage supply | ≤ 50 mA 4) |
| S1-S6 pin 2 output current | ≤ 50 mA |
| S1-S6 pin 4 output current | ≤ 50 mA |
| S1-S6 pin 2/4 output voltage HIGH | VH ≥ VUS - 2 V |
| Enclosure rating | IP67 |
| Protection class | III |
| Housing material | ABS |
| Housing color | Black/Light blue |
| Weight | 289Â g |
| Dimensions (L x W x H) | 213.9 mm x 57 mm x 38.3 mm |
| UL File No. | E497722 |
Interfaces
| Logic editor | ✔ |
|---|---|
| Communication interface | USB, IO-Link |
| Function | IO-Link sensor hub (IO-Link device) with 6Â ports which can be used to connect sensors and actuators. The SIG100 Sensor Integration Gateway can therefore connect up to 12Â binary switching signals and communicate them to any IO-Link master via IO-Link. The SIG100 can also be operated as a standalone system by directly configuring simple logic functions across several connected devices via the SOPAS ET user interface. |
| Communication Interface detail | IO-Link V1.1, Port Class A |
| IO-Link data transmission rate | ≤ 38.4 kBaud, COM2≤ 38.4 kBaud |
| IO-Link cycle time | <Â 5.1Â ms |
| IO-Link process data length | 8Â Byte In und 2Â Byte Out |
| 8Â Byte Process Data In | Bit 0Â - Bit 7Â = QL1 - QL8 |
| 2Â bytes process data out (digital mode) | Bit 0Â - Bit 15Â = IL1 - IL16 |
| 2 bytes process data out (analog mode) | Bit 0 – bit 7 = Analog value in (lower byte) |
| Comment | QL1 – QL8 = Logic editor outputs |
| Operator interfaces | SOPAS ET, the engineering tool for configuration via USB, SOPAS ET can be downloaded for free from www.sick.com, the required SSD file for displaying SIG100 via SOPAS ET can either be downloaded from the device or from www.sick.com |
| Number of inputs | Max. 12Â x PNP, type 1 |
| Number of outputs | Max. 12Â x PNP |
| S1-S6 | 6Â ports.Pin2 and Pin4 can be customized as a digital input or digital output to enable the transmission of up to 12Â digital input or output signals. (SOPAS ET can be downloaded for free from www.sick.com) |
| Power Port | Port for configuration via USB with SOPAS ET |
| CONFIG | Port for configuration via USB with SOPAS ET (SOPAS ET can be downloaded for free from www.sick.com) |
Ambient data
| Ambient operating temperature | –40 °C ... +60 °C 1) |
|---|---|
| Ambient temperature, storage | –40 °C ... +70 °C 1) |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2:2005-08 / ENÂ 61000-6-3:2007-01 |
| Shock load | ENÂ 60068-2-6 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
Classifications
| ECLASS 5.0 | 27242208 |
|---|---|
| ECLASS 5.1.4 | 27242608 |
| ECLASS 6.0 | 27242608 |
| ECLASS 6.2 | 27242608 |
| ECLASS 7.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 8.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 10.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ETIM 5.0 | EC001604 |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| UNSPSC 16.0901 | 32151705 |
