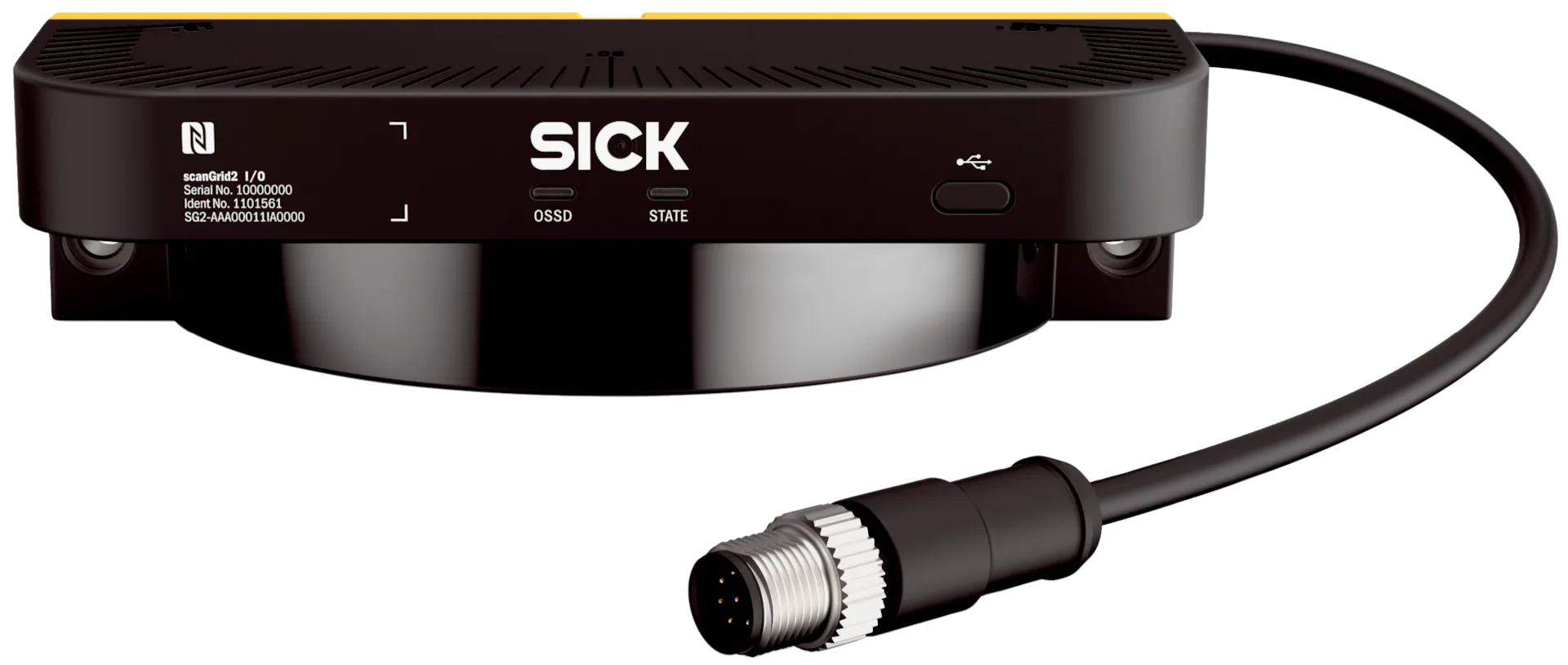

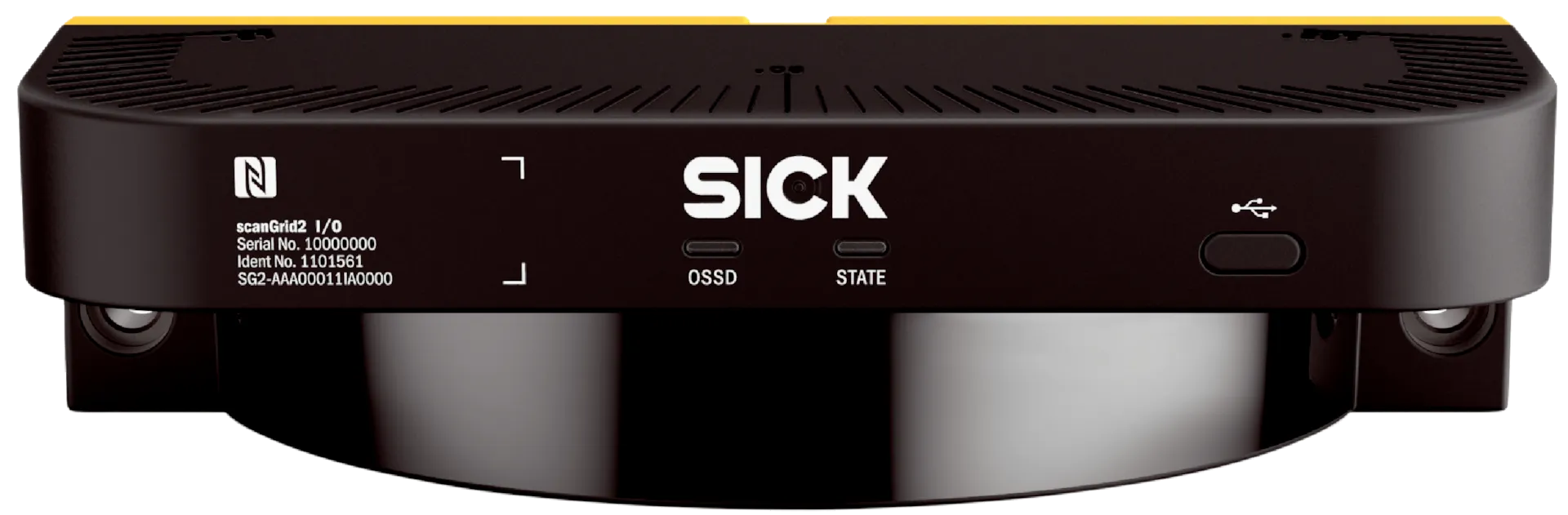

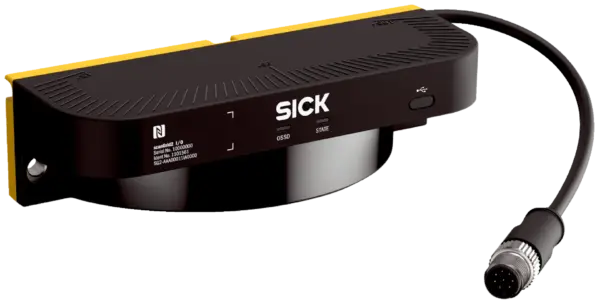

Safety multibeam scanners | scanGrid2 | SG2-AAA00011IA0000 | Variant: scanGrid2 I/O | Safety level: PL c, SIL 1, Type 2 | Protective field range: 1.1 m (At a resolution of 70 mm) | Number of fields: 8…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety multibeam scanners | scanGrid2 | SG2-AAA00011IA0000 | Variant: scanGrid2 I/O | Safety level: PL c, SIL 1, Type 2 | Protective field range: 1.1 m (At a resolution of 70 mm) | Number of fields: 8 | Number of monitoring cases: 4 | Scanning angle: 150° | Integration in the control system: Local inputs and outputs (I/O) | Connection type: Connector M12, 8-pin, A-coded | Cascading: yes | Items supplied: Safe multibeam scanner, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Protective field range | 1.1Â m (At a resolution of 70Â mm) |
|---|---|
| Warning field range | 4Â m (At a resolution of 70Â mm and a remission of 80%) |
| Number of simultaneously monitored fields | ⤠2 1) |
| Number of fields | 8 |
| Number of monitoring cases | 4 |
| Scanning angle | 150° |
| Resolution (can be configured) | 50Â mm, 70Â mm, 150Â mm, 200Â mm |
| Angular resolution | 6° |
| Response time | â¥Â 60 ms |
| Number of multiple samplings | 1Â ... 4 |
| Protective field supplement | 100Â mm |
| Items supplied | Safe multibeam scannerSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 2Â (IECÂ 61496-3) |
|---|---|
| Safety integrity level | SIL 1Â (IECÂ 61508) |
| Category | Category 2Â (ISOÂ 13849-1) |
| Performance level | PL c (ISOÂ 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 1.3Â Ã 10-6 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Restart delay | â |
|---|---|
| Multiple sampling | â |
| Monitoring case switching | â |
| Switch-on delay for monitoring case switching | â |
| Simultaneous monitoring | â |
| Static protective field switching | â |
| Integrated configuration memory | â |
| Measured data output | None |
| Cascading | â |
Interfaces
| Connection type | Connector M12, 8-pin, A-coded |
|---|---|
| OSSD pairs | 1 |
| Universal outputs | 1 |
| Static control inputs | 3 |
| Near Field Communication (NFC) | â |
| Configuration method | Via software |
| Configuration and diagnostic software | Safety Designer (software for configuring and diagnosing safety solutions from SICK AG)Safety Assistant (app for transferring configurations and diagnosing safety solutions from SICK AG) |
| Configuration and diagnostics interface | USB 2.0Â type C (Safety Designer)NFC (Safety Assistant app) |
| Display elements | LEDs |
Electrical data
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (8.4Â VÂ ... 30Â V)Â 1) |
| Supply voltage UV in a cascade | 24Â VÂ DC (14Â VÂ ... 30Â V)Â 1) |
| Residual ripple | ⤠10 % 2) |
| Power consumption | â¤Â 3 W (DC) |
| Type of output | 2 semiconductors, short-circuit protected, cross-circuit monitored 3) |
| Output mode (can be configured) | PNP or NPNÂ 4)Â 5) |
| ON state, switching voltage HIGH | (UV - 2.25Â V)Â ... UV |
| OFF state, switching voltage LOW | â¤Â 2 V |
| Current-carrying capacity per OSSD | â¤Â 200 mA |
| ON state, switching voltage LOW | â¤Â 2.25 V |
| OFF state, switching voltage HIGH | (UV - 2Â V)Â ... UV |
| Current-carrying capacity per OSSD | â¤Â 200 mA |
Mechanical data
| Dimensions (W x H x D) | 160 mm x 43 mm x 56 mm |
|---|---|
| Weight | 170Â g |
| Housing material | Durabio (front part, black)Polycarbonate (back part, colza yellow) |
| Housing color | RAL 9005Â (black)RAL 1021Â (yellow) |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529) |
|---|---|
| Ambient light immunity | ⤠10 klx |
| Ambient operating temperature | 0 °C ... +50 °C |
| Storage temperature | â30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | IECÂ 60068-2-6, IECÂ 60068-2-64, IECÂ 60721-3-5, IECÂ TR 60721-4-5, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Shock resistance | IECÂ 60068-2-27, IECÂ 60721-3-5, IECÂ TR 60721-4-5, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Single shock | 150 m/s², 11 ms |
| Continuous shock | 100 m/s², 16 ms |
| EMC | IECÂ 61496-1, IECÂ 61000-6-2, IECÂ 61000-6-3 |
Other information
| Type of light | Pulsed laser diode |
|---|---|
| Wave length | 850Â nm |
| Detectable remission factor | 4%Â ... several 1,000% |
| Laser class | 1 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| EC-Type-Examination approval | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27272705 |
|---|---|
| ECLASS 5.1.4 | 27272705 |
| ECLASS 6.0 | 27272705 |
| ECLASS 6.2 | 27272705 |
| ECLASS 7.0 | 27272705 |
| ECLASS 8.0 | 27272705 |
| ECLASS 8.1 | 27272705 |
| ECLASS 9.0 | 27272705 |
| ECLASS 10.0 | 27272705 |
| ECLASS 11.0 | 27272705 |
| ECLASS 12.0 | 27272705 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 39121528 |
