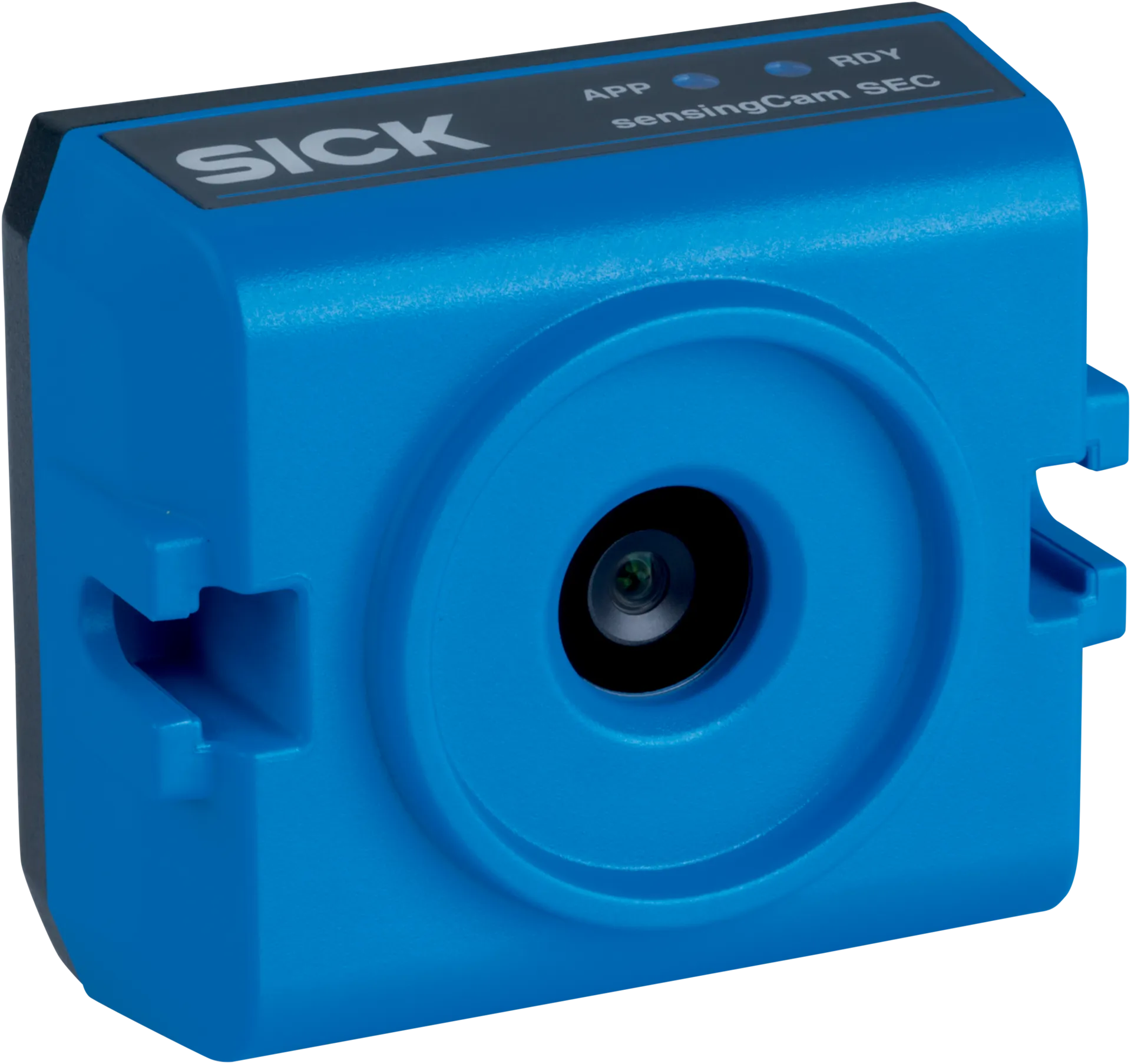

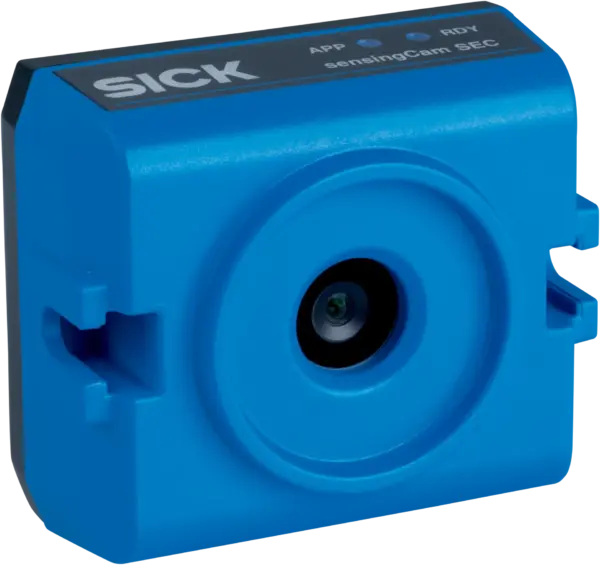

Sick SEC100-5C9D1SFZZZZ
Machine vision | sensingCam SEC100 | SEC100-5C9D1SFZZZZ | Communication interface: REST API, Ethernet | Configuration software: Web server integrated | Sensor: Powerful in low light | Shutter technolo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Machine vision | sensingCam SEC100 | SEC100-5C9D1SFZZZZ | Communication interface: REST API, Ethernet | Configuration software: Web server integrated | Sensor: Powerful in low light | Shutter technology: Rolling-Shutter | Sensor resolution: 2,880 px x 1,616 px (5 Mpixel) | Detection angle: 82° x 52° | Technology: 2D snapshot, streaming
Specification
Features
| Product category | Streaming, flexible |
|---|---|
| Technology | 2D snapshot, streaming |
| Sensor | CMOS ColorPowerful in low light |
| Shutter technology | Rolling-Shutter |
| Sensor resolution | 2,880 px x 1,616 px (5 Mpixel) |
| Working distance | 0.3 m ... 10 m |
| Field of view | 82° x 52° |
| Memory | 6Â GB, internal memory or FTP upload |
| Lighting | Without |
| Lens | Integrated |
| Scan/frame rate | 5 fps ... 30 fps |
| Video resolution | Full resolution (2,880Â x 1,616Â pixels) @ 25Â fps |
| Video protocol | RTSP, MJPG |
| Real-time video transmission | Two individually configurable RTSP streams, one MJPEG stream |
| Video compression | H.264, H.265, Motion JPEG, configurable compression level |
| Image format | JPEG, BMP |
| Trigger | Digital input or software trigger via REST API |
Interfaces
| REST API | ✔ |
|---|---|
| Ethernet | ✔ , TCP/IP |
| Remark | DHCP/static (default: 192.168.136.100) |
| Data transmission rate | 100Â Mbit/s, 100Base-TX |
| Configuration software | Web server integrated |
Electronics
| Supply voltage | 12Â VÂ DCÂ ... 24Â VÂ DCÂ 1) |
|---|---|
| Power consumption | Typ. 2 WMax. 10 W |
| Digital input, level | Active: 10 V ≤ UIN ≤ UVInactive: UIN ≤ 2 V |
| Protection class | III |
| Enclosure rating | IP65 |

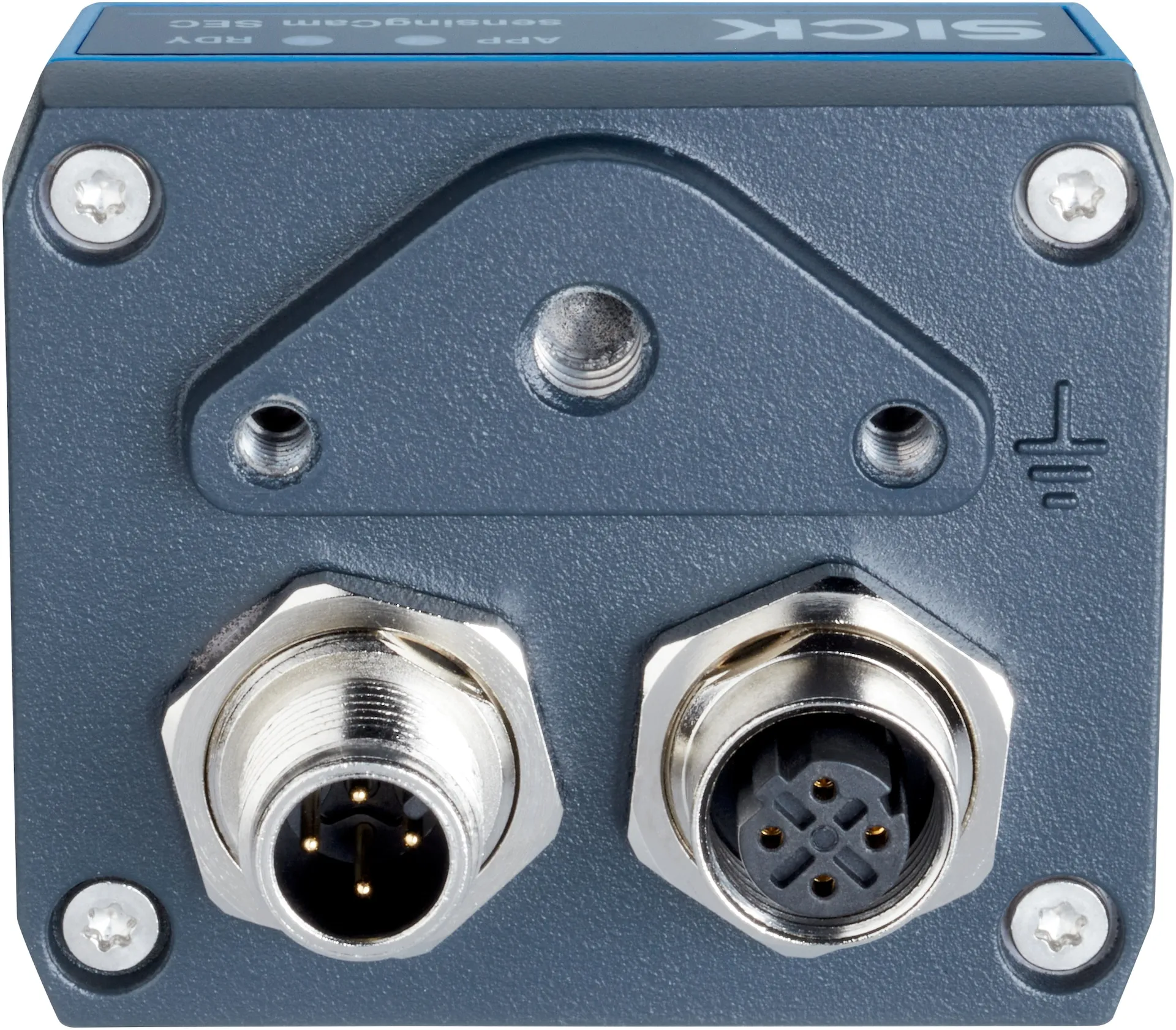

| Supply voltage & I/O | Plug, M12, 4-pin, A-coded |
| Ethernet interface | M12 female connector, 4-pin, D-coded |
| -- 1 | + (L+) |
| -- 2 | MFIn/Out |
| -- 3 | - (M) |
| -- 4 | Not connected |
| -- 1 | Tx + |
| -- 2 | Tx - |
| -- 3 | Rx + |
| -- 4 | Rx - |
Mechanics
| Dimensions (W x H x D) | 57.5 mm x 49 mm x 33.6 mm (without connection) |
|---|---|
| Housing material | Aluminum, polycarbonate |
| Window material | Glass |
| Weight | 120Â g |
| Mounting | Two threads for M4 screwsTwo grooves for sliding nutsOne ¼‘‘ - 20 UNC thread for photo tripod |
Ambient data
| Ambient temperature, operation | 0 °C ... +50 °C, Optimal image quality at 10 °C ... +40 °C |
|---|---|
| Ambient temperature, storage | –20 °C ... +60 °C |
| Permissible relative humidity | ≤ 90 % |
| Shock resistance | 150 m/s² EN 60068-2-27 |
| Vibration resistance | ENÂ 60068-2-6, ENÂ 60068-2-64 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| KC Mark certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27310205 |
|---|---|
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
