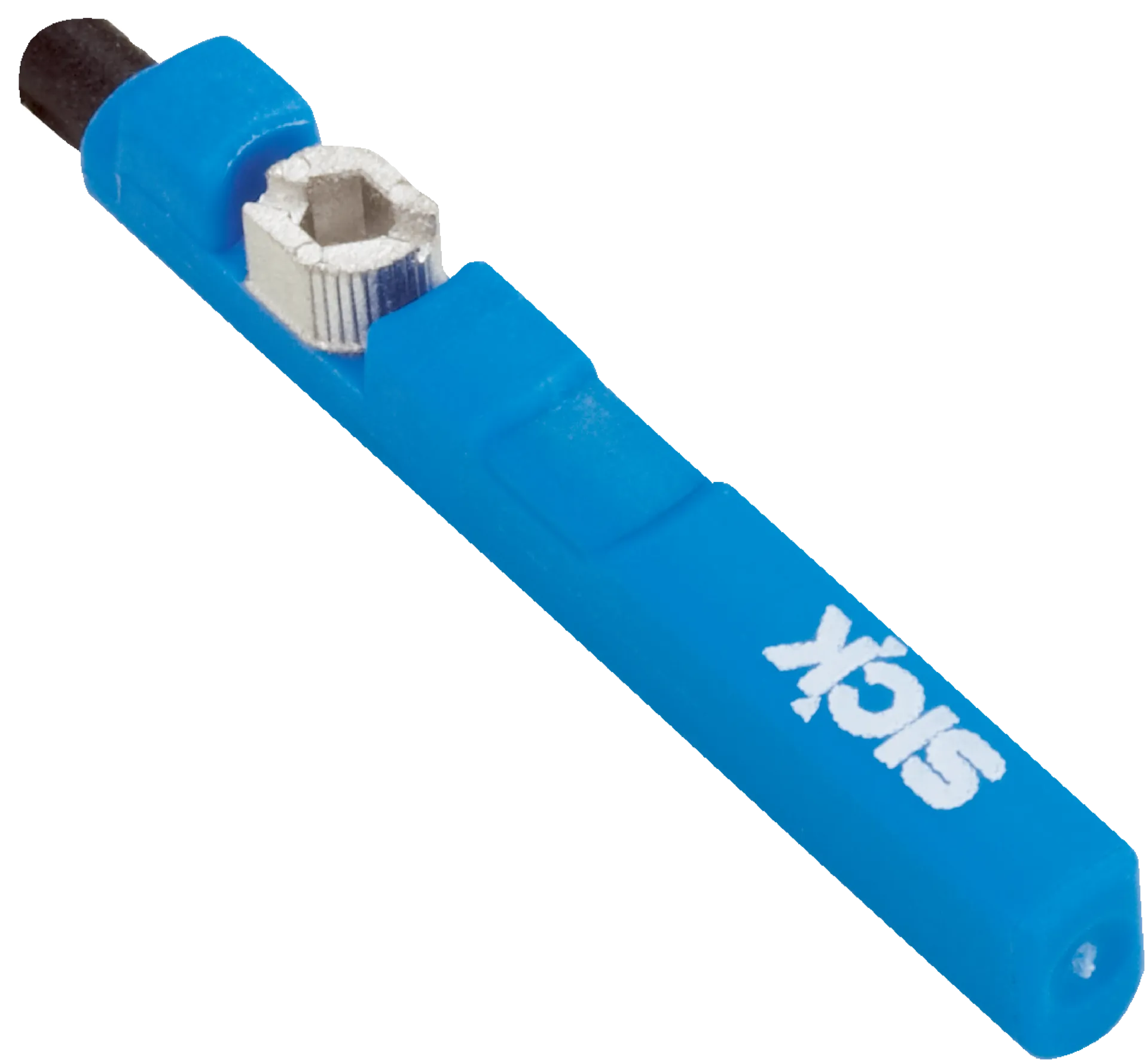

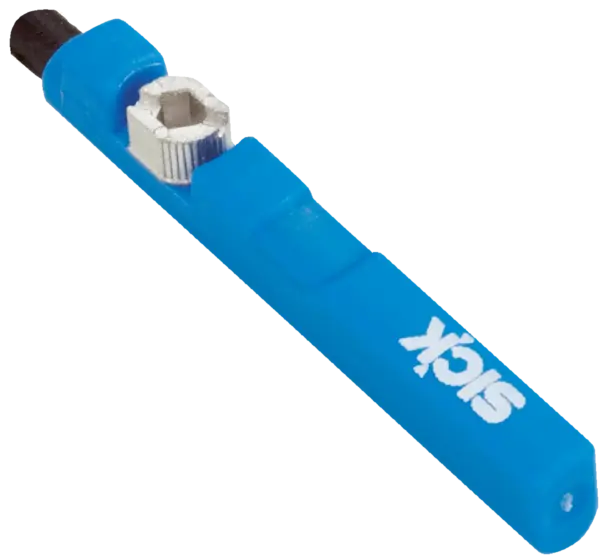

Sick RZC1-04ZRS-KP0
Cylinder sensors | RZC1 | RZC1-04ZRS-KP0 | Connection type: Cable with connector M8, 3-pin, 0.3 m | Output function: NO | Overrun distance, typ.: 7 mm | Enclosure rating: IP67 | Supply voltage: 5 V AC…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cylinder sensors | RZC1 | RZC1-04ZRS-KP0 | Connection type: Cable with connector M8, 3-pin, 0.3 m | Output function: NO | Overrun distance, typ.: 7 mm | Enclosure rating: IP67 | Supply voltage: 5 V AC/DC … 30 V AC/DC | Electrical wiring: AC/DC 3-wire
Specification
Features
| Cylinder type | C-slot |
|---|---|
| Cylinder types with adapter | SMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 26.3Â mm |
| Switching output | Reed |
| Switching frequency | 500Â Hz |
| Output function | NO |
| Electrical wiring | AC/DC 3-wire |
| Enclosure rating | IP67Â 1) |
Mechanics/electronics
| Supply voltage | 5Â VÂ AC/DCÂ ... 30Â VÂ AC/DC |
|---|---|
| Power consumption | 5Â mA, without load |
| Voltage drop | <Â 0.5Â V |
| Continuous current Ia | â¤Â 500 mA |
| Switching capacity | â¤Â 10 W |
| Protection class | III |
| Overrun distance, typ. | 7 mm 1) |
| Reproducibility | â¤Â 0.1 mT 2) |
| Status indicator LED | Yes |
| Teach-in | No |
| Ambient operating temperature | â30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to ENÂ 60947-5-2 |
| Connection type | Cable with connector M8, 3-pin, drag chain use, 0.3Â m |
| Conductor cross section | 0.09 mm² |
| Cable diameter | ÃÂ 2.2Â mm |
| Bending radius | With fixed installation >Â 2Â x cable diameter |
| Torsion force | ± 270° / 0.1 m |
| Torsion cycles | 300,000 |
| Drag chain cycles | 5,000,000 |
| Drag chain parameters | Traversing speed max. 3Â m/s |
| Cable outlet | Axial |
| Housing | Plastic, PA, strengthened |
| Cable | PUR |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Safety-related parameters
| MTTFD | 41,230Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
| B10D | 5,000,000 Switching cycles 1) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
