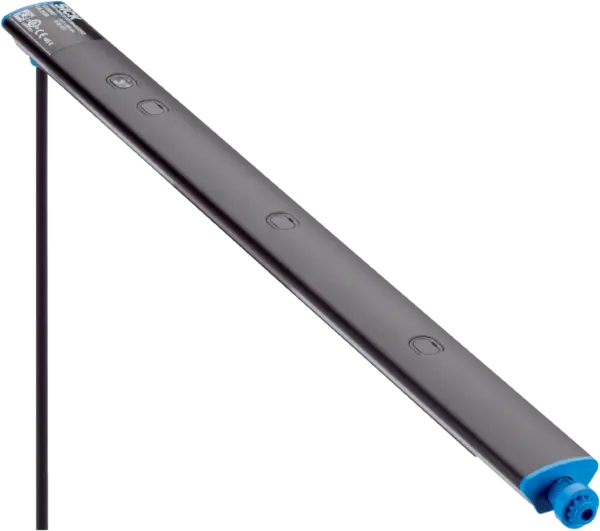

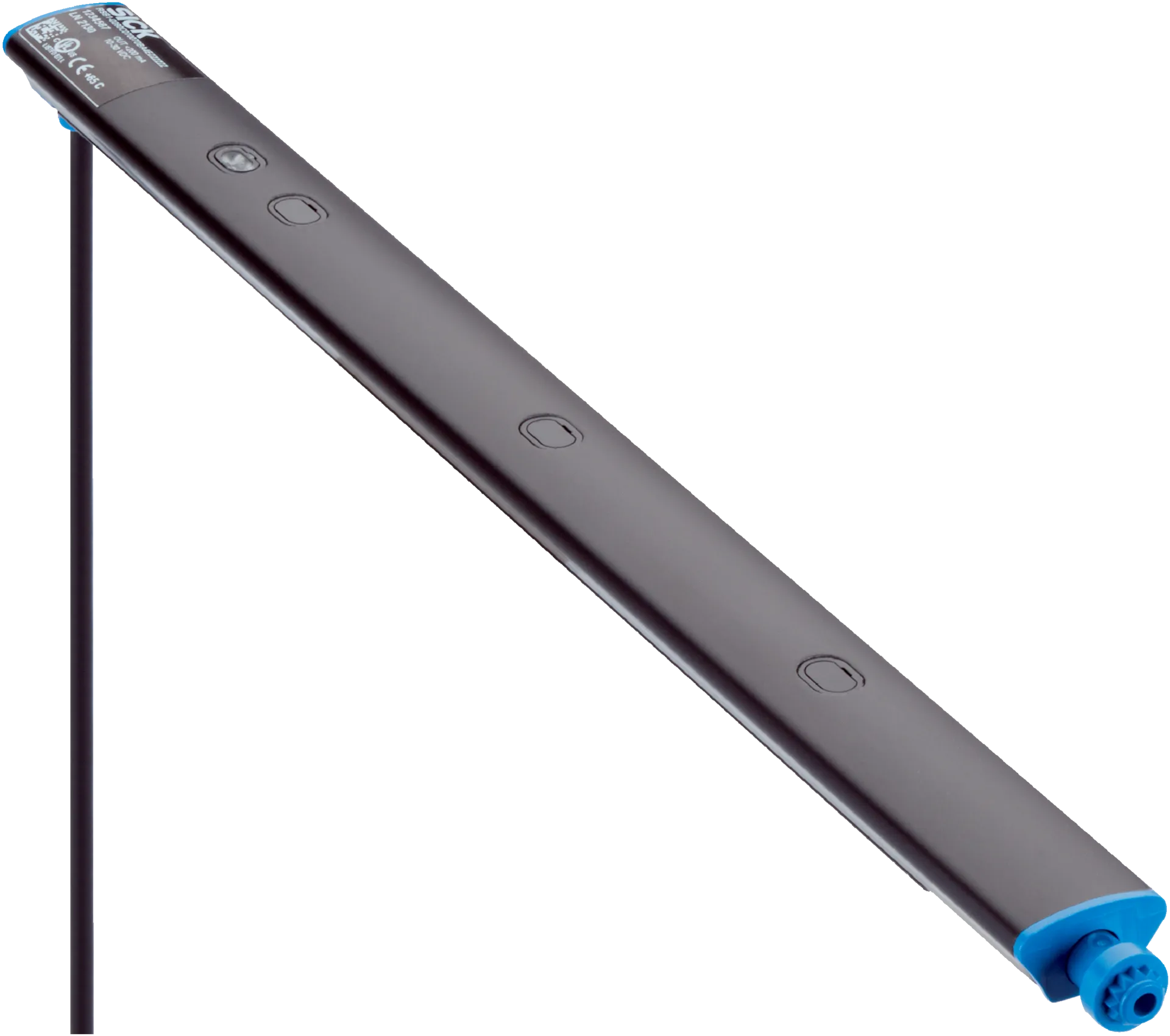

Sick RSB1-0340E060050PF1GZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0340E060050PF1GZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | Roller Sensor Bar | RSB1-0340E060050PF1GZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 340 mm | Number of beams: 5 | Beam separation: 60 mm | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire | Length of cable: 2 m | Light source: LED | Type of light: Infrared light | Housing material: Aluminum (anodised)
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Sensing range min. | 2Â mm |
| Sensing range max. | 300Â mm |
| Reference object | Object with 90% remission factor (complies with standard white according to DINÂ 5033) |
| Recommended sensing range for the best performance | 2 mm ... 45 mm |
| Light source | LED |
| Type of light | Infrared light |
| Shape of light spot | Point-shaped |
| Light spot size (distance) | 27 mm x 29 mm (45 mm) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 4° (at Ta = +23 °C) |
| LED risk group marking | Free group |
| Wave length | 850Â nm |
| Average service life | 100,000 h at Ta = +25 °C |
| Number of beams | 5 |
| Beam separation | 60Â mm |
| Distance from 1st beam to leading edge of housing (including end cap) | 50Â mm |
| None | – |
| LED green | Operating indicatorStatic on: power on |
| LED yellow | Status of received light beamStatic on: object presentStatic off: object not present |
| Special applications | Detecting flat objects, Detecting perforated objects, Detecting objects with position tolerances, Detecting uneven, shiny objects |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 5 Vpp |
| Usage category | DC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2) |
| Current consumption | 23Â mA, without load. At UBÂ = 24Â V |
| Protection class | III |
| Number | 1 |
| Type | PNP |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5Â V / 0Â V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected |
| Response time | ≤ 1 ms 1) |
| Repeatability (response time) | 1Â ms |
| Switching frequency | 500 Hz 2) |
| BN | + (L+) |
| WH | Q2 |
| BU | - (M) |
| BK | Q1 |
| Function of pin 4/black (BK) | Digital output, light switching, object present → output HIGH |
| Function of pin 2/white (WH) | Digital output, dark switching, object present → output LOW |
Mechanics
| Dimensions (W x H x D) | 340 mm x 20.3 mm x 17 mm 1) |
|---|---|
| Connection | Cable, 4-wire 2) |
| Deep-freeze property | Do not bend below 0 °C |
| Conductor size | 0.13 mm² |
| Cable diameter | Ø 3.6 mm |
| Length of cable (L) | 2 m 2) |
| Housing | Metal, Aluminum (anodised) |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | Approx. 123.6 g |
| Mounting system type | None |
Ambient data
| Enclosure rating | IP67 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Shock resistance | 30Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity | 15Â %Â ... 95Â %, relative humidity (no condensation), as per IECÂ 60947-5-2 |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| UL File No. | NRKH.E189383 & NRKH7.E189383 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
