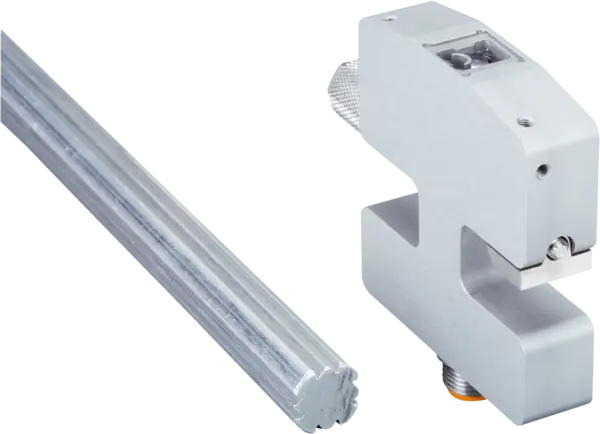

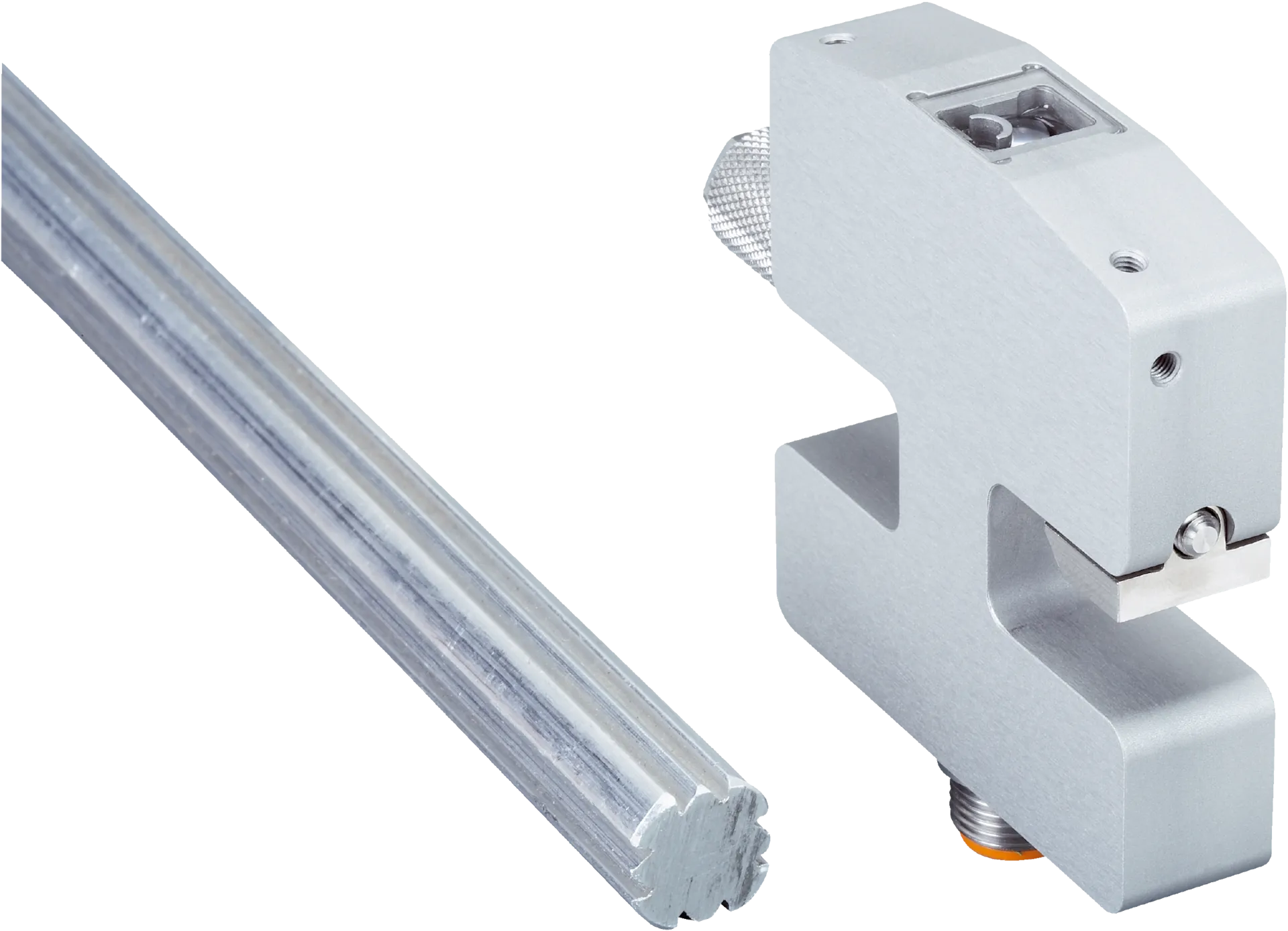

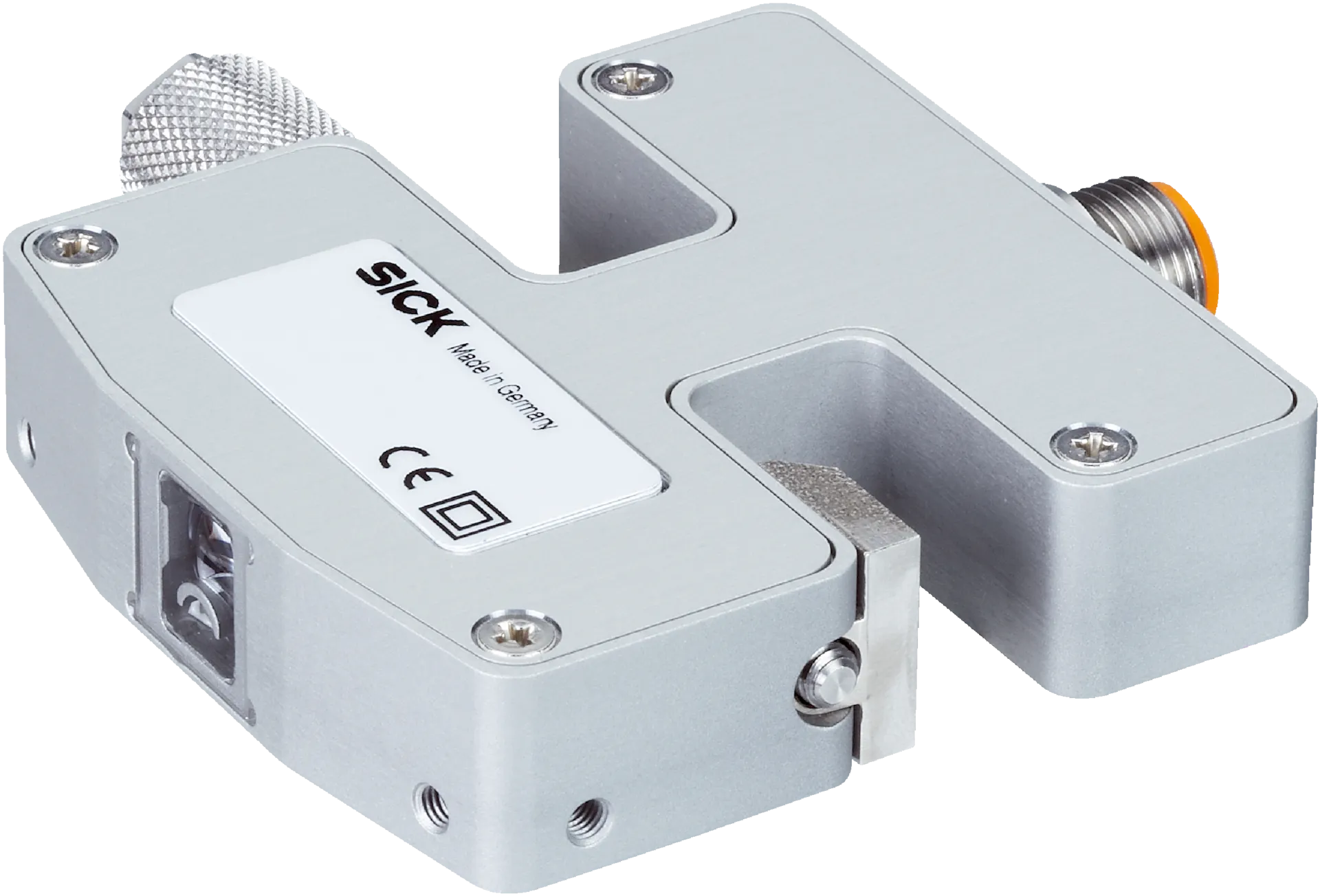

Sick RS10-M111
Contrast sensors | RS10 | RS10-M111 | Light source: LED, white | Communication interface: – | Sensing distance: 13 mm | Switching output: PNP, NPN | Light spot size: 0.8 mm x 3 mm | Connection type De…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Contrast sensors | RS10 | RS10-M111 | Light source: LED, white | Communication interface: – | Sensing distance: 13 mm | Switching output: PNP, NPN | Light spot size: 0.8 mm x 3 mm | Connection type Detail: Male connector M12, 8-pin | Housing material: Metal
Specification
Features
| Dimensions (W x H x D) | 15 mm x 62 mm x 60 mm |
|---|---|
| Sensing distance | 13Â mm |
| Sensing distance tolerance | ± 1 mm |
| Housing design | Large |
| Light source | LED, white 1) |
| Wave length | 450 nm ... 650 nm |
| Light spot size | 0.8 mm x 3 mm |
Electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | â¤Â 5 Vpp 2) |
| Current consumption | <Â 100Â mAÂ 3) |
| Response time | 20 µs 4) |
| Jitter | â¤Â 10 µs |
| Switching output | PNP, NPN |
| Output current Imax. | <Â 100Â mA |
| Input, teach-in (ET) | Run: U < 2Â VTeach: UÂ = 10Â VÂ ... < UV |
| Time delay | None |
| Protection class | IIÂ 5) |
| Circuit protection | UV connections, reverse polarity protectedInterference pulse suppressionOutputs overcurrent and short-circuit protected |
Mechanics
| Housing material | Aluminum (anodised) |
|---|---|
| Connection type | Male connector M12, 8-pin |
| Weight | 400Â g |
Ambient data
| Ambient operating temperature | â10 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | â25 °C ... +75 °C |
| Shock load | According to IECÂ 60068 |
| Enclosure rating | IP67 |
Certificates
| EU declaration of conformity | â |
|---|
Classifications
| ECLASS 5.0 | 27270906 |
|---|---|
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
