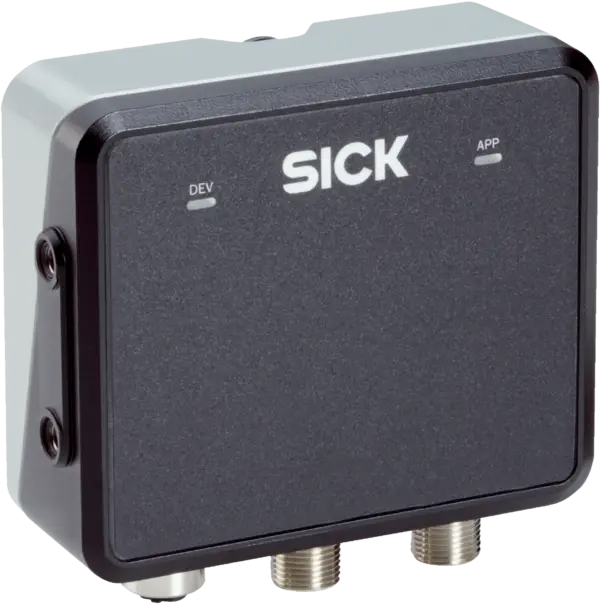

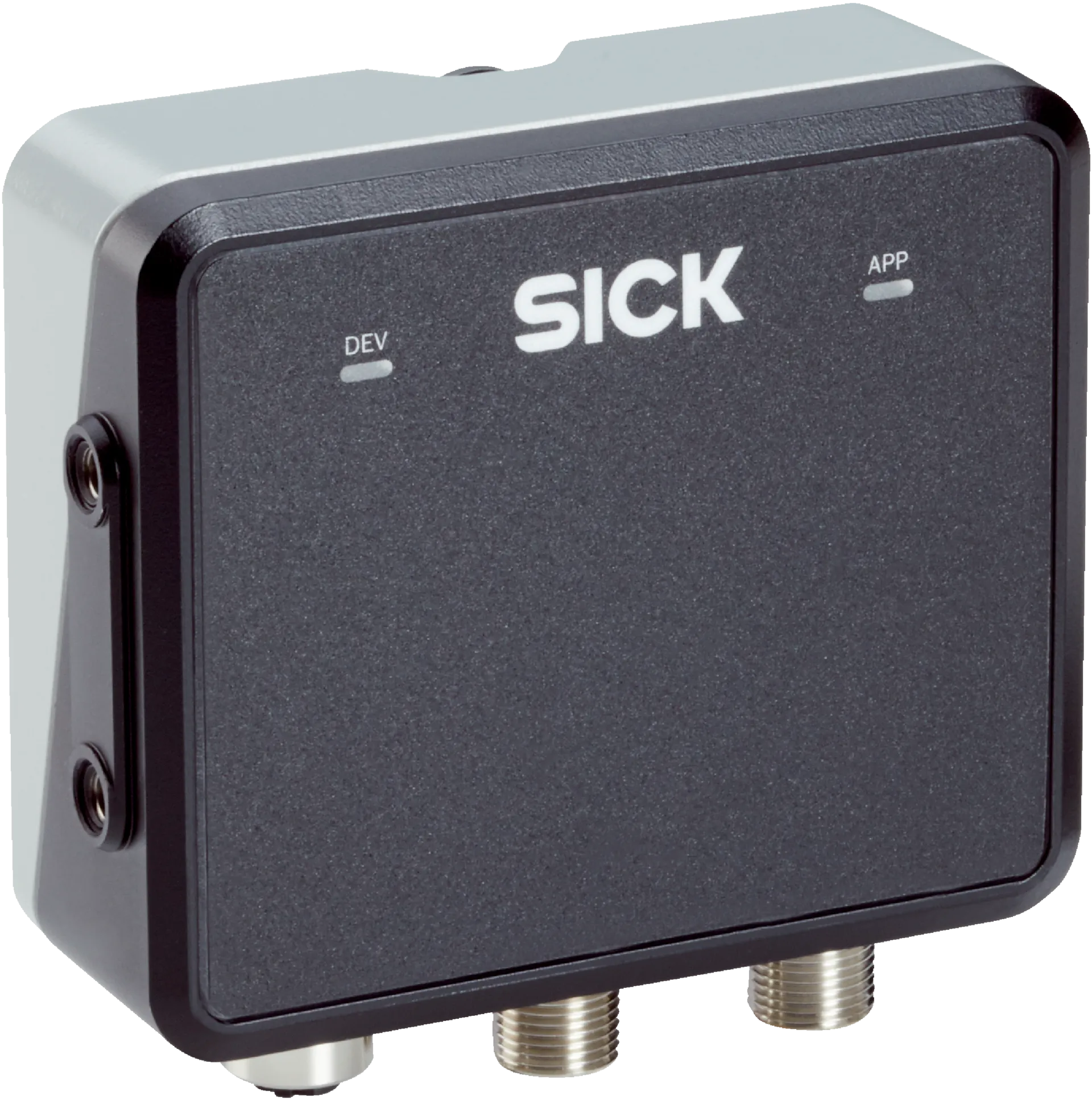

Sick RMS2731C-636511
Radar sensors | RMS2000 | RMS2731C-636511 | Radio approval: USA, Canada, New Zealand | Frequency band: 61 GHz … 61.5 GHz | Working range: 0.4 m … 100 m | Enclosure rating: IP67, IP69 | Weight: 300…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Radar sensors | RMS2000 | RMS2731C-636511 | Radio approval: USA, Canada, New Zealand | Frequency band: 61 GHz … 61.5 GHz | Working range: 0.4 m … 100 m | Enclosure rating: IP67, IP69 | Weight: 300 g
Specification
Features
| Application | Outdoor, Indoor |
|---|---|
| Variant | Model RMS-E |
| Measurement principle | FMCW |
| Radio approval | USACanadaNew Zealand |
| Frequency band | 61 GHz ... 61.5 GHz |
| Transmitting power | â¤Â 100 mW (e.i.r.p.) |
| Horizontal | ± 60° |
| Vertical | ± 4° |
| Angular accuracy (azimuth) | 1.5° |
| Angular resolution (azimuth) | 15° |
| Working range | 0.4 m ... 100 m |
| For 1 m² RCS | 50 m |
| At 10 m² RCS | 100 m |
| 1 m² RCS to 20 m | 0.04 m |
| 1 m² RCS to 50 m | 0.1 m |
| Distance resolution | 0.4 m 1) |
| Speed range | ± 30 m/s |
| Speed resolution | 0.625 m/s 1) |
| 1 m² RCS to 20 m | 0.0625 m/s |
| 1 m² RCS to 50 m | 0.15 m/s |
Mechanics/electronics
| Connection type | 1Â x M12 male connector, 8-pin, A-coded1Â x male connector M12, 5-pin, A-coded1Â x M12 female connector, 4-pin, D-coded |
|---|---|
| Supply voltage | 9Â VÂ DCÂ ... 32Â VÂ DC |
| Power consumption | Typ. 4 W, For digital outputs without load, max. 36 W |
| Housing color | Gray (RAL 7042) |
| Enclosure rating | IP67IP69 |
| Protection class | III |
| Weight | 300Â g |
| Dimensions (L x W x H) | 34 mm x 97 mm x 96 mm |
| MTBF | 81Â years |
Safety-related parameters
| MTTFD | >Â 100Â years |
|---|
Performance
| Initialization time | Typ. 20 s |
|---|---|
| Processing latency | 1Â measurement cycle |
| Measurement cycle duration | 100Â ms |
| Integrated application | Zone evaluation |
| Number of field sets | Up to 4Â zones |
Interfaces
| Ethernet | â |
|---|---|
| Function | Parameterization, Data output |
| Data transmission rate | 10/100Â MBit/s |
| Digital inputs | 2Â (digital) |
| Digital outputs | 4Â (digital) |
Ambient data
| Electromagnetic compatibility (EMC) | ETSI ENÂ 301 489-1 / ENÂ 61000-6-2 / ENÂ 61000-6-4 |
|---|---|
| Radio standard | ETSI ENÂ 305 550 |
| Vibration resistance | ENÂ 60068-2-6:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | â40 °C ... +65 °C |
| Storage temperature | â40 °C ... +85 °C |
Certificates
| FCC certificate | â |
|---|---|
| cTUVus certificate | â |
| Radio Approval certificate | â |
| Radio Approval certificate New Zealand | â |
Classifications
| ECLASS 5.0 | 27270890 |
|---|---|
| ECLASS 5.1.4 | 27270890 |
| ECLASS 6.0 | 27270890 |
| ECLASS 6.2 | 27270890 |
| ECLASS 7.0 | 27270890 |
| ECLASS 8.0 | 27270890 |
| ECLASS 8.1 | 27270890 |
| ECLASS 9.0 | 27270890 |
| ECLASS 10.0 | 27270807 |
| ECLASS 11.0 | 27270807 |
| ECLASS 12.0 | 27274501 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 39121528 |
