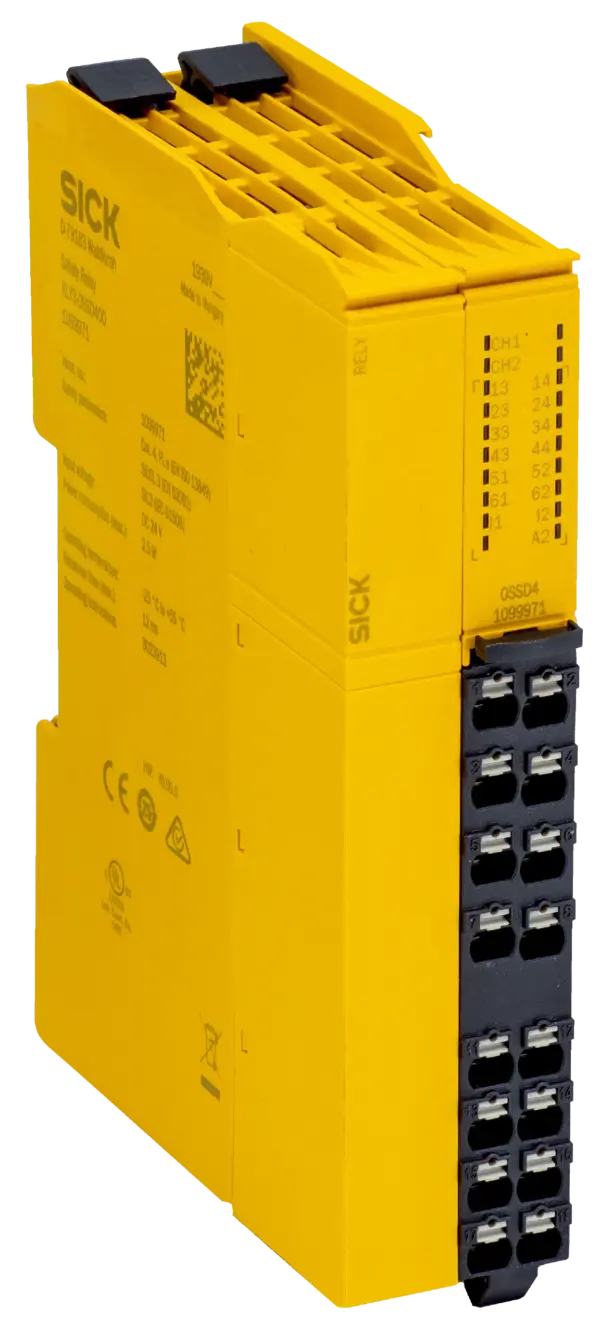

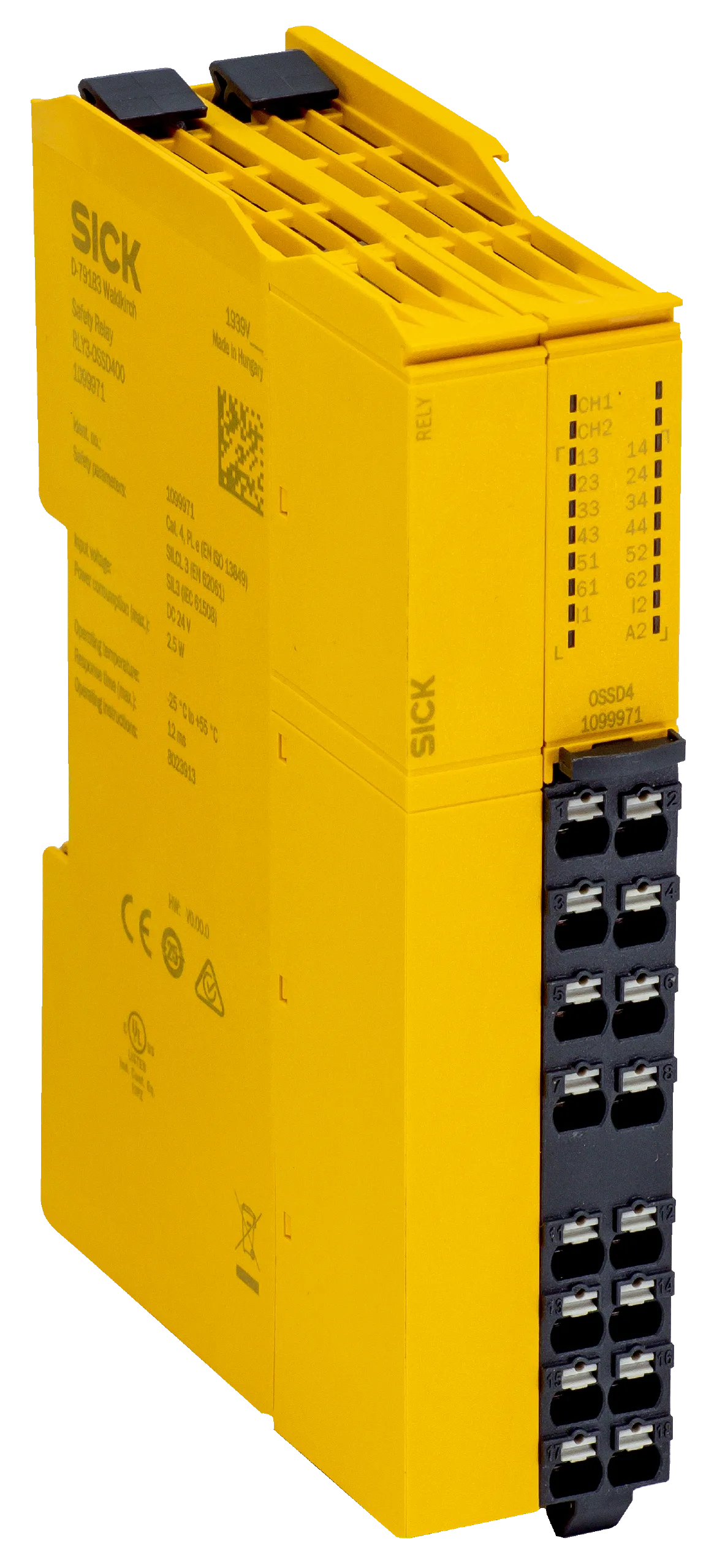

Sick RLY3-OSSD400
sens:Control – safe control solutions | ReLy | RLY3-OSSD400 | Applications: Output expansion module for OSSDs | Compatible sensor types: Safety sensors with OSSDs | Connection type: Front connector wi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
sens:Control – safe control solutions | ReLy | RLY3-OSSD400 | Applications: Output expansion module for OSSDs | Compatible sensor types: Safety sensors with OSSDs | Connection type: Front connector with spring terminals | Restart interlock: no | External device monitoring (EDM): Via path | Outputs: 4 enabling current paths (safe), 1 feedback current path (for use as external device monitoring, not safe), 1 signaling current path (not safe) | Housing width: 28 mm
Specification
Features
| Applications | Output expansion module for OSSDs |
|---|---|
| Compatible sensor types | Safety sensors with OSSDs |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ISOÂ 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 1.0Â x 10-9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Stop category | 0Â (IECÂ 60204-1) |
Functions
| Path for external device monitoring (EDM) | â |
|---|
Interfaces
| Connection type | Front connector with spring terminals |
|---|---|
| Inputs | 2Â safety inputs |
| Outputs | 4Â enabling current paths (safe)1Â feedback current path (for use as external device monitoring, not safe)1Â signaling current path (not safe) |
| Display elements | LEDs |
Electronics
| Voltage supply | Passive (no active voltage supply) |
|---|---|
| Power consumption (input circuits) | â¤Â 2.5 W (DC) |
| Number | 2 |
| Input voltage HIGH | 24Â VÂ DC (15Â VÂ ... 30Â V) |
| Input voltage LOW | 0Â VÂ DC (â3Â VÂ ... 5Â V) |
| Input current | ⤠60 mA |
| Test pulse width | â¤Â 1 ms |
| Test pulse rate | â¤Â 10 Hz |
| Response time (opening of enabling current paths) | 12Â ms |
| Number | 4 |
| Type of output | N/O contacts, positively guided |
| Contact material | Silver alloy, gold flashed |
| Switching voltage | 10Â VÂ ACÂ ... 230Â VÂ AC |
| Switching current | 10Â mAÂ ... 6Â A |
| Total current | 12Â A |
| Mechanical life | 1 x 107 switching cycles |
| Overvoltage category | III (ENÂ 60664-1) |
| Rated impulse withstand voltage Uimp | 6Â kV (ENÂ 60664-1) |
| Number | 1 |
| Type of output | N/C contact, positively guided |
| Contact material | Silver alloy, gold flashed |
| Switching voltage | 10Â VÂ ACÂ ... 30Â VÂ AC |
| Switching current | 3Â mAÂ ... 100Â mA |
| Mechanical life | 1 x 107 switching cycles |
| Number | 1 |
| Type of output | N/C contact, positively guided |
| Contact material | Silver alloy, gold flashed |
| Switching voltage | 10Â VÂ ACÂ ... 30Â VÂ AC |
| Switching current | 10Â mAÂ ... 100Â mA |
| Mechanical life | 1 x 107 switching cycles |
Mechanics
| Dimensions (W x H x D) | 28 mm x 124.6 mm x 85.5 mm |
|---|---|
| Weight | 180Â g |
Ambient data
| Enclosure rating | IP20 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C |
| Storage temperature | â25 °C ... +70 °C |
| Air humidity | ⤠95 %, Non-condensing |
| Interference emission | According to IECÂ 61000-6-4 |
| Interference resistance | According to IECÂ 61326-3-1According to IECÂ 61000-6-2According to IECÂ 60947-5-1 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| UK-Type-Examination approval | â |
| cULus certificate | â |
| EAC certificate / DoC | â |
| cTUVus certificate | â |
| S Mark certificate | â |
| EC-Type-Examination approval | â |
| EC-Type-Examination approval (Machinery Directive) | â |
| EC-Type-Examination approval (Machinery Regulation) | â |
| Third party certificate | â |
Classifications
| ECLASS 5.0 | 27371990 |
|---|---|
| ECLASS 5.1.4 | 27371990 |
| ECLASS 6.0 | 27371819 |
| ECLASS 6.2 | 27371819 |
| ECLASS 7.0 | 27371819 |
| ECLASS 8.0 | 27371819 |
| ECLASS 8.1 | 27371819 |
| ECLASS 9.0 | 27371819 |
| ECLASS 10.0 | 27371819 |
| ECLASS 11.0 | 27371819 |
| ECLASS 12.0 | 27371819 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 41113704 |
