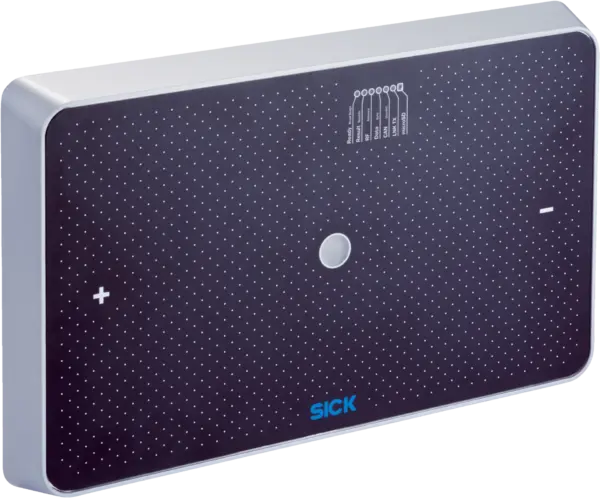

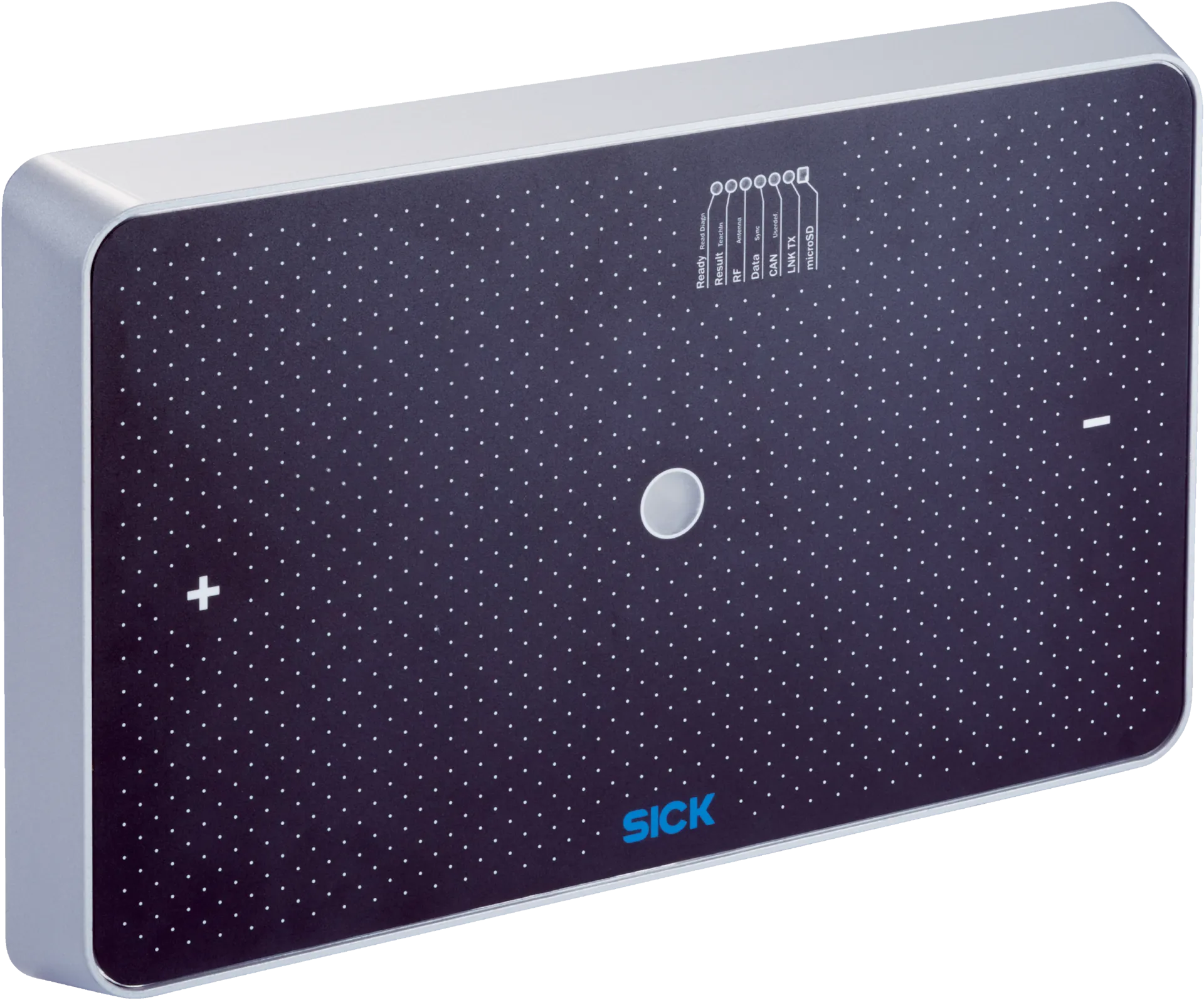

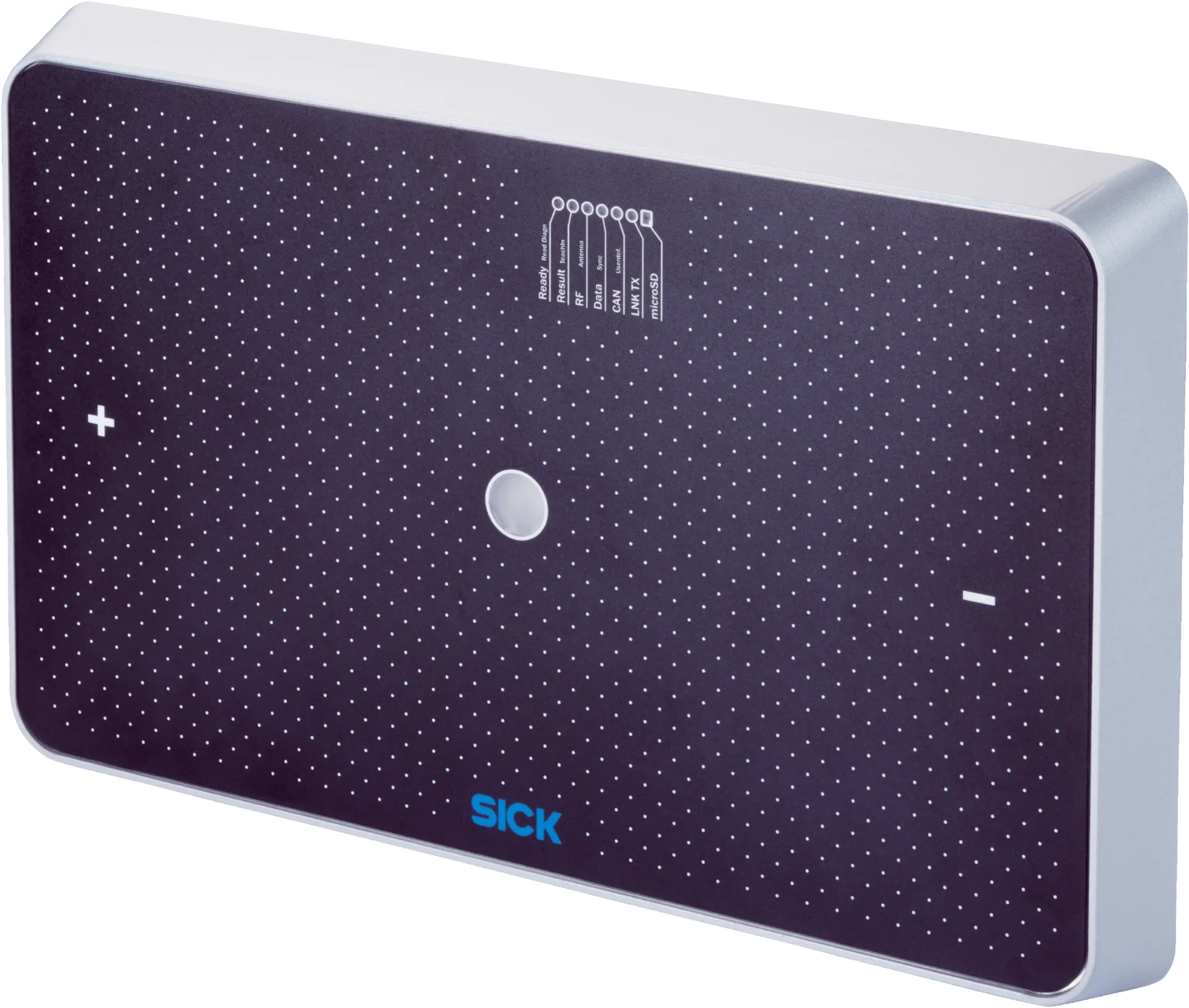

Sick RFU650-10103
RFID | RFU65x | RFU650-10103 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 10 m | Enclosure rating: IP67
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID | RFU65x | RFU650-10103 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 10 m | Enclosure rating: IP67
Specification
Features
| Version | Long Range |
|---|---|
| Product category | RFID read/write device with integrated antenna |
| Radio approval | India |
| Frequency band | UHF (860 MHz ... 960 MHz) |
| Carrier frequency | 865.7 MHz ... 866.9 MHz |
| Output power | 1.6Â W (ERP, 32Â dBm) |
| RFID standard | EPCglobal UHF Class 1Â Generation 2, ISO/IECÂ 18000-6 C, RAIN |
| Modulation | PR-ASK, DSB-ASK |
| Aperture angle | 80°, vertical55°, horizontal |
| Reading range | â¤Â 10 m 1) |
| Antenna | Integrated |
| Transmitting power | Adjustable |
| Polarization | Circular |
| Axial ratio | Typ. 2 dB |
| Front-to-back ratio | >Â 15Â dB |
| Direction monitoring | â |
| Bulk reading | â |
| Further functions | Transponder entry detection with direction information at horizontal antenna level, Horizontal transponder angle output, diagnosis, updatable firmware, freely programmable data output format, Heartbeat, triggering, SICK AppSpace functionalities can be enabled with the SD card accessory SDK6U-P00100 (for firmware â¥Â 2.0.0) |
Mechanics/electronics
| Connection type | 1Â x M12, 17-pin male connector, A-coded1Â x M12, 4-pin female connector, D-coded1Â x USB, 5-pin micro-B socket |
|---|---|
| Supply voltage | 12Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | Typ. 26 W |
| Housing material | Aluminum |
| Housing color | Blue, black, silver |
| Enclosure rating | IP67 |
| Protection class | III |
| Weight | 3.9Â kg |
| Dimensions (L x W x H) | 400 mm x 252 mm x 70 mm |
| MTBF | 25 years 1) |
Interfaces
| Ethernet | â , TCP/IP, OPC UA |
|---|---|
| Remark | Companion Spec V1.0Â from firmware 2.20 |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 10/100Â MBit/s |
| PROFINET | â |
| Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2), Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| EtherNet/IP⢠| â |
| Function | Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| EtherCAT® | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Function | Data interface (read result output) |
| Serial | â , RS-232, RS-422 |
| Remark | RS-422 only via 4-wire |
| Function | Data interface (read result output), AUX (only RS-232) |
| Data transmission rate | 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud |
| CAN | â |
| Remark | CSN (SICK CAN Sensor Network) |
| Function | Data interface (read result output) |
| PROFIBUS DP | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | Data interface (read result output) |
| USB | â |
| Remark | USB 2.0 |
| Function | Service interface |
| CANopen | â |
| Function | Data interface (read result output) |
| Digital inputs | 2Â (physical, 2Â additional logical inputs via optional CMC600 parameter memory in CDB620Â /Â CDM420) |
| Digital outputs | 2Â (physical, 2Â additional logical outputs via optional CMC600 parameter memory in CDB620Â /Â CDM420) |
| Optical indicators | 7Â LEDs, multi-color (device status)1Â RGB LED (Process feedback) |
| Acoustic indicators | 1Â beeper (Feedback) |
| Control elements | 2Â buttons (choose and start/stop functions) |
| Operator interfaces | Web server |
| Configuration software | SOPAS ETÂ 1) |
| Programming interface | Application-specific programming using the SICK AppStudio development environment |
| Memory card | microSD memory card (parameter cloning, data storage) |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 301489-3 |
|---|---|
| Vibration resistance | ENÂ 60068-2-64:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | â25 °C ... +60 °C |
| Storage temperature | â30 °C ... +70 °C |
| Permissible relative humidity | 90Â %, Non-condensing |
Certificates
| China RoHS | â |
|---|---|
| Profinet certificate | â |
| BIS registration | â |
| Radio Approval certificate India | â |
| 4Dpro | â |
| RAIN RFID | â |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ETIM 5.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
