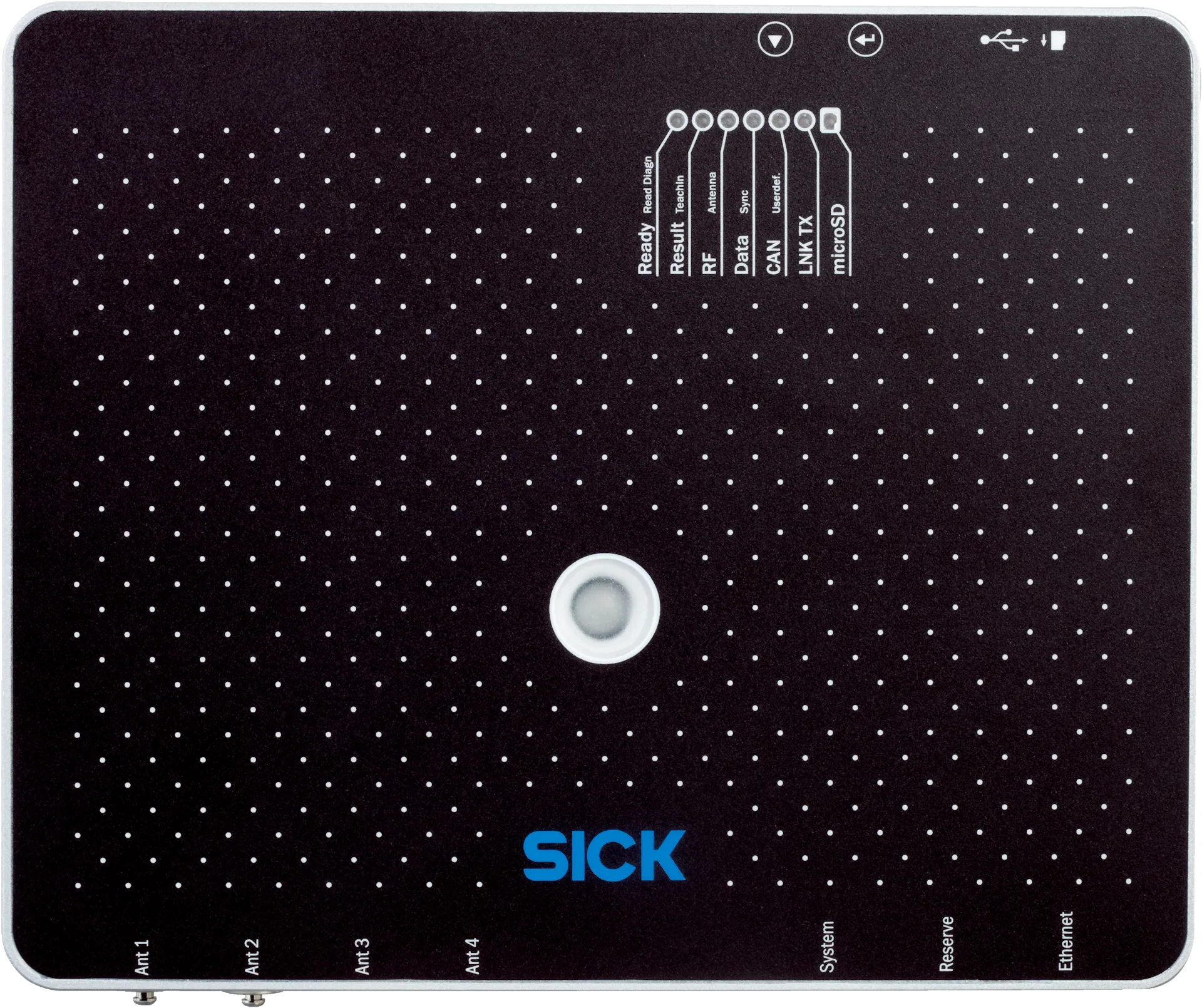

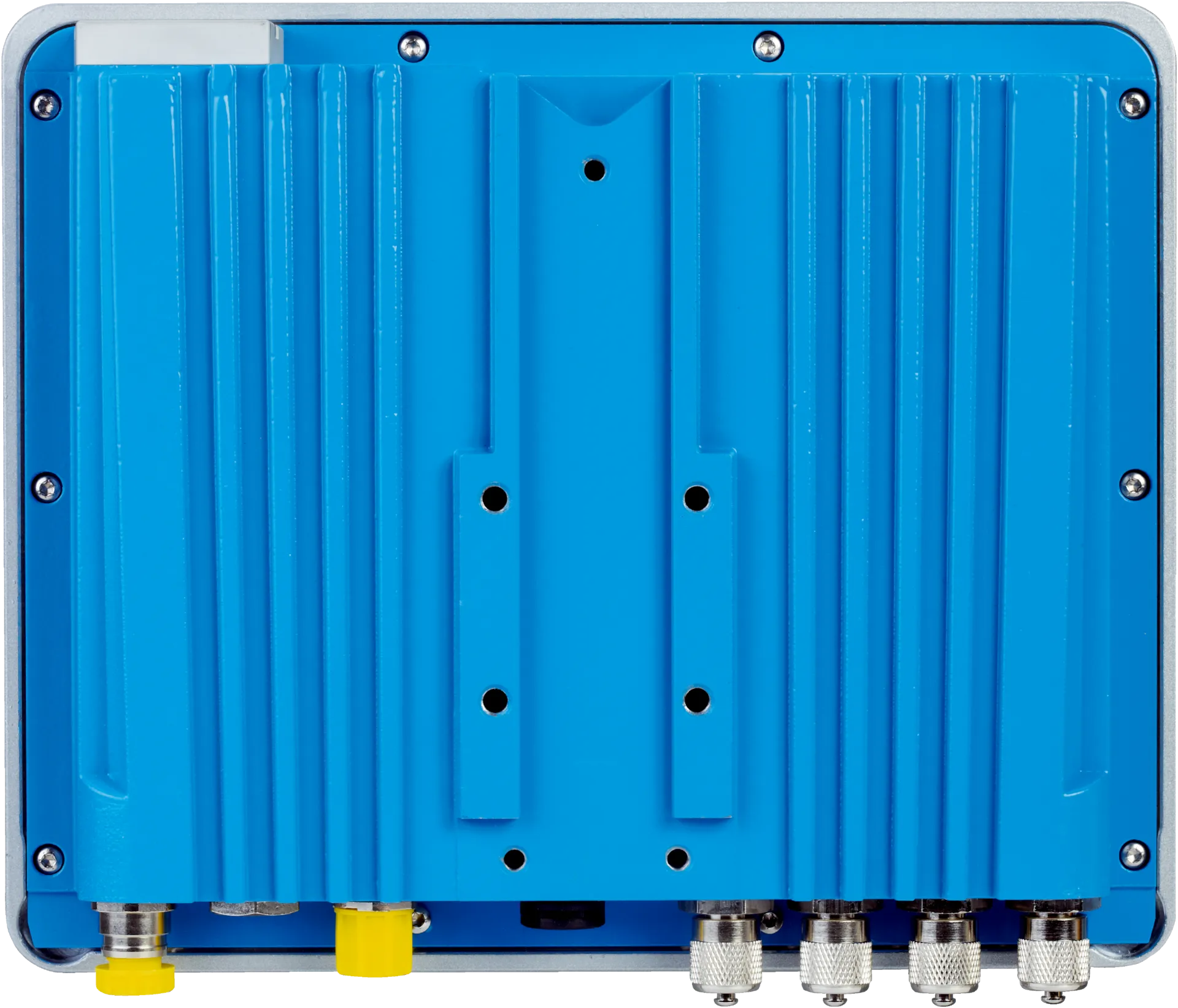

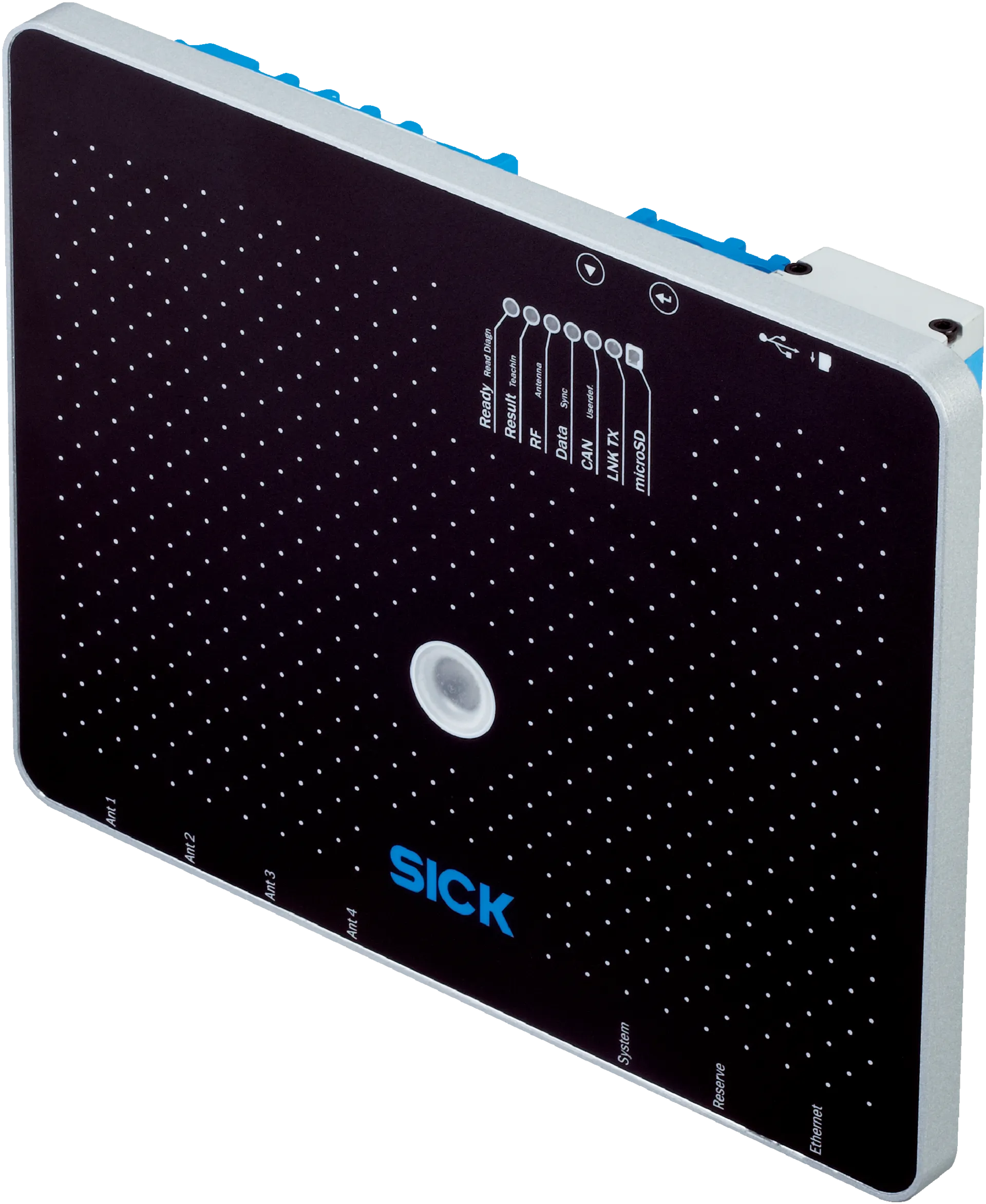

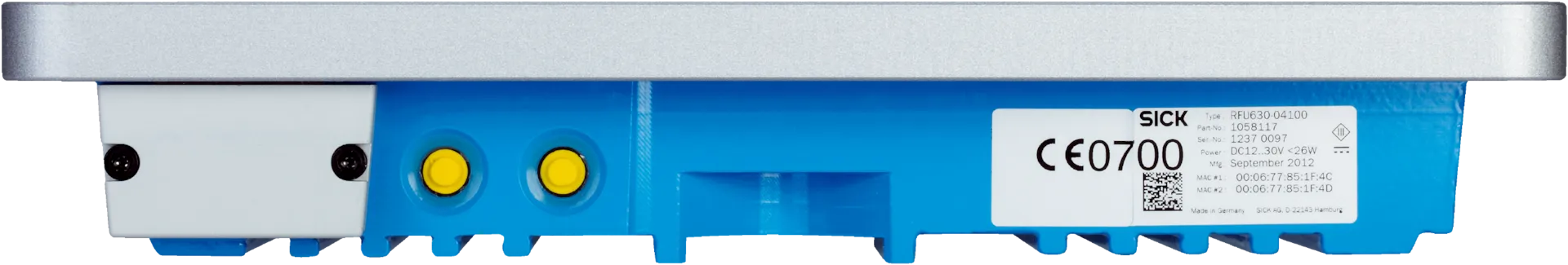

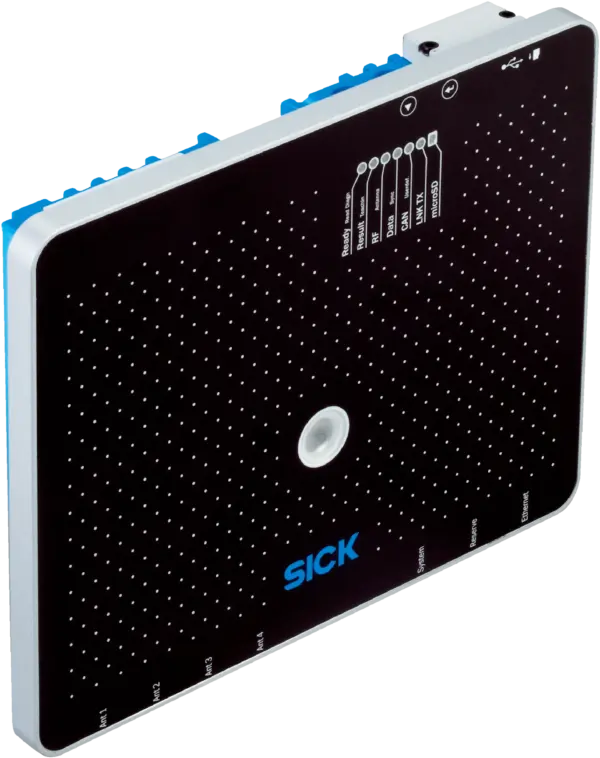

Sick RFU630-04103
RFID | RFU63x | RFU630-04103 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 10 m | Enclosure rating: IP67
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID | RFU63x | RFU630-04103 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 10 m | Enclosure rating: IP67
Specification
Features
| Version | Long Range |
|---|---|
| Product category | RFID read/write device without integrated antenna |
| Radio approval | India |
| Frequency band | UHF (860 MHz ... 960 MHz) |
| Carrier frequency | 865.7 MHz ... 866.9 MHz |
| Output power | 30Â dBm at external antenna ports, output power adjustable |
| RFID standard | EPCglobal UHF Class 1Â Generation 2, ISO/IECÂ 18000-6 C, RAIN |
| Modulation | PR-ASK, DSB-ASK |
| Reading range | â¤Â 10 m 1) |
| Antenna | Not integrated |
| Connection of external antennas | 4Â (Up to +Â 30Â dBm, can be adjusted separately) |
| Bulk reading | â |
| Further functions | Diagnosis, updatable firmware, freely programmable data output format, Heartbeat, triggering, SICK AppSpace functionalities can be enabled with the SD card accessory SDK6U-P00100 (for firmware â¥Â 2.0.0) |
Mechanics/electronics
| Connection type | 1Â x M12, 17-pin male connector, A-coded1Â x M12, 4-pin female connector, D-coded1Â x USB, 5-pin micro-B socket |
|---|---|
| Supply voltage | 18Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | Typ. 20 W |
| Housing material | Aluminum die cast |
| Housing color | Blue, black, silver |
| Enclosure rating | IP67 |
| Protection class | III |
| Weight | 2.1Â kg |
| Dimensions (L x W x H) | 239 mm x 197 mm x 40 mm |
| MTBF | >Â 100Â years |
Interfaces
| Ethernet | â , TCP/IP, OPC UA |
|---|---|
| Remark | Companion Spec V1.0Â from firmware 2.20 |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 10/100Â MBit/s |
| PROFINET | â |
| Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2), Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| EtherNet/IP⢠| â |
| Function | Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| EtherCAT® | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Function | Data interface (read result output) |
| Serial | â , RS-232, RS-422 |
| Remark | RS-422 only via 4-wire |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud |
| CAN | â |
| Remark | CSN (SICK CAN Sensor Network) |
| Function | Data interface (read result output) |
| PROFIBUS DP | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | Data interface (read result output) |
| USB | â |
| Remark | USB 2.0 |
| Function | Service interface |
| CANopen | â |
| Function | Data interface (read result output) |
| Digital inputs | 2Â (physical, 2Â additional logical inputs via optional CMC600 parameter memory in CDB620Â /Â CDM420) |
| Digital outputs | 2Â (physical, 2Â additional logical outputs via optional CMC600 parameter memory in CDB620Â /Â CDM420) |
| Optical indicators | 7Â LEDs, multi-color (device status)1Â RGB LED (Process feedback) |
| Acoustic indicators | 1Â beeper (Feedback) |
| Control elements | 2Â buttons (choose and start/stop functions) |
| Operator interfaces | Web server |
| Configuration software | SOPAS ETÂ 1) |
| Programming interface | Application-specific programming using the SICK AppStudio development environment |
| Memory card | microSD memory card (parameter cloning, data storage) |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 301489-3 / ENÂ 50121-4 (2017) |
|---|---|
| Vibration resistance | ENÂ 60068-2-64:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | â30 °C ... +60 °C 1) |
| Storage temperature | â30 °C ... +70 °C |
| Permissible relative humidity | ± 90 %, Non-condensing |
Certificates
| China RoHS | â |
|---|---|
| Profinet certificate | â |
| Ethernet/IP certificate | â |
| BIS registration | â |
| Radio Approval certificate India | â |
| 4Dpro | â |
| RAIN RFID | â |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ETIM 5.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
