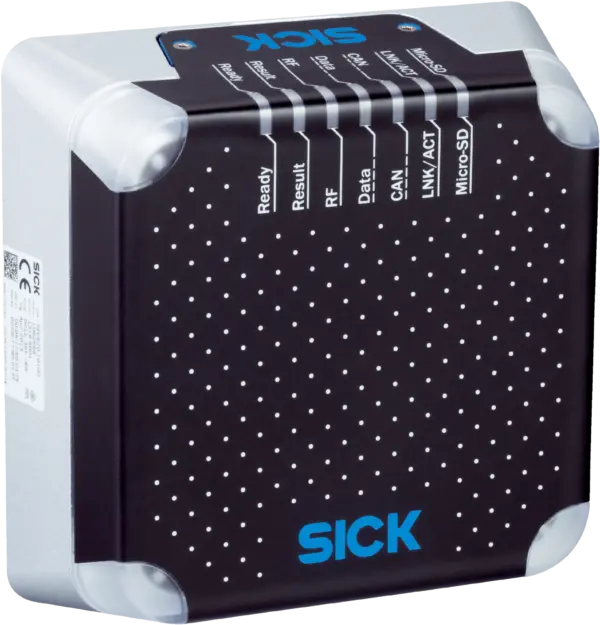

Sick RFU620-10503
RFID | RFU62x | RFU620-10503 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 2 m | Enclosure rating: IP67
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID | RFU62x | RFU620-10503 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 2 m | Enclosure rating: IP67
Specification
Features
| Version | Mid Range |
|---|---|
| Product category | RFID read/write device with integrated antenna |
| Radio approval | India (ETSI ENÂ 302 208-2 V1.4.1) |
| Frequency band | UHF (860 MHz ... 960 MHz) |
| Carrier frequency | 865.7 MHz ... 866.9 MHz |
| Output power | 0.25Â W (ERP, 24Â dBm) |
| RFID standard | EPCglobal UHF Class 1Â Generation 2, ISO/IECÂ 18000-6 C, RAIN |
| Modulation | PR-ASK |
| Connection type | PoE |
| Aperture angle | 100° |
| Heating | No |
| Reading range | â¤Â 2 m 1) |
| Antenna | Integrated |
| Transmitting power | Adjustable |
| Polarization | Circular |
| Axial ratio | Typ. 2 dB |
| Front-to-back ratio | >Â 5Â dB |
| Further functions | Diagnosis, updatable firmware, freely programmable data output format, Heartbeat, triggering, SICK AppSpace functionalities can be enabled with the SD card accessory SDK6U-P00100 (for firmware â¥Â 2.0.0) |
Mechanics/electronics

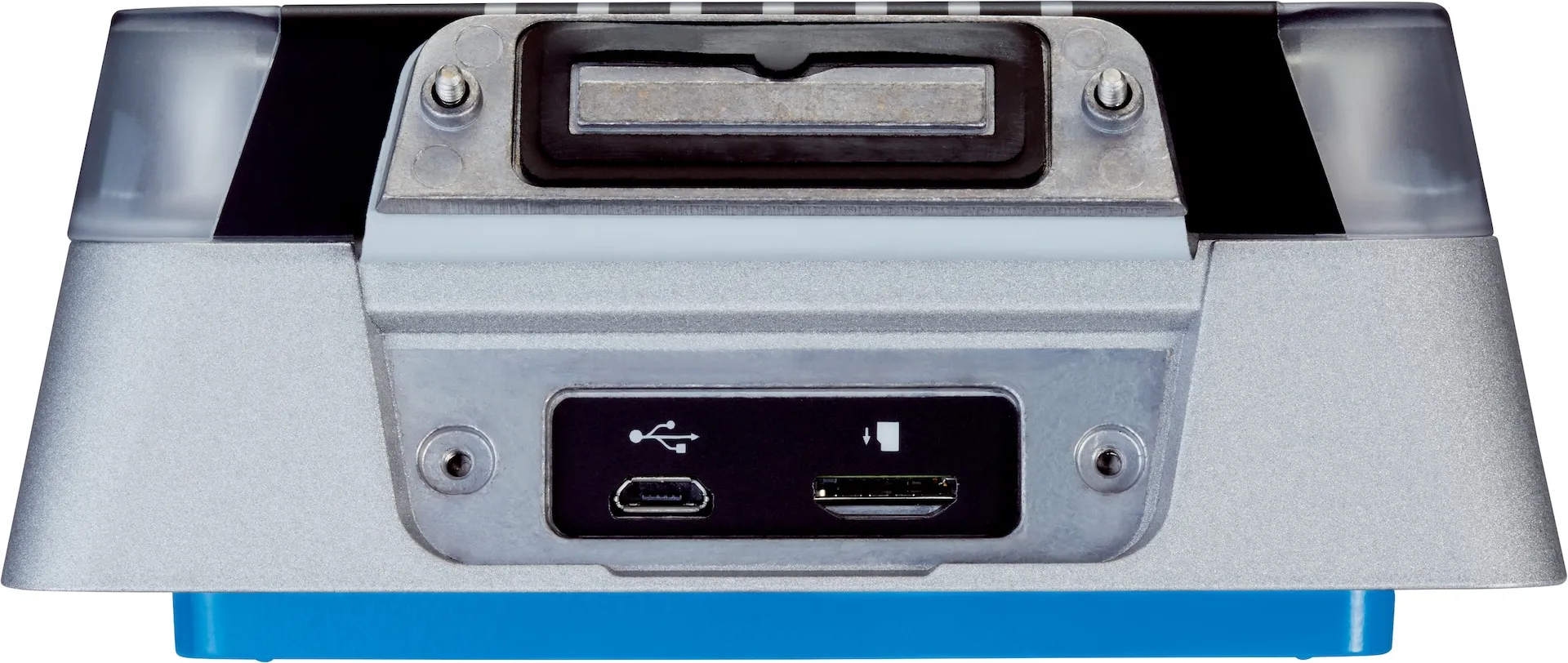

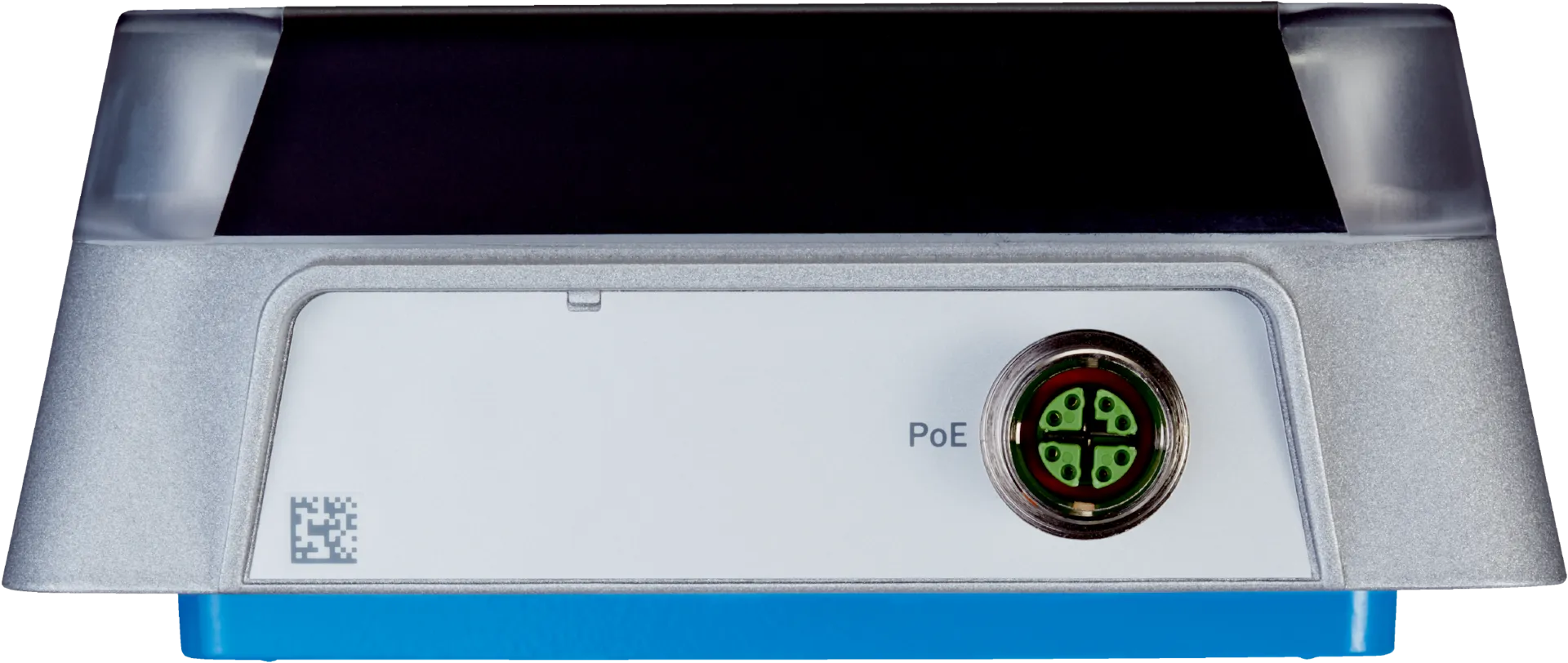

| Connection type | 1, 1Â x M12, 8-pin female connector, X-coded, USB, 5-pin micro-B socket |
|---|---|
| Supply voltage | 48Â VÂ DCÂ ... 57Â VÂ DCÂ 1) |
| Power consumption | Typ. 8 W, standby 3 W |
| Housing material | Aluminum die castPlastic (PPS) |
| Enclosure rating | IP67 |
| Protection class | III |
| Weight | 780Â g |
| Dimensions (L x W x H) | 137 mm x 131 mm x 56 mm |
| MTBF | >Â 100Â years |
Interfaces
| Ethernet | â , TCP/IP, PoE, OPC UA |
|---|---|
| Remark | Companion Spec V1.0Â from firmware 2.20 |
| Function | Data interface (read result output), Service interface, PoE |
| Data transmission rate | 10/100Â MBit/s |
| PROFINET | â |
| Function | PROFINET Single Port, Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| EtherNet/IP⢠| â |
| Function | Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| USB | â |
| Remark | USB 2.0 |
| Function | Service interface |
| Digital inputs | 0 |
| Digital outputs | 0 |

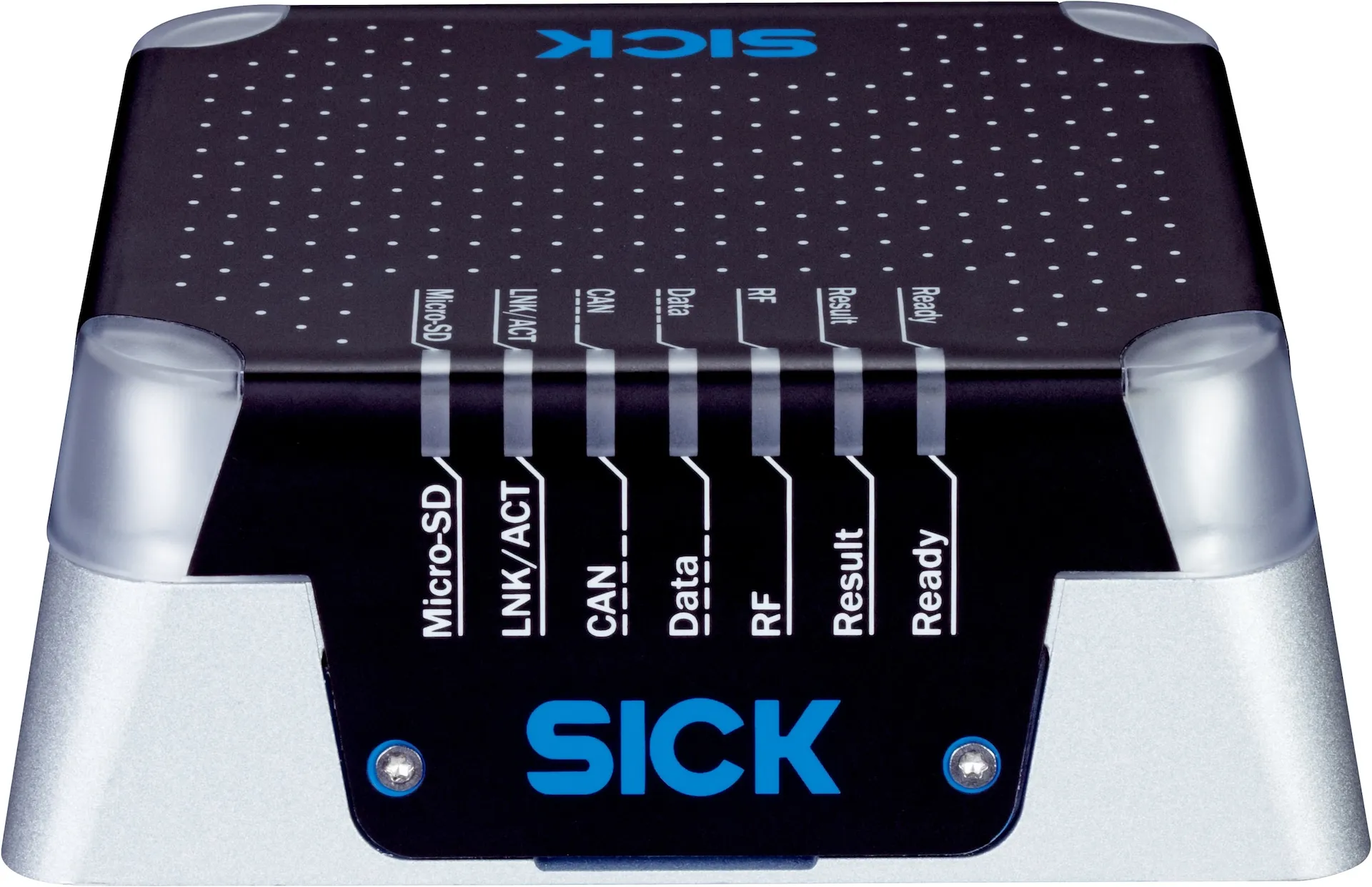

| Optical indicators | 7Â LEDs, multi-color (device status)4Â RGB LED (Process feedback) |
| Operator interfaces | Web server |
| Configuration software | SOPAS ETÂ 1) |
| Programming interface | Application-specific programming using the SICK AppStudio development environment |
| Memory card | microSD memory card (parameter cloning, data storage) |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 301489-3 |
|---|---|
| Vibration resistance | ENÂ 60068-2-64:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | â25 °C ... +50 °C |
| Storage temperature | â40 °C ... +70 °C |
| Permissible relative humidity | 90Â %, Non-condensing |
Certificates
| China RoHS | â |
|---|---|
| Profinet certificate | â |
| BIS registration | â |
| Radio Approval certificate India | â |
| 4Dpro | â |
| RAIN RFID | â |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ETIM 5.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
