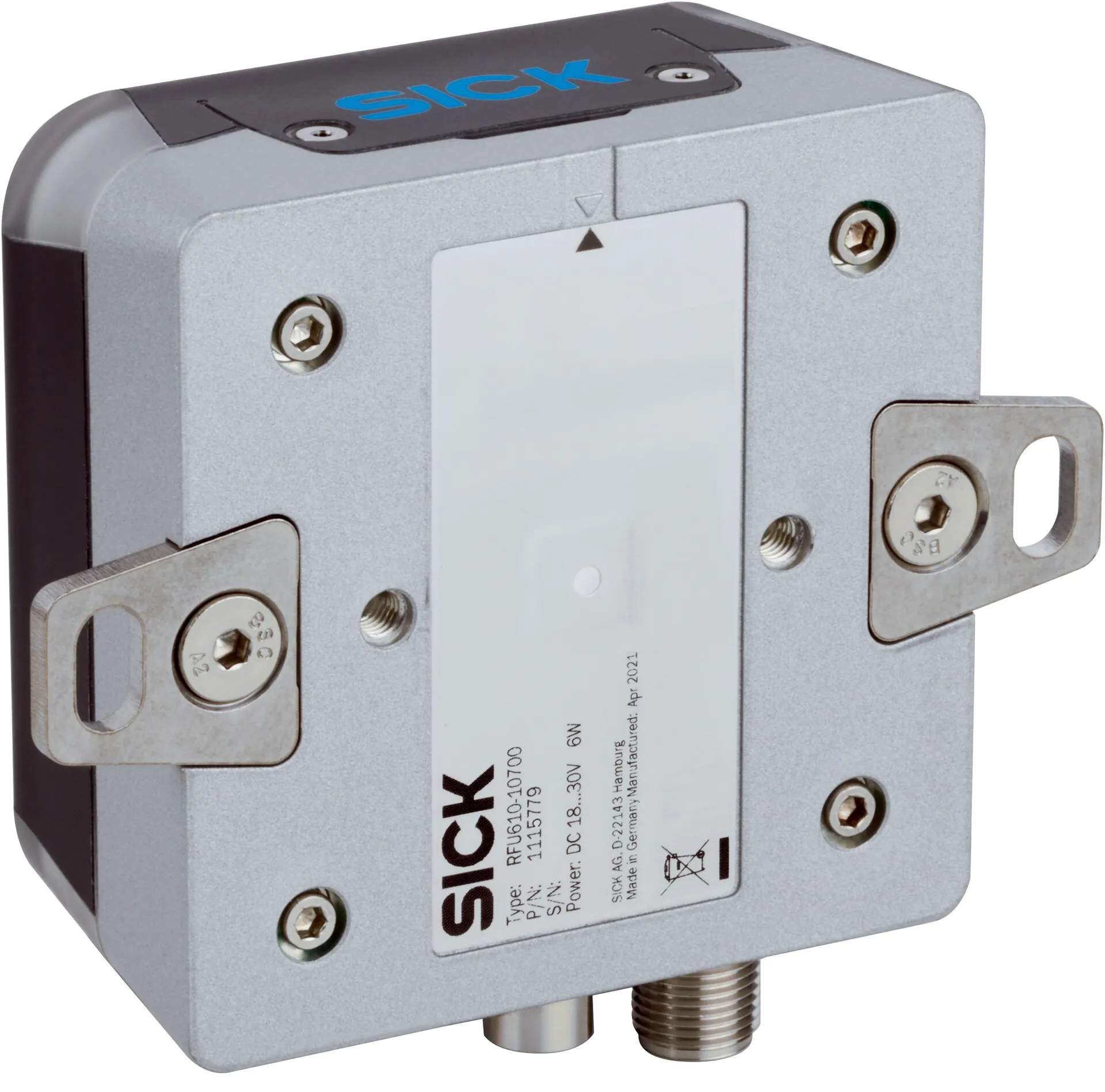

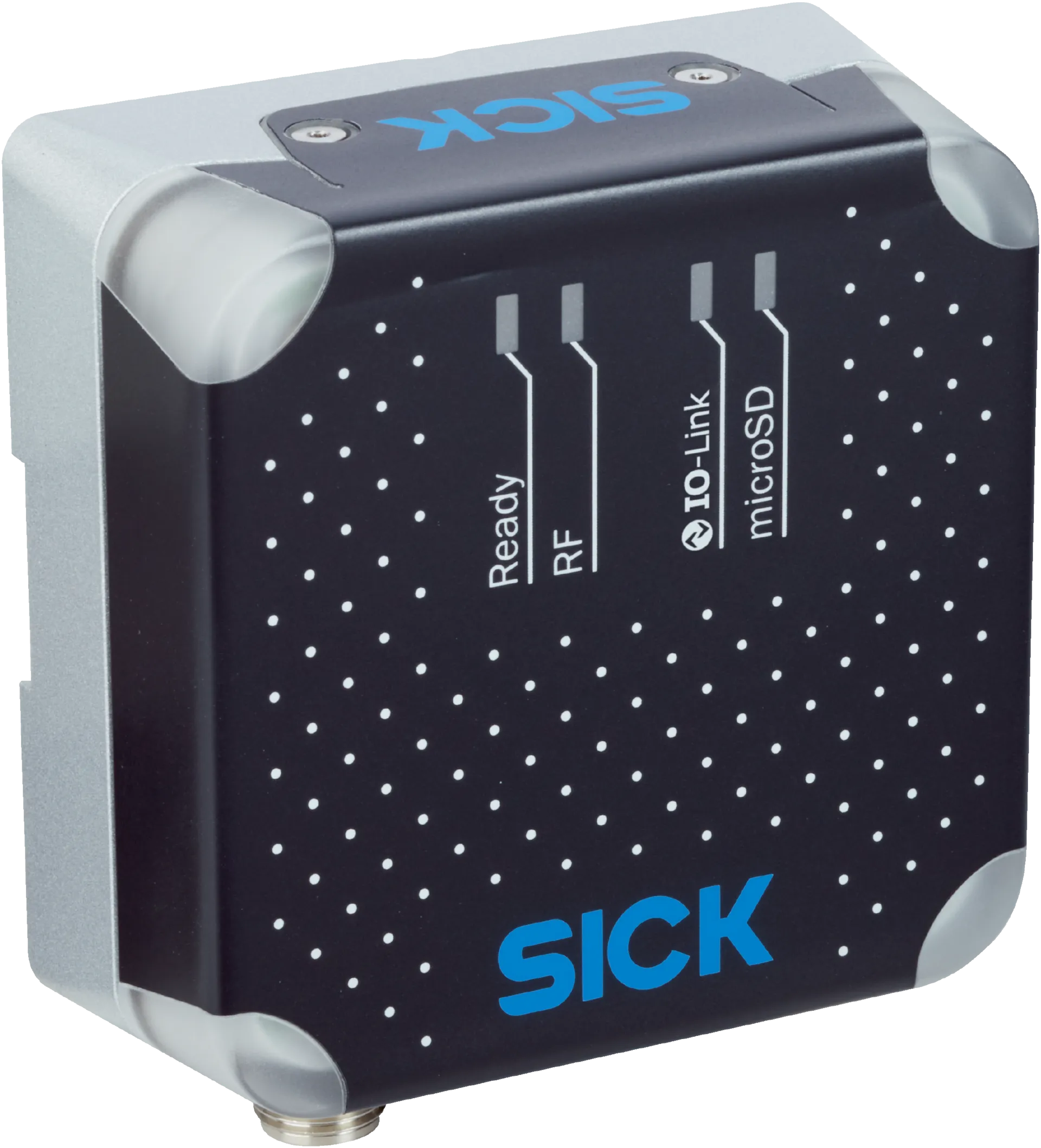

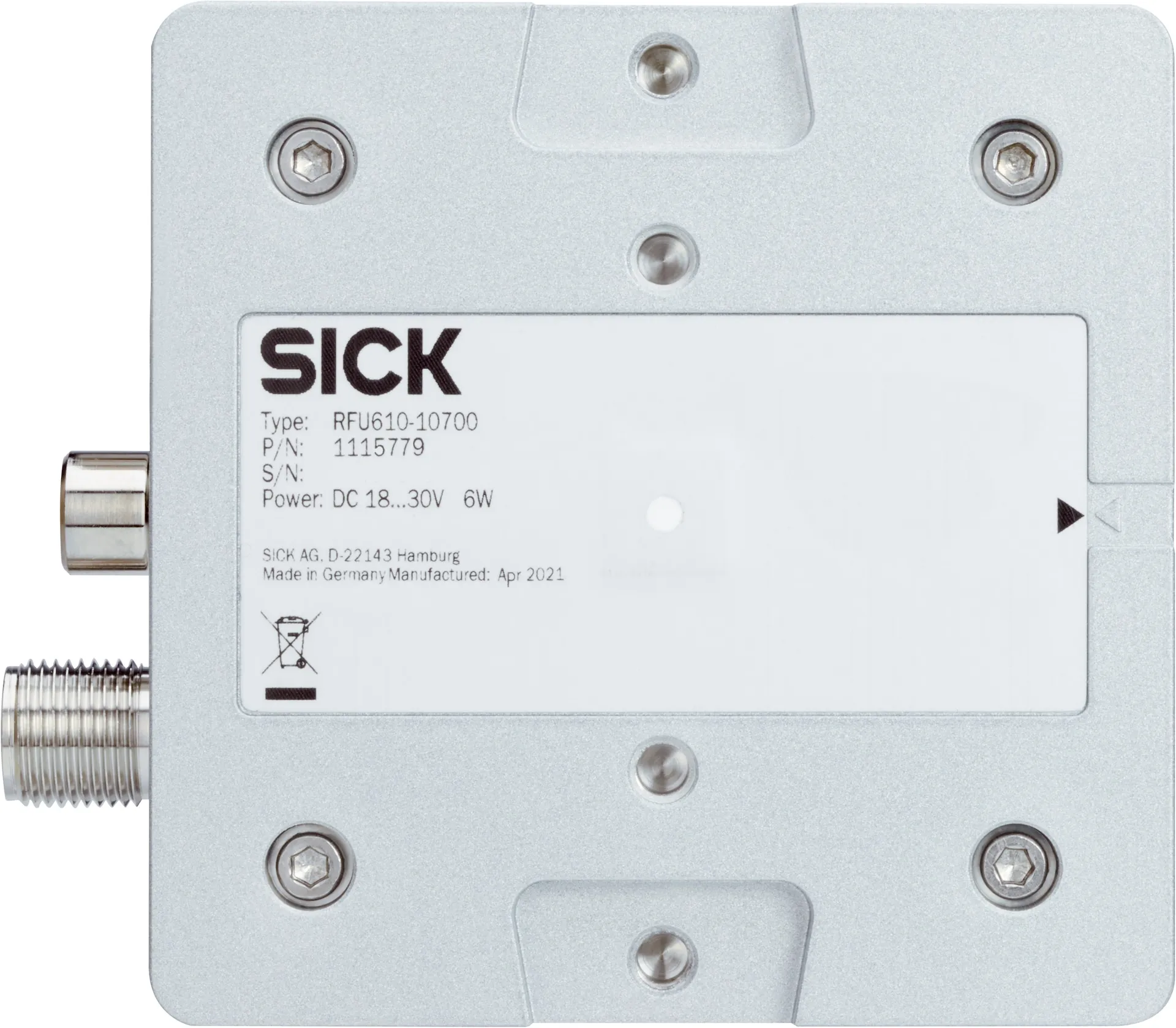

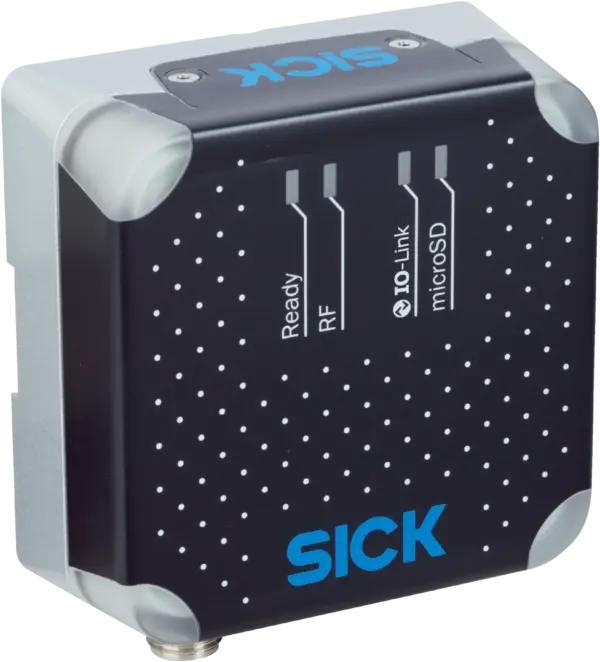

Sick RFU610-10713
RFID | RFU61x | RFU610-10713 | Radio approval: Taiwan | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 0.5 m | Enclosure rating: IP67
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID | RFU61x | RFU610-10713 | Radio approval: Taiwan | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 0.5 m | Enclosure rating: IP67
Specification
Features
| Version | Short Range |
|---|---|
| Product category | RFID read/write device with integrated antenna |
| Radio approval | Taiwan |
| Frequency band | UHF (860 MHz ... 960 MHz) |
| Carrier frequency | 922.25 MHz ... 927.75 MHz |
| Output power | 40Â mW (ERP, 16Â dBm) |
| RFID standard | EPCglobal UHF Class 1Â Generation 2, ISO/IECÂ 18000-6 C, RAIN |
| Modulation | PR-ASK |
| Connection type | IO-Link |
| Aperture angle | 110° |
| Reading range | â¤Â 0.5 m 1) |
| Antenna | Integrated |
| Transmitting power | Adjustable |
| Polarization | Circular |
| Axial ratio | Typ. 2 dB |
| Front-to-back ratio | >Â 5Â dB |
Mechanics/electronics

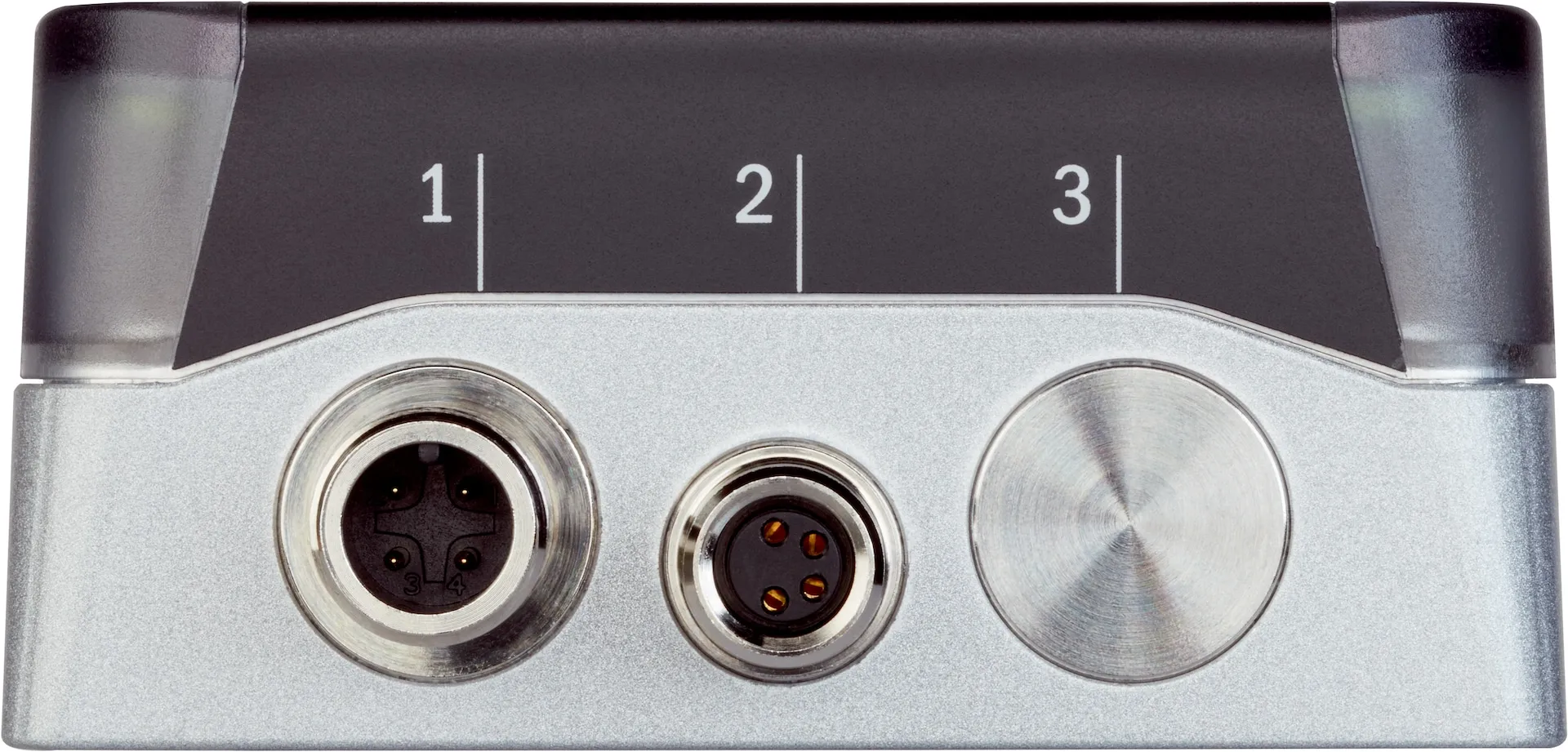

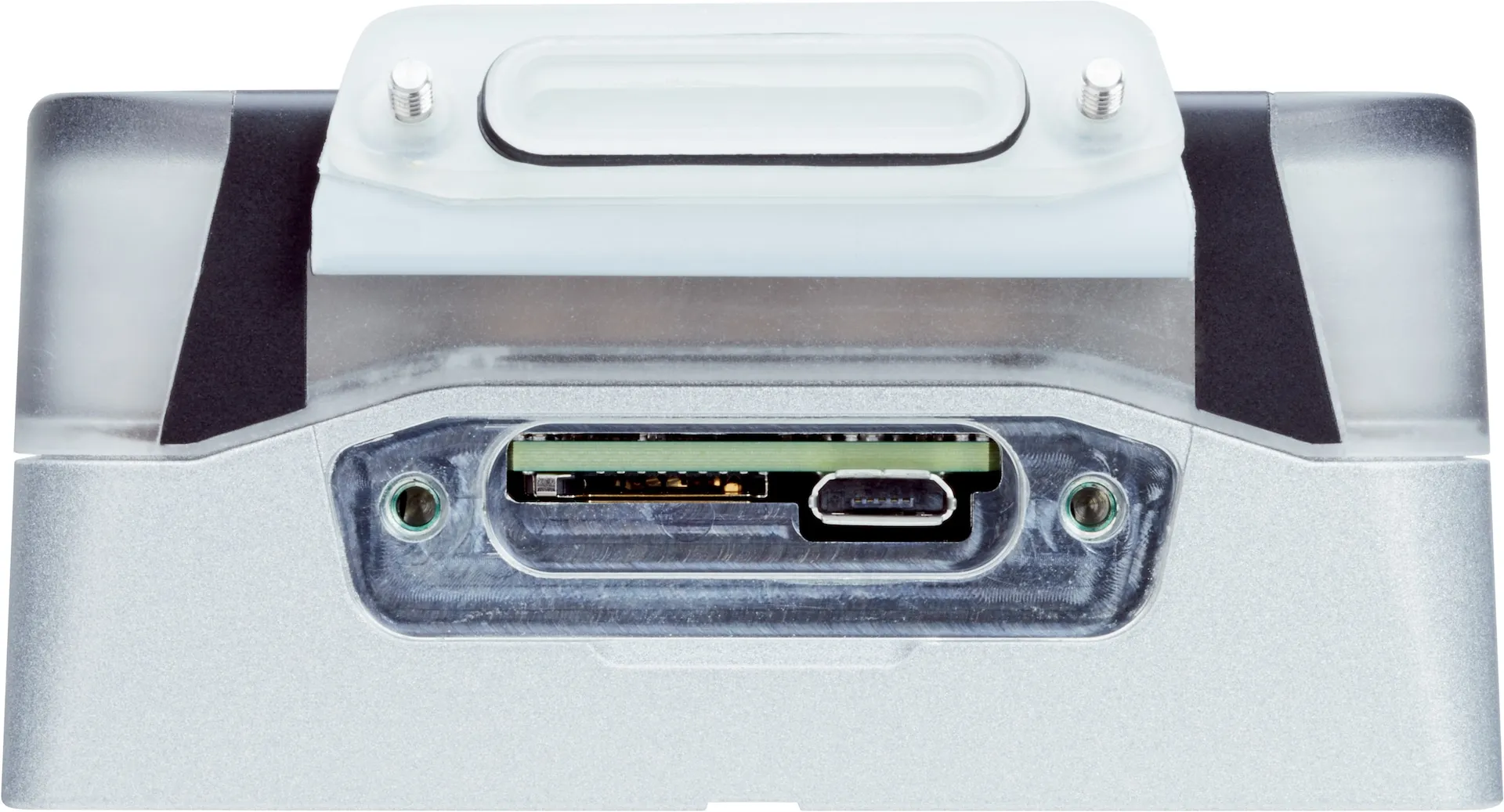

| Connection type | 1Â x M12, 4-pin male connector, A-coded1Â x M8, 4-pin socket1Â x USB, 5-pin micro-B socket |
|---|---|
| Supply voltage | 18Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | 6Â W, standby 3Â W |
| Housing material | Aluminum die castPlastic (PPS) |
| Enclosure rating | IP67 |
| Protection class | III |
| Weight | 313Â g |
| Dimensions (L x W x H) | 92 mm x 80 mm x 38 mm |
| MTBF | 22.25 years 1) |
Interfaces
| IO-Link | â , IO-Link V1.1 |
|---|---|
| Remark | Process data length: IN (input), 32Â bytes; OUT (output), 32Â bytes, SIO mode not supported |
| Function | Process data, parameterization, diagnosis |
| Data transmission rate | COM3 (230,4Â kBaud) |
| Digital inputs | 1Â (physical, switching, trigger sensor can be connected directly to the device (port 3)) |
| Optical indicators | 4Â LEDs, multi-color (device status)4Â RGB LED (Process feedback) |
| Configuration software | PLC softwareSOPAS ETÂ 1) |
| Memory card | Micro SD memory card |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 301489-1 V2.1.1Â (2017)Â / ENÂ 301489-3 V1.6.1Â (2013) |
|---|---|
| Vibration resistance | IECÂ 60068-2-6:2007IECÂ 60068-2-64:2008 |
| Shock resistance | ENÂ 60068-2-27:2008 |
| Ambient operating temperature | â25 °C ... +50 °C |
| Storage temperature | â40 °C ... +70 °C |
| Permissible relative humidity | 90Â %, Non-condensing |
Certificates
| China RoHS | â |
|---|---|
| Radio Approval certificate Taiwan | â |
| RAIN RFID | â |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ETIM 5.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
