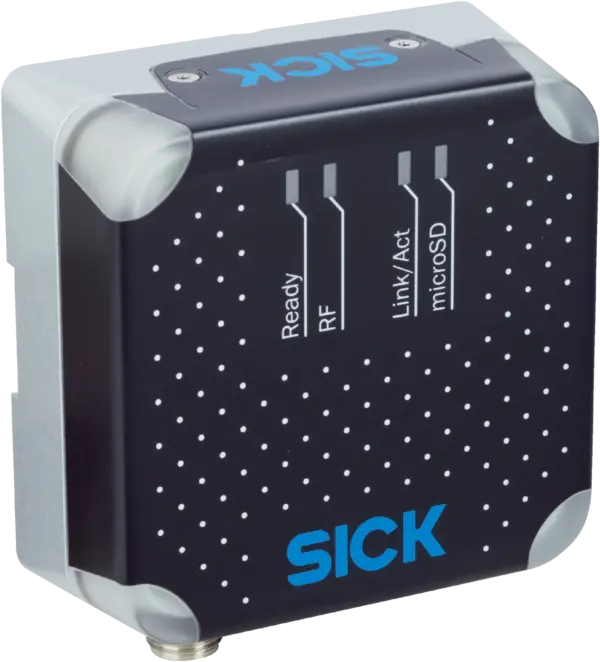

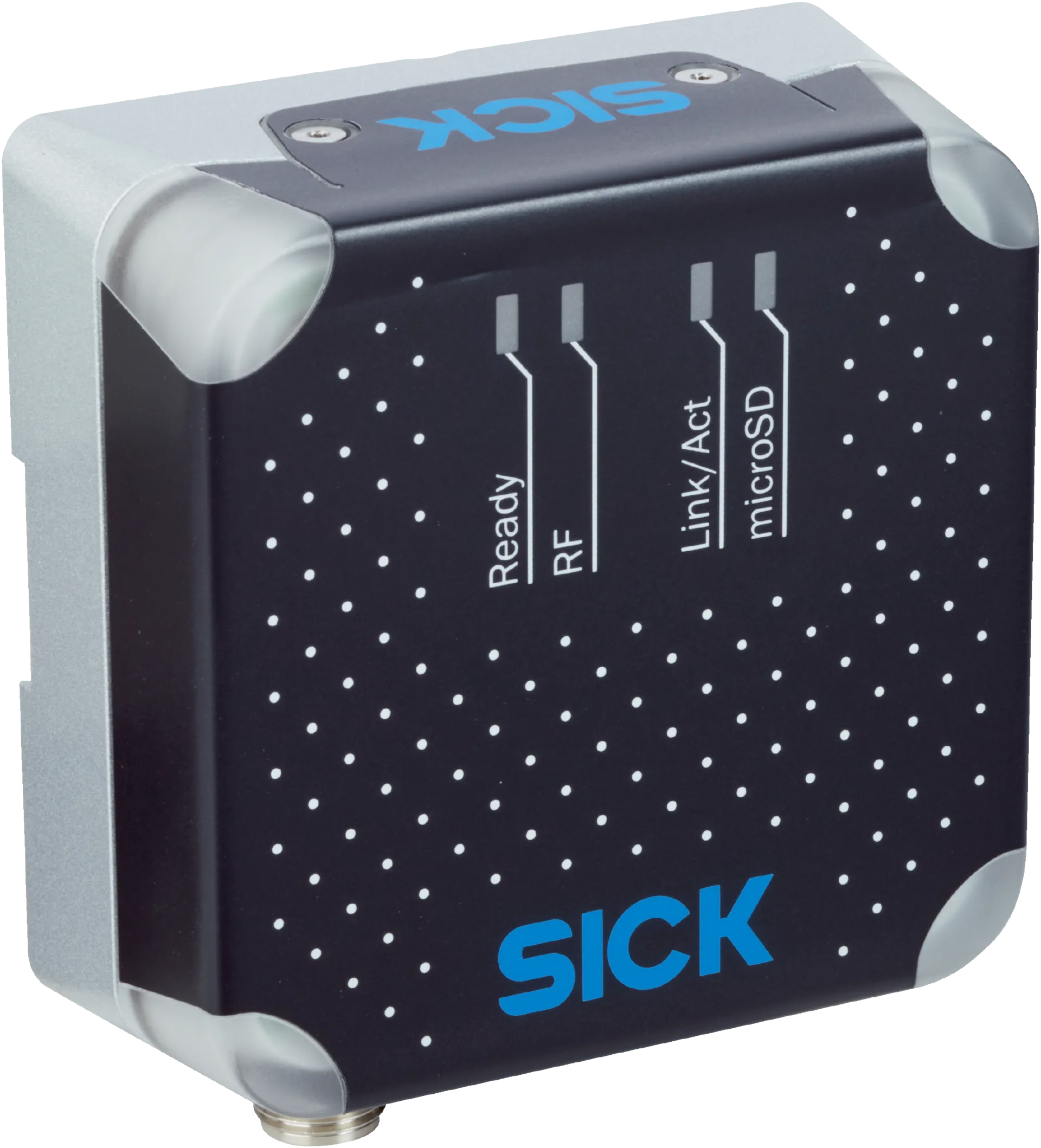

Sick RFU610-10603

RFID | RFU61x | RFU610-10603 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 0.5 m | Enclosure rating: IP67

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

RFID | RFU61x | RFU610-10603 | Radio approval: India | Frequency band: UHF (860 MHz … 960 MHz) | Reading range: ≤ 0.5 m | Enclosure rating: IP67

Specification

Features

VersionShort Range
Product categoryRFID read/write device with integrated antenna
Radio approvalIndia
Frequency bandUHF (860 MHz ... 960 MHz)
Carrier frequency865.7 MHz ... 866.9 MHz
Output power25Â mW (ERP, 14Â dBm)
RFID standardEPCglobal UHF Class 1Â Generation 2, ISO/IECÂ 18000-6 C, RAIN
ModulationPR-ASK
Connection typePoE, Power and Ethernet
Aperture angle110°
Reading range≤ 0.5 m 1)
AntennaIntegrated
Transmitting powerAdjustable
PolarizationCircular
Axial ratioTyp. 2 dB
Front-to-back ratio>Â 5Â dB

Mechanics/electronics

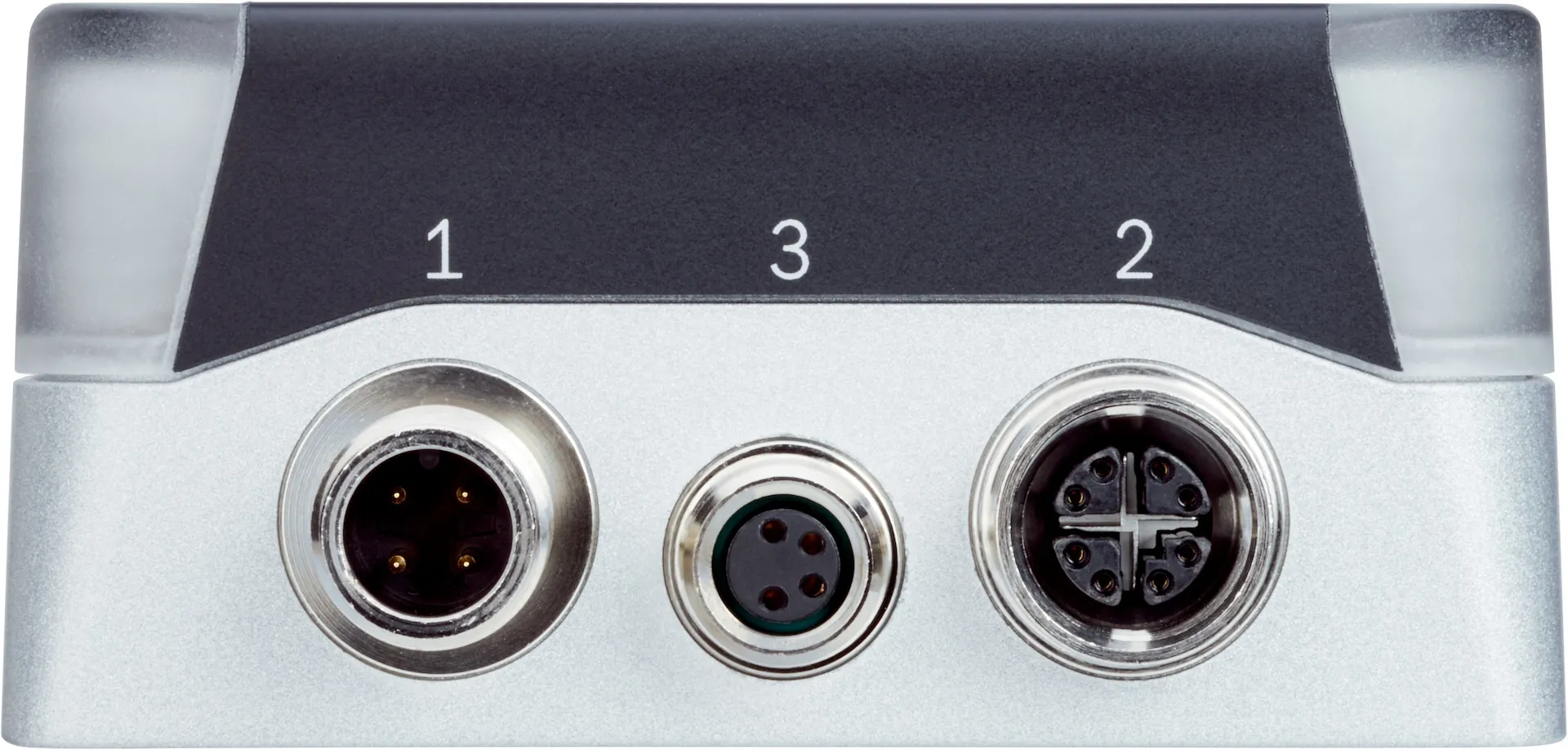

Connection type1Â x M12, 4-pin male connector, A-coded1Â x M12, 8-pin female connector, X-coded1Â x M8, 4-pin female connector, A-coded1Â x USB, 5-pin micro-B socket
Supply voltage18Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Power consumption6Â W, standby 3Â W
Housing materialAluminum die castPlastic (PPS)
Enclosure ratingIP67
Protection classIII
Weight313Â g
Dimensions (L x W x H)92 mm x 80 mm x 38 mm
MTBF22 years 2)

Interfaces

Ethernet✔ , TCP/IP, PoE, OPC UA
RemarkCompanion Spec V1.0Â from firmware 2.20
FunctionData interface (read result output), Service interface
Data transmission rate10/100Â MBit/s
PROFINET✔
FunctionPROFINET Single Port, Data interface (read result output)
Data transmission rate10/100Â MBit/s
EtherNet/IP™✔
FunctionData interface (read result output)
Data transmission rate10/100Â MBit/s
USB✔
RemarkUSB 2.0
FunctionService interface
Digital inputs1Â (physical, switching, trigger sensor can be connected directly to the device (port 3) - max. 40Â mA)
Optical indicators4Â LEDs, multi-color (device status)4Â RGB LED (Process feedback)
Operator interfacesWeb server
Configuration softwareSOPAS ETÂ 1)
Programming interfaceApplication-specific programming using the SICK AppStudio development environment
Memory cardmicroSD memory card (parameter cloning, data storage)

Ambient data

Electromagnetic compatibility (EMC)ENÂ 301489-3
Vibration resistanceENÂ 60068-2-6:2007
Shock resistanceENÂ 60068-2-27:2008
Ambient operating temperature–25 °C ... +50 °C
Storage temperature–40 °C ... +70 °C
Permissible relative humidity90Â %, Non-condensing

Certificates

China RoHS✔
BIS registration✔
Radio Approval certificate India✔
RAIN RFID✔

Classifications

ECLASS 5.027280401
ECLASS 5.1.427280401
ECLASS 6.027280401
ECLASS 6.227280401
ECLASS 7.027280401
ECLASS 8.027280401
ECLASS 8.127280401
ECLASS 9.027280401
ECLASS 10.027280401
ECLASS 11.027280401
ECLASS 12.027280401
ETIM 5.0EC002998
ETIM 6.0EC002998
ETIM 7.0EC002998
ETIM 8.0EC002998
UNSPSC 16.090152161523
